Porsche 996 Cabriolet — Convertible Top Closure Sensor Lever (Replacement)

What this is

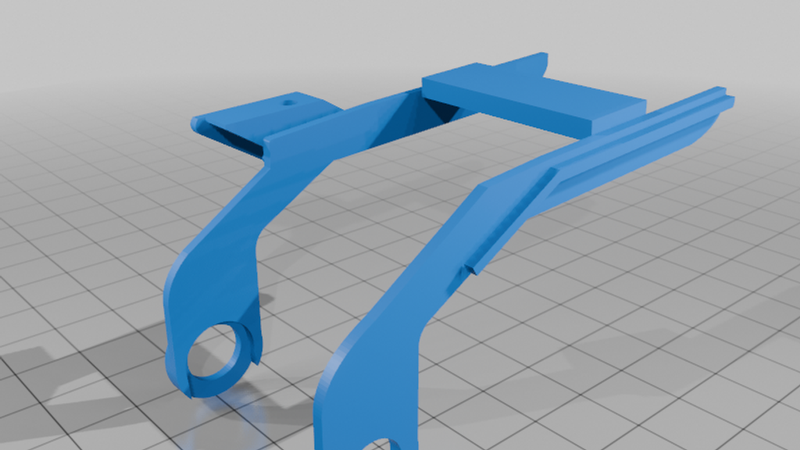

A replacement lever for the convertible-top closure/position sensor on the Porsche 911 (996) Cabriolet. On these cars the top control module reads a set of microswitches/sensors to know the state of the roof mechanism, and it will refuse to run the top sequence if any of these readings is inconsistent. The original plastic lever that trips the closure sensor is fragile and commonly cracks or breaks with age — when it does, the sensor never gets triggered and the top won't operate (typically red top warning light, no movement).

I broke/found mine broken during a full top-system restoration and couldn't source the part on its own, so I redrew it and printed a replacement. Sharing it here so the next person doesn't have to.

Fitment

• Porsche 911 (996) Cabriolet
• Verify against your own part before printing — there were running changes over the production years. Compare dimensions to your original (or its remains) first.

Why you might need it

• Convertible top won't operate, red warning light on the dash
• The closure sensor isn't being triggered when the mechanism reaches position
• Original lever cracked, broken, or missing

> Note: a non-triggered closure sensor is only one possible cause of a dead top. On my car it was part of a larger job (missing clamshell drive motor, a latch sensor that wasn't making contact, and a hydraulic circuit that had been manually disengaged by a previous owner). If your top is down, diagnose the whole chain — don't assume this part alone will fix everything.

Printing recommendations

• Material: PETG or ABS/ASA recommended over PLA — this part lives in a warm, enclosed area behind the rear seats/under the top, and PLA can soften and creep over time. ASA/PETG handle heat and mechanical stress much better.
• Layer height: 0.15–0.2 mm
• Infill: 50–100% (small part, mechanical function — go dense)
• Perimeters: 4+ for strength
• Orientation: print to keep layer lines perpendicular to the main stress direction of the lever arm, so it doesn't split along a layer line under load.
• Clean up any elephant's foot on the mating/pivot surfaces so it seats and moves correctly.

Fitting

• Compare to your original before installing.
• Make sure the lever actually trips the sensor through its full travel — you may need to fine-tune. In my case the adjacent latch sensor also needed a shim to make proper contact, so check that the switch is genuinely actuated in the locked/closed position.

License & disclaimer

Shared freely, open source — use, remix, and improve it. If you make a better version, please post it back so the community benefits.

Provided as-is, with no warranty. This is a reverse-engineered hobby part for an old car's convertible-top mechanism. You are responsible for verifying fitment and safe operation on your own vehicle. Not affiliated with or endorsed by Porsche. "Porsche" and "996" are used for identification/compatibility only.

If it helps you get your 996 cab top working again, drop a "Made" or a comment — always good to know it saved someone the headache. 🛠️
