Bosgame M5 Mini PC Wall Mount / Wandhalterung (Non-VESA Solution)

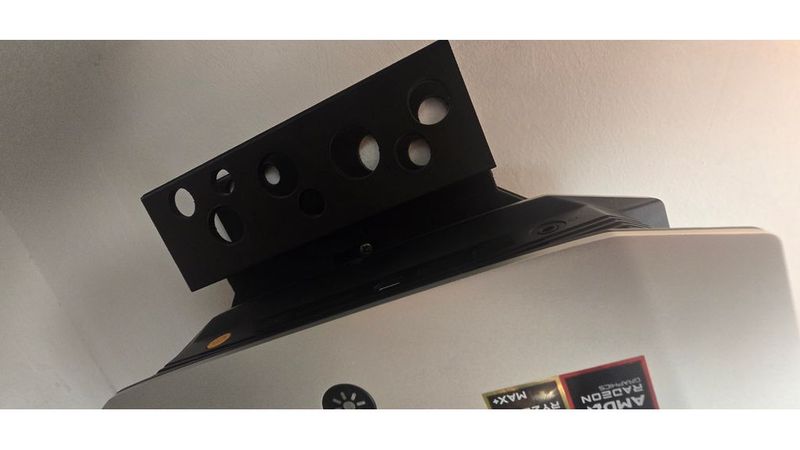

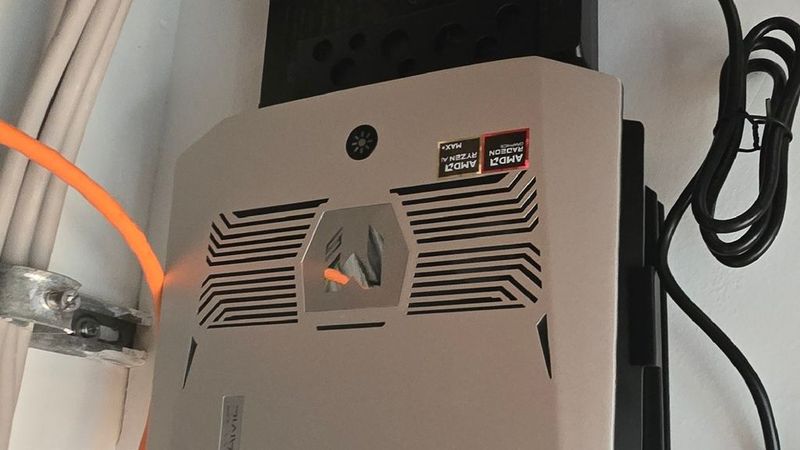

The Bosgame M5 Mini PC does not come with factory VESA mounting holes, restricting it to sitting flat on a desk. This custom, two-piece mounting system solves this issue entirely, letting you mount your Mini PC securely to a wall, inc. a place for the power supply.

Features:

Thermal Friendly: Designed with a built-in offset from the wall to ensure plenty of rear ventilation. Your Mini PC's intake and exhaust profiles remain completely unobstructed.

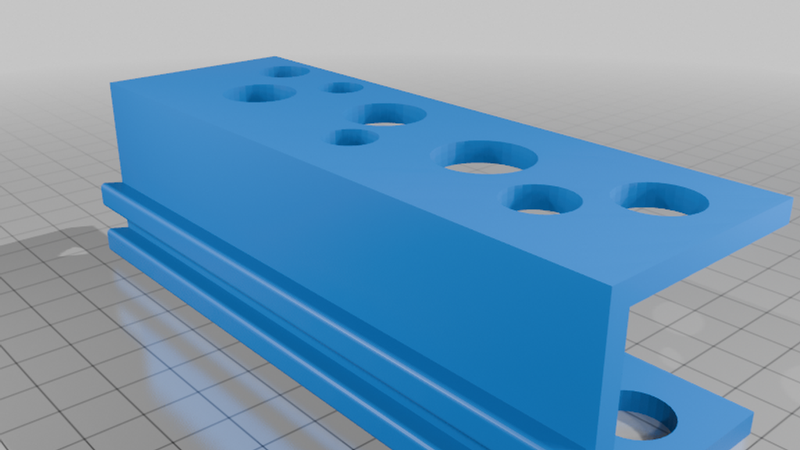

Modular PSU Storage: No messy power bricks lying around. The optional PSU bracket (included as a separate file) effortlessly slides onto the top-side tracks of the main mount after it’s screwed to the wall.

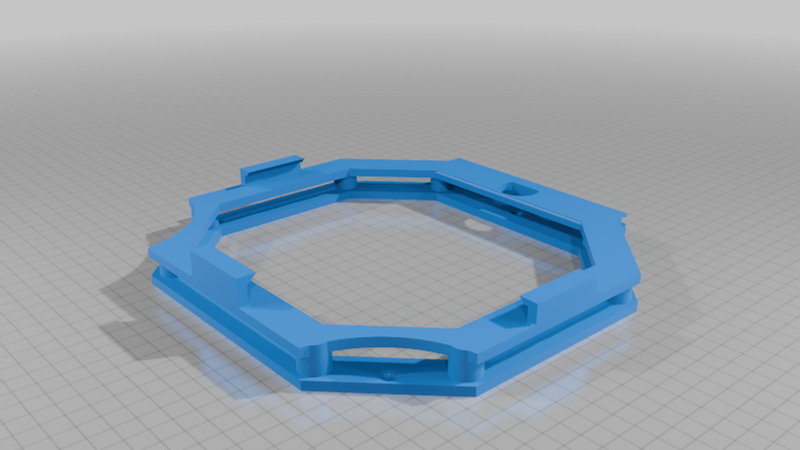

Gravity Fit: The PC simply slides into the main bracket from the top and stays locked in place securely.

Print Settings:

Material: ABS (recommended for its robustness and thermal stability under continuous heat load)

Layer Height: 0.24 mm

Infill: 15%

Supports: Tree Supports enabled

Orientation: Print standing up.

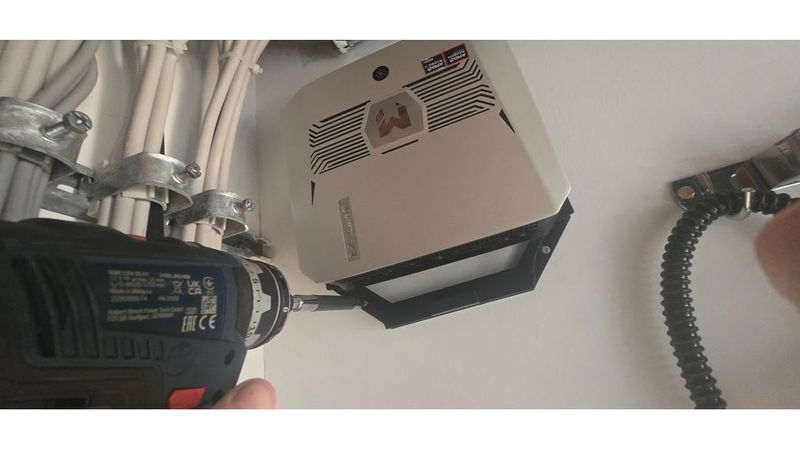

Hardware Needed: 3 screws
