M5Stack Dial Workbench Mount for Sparkle Motion

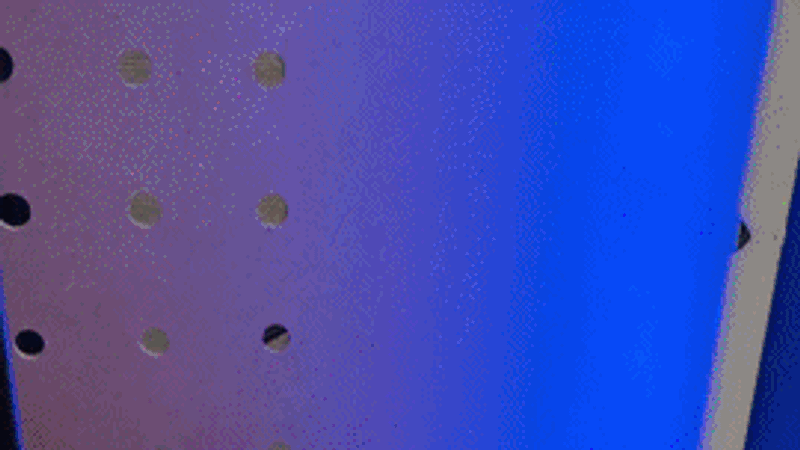

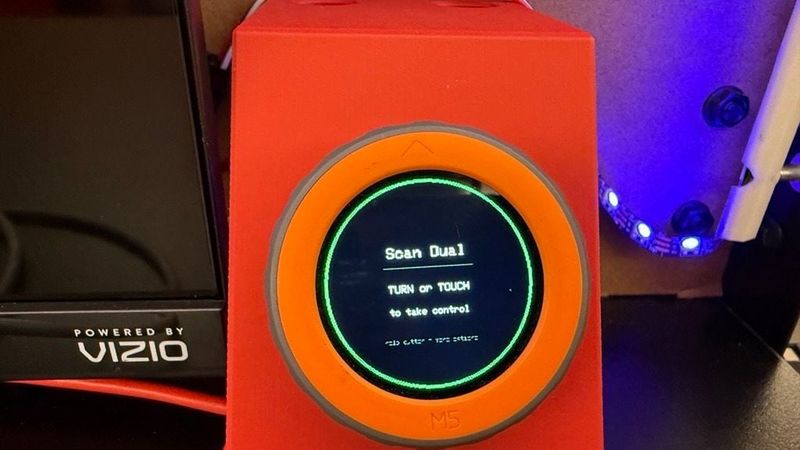

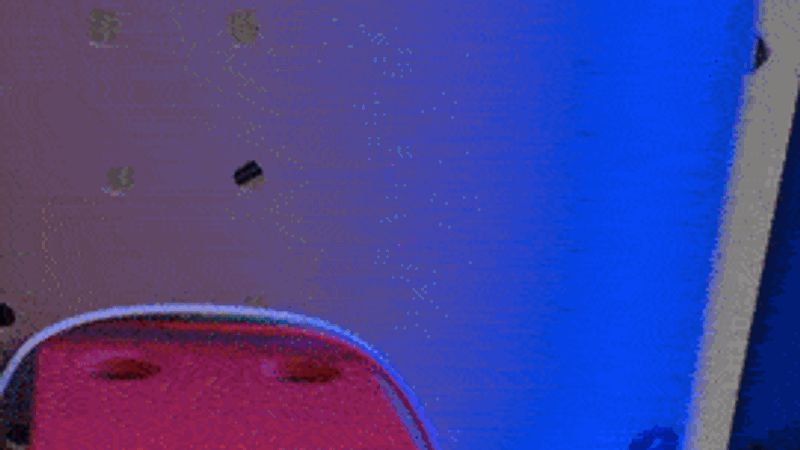

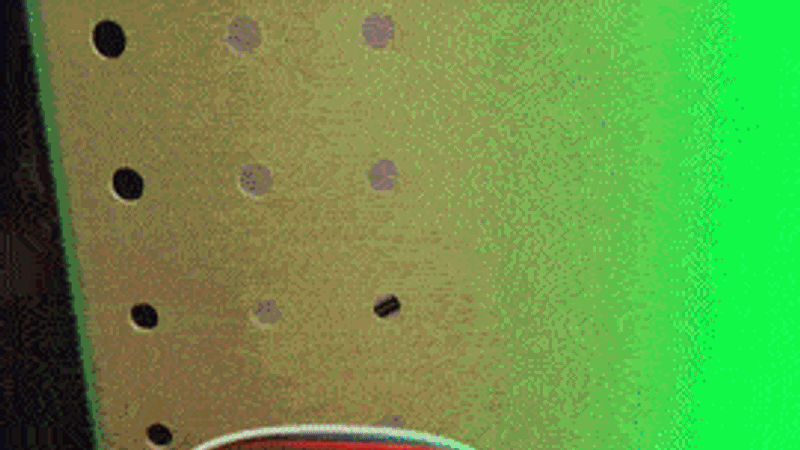

Give your M5Stack Dial a permanent home with this custom-designed workbench mount! Created for an interactive Sparkle Motion demo featuring Adafruit's LED technology, this mount securely positions the M5Stack Dial along the back edge of a Harbor Freight workbench and connects to the pegboard with bolts, providing easy access while keeping your workspace clean and organized. It also features two holes for storing pens, screwdrivers, tweezers, or any other tools you can think of.

Originally designed for the DigiKey booth at OpenSauce 2026, this mount is perfect for anyone looking to integrate the M5Stack Dial into a workbench, control panel, or interactive electronics project.

🔧 Features

• Custom-fit for the M5Stack Dial
• Mounts securely to the back edge of a Harbor Freight workbench
• Keeps the display and rotary encoder within easy reach
• Clean cable routing for a professional-looking installation
• Sturdy, easy-to-print design

🖨️ Print Settings

• Layer Height: 0.2 mm
• Material: PLA or PETG
• Infill: 15–20%
• Supports: Not required

💡 Perfect For

• Interactive electronics projects
• Workbench control panels
• Makerspaces and workshops
• Trade show demonstrations
• M5Stack enthusiasts

✨ Originally Designed for OpenSauce 2026

This mount was created as part of an interactive demonstration for the DigiKey booth at OpenSauce 2026, where an M5Stack Dial is used to control an Adafruit Sparkle Motion LED controller.

The rotary encoder and touchscreen provide an intuitive interface for changing LED animations, colors, brightness, and effects while keeping the controller securely mounted to the workbench.

Whether you're recreating the demo or building your own custom workstation, this mount provides a clean, professional way to integrate the M5Stack Dial into your project.

🚀 Expand Your Project

This mount is just the beginning! Pair it with an M5Stack Dial and your favorite microcontroller to build custom interfaces for:

• LED lighting controllers
• CNC machines
• Test equipment
• Home automation
• Workshop tools
• Interactive displays

To learn more about the project build, check out the Maker.io tutorial:

Happy printing!
