Biqu Microprobe BL touch mount for 5015 fan

iceman2511
iceman2511
5 Files
stl Format

Description

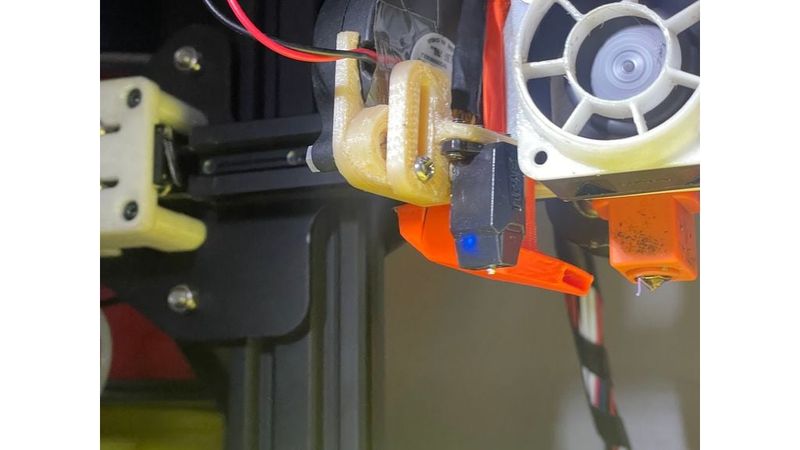

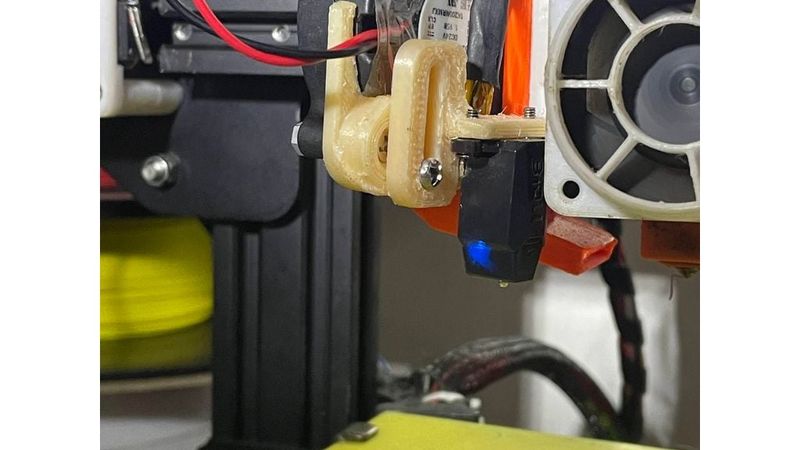

Just a simple mount for a microprobe to be attached to a 5015 fan with different options for mounts. You will need a few different lengths of both m3 screws from around 10-18mm, and m3 heat inserts, as well as 2 m2.5 screws and heat inserts.

This is for the Biqu microprobe only, and not for the original BL touch probe, as they have different mounting spacing, but you might get away with it if you dont use heat inserts, and instead use nuts and screws to attatch the bl touch to the mount, but please request if you would like me to design the mount for either BL touch compatibility or for a different position for the mount piece.

Downloads

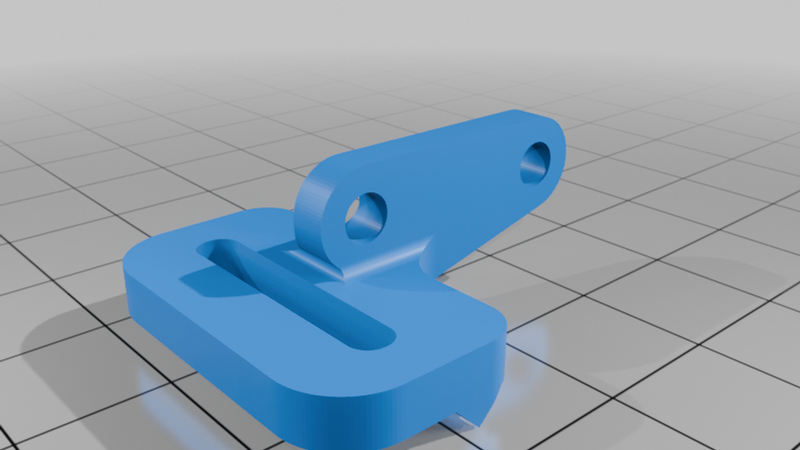

5015_fan_bl_touch_mount_piece_bottom_middle.stl
133.1 KB

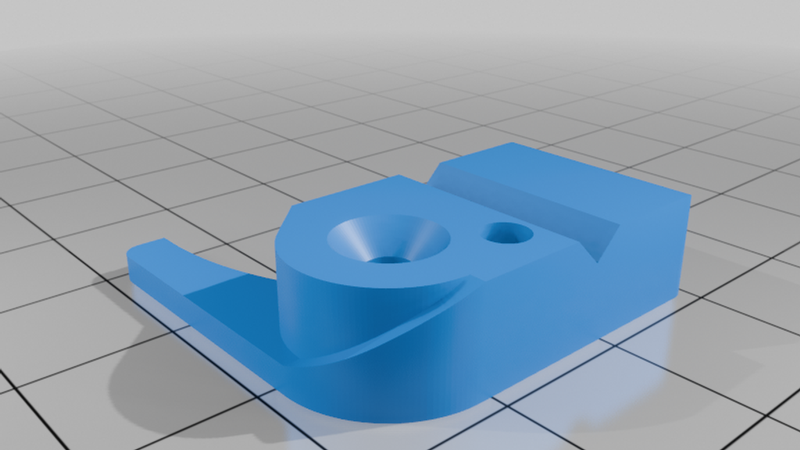

5015_fan_microprobe_mount_body.stl
167.3 KB

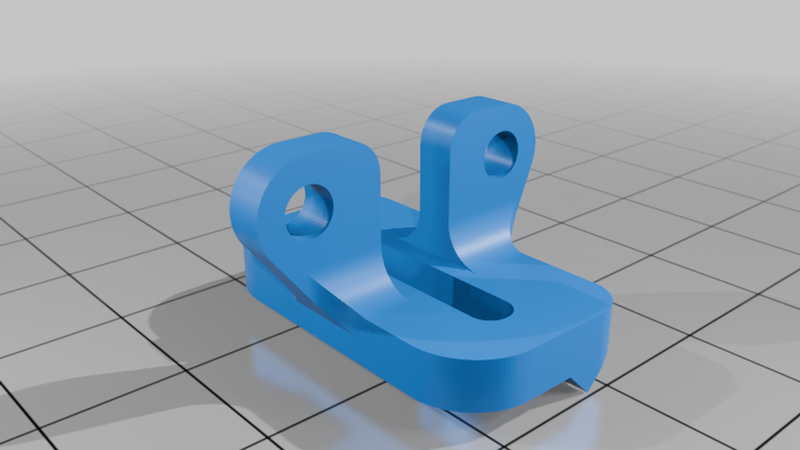

5015_fan_microprobe_mount_piece_middle_middle.stl
137.7 KB

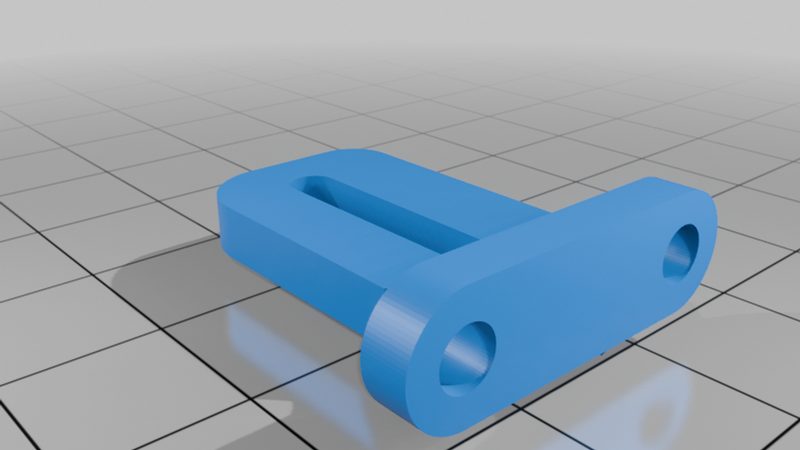

5015_fan_microprobe_mount_piece_middle_right.stl
103.5 KB

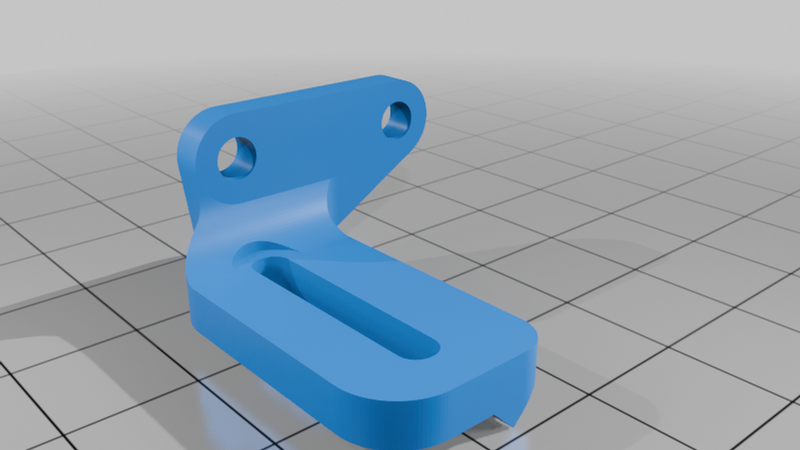

5015_fan_microprobe_mount_piece_top_slight_right.stl
102.6 KB
