Raspberry Pi Cyberdeck for 5" Screen and Mini Keyboard

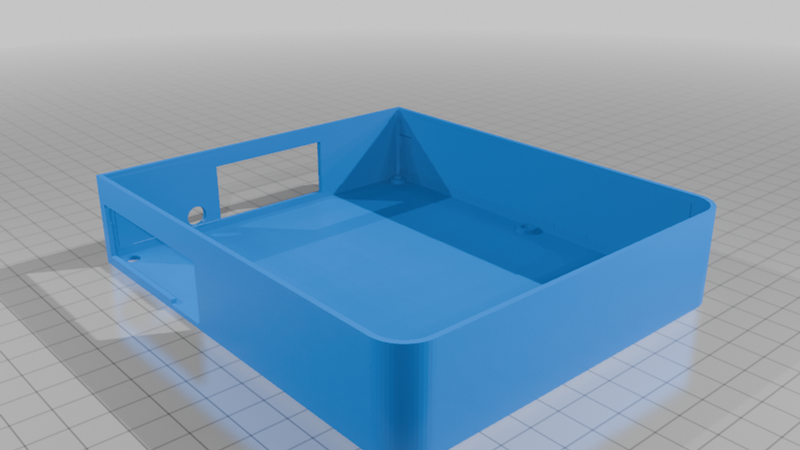

This started with the "Decktility" design that is not here on thingiverse. But it did not fit a full size Raspberry Pi under the LCD. So I made it taller and added the holes needed to fit a Raspberry Pi 3, 4, or 5.

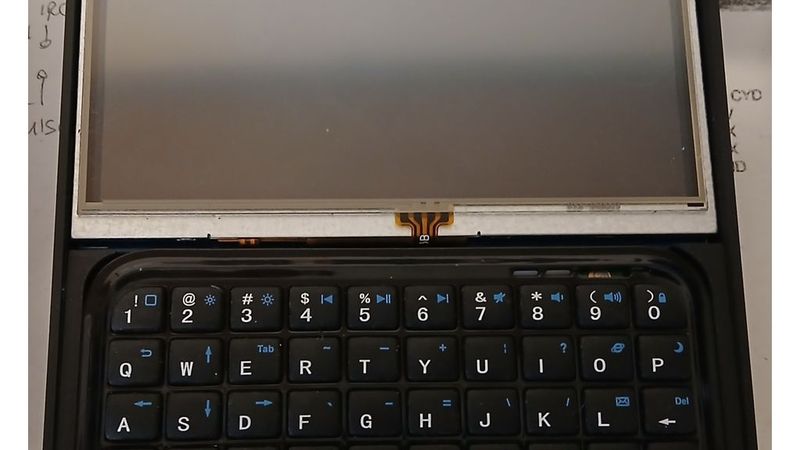

This was designed for an older waveshare "5inch HDMI Display 800x480 Pixel" LCD.

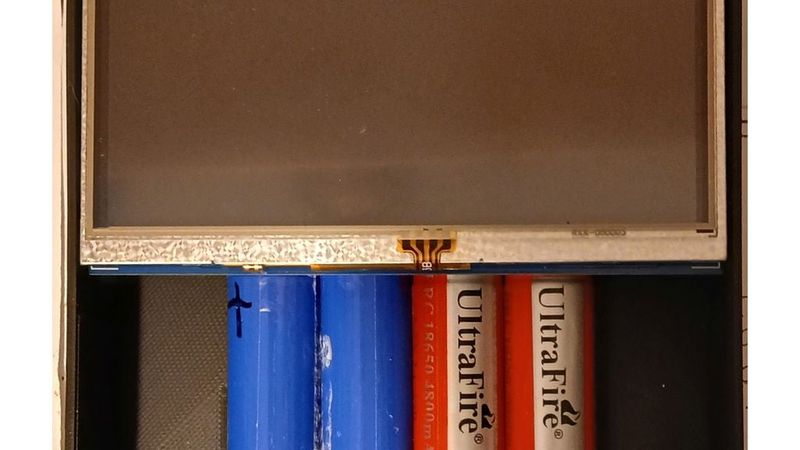

This design has room for four batteries under the keyboard!

I cannot figure out how the standoffs are supposed to work as they are not long enought to pass through the case.

Supports are not required depending on how well your printer does bridges.

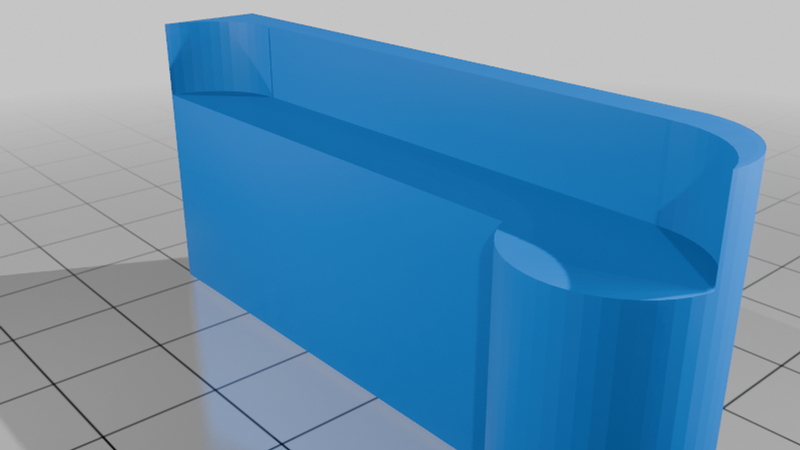

The case should be printed solid but the keyboard supports can be 25% fill.

If you want a revision for your LCD or keyboard send me one free of charge. LOL.

I might give away some prototypes as I am on revision 34 so far.

I might do an adapter for using a 3.5" LCD as well.
