Heltec V4 case LoRa Meshtastic

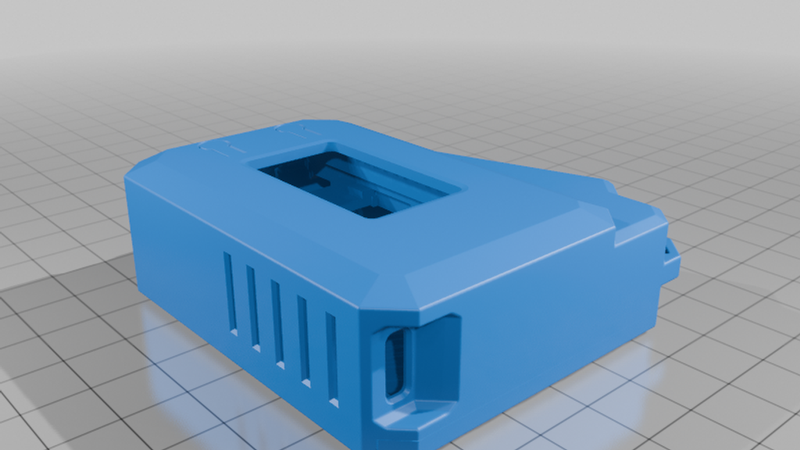

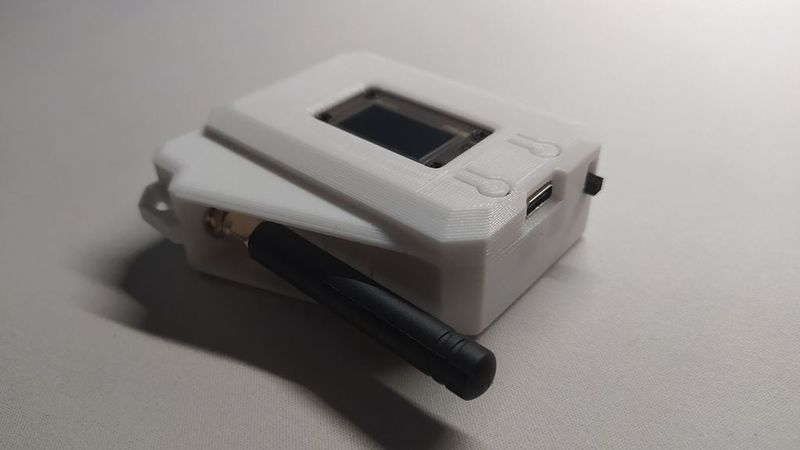

Case for Heltec V4 LoRa node with 3000 mAh battery

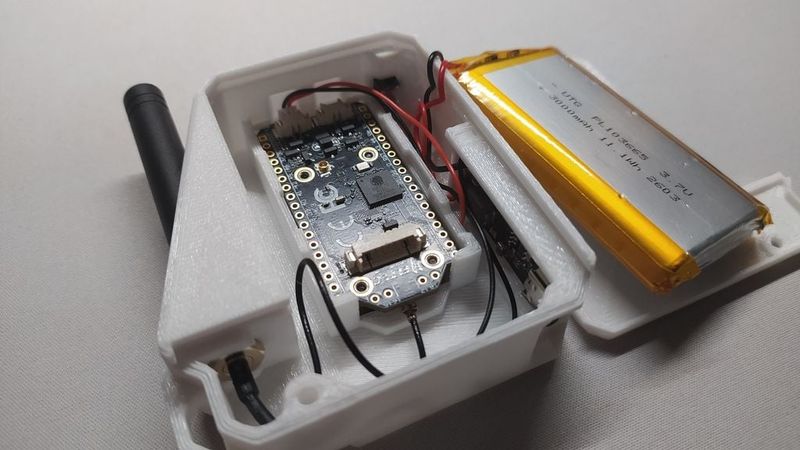

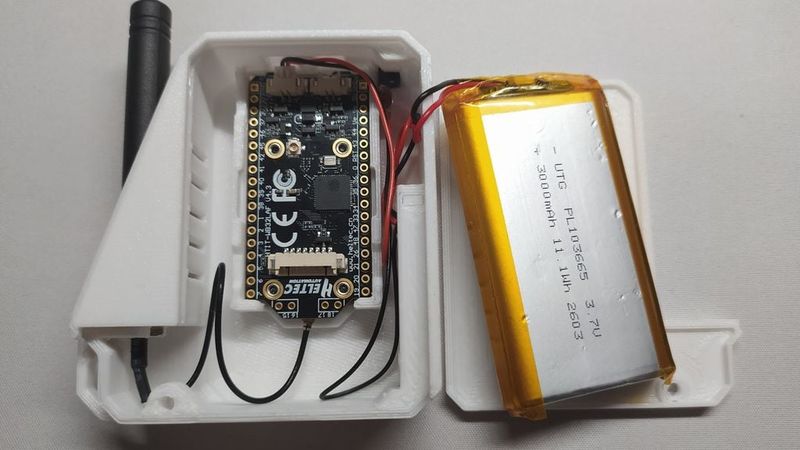

This enclosure was designed for the following components:

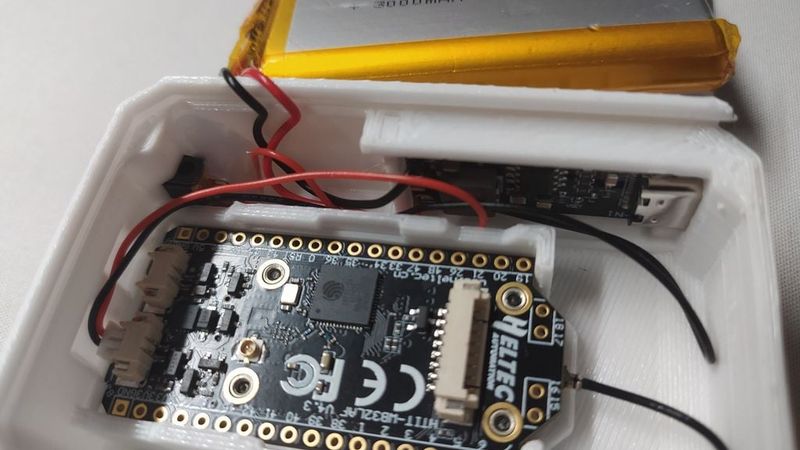

• Heltec V4;
• antenna with SMA connector (and pigtail-to-SMA cable);
• 103665 3000 mAh battery;
• IP2312 3A Type-C charge controller;
• SS-12F15 1P2T slide switch.

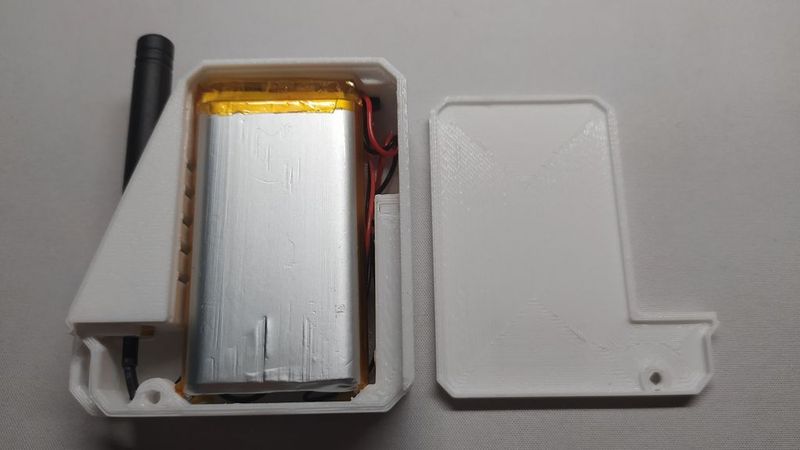

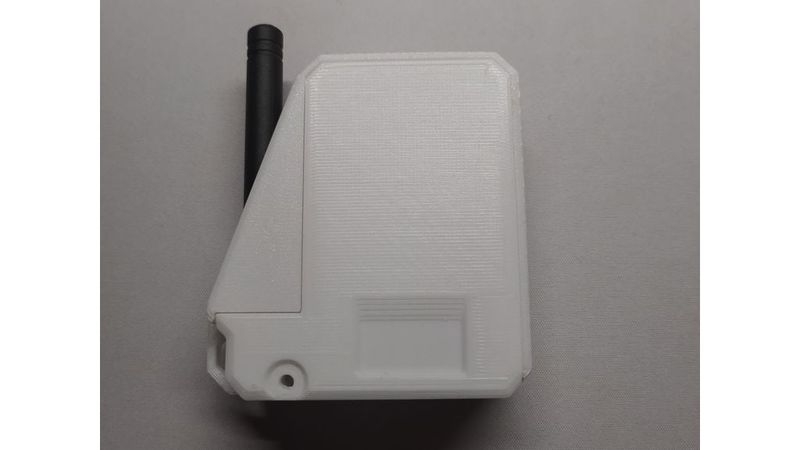

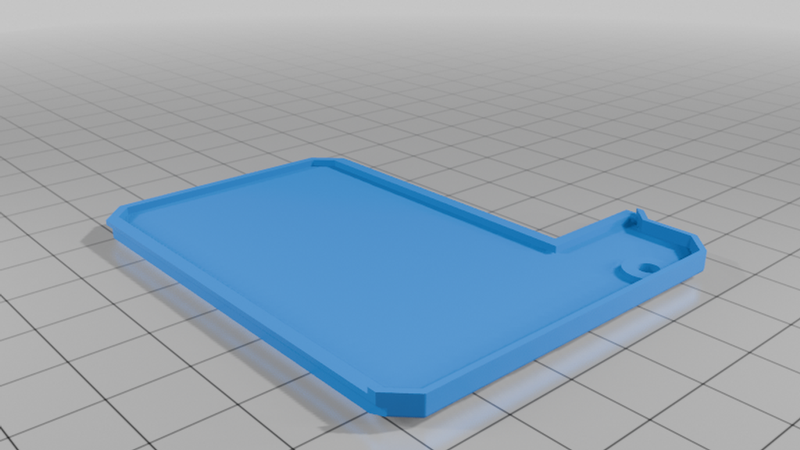

The switch should be secured with a glue on it's place. The back cover can be additionally secured with an M3x6 screw.
