Under Table DVD Rack

Under Table DVD Rack

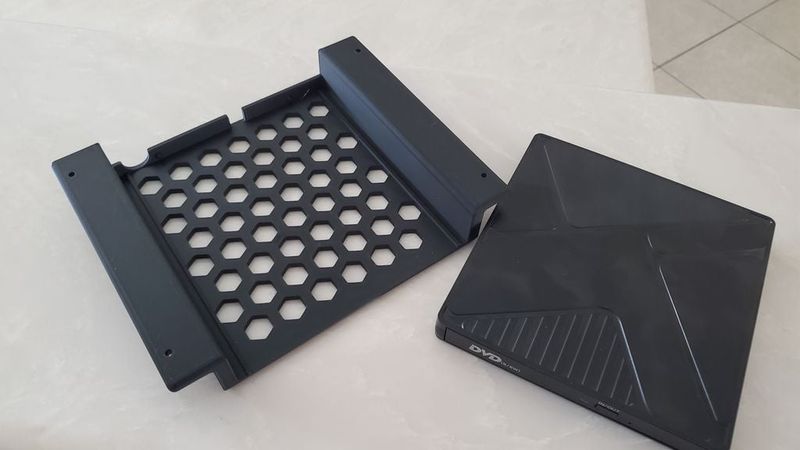

This is a rack to mount an external DVD drive on the underside of a table top.

It is modeled specifically to fit this drive...

https://www.amazon.com/dp/B0GS8Y248X?ref=ppx_yo2ov_dt_b_fed_asin_title

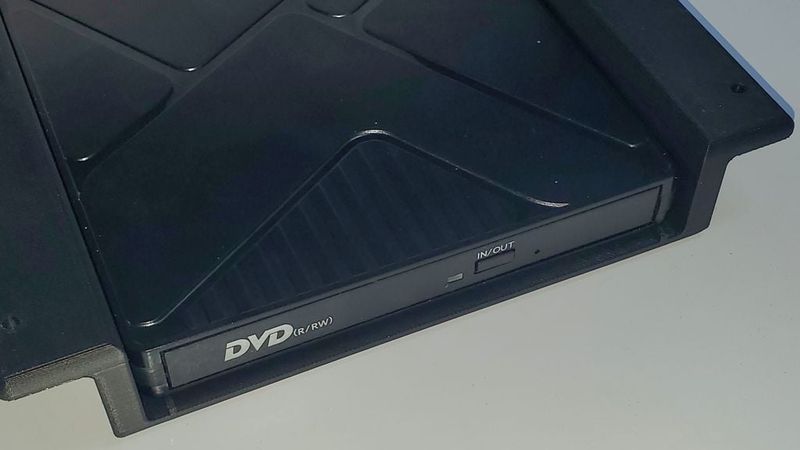

... which measures 143 mm wide by 147 mm deep X 18 mm high. The model should work for similar drives but the cable notches may not be where needed. If it's necessary to chop out new ones they will be in a place no one will ever see.

The four mounting holes are 3.5 mm in diameter. The hole pattern is 185 mm wide 126 mm long.

Scaling in the slicer might well adapt this model for drives with different dimensions.

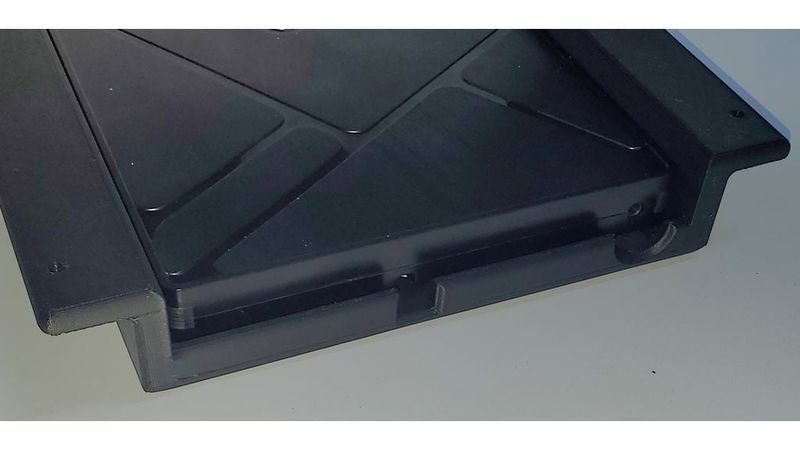

I made provisions for a little space all around for cooling, including a couple of rails that hold it 2 mm clear of the perforated bottom and a pair of nubs to hold it clear of the rear wall. That rear wall is only half-height so there's a bit of room all around for air circulation. This drive has a separate power supply port, suggesting it may require a little more power than a USB data port can supply. Some consideration of cooling seemed wise.

This is an easy print but supports are needed for the "wings" on each side.

Material: PLA

Layer height: 0.15 mm

Shells: 2

Walls: 0.4 mm

Infill: 12%

Supports: Yes
