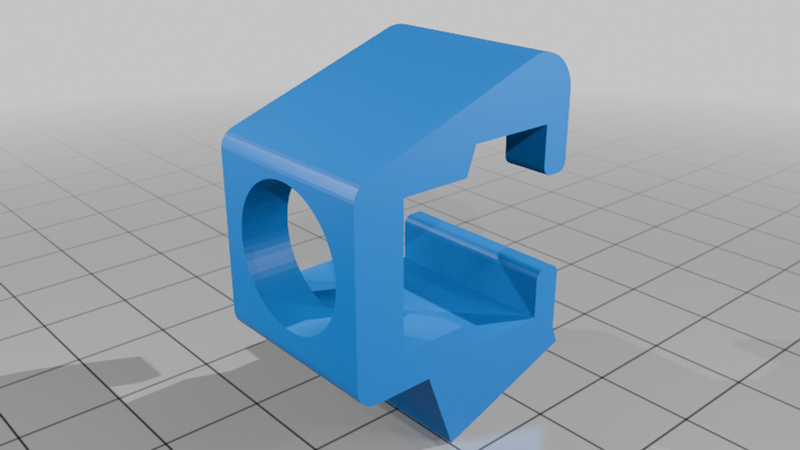

TBS Source One V5 20 degree fixed camera seat/mount

20 degree fixed camera seat for the TBS Source One V5 frame.

Recommend printing with TPU and the circle face down, any infill and walls since its not really exposed enough to take any impacts.

Made this as I was tired of the screws coming loose, and wanted something that still protected the camera by keeping it recessed into the frame enough.

It is a very snug fit between the top and bottom plates & both side plates, so no additional screws are needed to keep it in place (since that is its whole purpose lol)

You may need to cut off a bit of the sides of the front face (side where the lens sticks out) in order to fit the seat between the standoffs, as it is a very tight fit. Alternatively you can import this to a CAD software and remove a bit of the front side edges.

Made to fit the RunCam Phoenix 2 SE with a 14 mm diameter lens hole, but maybe you could get away with using a smaller camera than it (as long as the lens bit is the same diameter)
