Sunlu Filadryer S2 Frame Side Mount for Longer LK5 Pro, CR-10, Ender 3, 2040 Extrusion Mount

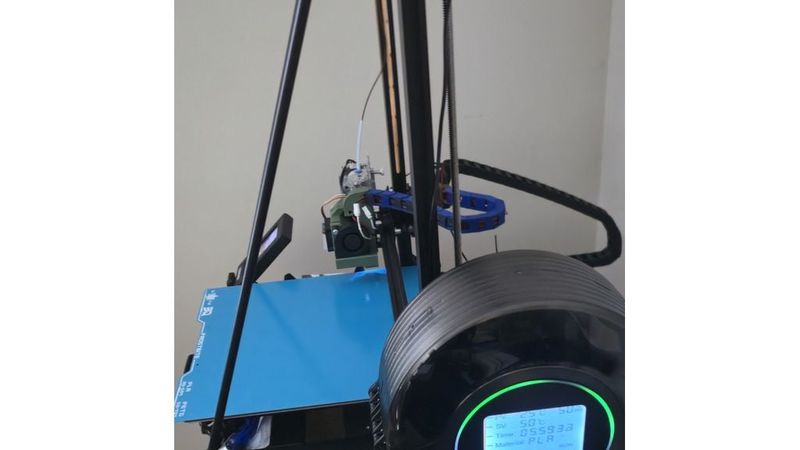

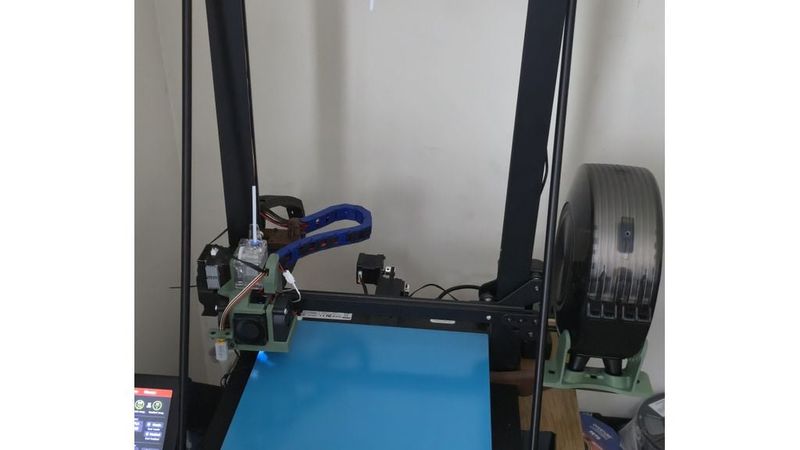

I have been looking for a way to mount my Sunlu Filadryer S2 to the bottom side frame of my LK5 Pro since I got it. The stabilizer stand that I remixed this from is elegant and secure, so I decided I would design some brackets to mount this on the lower longitudinal 2040 extrusions of my printer.

Coming Soon: Toolless Detachable Storage Drawer for Drop-Mount!

See Screenshot

The entire is design is intended to be printed without supports.

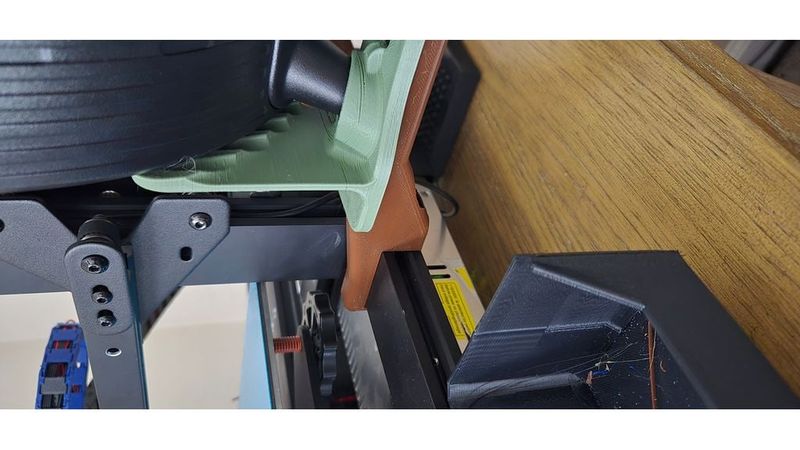

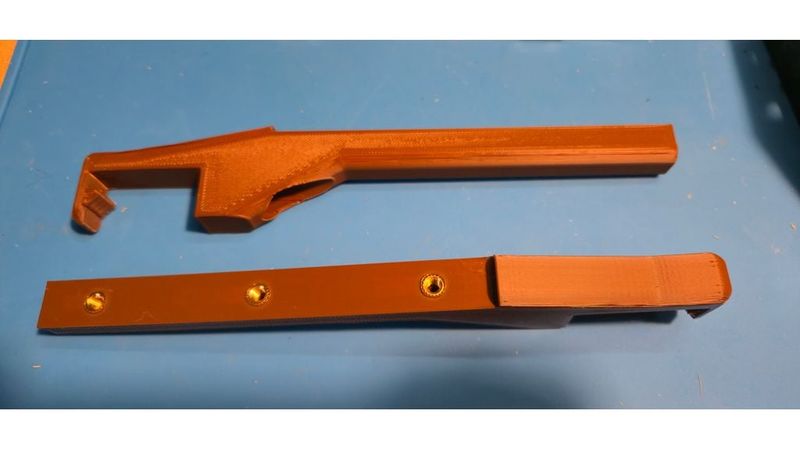

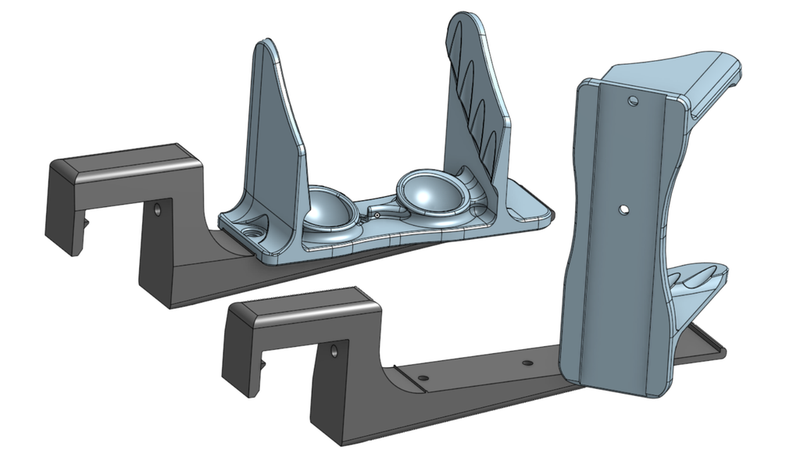

I ended up with two versions of this mount. The original keeps the dryer feet just above level with the top of the 2040 extrusion. After mounting that, I decided I could lower the center of gravity (and make it look a little cooler) by designing a drop-mount bracket that will have the whole thing sitting about 40mm lower. Both bracket designs have holes intended for M5 heat set inserts for mounting of the cradle to the bracket with M5x8 bolts. For mounting the bracket to the frame, use M5x20 bolts with t-nuts in the rail.

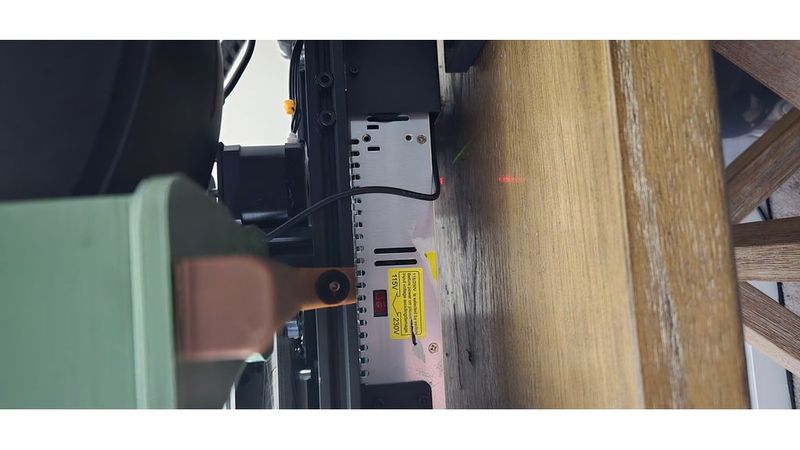

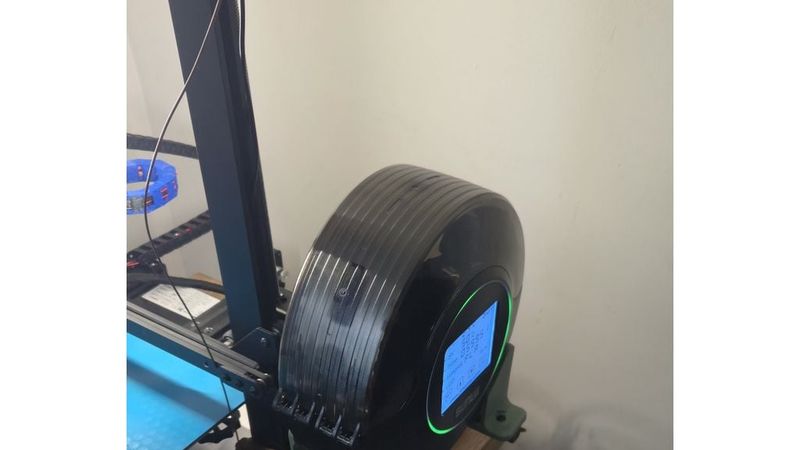

Both bracket designs offset the dryer enough to clear the x-gantry rollers.

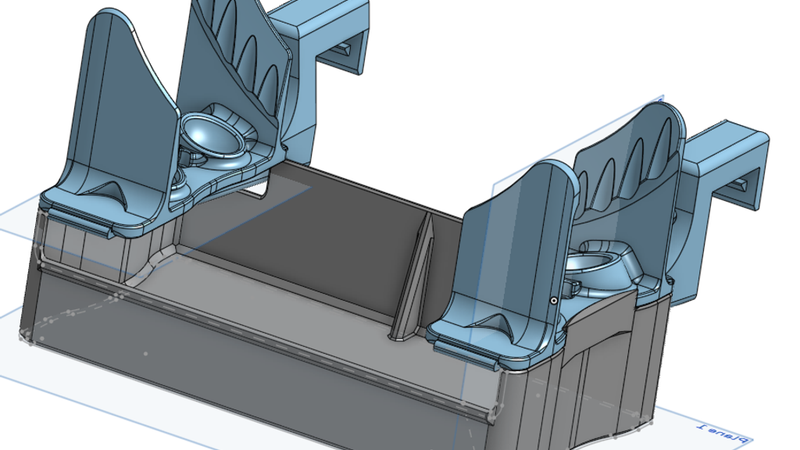

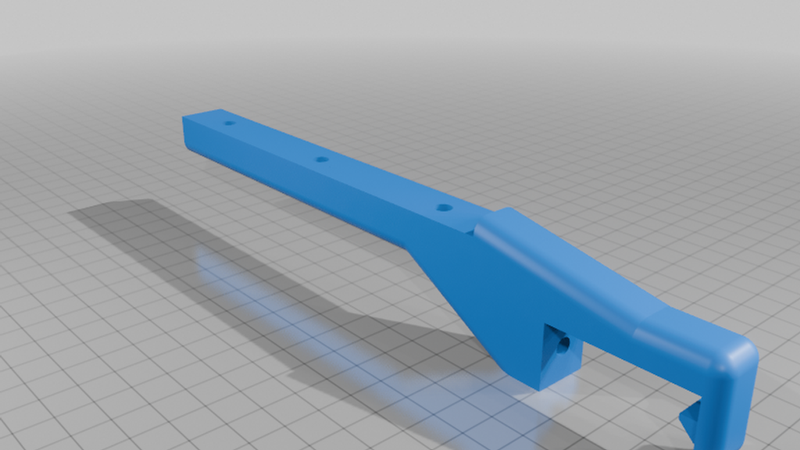

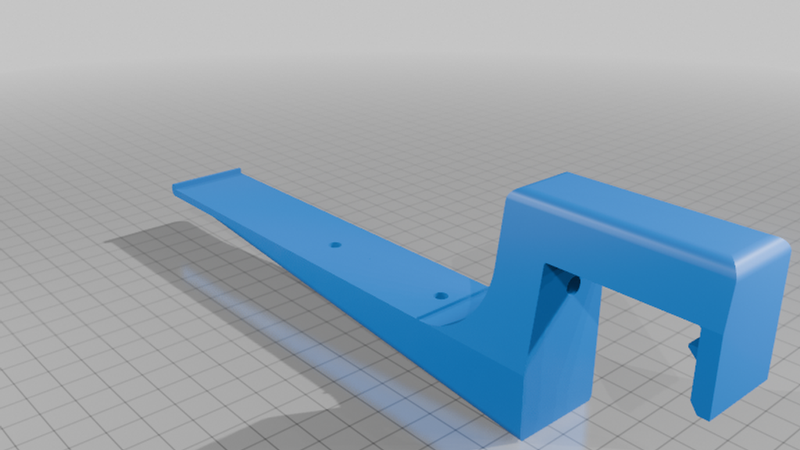

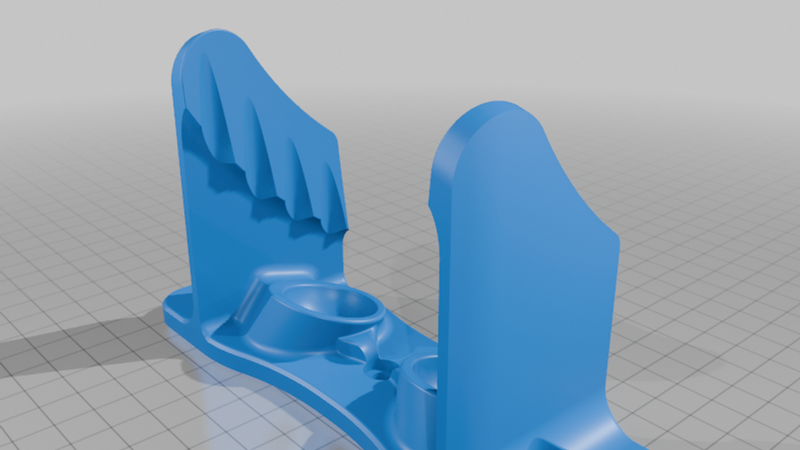

For the original, straight bracket design, you will need the S2_Cradle_Bracket and S2_2040ext_Mount_Bracket; print two of each.

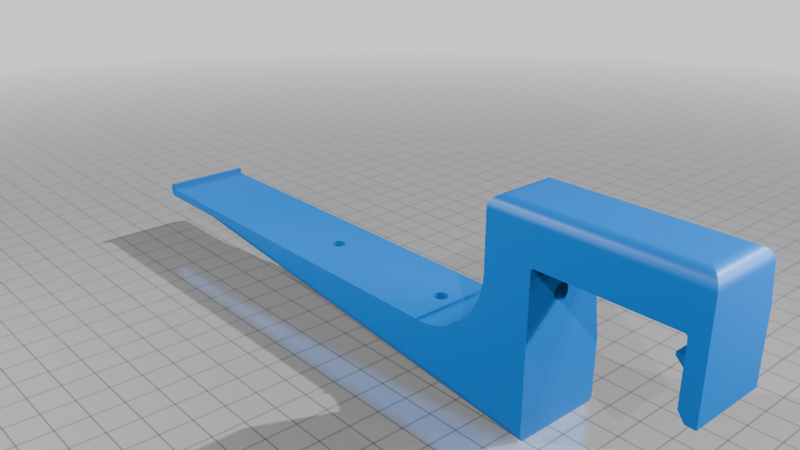

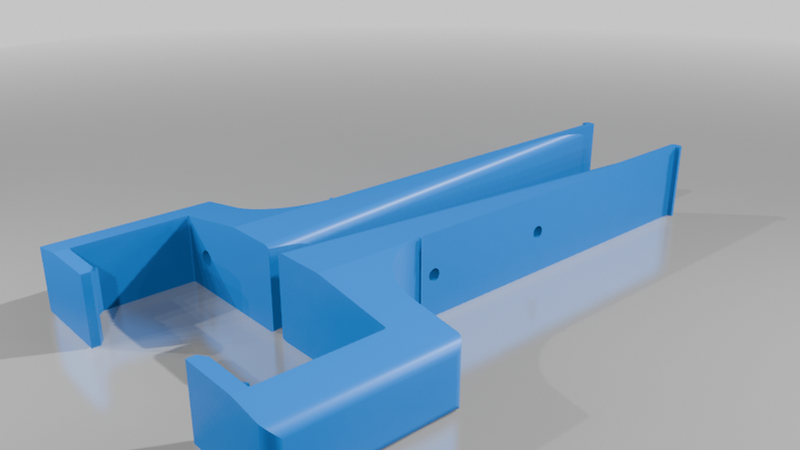

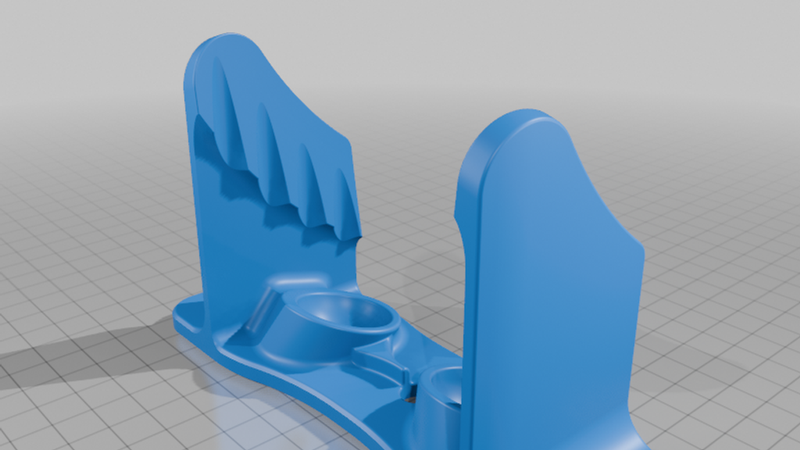

For the drop-mount, you will need both the S2_2040_drop_mount_cradle and S2_2040_drop_mount_cradle_L, as well as the s2_2040_drop_mount_bracket. Print two of the brackets.

Print everything with the flat faces down and you will not need support. Pay close attention to how you orient the drop mount bracket on your build plate, as one of the long sides is slightly angled; it will need to lay on the flat side (if you're printing both at once, they will need be mirror-oriented, not facing the same direction). I have uploaded the project file for how I printed them to assist you in your layout.

Parts list below.

Please let me know what you think!

If you have any ideas for other things you may need/want, feel free to ask; I'll do my best!

BOM-Parts List:

Some hardware/tool links below are Amazon affiliate links. If you pick them up through here, it helps support my prototyping and testing for new mods at no extra cost to you. Thanks!

• Brass heatserts with soldering tip adapters: INCLY 440PCS Threaded Inserts Set with Soldering Tip & Adapter, M2 M2.5 M3 M4 M5 M6 Female Thread Metric Knurled Nuts Assortment Kit，Brass Hardware Nuts for Plastic and 3D Printing Component
• The soldering iron I used (I really like this one, 80w so it heats quickly and doesn't struggle with thermal mass; I use it for PCB repair as well): Soldering Iron Kit, 80W 110V LCD Digital Solder Iron Pen with Ceramic Heater, Portable Welding Tools with 5pcs Tips, Stand, Solders Wire, Sponge, Paste, for Metal,Electric Repairs, DIY
• M5 bolts and t-nuts (I like the black ones, but they have size assortment packs in either black or stainless): [

Bemaka 260Pcs M5 T Slot Nuts Screws Kit, Nuts and Bolts Assortment Kit, M5x8/10/12/16/20mm Hexagon Socket Screws for 2020 Series Aluminum Extrusion Profile, Mlok Screw Nut Replacement](https://amzn.to/44M8QrO)

These were all available either same- or next-day delivery to me.

If you're hunting for the dryer itself (the newer variant that includes the built-in circulation/exhaust fan), you can grab it here, it also comes in white: SUNLU Official Filament Dryer S2, Built-in Circulation Fan, 70℃ Max Temperature, 3D Printer Filament Dehydrator and Storage Box fo Nylon TPU PLA PETG ABS Filament 1.75/2.85/3.00mm, S2 Black
