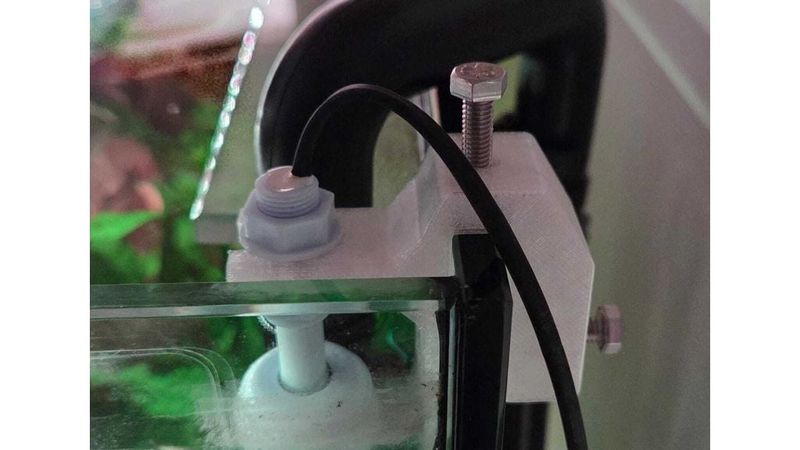

Water level sensor mount

yaelito
2 Files
obj Format

Description

This is a remix of https://www.thingiverse.com/thing:5147061/remixes

<h4>Use milimeters when added to your slicer.</h4>

<h4>Dimensions</h4>

The sensor bay diameter is 9mm.

The top and rear screw diameters are 5mm.

<h4>Features</h4>

I added top and rear holes and nut holders for stainless screws and nuts.

The vertical hole is to use as fine record to adjust the sensor height with high precision.

The back hole is to not use a plastic screw that might be tricky to print for some people.

<h4>There are two versions to adjust better the glass thickness.</h4>

  • 8.5 mm
  • 12 mm

<h4>Supports are included in the design</h4>

Downloads

wtr_lvl_bin_clip_8.5mm.obj
79.5 KB
water_level_mount_12mm.obj
178.6 KB
