Dual 5015 Satsana Direct Drive w/3D Touch Front Mount and Drag Chain adapter for Longer LK5 Pro (Dual Blower)

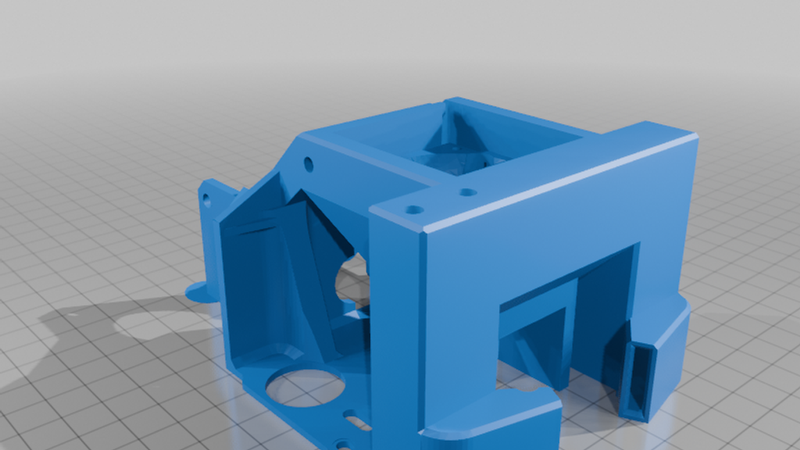

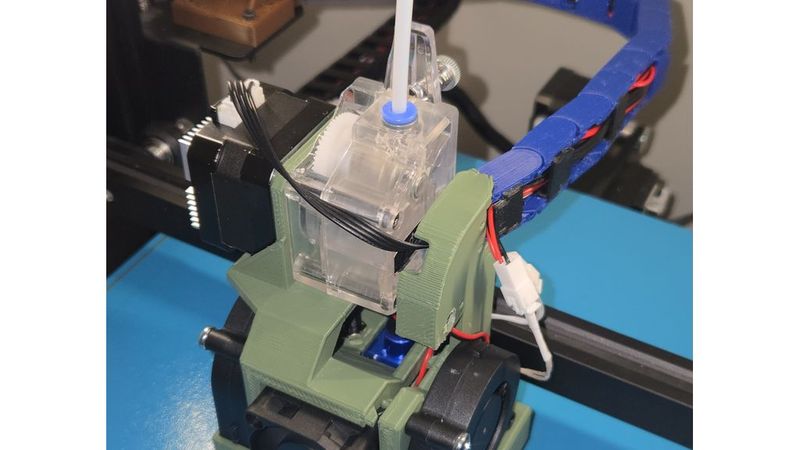

I needed to make this fit a Longer LK5 Pro with the factory dual backplate, as most shrouds designed with the CR10 or Ender 3 in mind don't have the same mounting hole pattern. In the process of that, I remixed this model along with the drag chain mount from https://www.printables.com/model/517504-my-lk5-pro-drag-chain-setup by CrunchBerry. There is a link there to the actual chain I printed as well (not part of this particular remix).

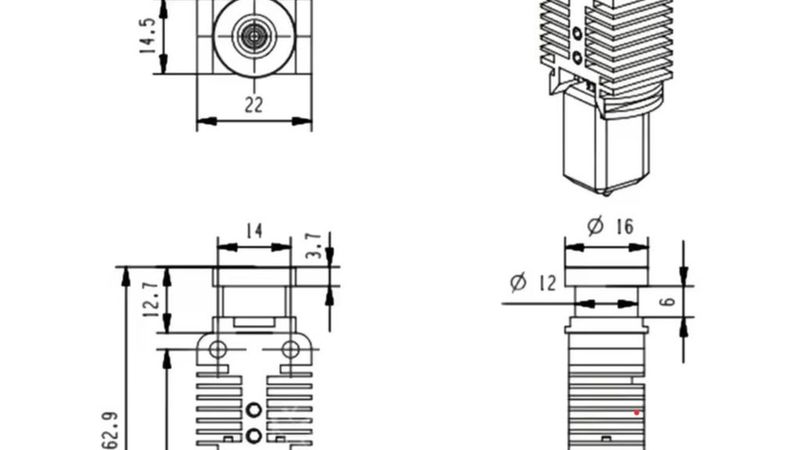

The main shroud has been altered to allow for use with the TZ-E3-2.0 High-Flow hotend, and will still work just fine with the factory hotend and most Mk8 style hotends - though you may need to add a couple of washers to the rear of those hotends for a straighter alignment with the extruder. As-is, the TX-E3-2.0 aligns perfectly. The 3.0 version might fit as well, but I have not verified that.

You can still print this relatively quickly and without support (as long as you have halfway decent bridging), as the printing gods intended :)

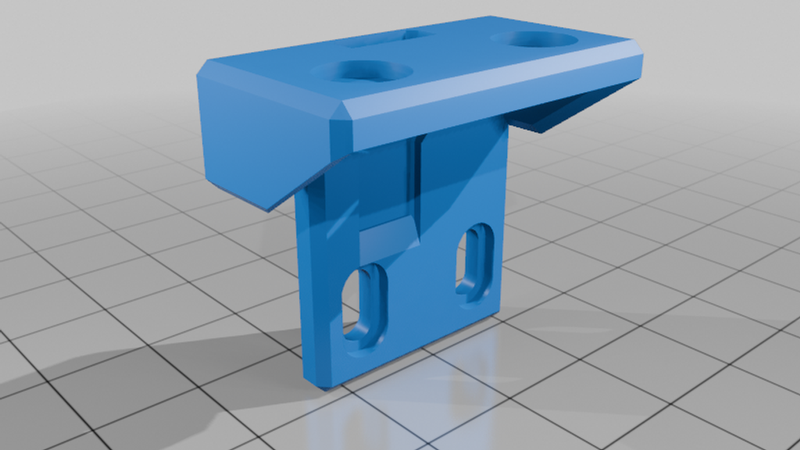

I didn't like the BL Touch/3D Touch mount eating up ~20mm of my x-axis, so I relocated that to the front of the shroud, using two set points for M3x4x4.2 heat set inserts and M3x6mm pan head screws. I also made the mounting plate with adjustable holes to allow for easy on-the-fly adjustments to the height of the BL/3D Touch without having to fiddle with any kind of spacers.

If you don't want to use the 3D Touch mount, no worries; the mounting holes to not open into the duct.

NOTE: This has been designed around the 3D Touch v 3.2 (NOT the Pro version, which is bigger {not sure what any other differences may be}). I have not tested a branded BL Touch.

Some hardware/tool links below are Amazon affiliate links. If you pick them up through here, it helps support my prototyping and testing for new mods at no extra cost to you. Thanks!

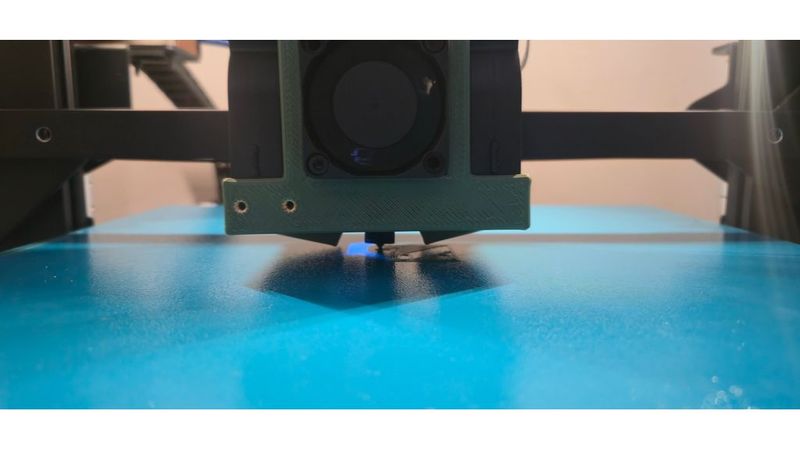

I added a small hole inside the shroud to mount this 24v LED: https://amzn.to/4bdA5PF - it is just bright enough to illuminate the print head so you can see a little bit of what is going on under there (I will probably continue to work on this to add another or larger/brighter light).

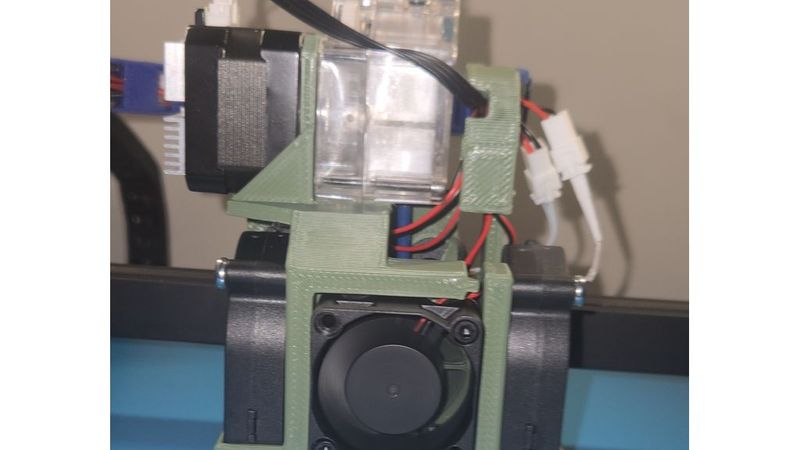

I just connected the power leads to the primary (always-on) cooling fan power so that it comes on whenever the machine is powered on. To connect the two I installed JST XH 2.54mm female connectors with this kit: https://amzn.to/44pqBNP and plugged them both into this inexpensive y-connector: https://amzn.to/4waYygA

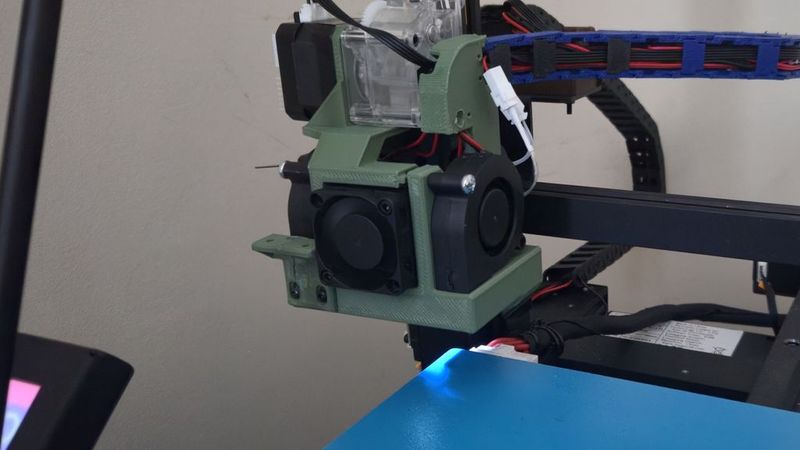

Everything fits nicely in the drag chain assembly.

The TZ-E2-2.0 hotend is performing amazingly; I have doubled my print speed compared to the red Mk8 all-metal hotend that I replaced. You can find it here: https://amzn.to/4wjKuSa ; or for less on AliExpress if you're more patient than I am!
