Voron - DF Robot 720p wide angle camera FIT0892 mount

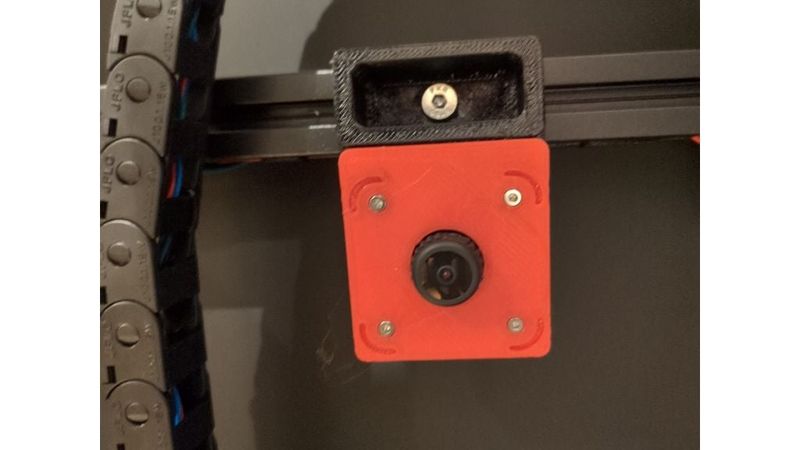

I wanted to use the DF Robot 720p wide angle camera (FIT0892) in my Voron 2.4, so I designed a gantry mount for it :)

Materials:

• Qty. 4 M2 heat set inserts
• Qty. 4 M2x20 bolts
• Qty. 1 M5x8 bolt with its associated hamerhear nut.

Assembly:

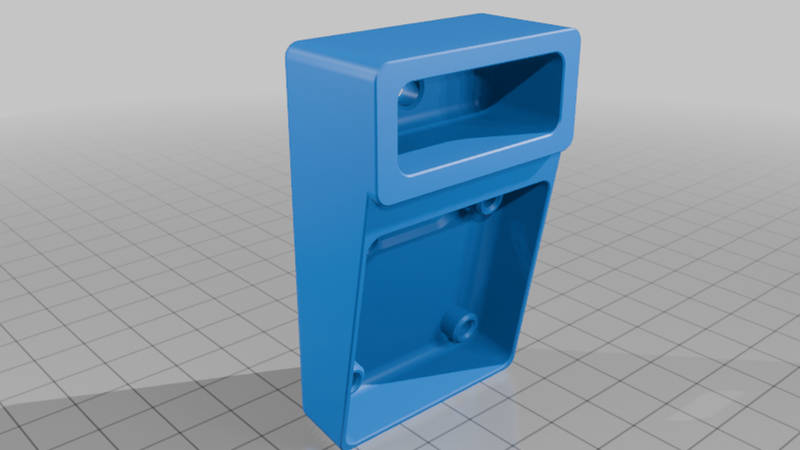

• Insert the qty. 4 M2 inserts in the base part.
• Feed the camera cable through the opening at the back of the base part.
• Put the qty. 4 M2 bolts through the cover, slide the camera on these bolts and screw them on the base part.
• Fir the assembly on the printer.

Printing parameters:

• Voron recommended settings and materials.
• Alternatively, I printed mine out of PETG with 20% infill, 3 perimeters.
