Modular Modular FPV Drone Gate (Spiral & Single Setup)

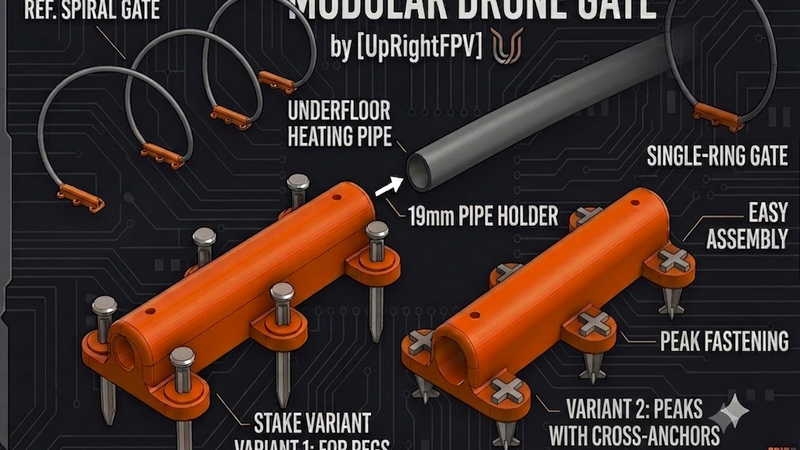

This is a heavy-duty, interlocking modular ground anchor system designed to mount standard flexible rod poles for FPV drone racing gates. Whether you want to set up a classic single arched track gate or chain multiple units together to form a technical, spinning spiral/corkscrew gate tunnel, this mounting block provides the perfect foundation.

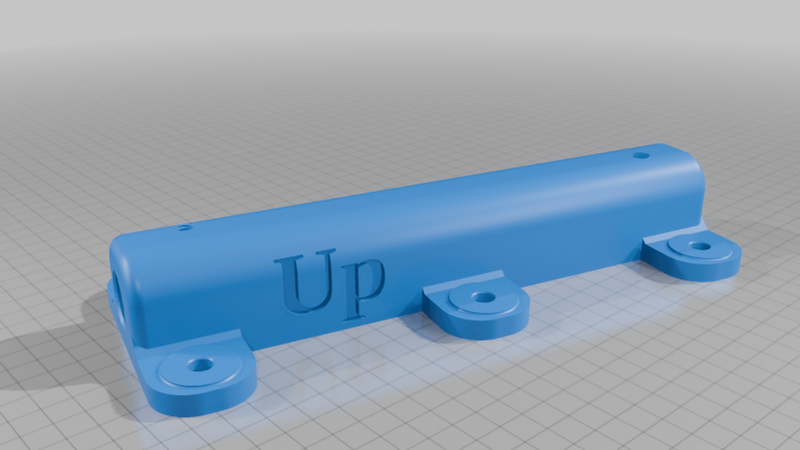

The base features multiple heavy-duty mounting tabs (eyes) on the sides, perfectly sized to be securely pinned into grass or dirt using standard tent pegs / ground stakes (Heringe).

Features

Modular Interlocking Design: Designed with a smart male/female stacking and alignment logic (as shown in image_31fceb.png), allowing you to link anchors together or stagger them at precise angles to create spiraling gate patterns.

Rock-Solid Stability: Equipped with 6 reinforced eyelets per unit to distribute tension and impact forces when pinned to the ground.

Crash-Resistant Geometry: Built specifically to withstand high-velocity impacts from racing quads without ripping out of the ground.

Important Slicing & Print Settings (Crucial for Durability!)

FPV gates take a lot of abuse from high-speed crashes. To ensure the mounting tabs don't snap off, pay close attention to your bottom layer settings:

Bottom Solid Layers / First Layers: Set to 100% Infill / High Wall Count for the first 3-5mm. Ensuring that the base tabs are printed completely solid is critical so that the eyelets do not shear off during a hard crash or when hammering in the ground stakes.

Material: PETG, ASA, or tough PLA. (PETG or ASA is highly recommended for outdoor weather resistance and impact flexibility).

Infill: 30% - 50% (Gyroid or Grid) for the upper tubular section.

Wall Line Count / Perimeters: At least 4-5 walls for maximum structural rigidity around the rod receiving tube.

Supports: No supports needed if printed flat on its base.

Designed by UpRightFPV. Happy flying, keep your rates high, and share your track layouts in the makes section!
