MiSTer FPGA QMTech Case

wallyspeed
20 Files
stl, 3mf Formats

Description

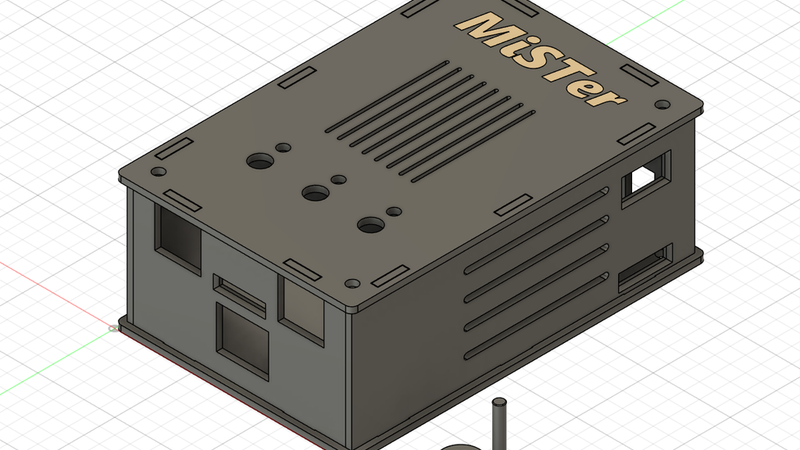

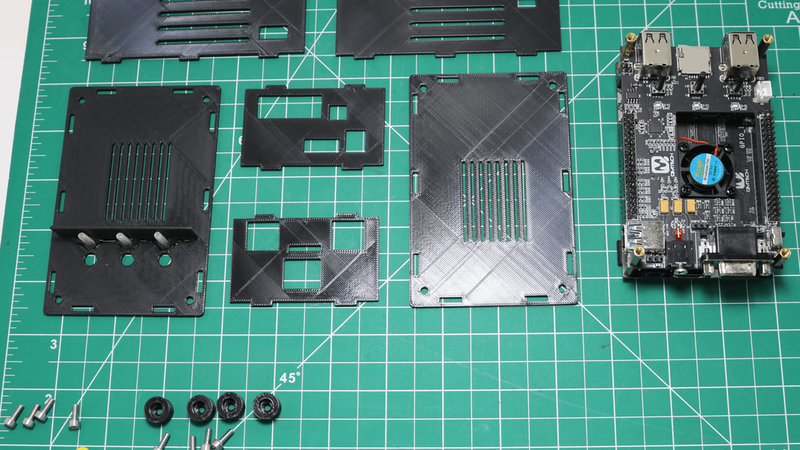

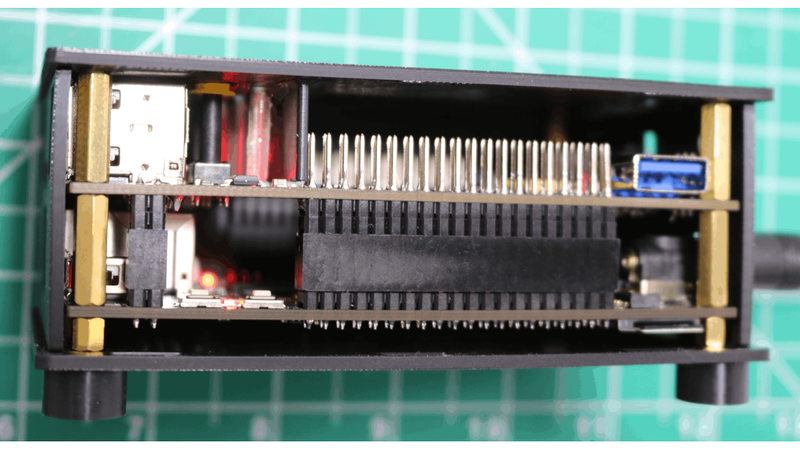

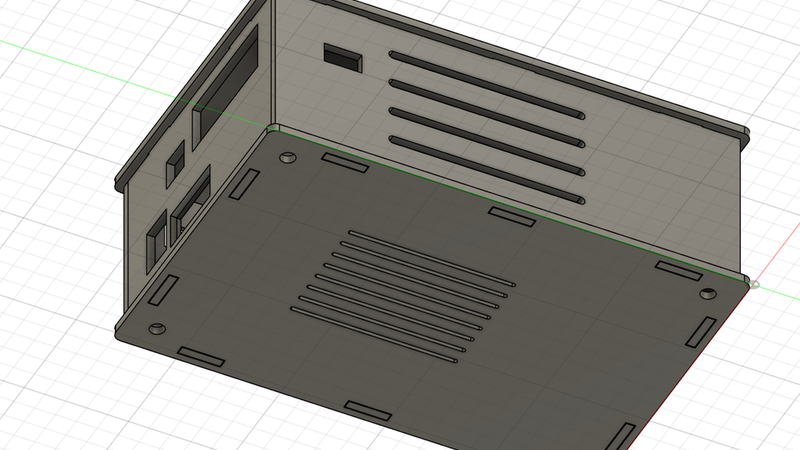

This is a replica case base on a QMTech MiSTer FPGA board that you can find on Aliexpress. There are mainly 2 types of files, with a "pip" and without a "pip"

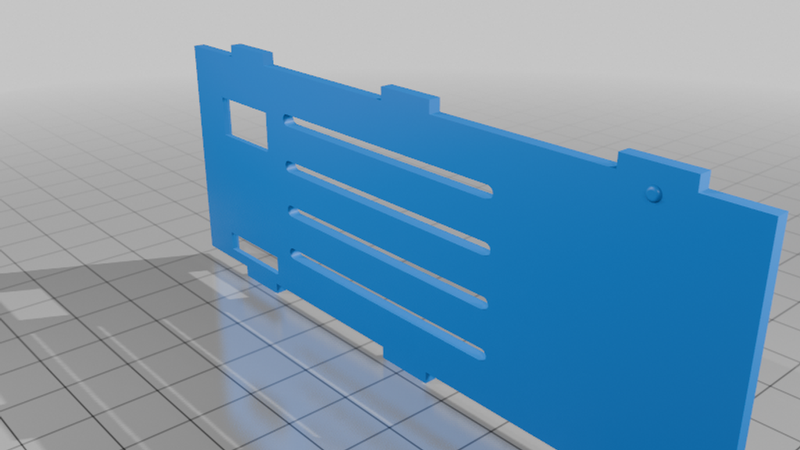

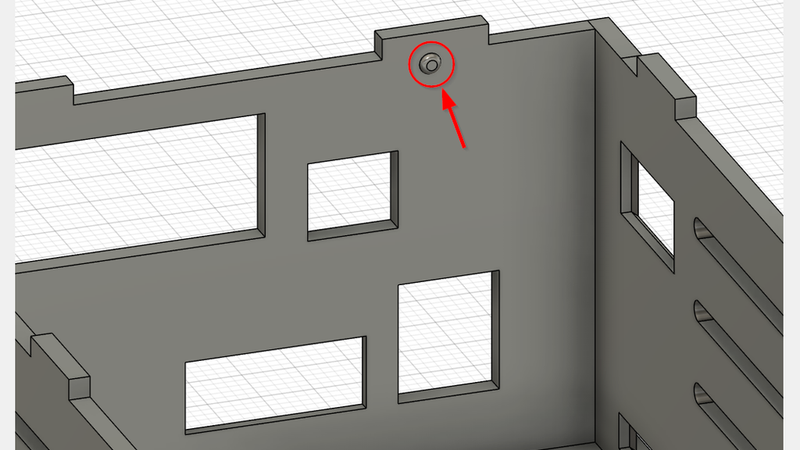

I created a pip so that I would know which side I wanted up while printing.

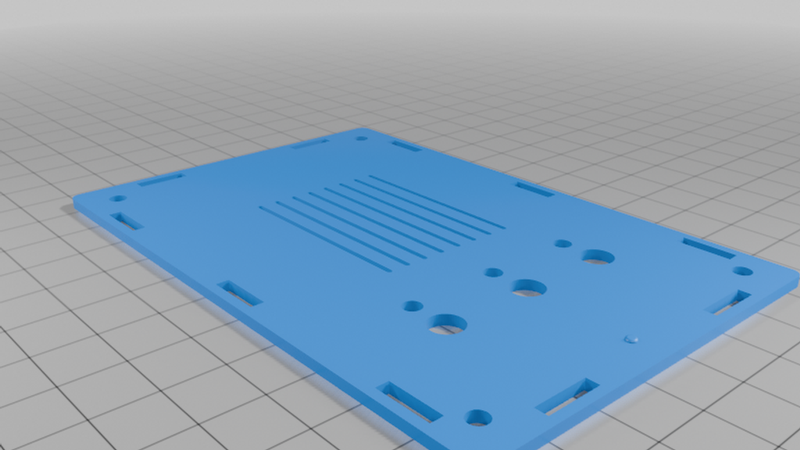

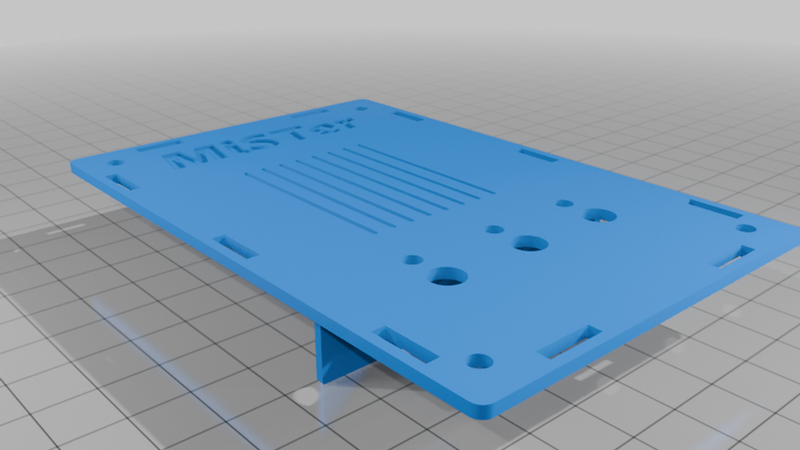

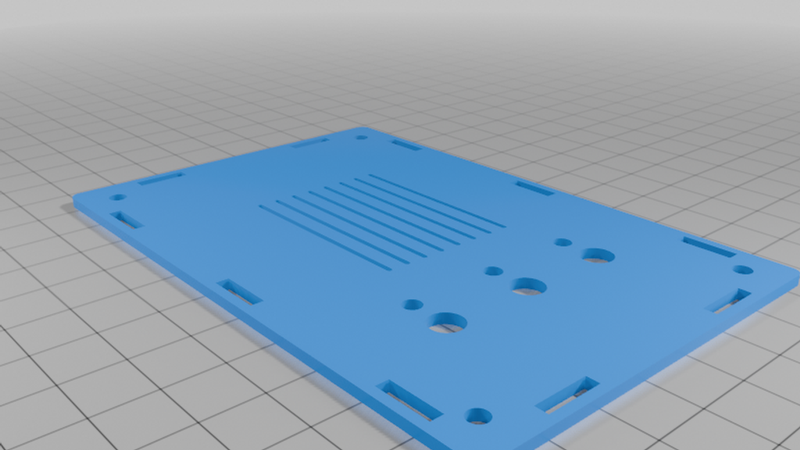

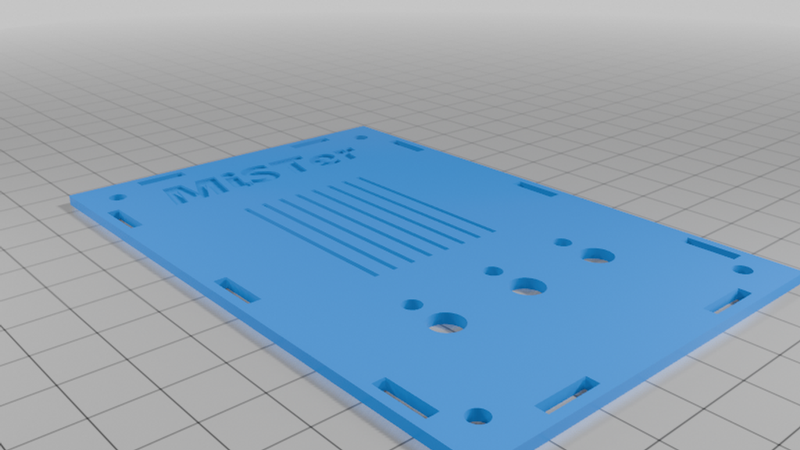

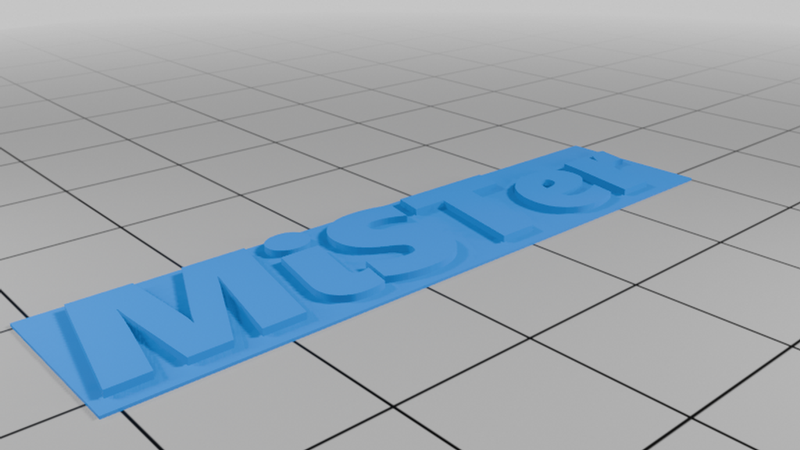

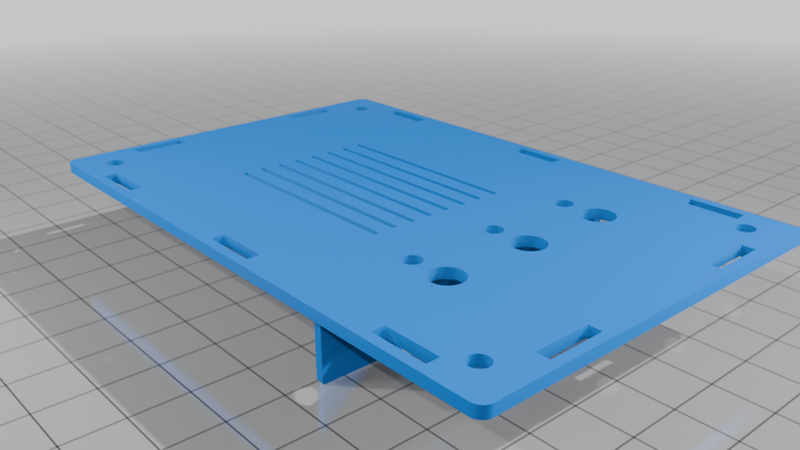

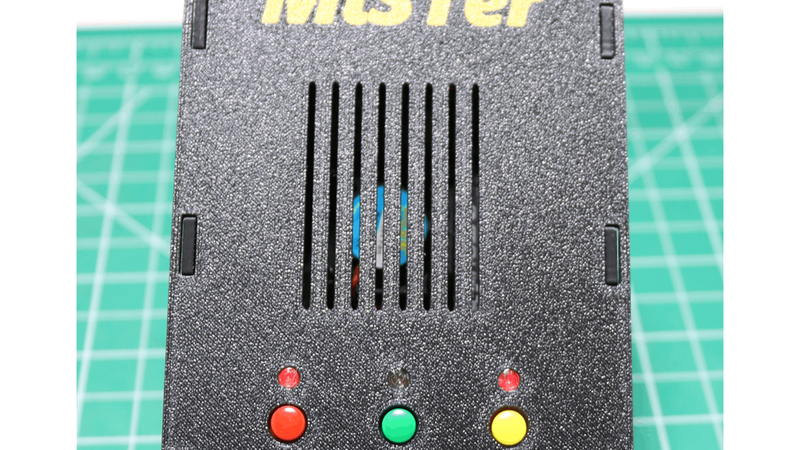

I have 5 different versions of the top: lettering for 2 color printing with/without barrier and no lettering with/without barrier (one with a pip also).

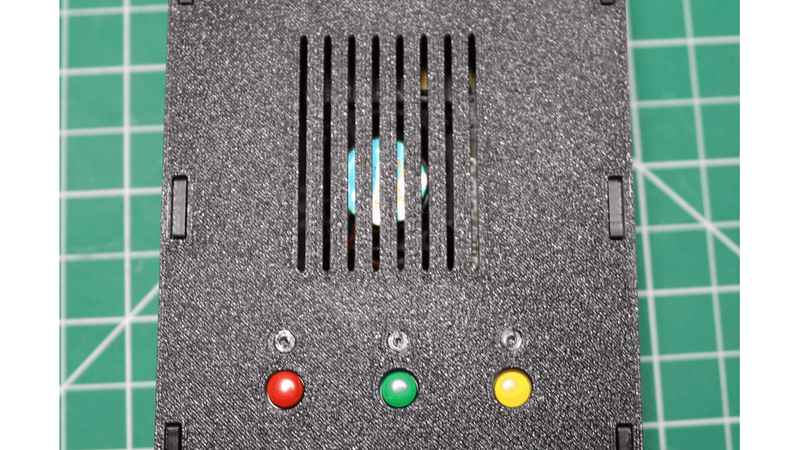

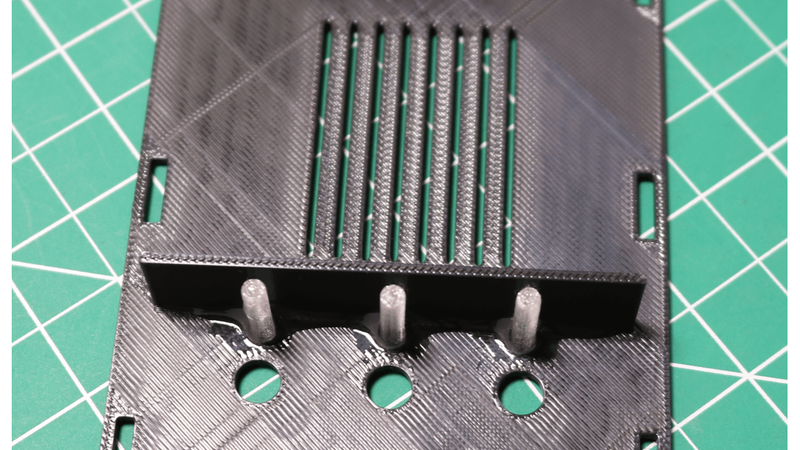

The barrier was created to reduce extra LED light getting through the cooling vents.

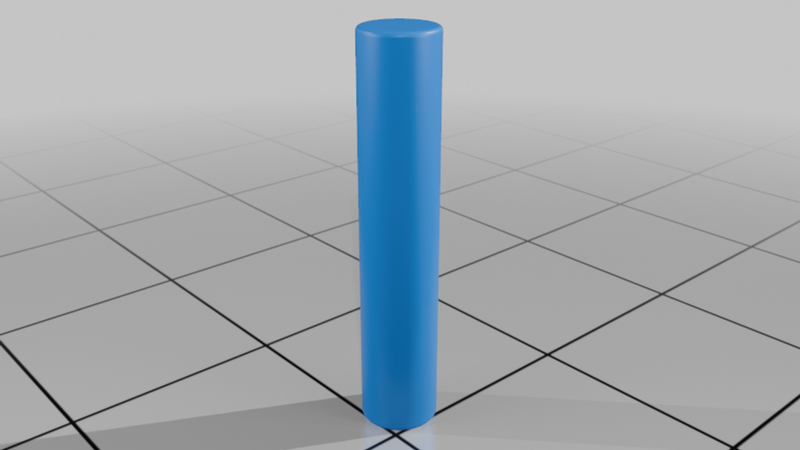

The LED "pipes" should be printed in clear PLA and glued in place.

Since this case is slightly thicker than the case it came with, you will need longer M3 x 8mm screws.

I have provided .3mf files of the top saved from AnyCubic Slicer (Orca knockoff) so that the text will align correctly for 2 color prints

Downloads

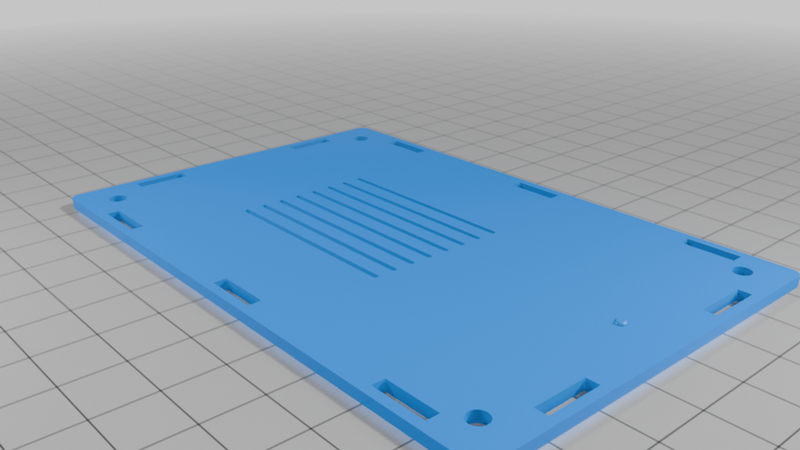

mister_qmt_bottom.stl
108.1 KB
mister_qmt_bottom_w_pip.stl
143.2 KB

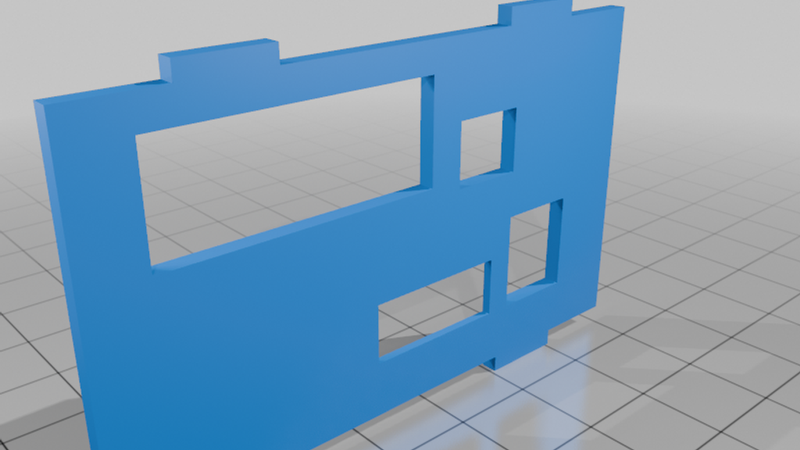

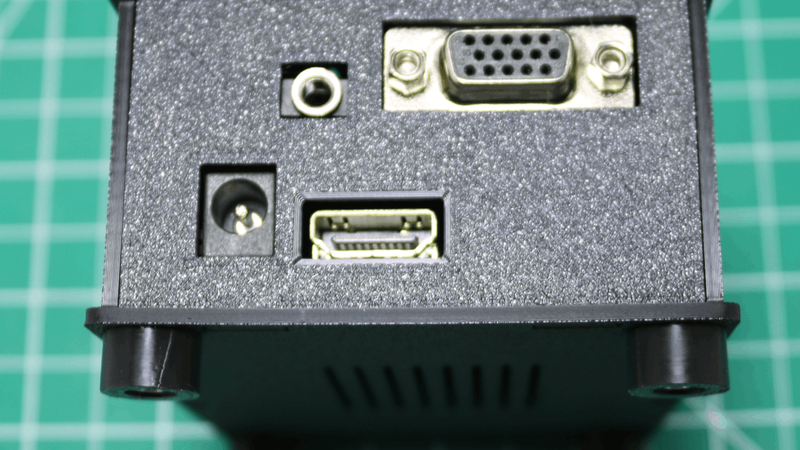

mister_qmt_side_hdmi_audio.stl
8.3 KB
mister_qmt_side_hdmi_audio_w_pip.stl
43.4 KB

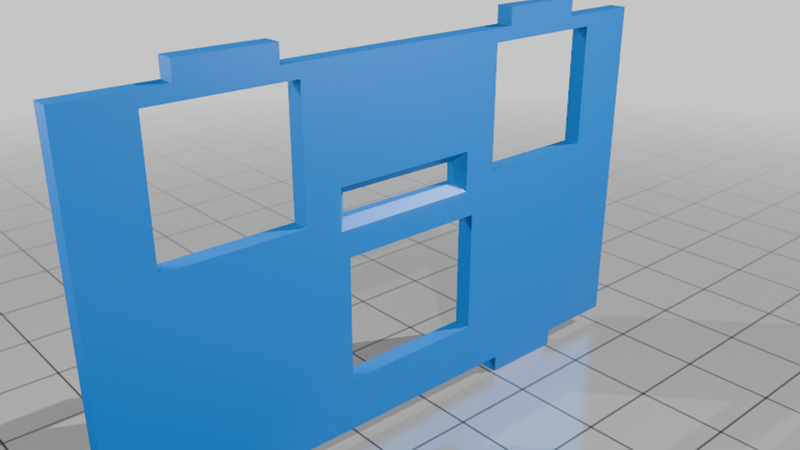

mister_qmt_side_sd_snac.stl
38.8 KB
mister_qmt_side_sd_snac_w_pip.stl
73.9 KB

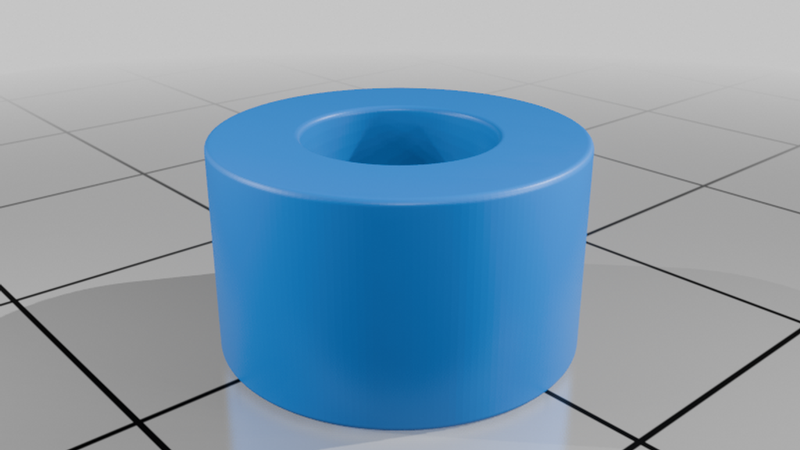

mister_qmt_foot.stl
731.2 KB
mister_qmt_led_pipe_3.3mm.stl
251.8 KB

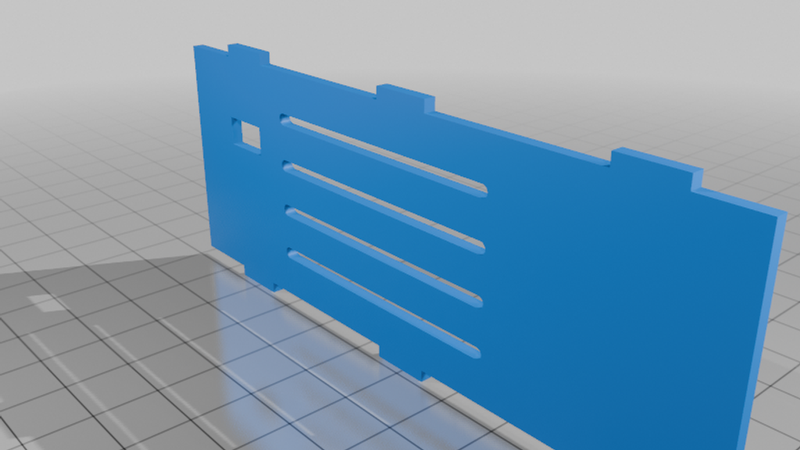

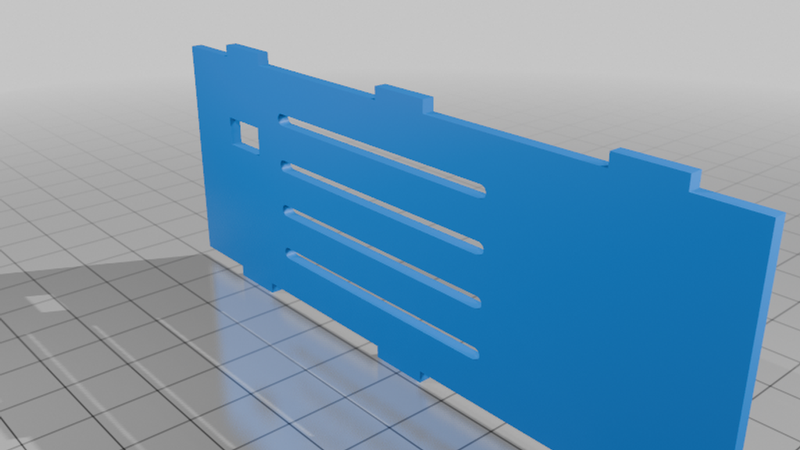

mister_qmt_side_sog.stl
37.0 KB
mister_qmt_side_sog_w_pip.stl
72.2 KB

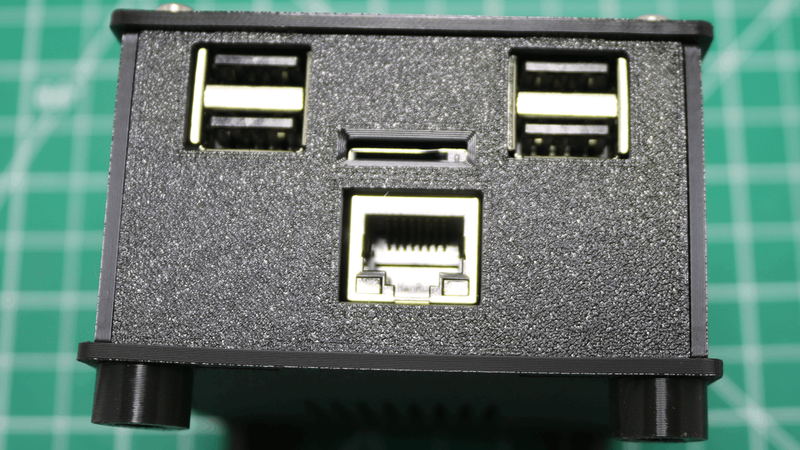

mister_qmt_side_usb_net.stl
8.1 KB
mister_qmt_side_usb_net_w_pip.stl
43.2 KB
mister_qmt_top_no_text_barrier.stl
162.6 KB
mister_qmt_top_no_text_no_barrier.stl
158.5 KB
mister_qmt_top_no_text_no_barrier_w_pip.stl
193.6 KB
mister_qmt_top_text.stl
116.1 KB
mister_qmt_top_w_text_barrier.stl
250.7 KB
mister_qmt_top_w_text_barrier_build_plate_ready.3mf
113.6 KB
mister_qmt_top_w_text_no_barrier.stl
185.8 KB
mister_qmt_top_w_text_no_barrier_build_plate_ready.3mf
97.2 KB
