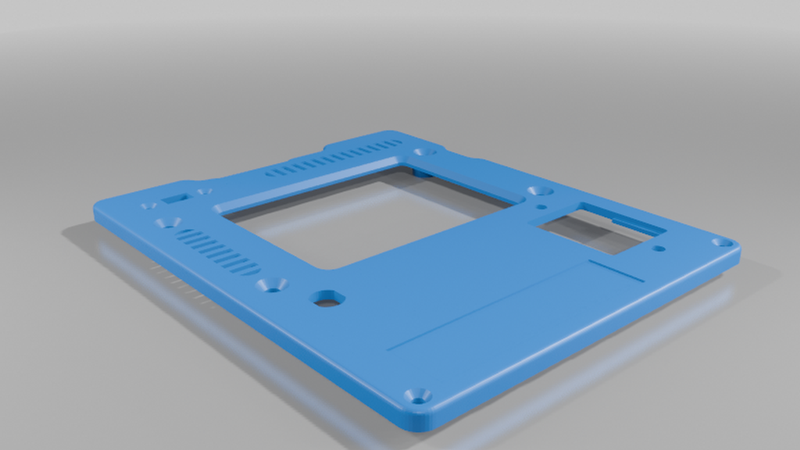

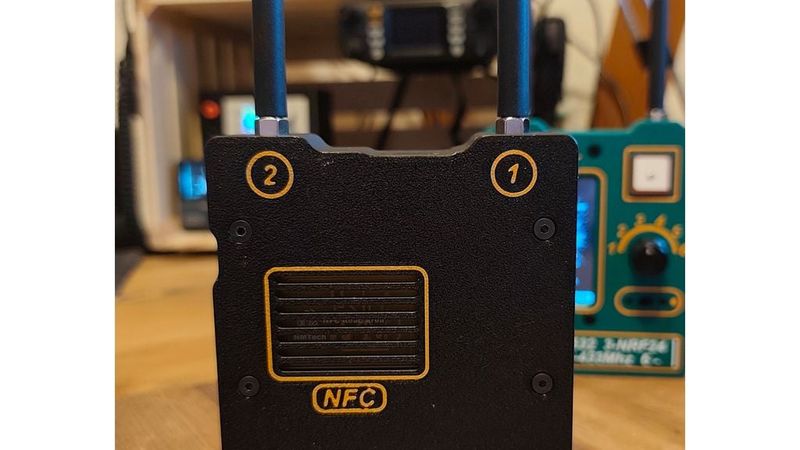

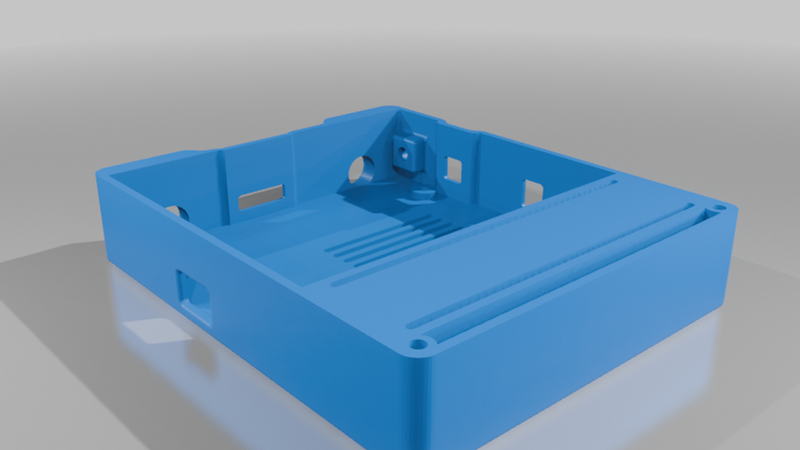

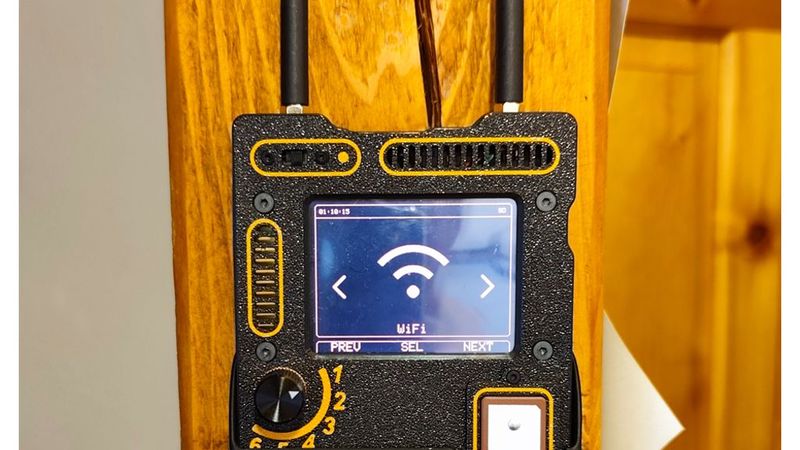

Case for the CYD with NM-RF-Hat from NMTech, Turnknob

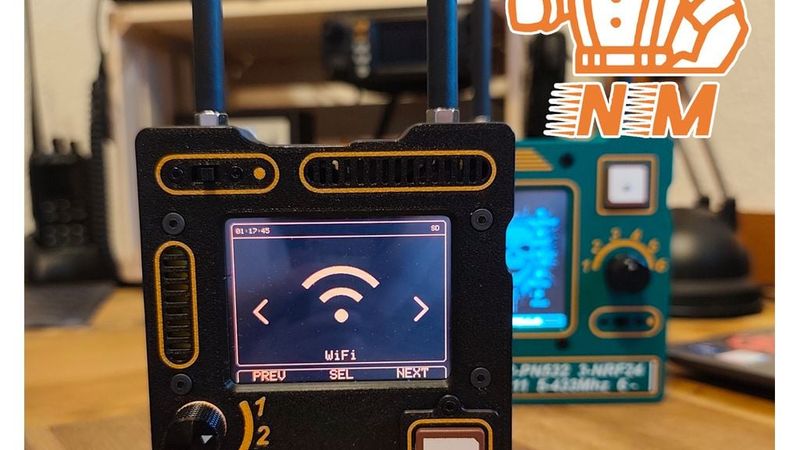

So I already made some cases with turn knob https://www.thingiverse.com/thing:7370003 and https://www.thingiverse.com/thing:7364569 but this is the version with the CYD in landscape mode and the new GPS modul.

I made a sort of a manual but please be forgiving, English is not my native language.... also, no support, don't blame me if something breaks or if you make an accident with that thing. Do it at your own risk..... the pdf is in the Files folder.

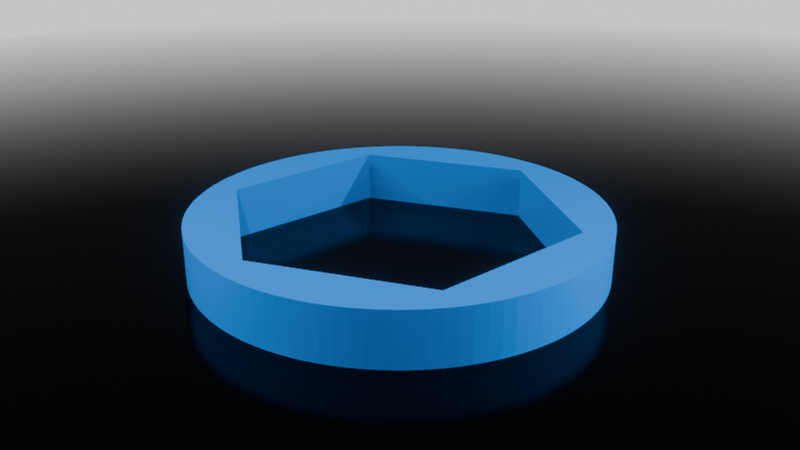

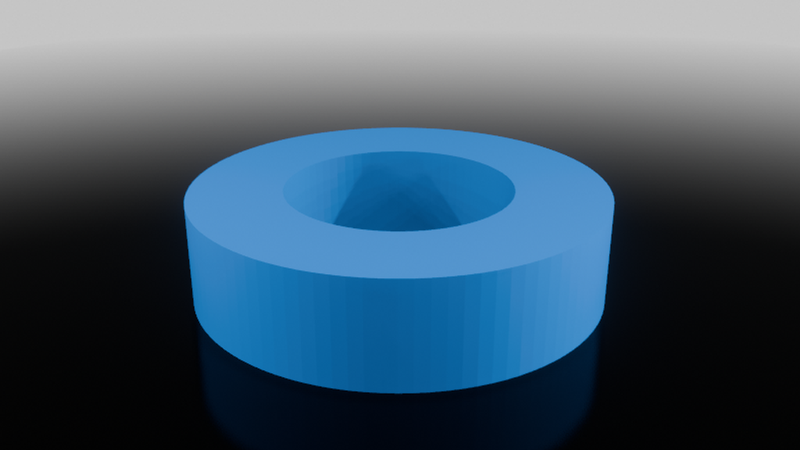

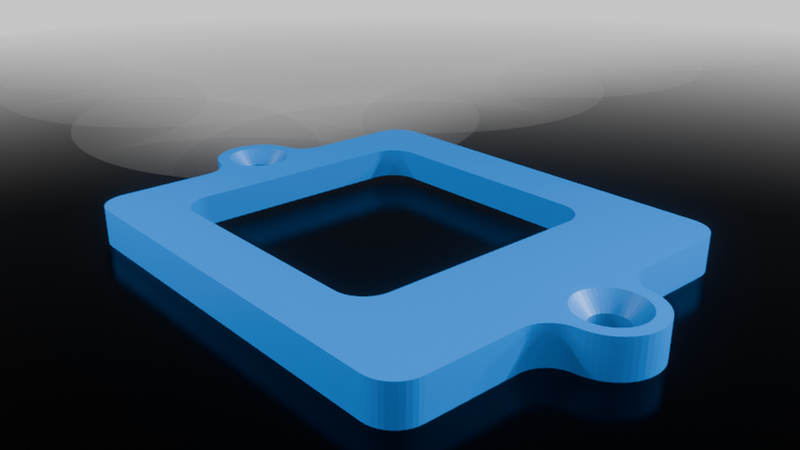

Please note, I added some 1.5mm rings between the hat and the standoff's (also in the files) also the switch ring is more decoration and only works with the recommended turn switch

So you find two versions, one for a multi color printer and one instead of other colors some 0.2mm grooves.

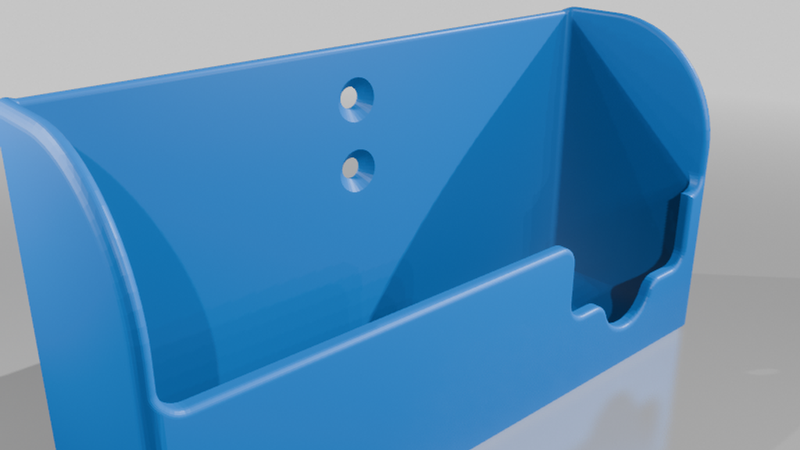

You can add the description by yourself, Size around 54.5x13.5mm. There is also a holder for wall mounting included.

You need:

1x CYD 2432S028

1x NM-RF-Hat with GPS Modul:

https://de.aliexpress.com/item/1005011773872014.html?gps-id=pcStoreJustForYou&scm=1007.23125.137358.0&scm_id=1007.23125.137358.0&scm-url=1007.23125.137358.0&pvid=477fe16b-0a7a-47a2-9181-11fa25b067f5&_t=gps-id%3ApcStoreJustForYou%2Cscm-url%3A1007.23125.137358.0%2Cpvid%3A477fe16b-0a7a-47a2-9181-11fa25b067f5%2Ctpp_buckets%3A668%232846%238109%231935&pdp_ext_f=%7B%22order%22%3A%2218%22%2C%22eval%22%3A%221%22%2C%22sceneId%22%3A%2213125%22%2C%22fromPage%22%3A%22recommend%22%7D&pdp_npi=6%40dis%21CHF%2144.67%2128.59%21%21%21367.05%21234.92%21%402161390417822381471213814e0fca%2112000056512706818%21rec%21CH%21%21ABX%211%210%21n_tag%3A-29910%3Bd%3Ac5924c33%3Bm03_new_user%3A-29895&spm=a2g0o.store_pc_home.smartJustForYou_2010883744501.1005011773872014&gatewayAdapt=glo2deu

1x Turn switch Version 1P6T https://de.aliexpress.com/item/1005011634727608.html?spm=a2g0o.order_list.order_list_main.103.1c905c5fEF6pmS&gatewayAdapt=glo2deu

1x Turnknob, https://de.aliexpress.com/item/1005006467879163.html?spm=a2g0o.order_list.order_list_main.113.6fbb1802fbM2GJ&gatewayAdapt=glo2deu

6x M2x4 brass inserts

4x M3x16 counter sunk screws (Front)

4x M3x10 counter sunk screws (Rear)

4x M3x10 Standoff between CYD and NM-RF-HAT

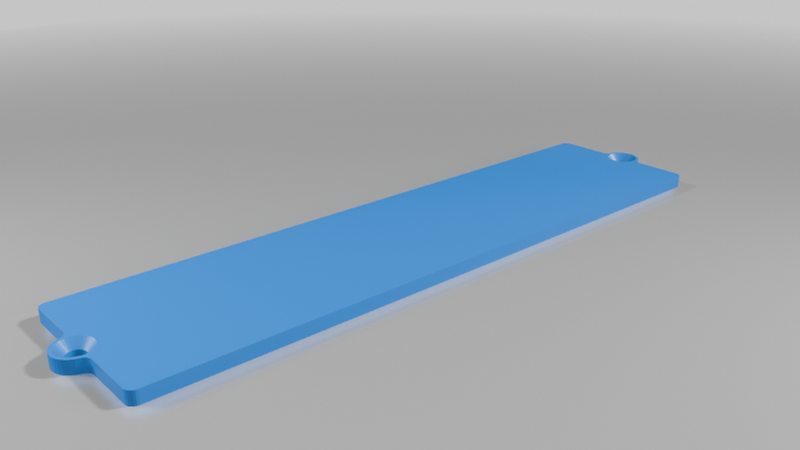

4x M2x4 counter sunk screws (GPS and Batterycap)

2x M2x8 counter sunk screws (Case)

1x On-Off Switch 15mm hole spacing

Some doubleside adhesive tape

1x 18650 Battery

1x 18650 Batteryholder
