Anywhere Mount for Magic Arm Camera Gear

Anywhere Mount for Magic Arm Camera Gear

Add a 1/4"-20 Mount Anywhere

If you've ever needed to attach a magic arm, camera accessory, monitor, light, wireless receiver, tablet holder, or other production gear but had no convenient mounting point, this is the solution.

The Anywhere Mount creates a strong, permanent 1/4"-20 mounting point on virtually any flat surface. Mount it to desks, FOH furniture, rack cases, road cases, workbenches, carts, production furniture, studio walls, or custom projects.

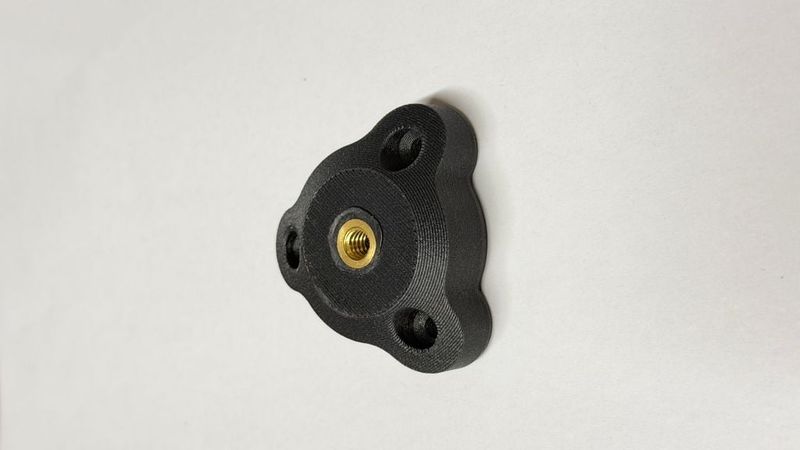

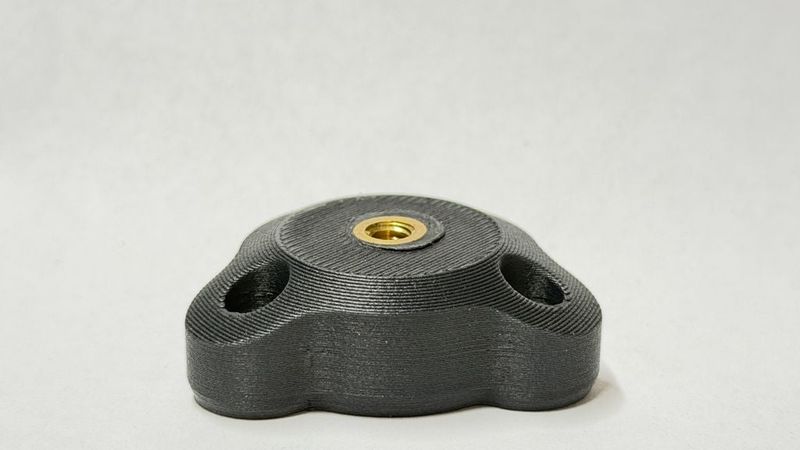

The design uses a brass heat-set insert for the threaded connection and reinforced internal ribbing to distribute load through the entire body of the mount.

I've personally printed these in PETG-CF and used them with magic arms and production gear with excellent results.

Features

* Standard 1/4"-20 threaded mounting point

* Designed for magic arms and camera accessories

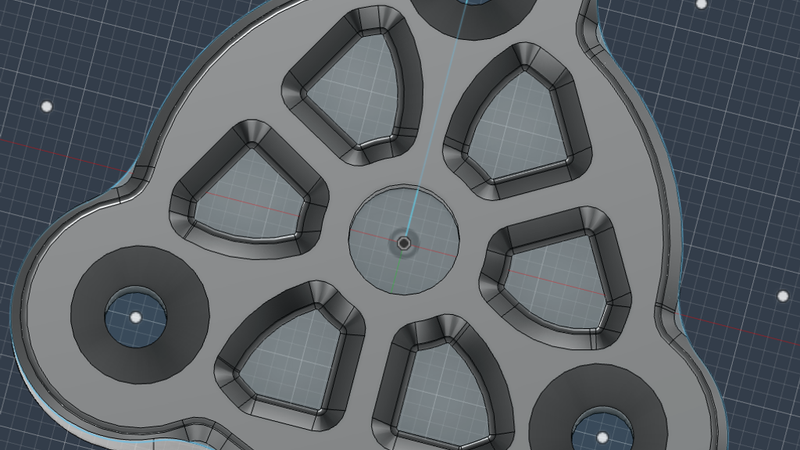

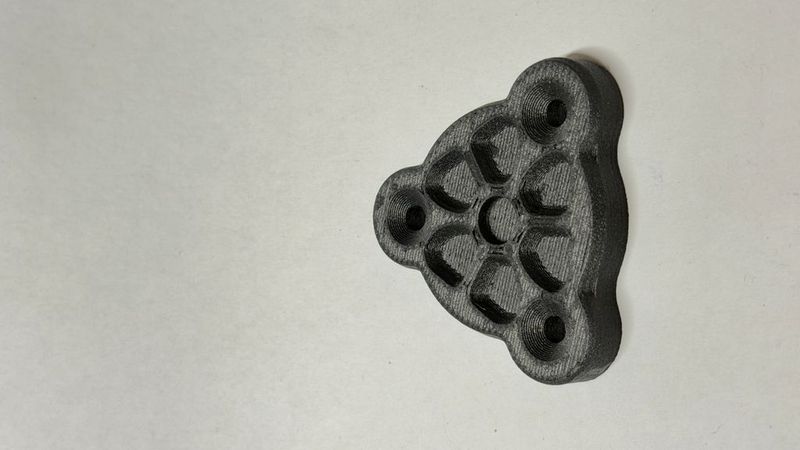

* Reinforced ribbed internal structure for strength

* Uses a brass heat-set insert

* Compact footprint

* Four mounting screws for secure installation

* Support-free print

* Great for permanent or semi-permanent installations

* Clean, professional appearance

Print Notes

Material: PETG, PETG-CF, ASA, or ABS recommended

PETG-CF: Tested and recommended

Walls: 8 walls recommended

Infill: 60% Gyroid

Supports: None required

Orientation: Print flat as provided

Installation

1. Print the mount

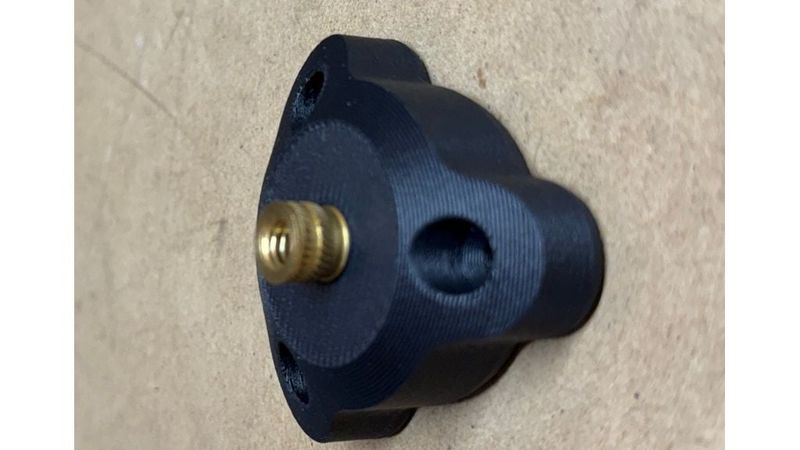

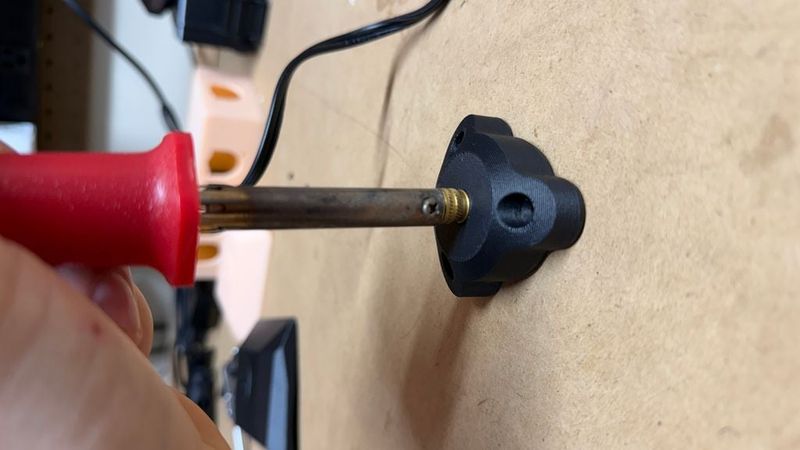

2. Install a 1/4"-20 brass heat-set insert

3. Secure the mount using Three screws

4. Thread in your magic arm or accessory

Use Cases

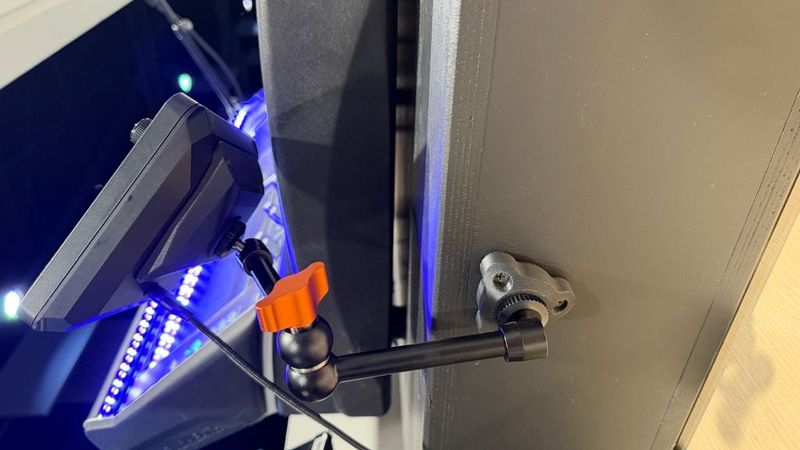

* Magic arm mounting points

* Camera accessory mounts

* Field monitor mounting

* Stream Deck mounting projects

* Wireless receiver mounting

* Tablet and phone holders

* Broadcast workstations

* FOH desks

* Audio console furniture

* Road cases and rack cases

* Studio workstations

* Production carts

* Custom AV installations

Compatible Hardware

Designed around standard:

* 1/4"-20 brass heat-set inserts

* Magic arms

* Camera accessories

* Monitor mounts

* Photography and video equipment

Most gear using standard 1/4"-20 threads will work.

Files Included

STL (ready to print)

STEP (for compatibility)

3MF (for direct print)

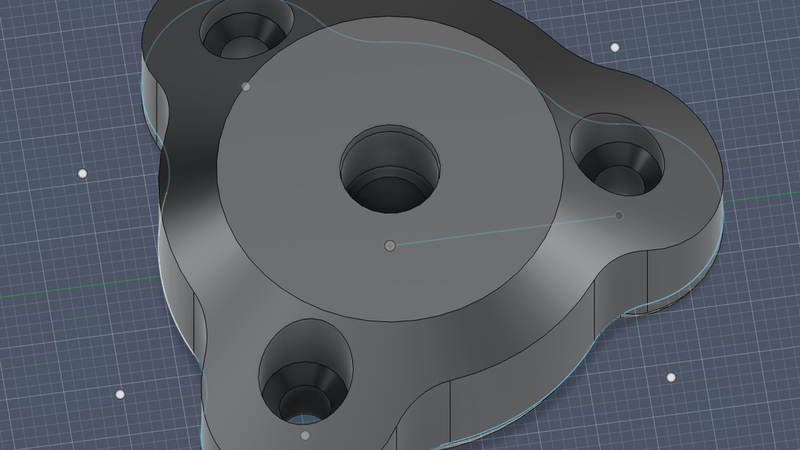

F3D (Fusion 360 source file)

Designed for functional use in live environments.

Feel free to modify or adapt for your own setup.

Designed by Jesse @ freejoy.club
