Multi-Tool Press Conversion Kit from Dremel Press

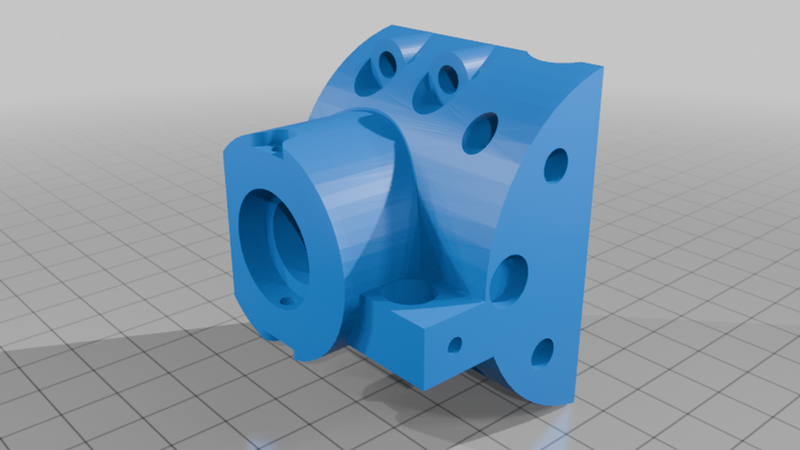

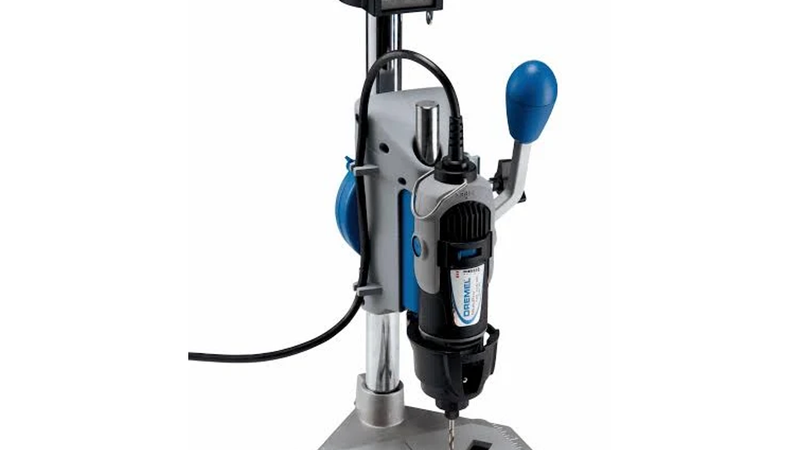

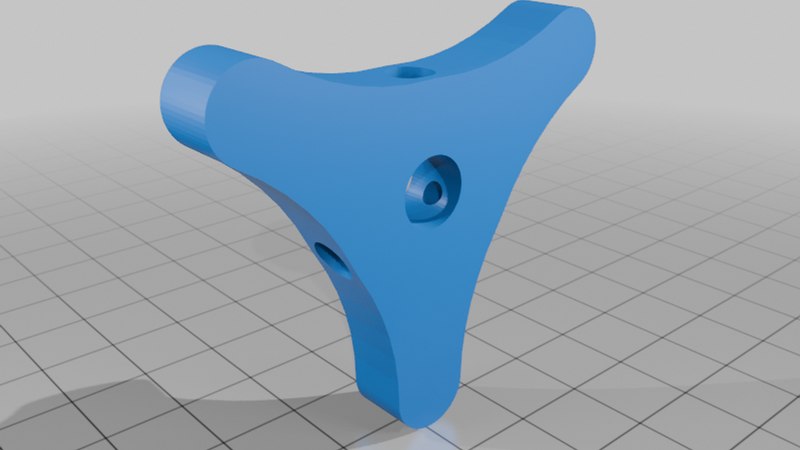

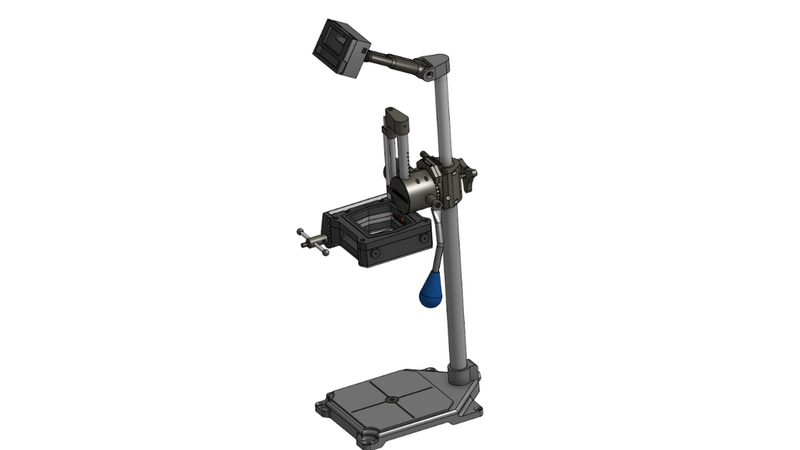

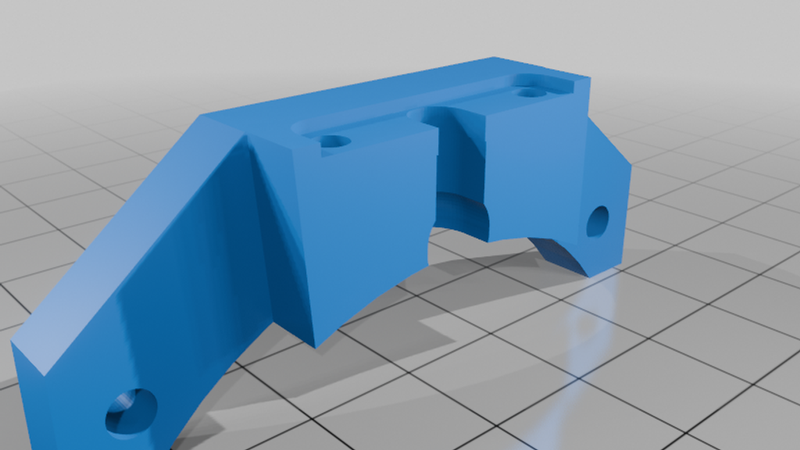

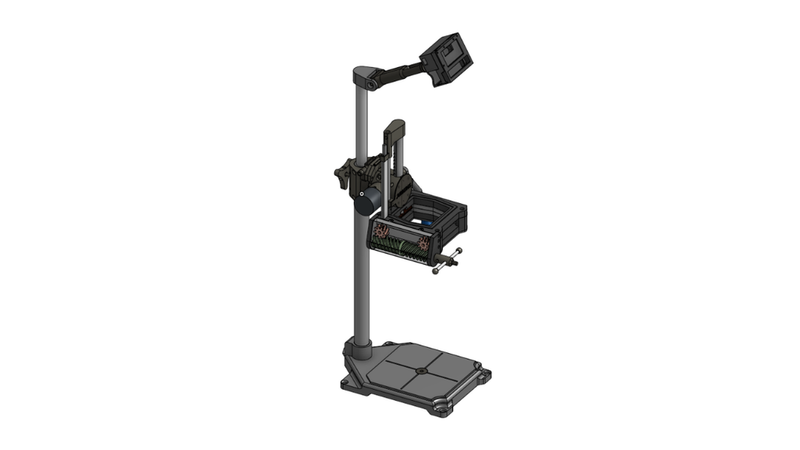

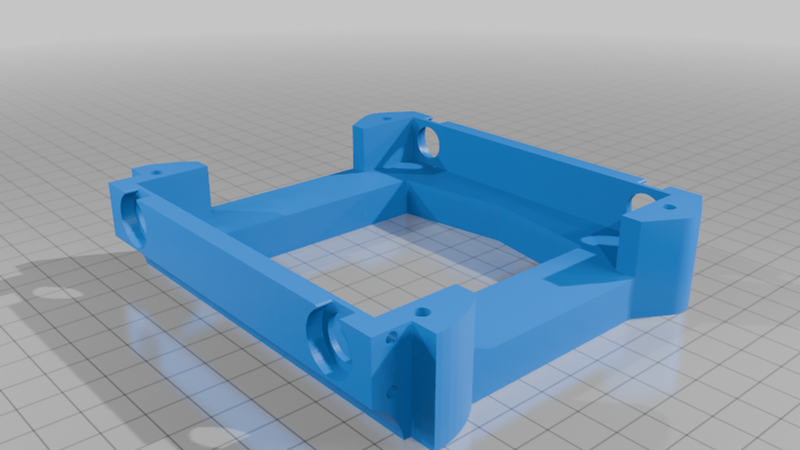

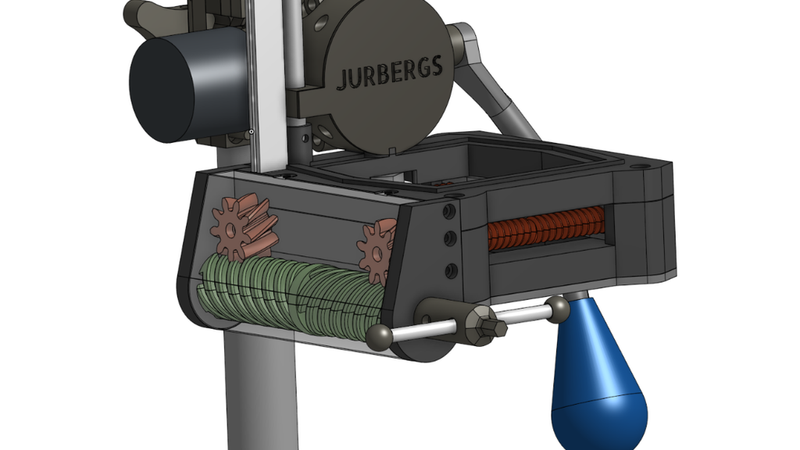

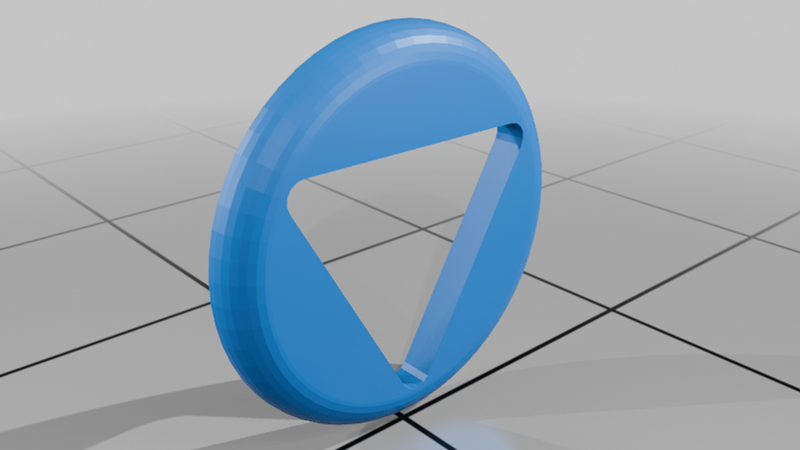

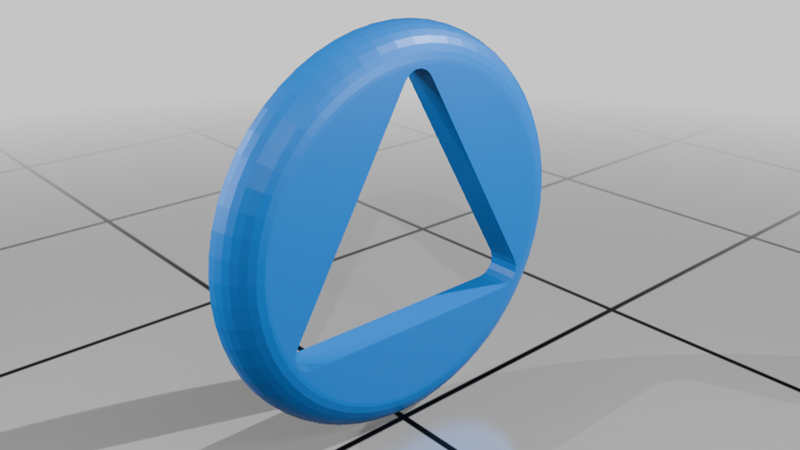

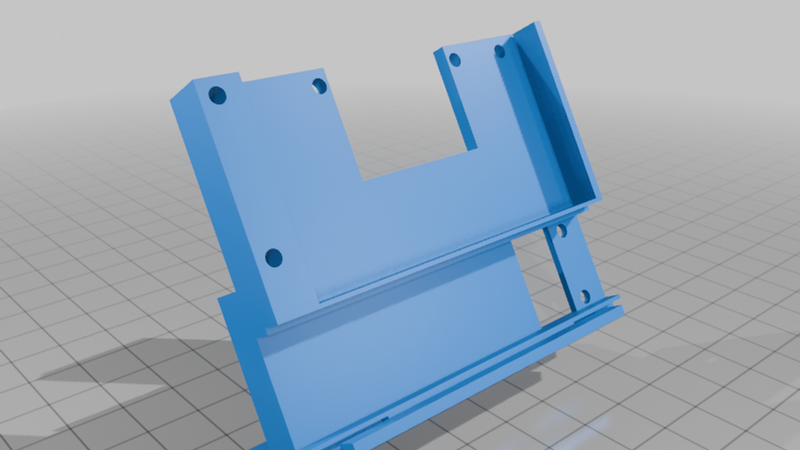

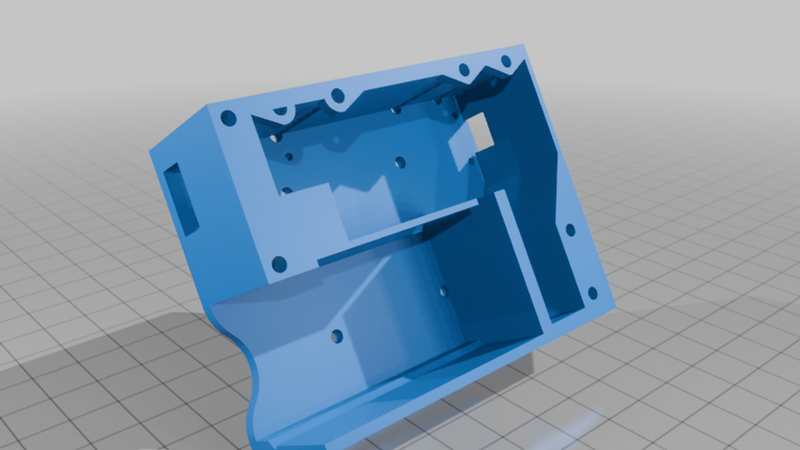

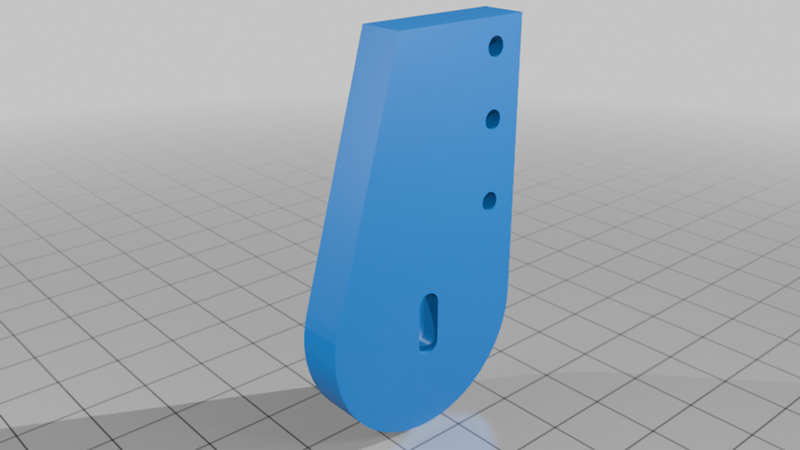

My brother brought home a broken Dremel Press. However, it still included many high-quality parts, so I decided to convert it into a multi-tool press, which uses a self-centering double-V-jaw custom vice to clamp different tools, from soldering irons to drills.

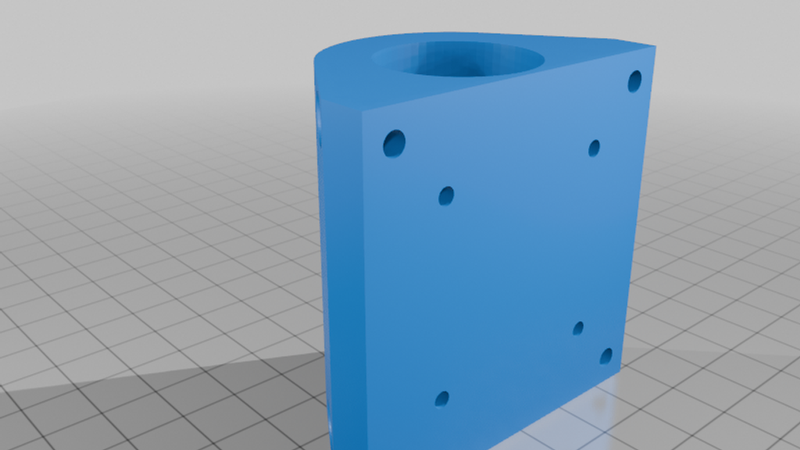

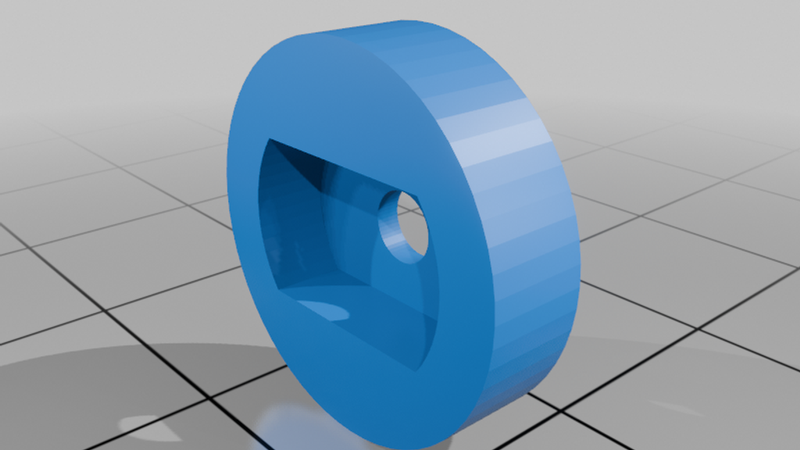

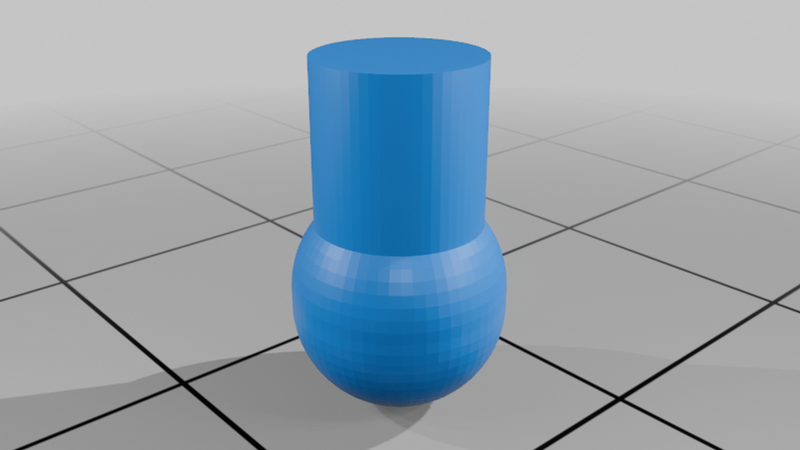

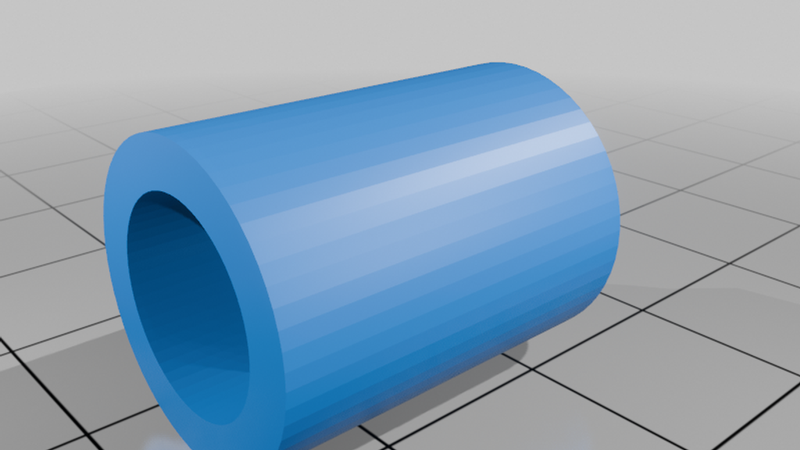

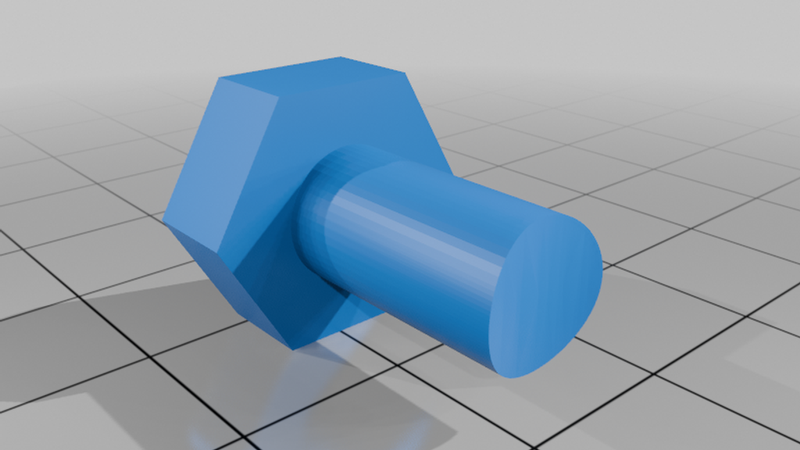

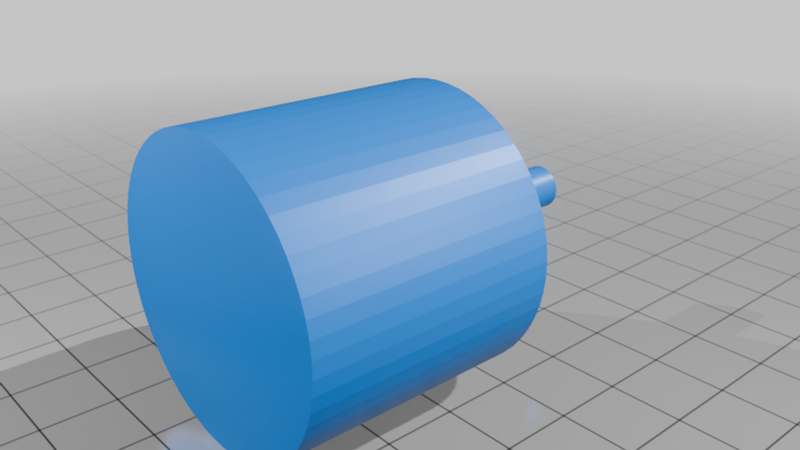

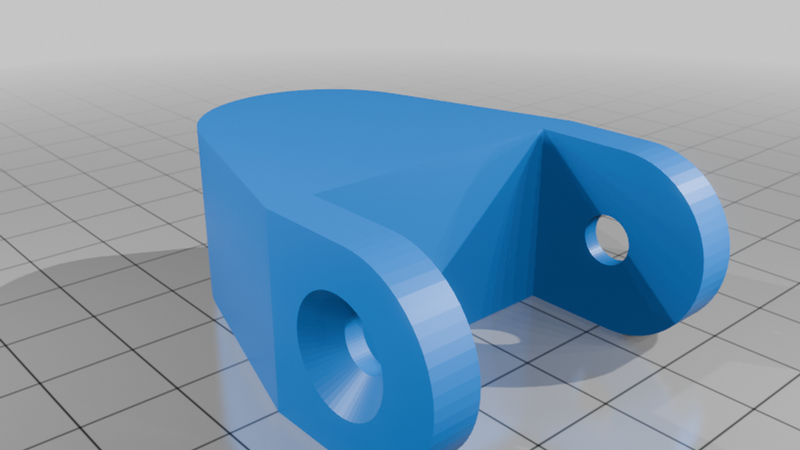

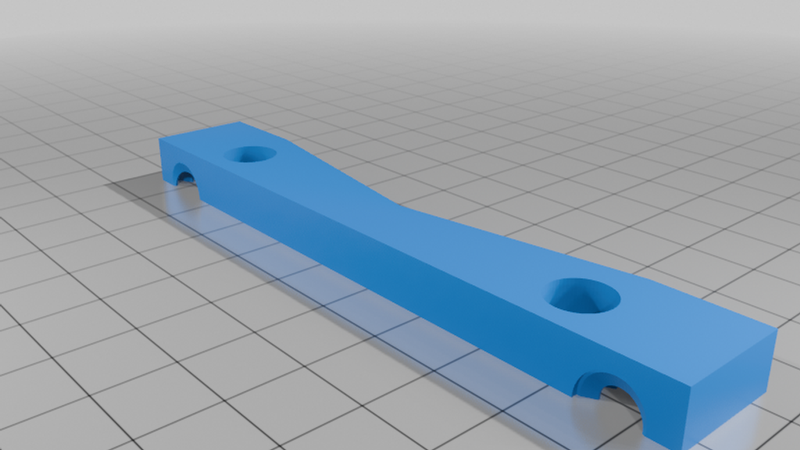

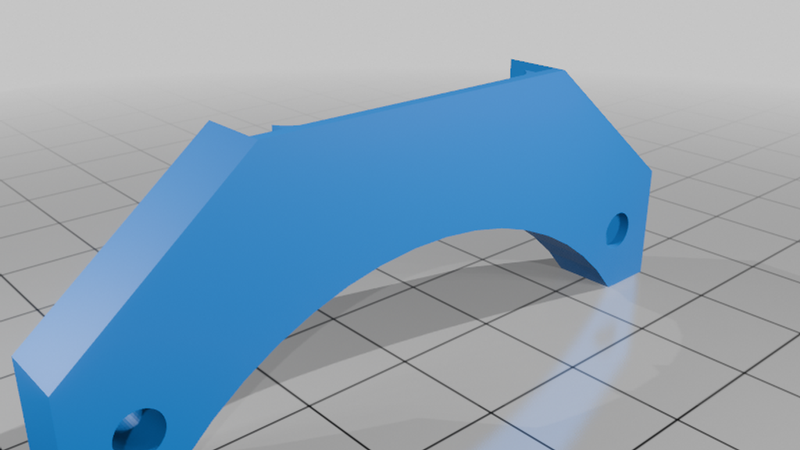

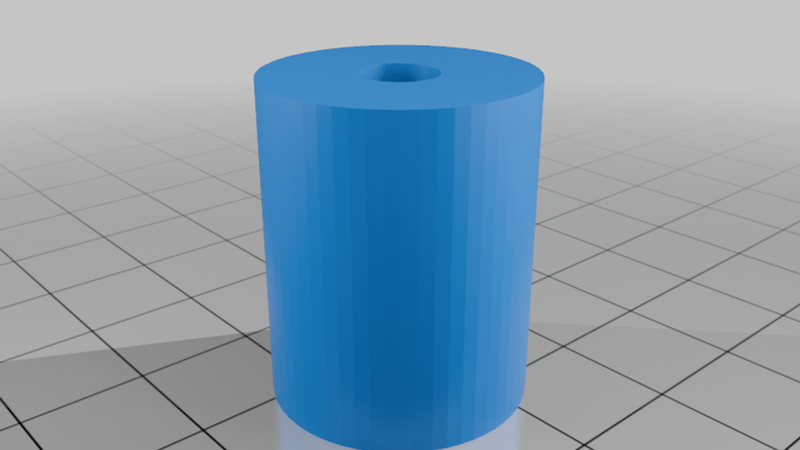

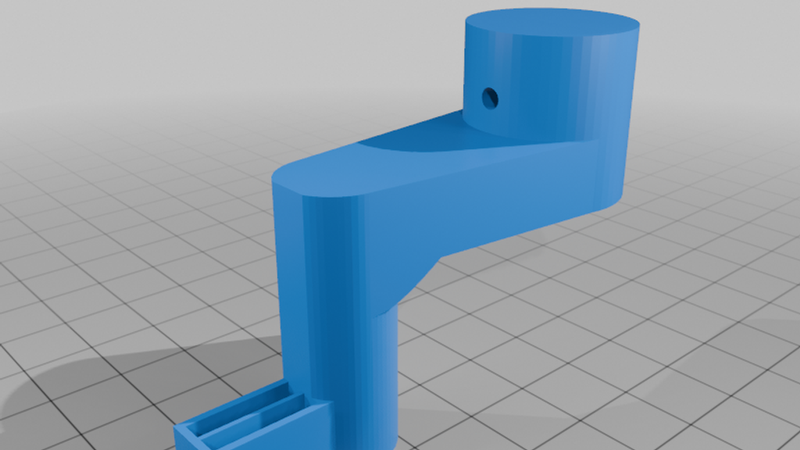

Printing Notes:

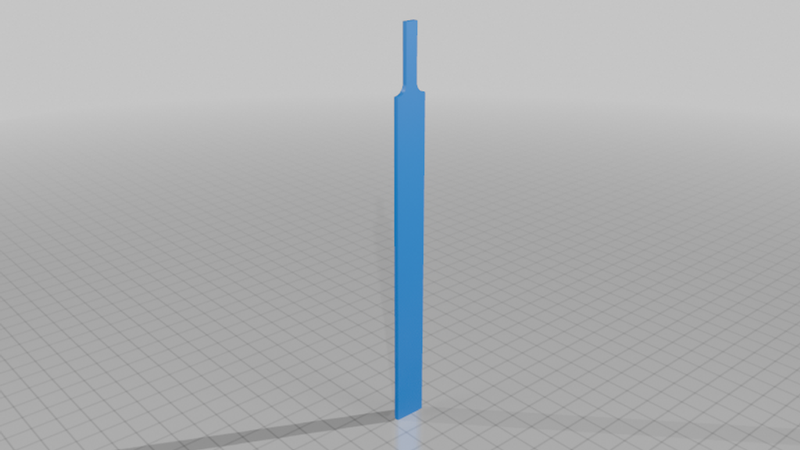

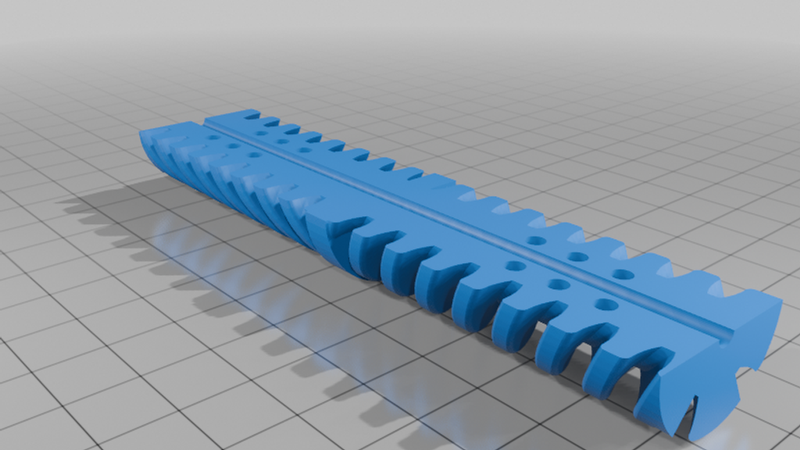

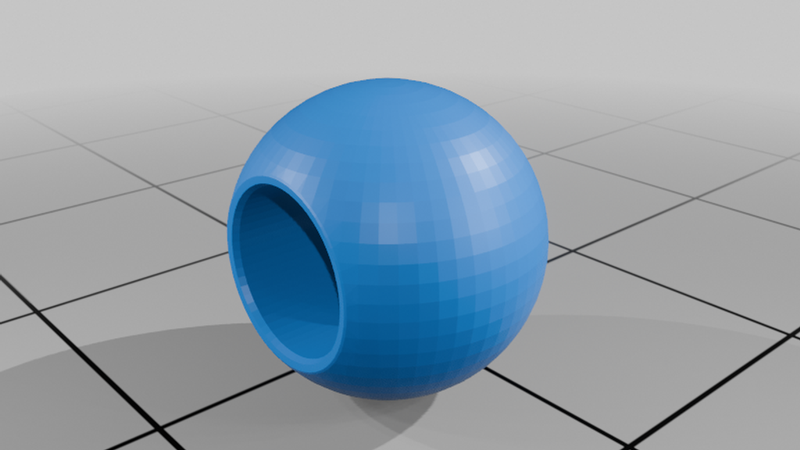

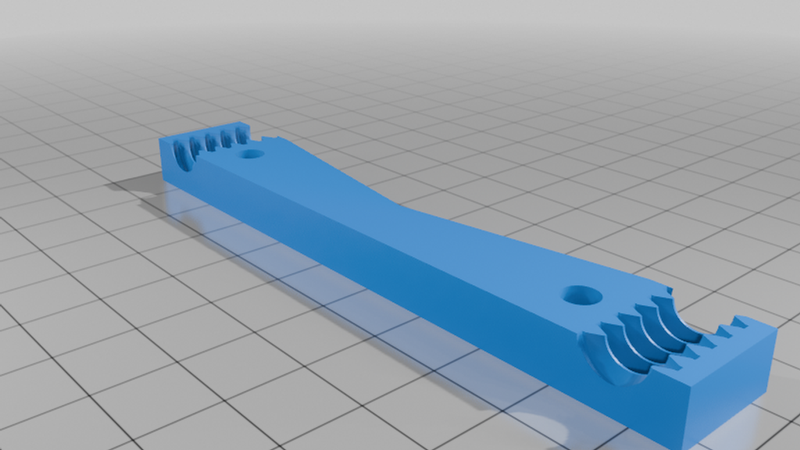

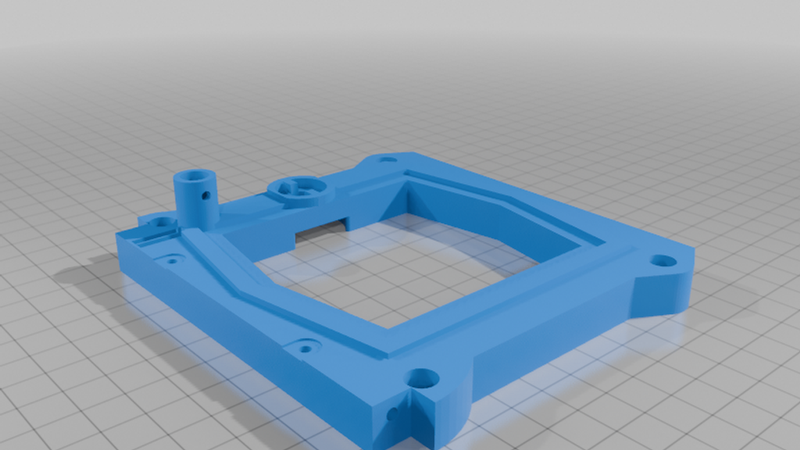

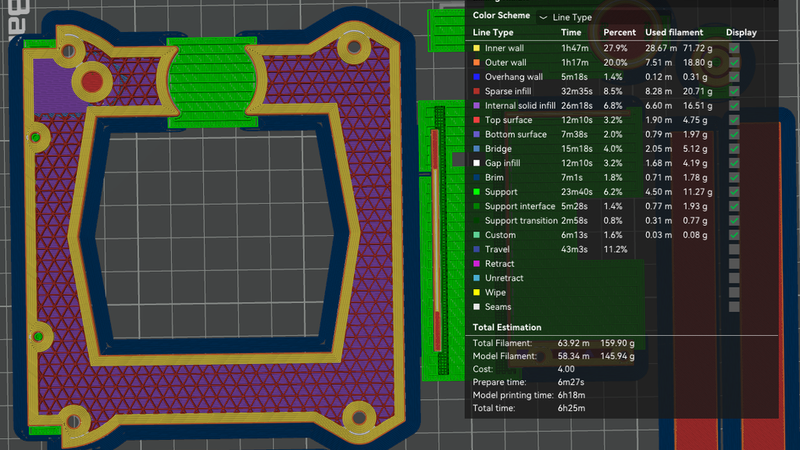

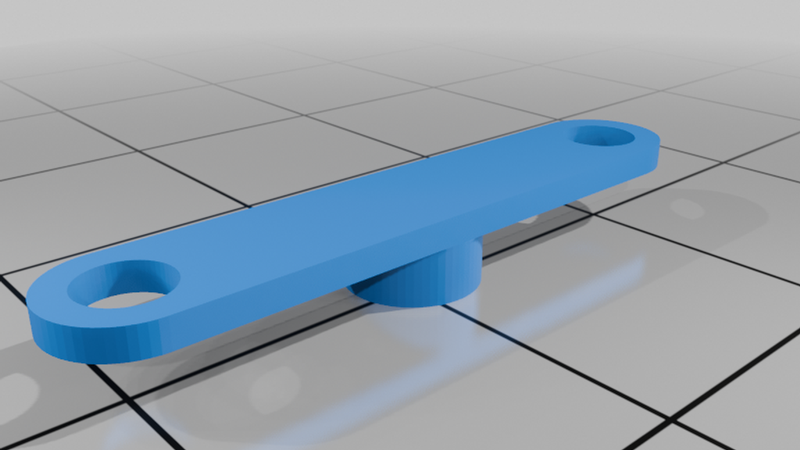

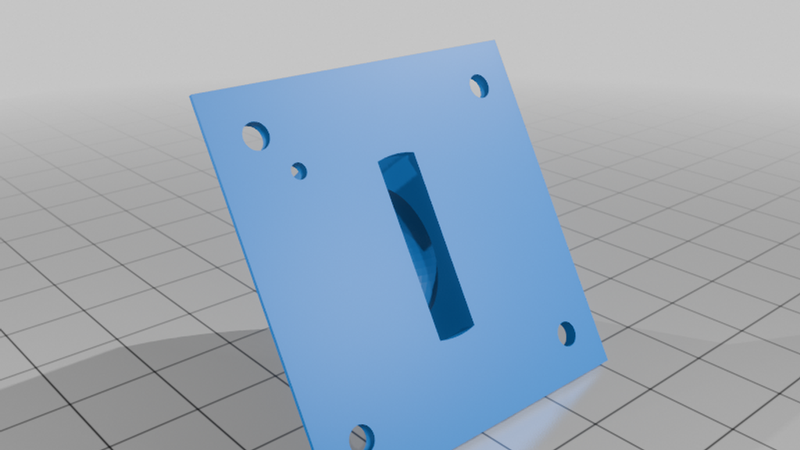

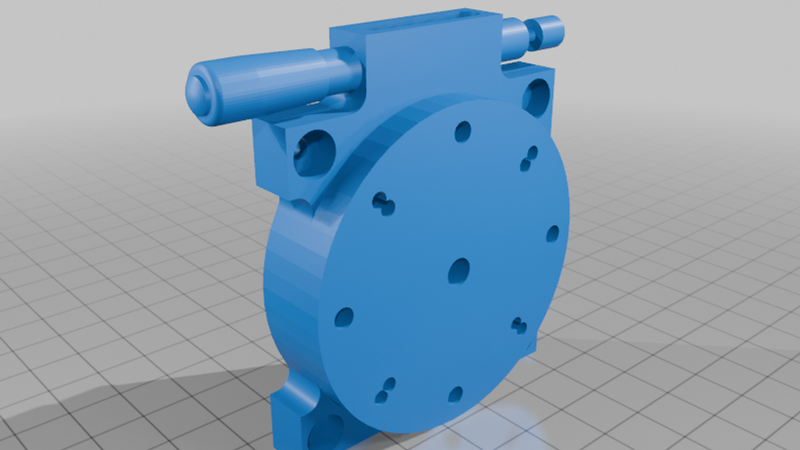

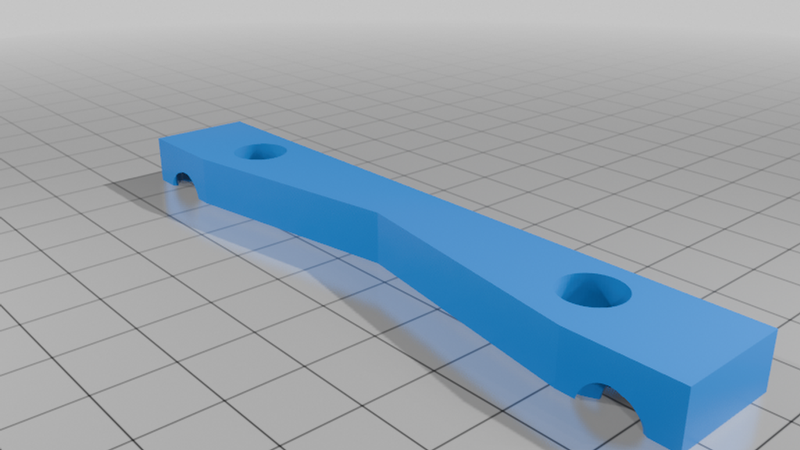

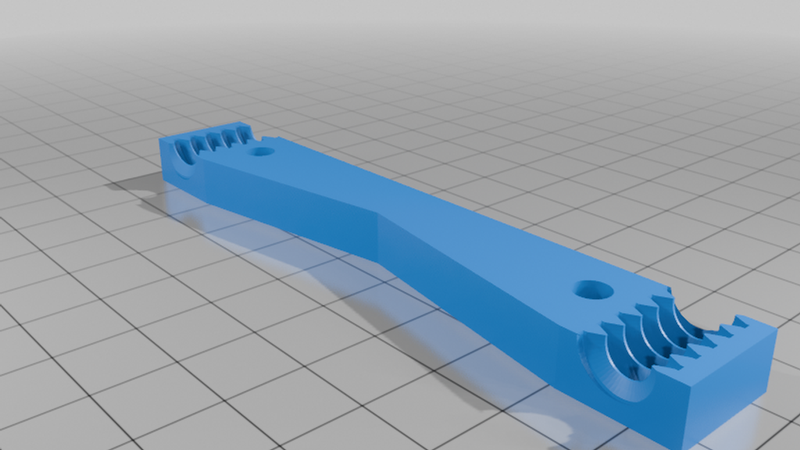

The large vice plates are very structurally important. To prevent bending under load from heavy tools like drills, it is recommended to use 35% triangular infill, and the infill direction must be set correctly, where the parallel lines the triangles form run from left to right, creating strength for torques applied along the up-down axis on the front.

For other parts I used 25% cuboidal infill.

All parts were created out of ABS plastic, with a 5+mm brim, bed adhesive, and 6 wall loops for strength and warp-prevention. I do not recommend brittle plastics like PLA because the press will face heavy forces from rotation with drilling, clamping tools down, and holding heavy tools.

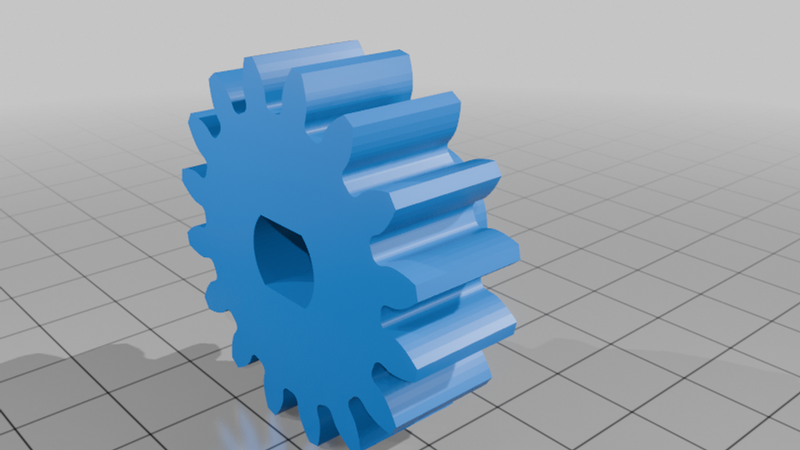

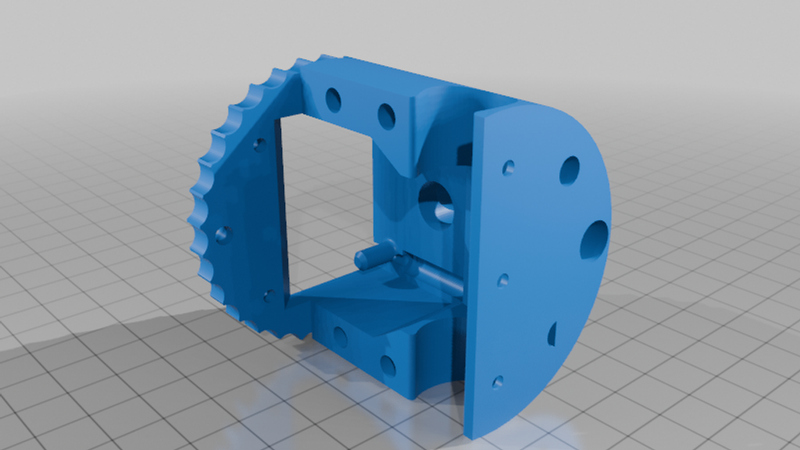

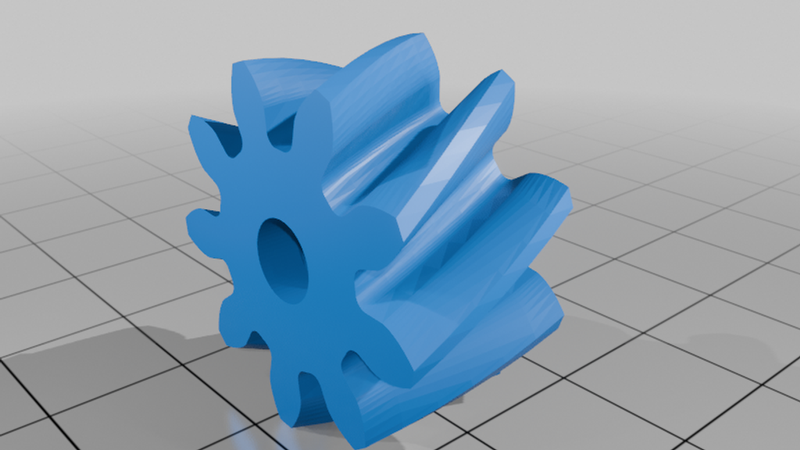

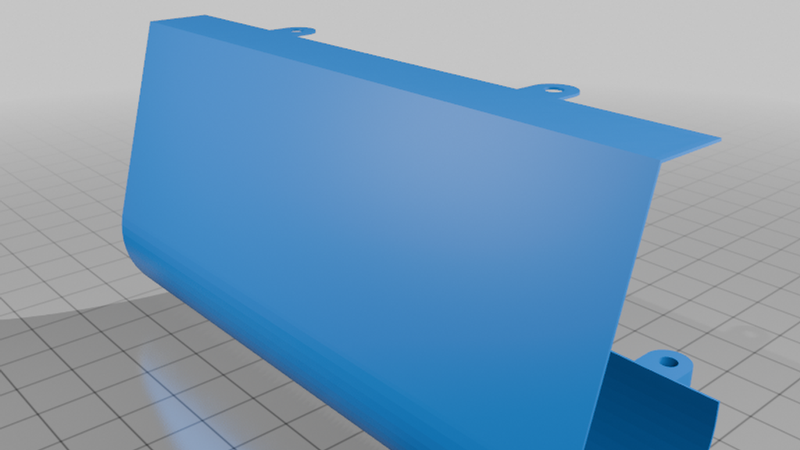

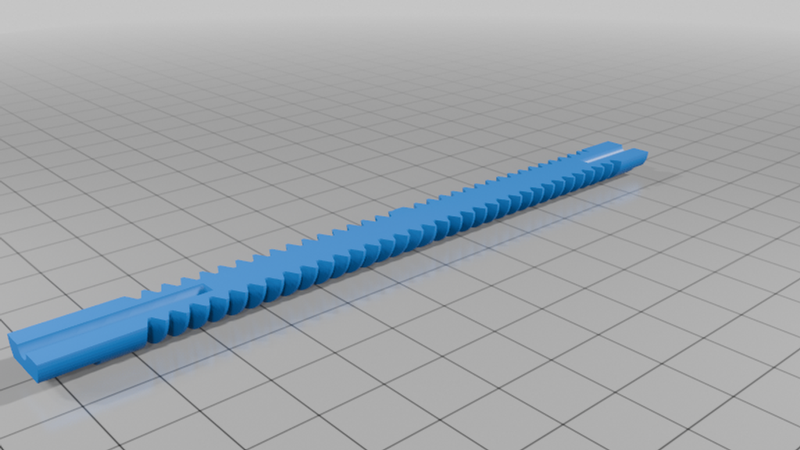

The vice gears have a translucent cover piece. I recommend printing in translucent PLA to be able to see gears. Its function is to prevent hair/skin from getting pinched in gears during operation and prevent dirt buildup, but it can be excluded or printed in normal plastics.

Here are the non-printed parts required:

FROM DREMEL PRESS:

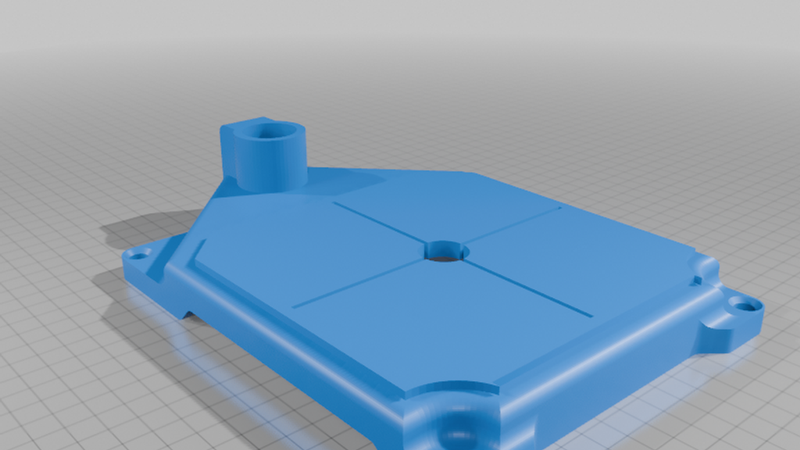

Base Plate

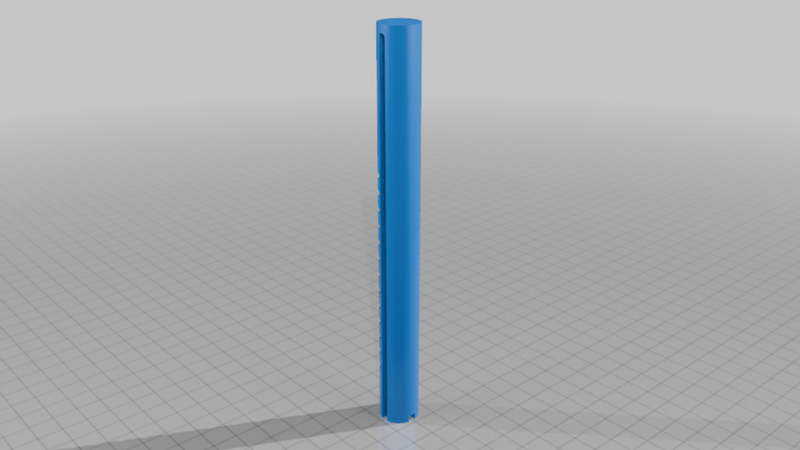

1in x 16in outer telescoping rod

¾ in x 13 in inner telescoping rod

Base plate screw to hold telescoping rod

Main Metal Gear Rack (Big chunky metal pipe with gear grooves cut into it)

Gear Rack Hex Screw + Washer

Inner Gear

Inner Torsion Spring

Golden Set Screws

Gear Axle

Handle Shaft

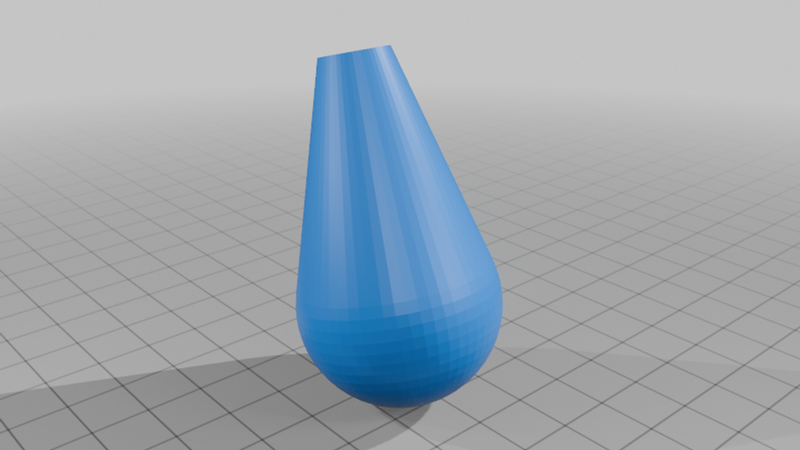

Handle

Handle Screw + Washer

¼ in Bearing and its 5mm Spring (Found in the angle finding clicky mechanism)

OUTSIDE MECHANICAL PARTS:

10x30x9 Bearing (1)

10x15x4 Bearing (4)

3x8x4 Bearing (2)

3mm stainless steel rod (150mm)

5mm stainless steel rod (75mm recommended, any size though)

M3 hex head screws (various lengths)

M4 hex head screws (various lengths)

M5 hex head screws (various lengths)

All screws used can be found in this kit: https://a.co/d/0bhYrJV0

60mm Optical Rotary Table: https://a.co/d/0eZUfcSq

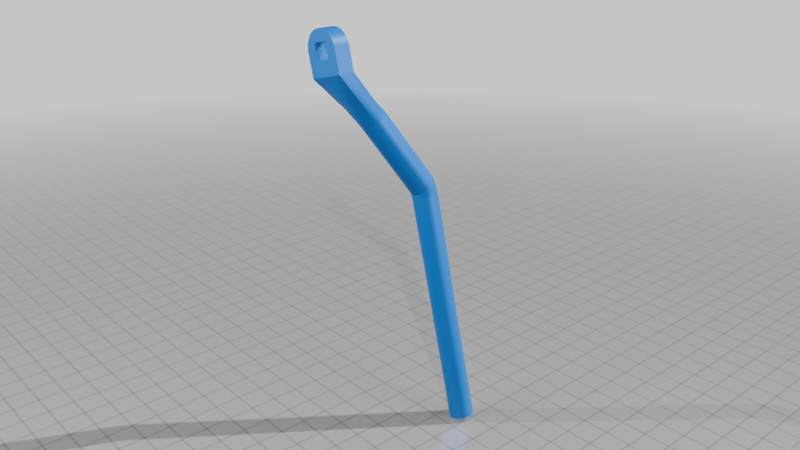

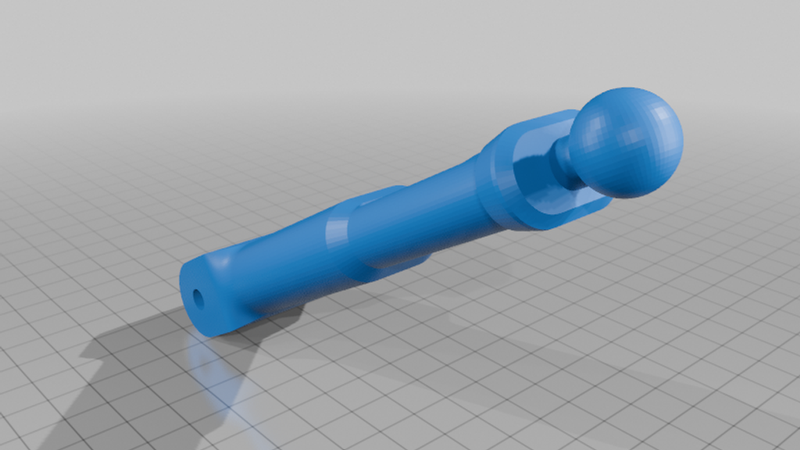

The extension arm is a random scrap piece of plastic I own, I believe from a broken bike phone holder. It can be replaced by printing it or finding another plastic arm.

OUTSIDE ELECTRICAL PARTS:

These can all be exchanged for different electrical parts. I chose these because I had accumulated extra from various projects and decided to use them.

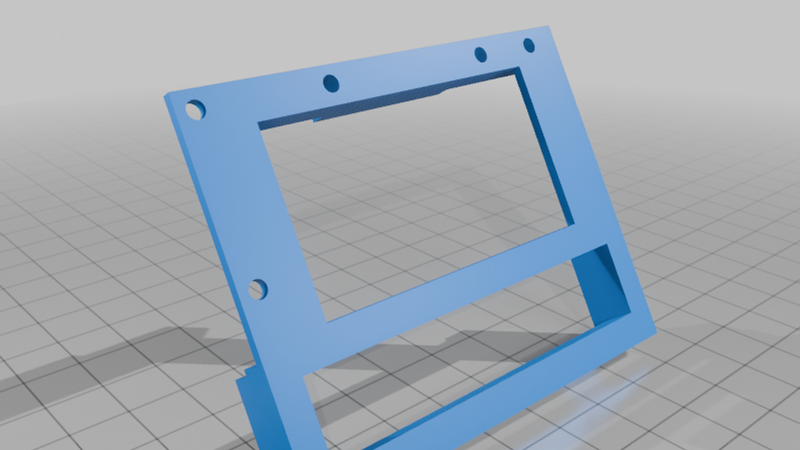

2.13 in E-Ink Display: https://a.co/d/06lsCN1k

* I recommend replacing with an OLED display for smoother animations.

9V battery: https://a.co/d/0apk6y1F

9V battery leads: https://a.co/d/08Yalsq2

6mm Shaft Incremental Encoder: https://a.co/d/0dyfr6RT

5V buck converter: https://a.co/d/0aGpRWMl

Raspberry Pi Pico: https://a.co/d/0bbu5Y0t

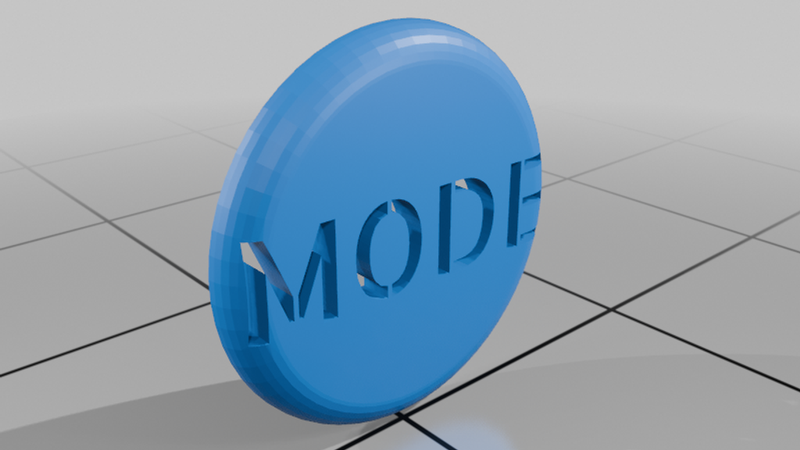

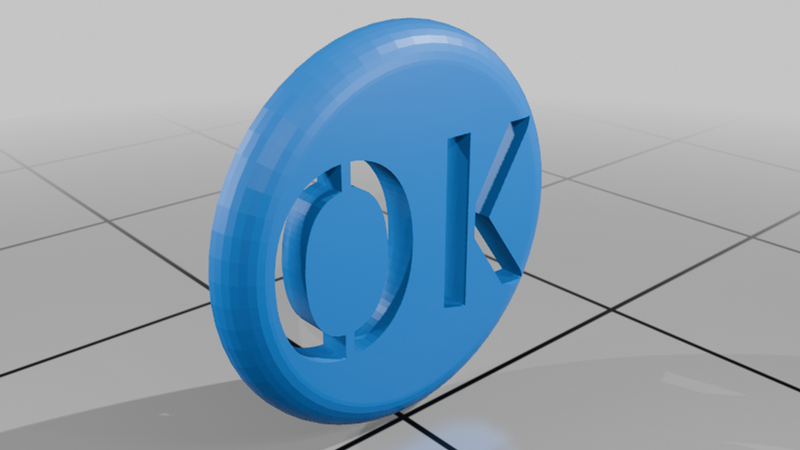

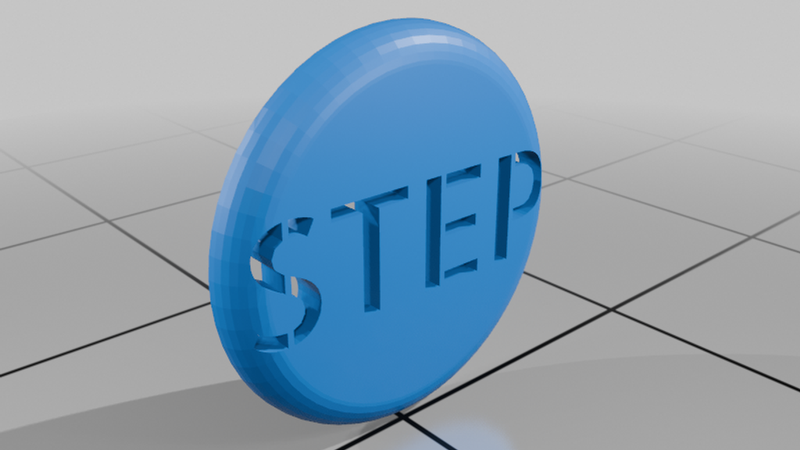

12mm tactile buttons

Protoboards

Jumper wires

Solder

4 Prong JST connectors 1 Male 1 Female (any size, just for encoder connection)

Tools required:

3D Printer

Soldering Iron (for heat pressing nuts into place)

Mini flat-blade screw driver (for removing Dremel set screws)

Medium flat-blade or Phillips screw driver

M3 Hex

M4 Hex

M5 Hex

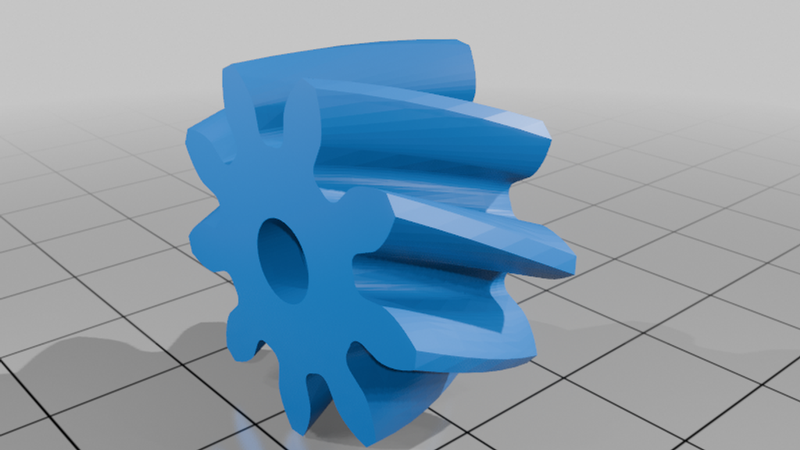

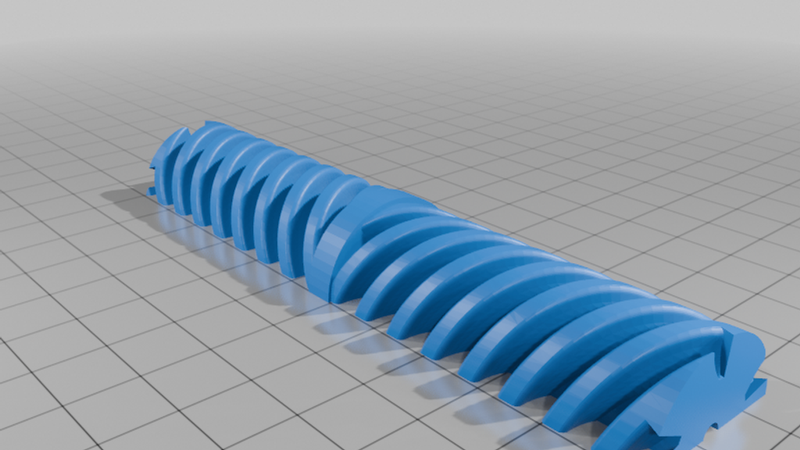

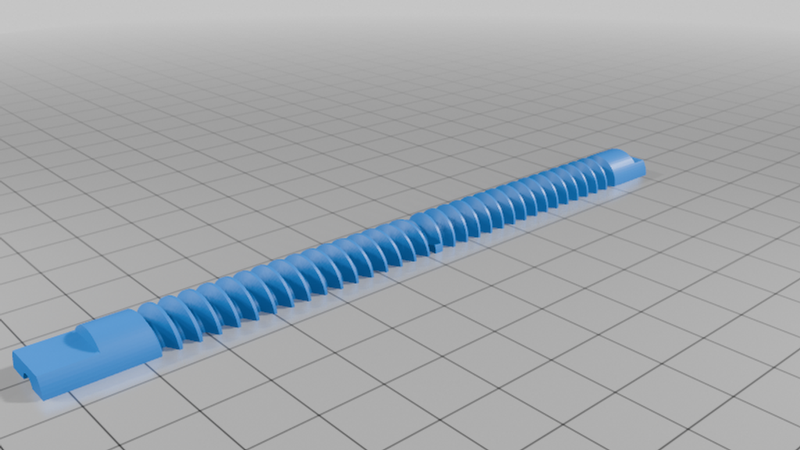

Super glue / chosen-plastic-compatible adhesive (for connecting worm gear halves)

UPLOADED FILES:

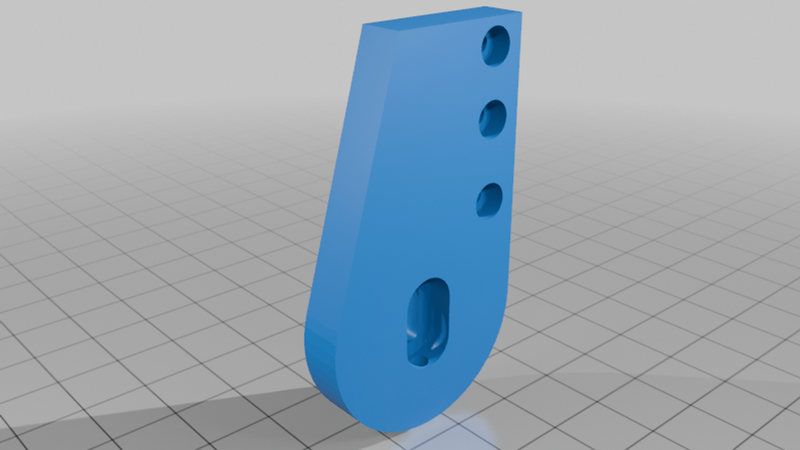

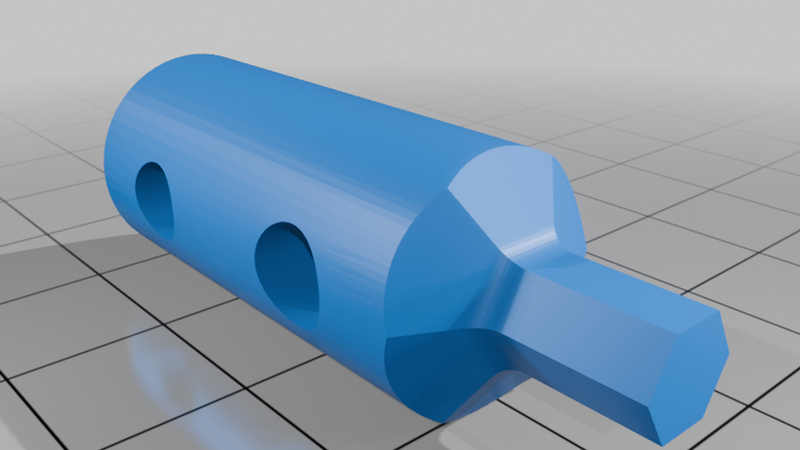

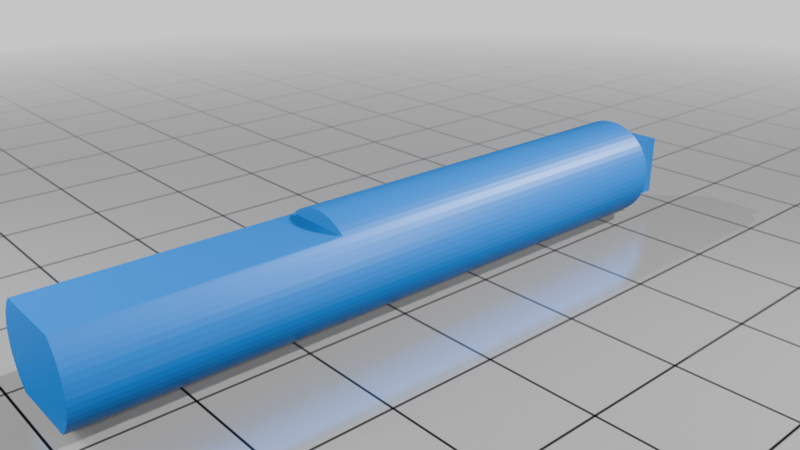

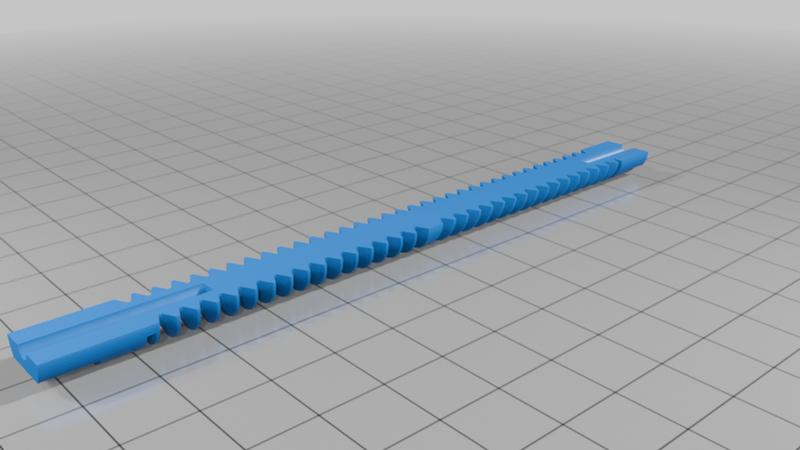

* PRESS FILES

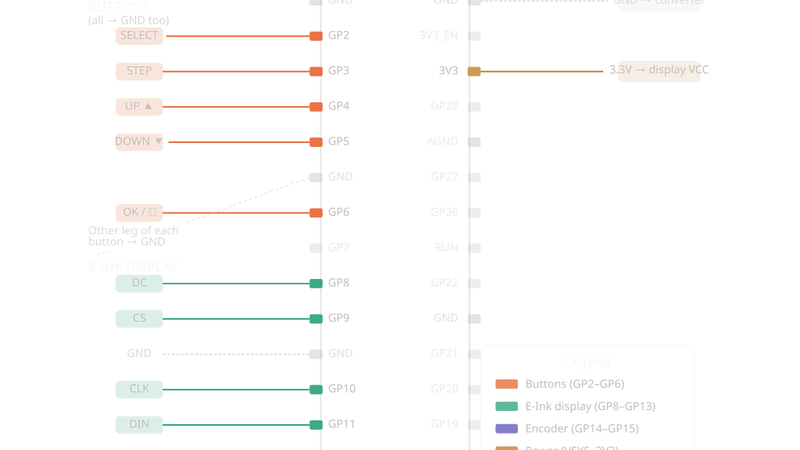

*WIRING DIAGRAM

*CODE
