Gotek 5.25" Vertical Mount for smaller OLED screen
CountyBeatle
1 File
stl Format




Description

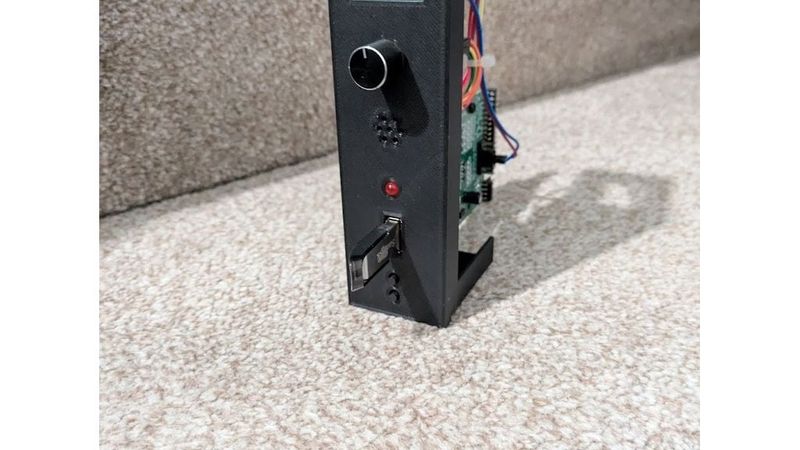

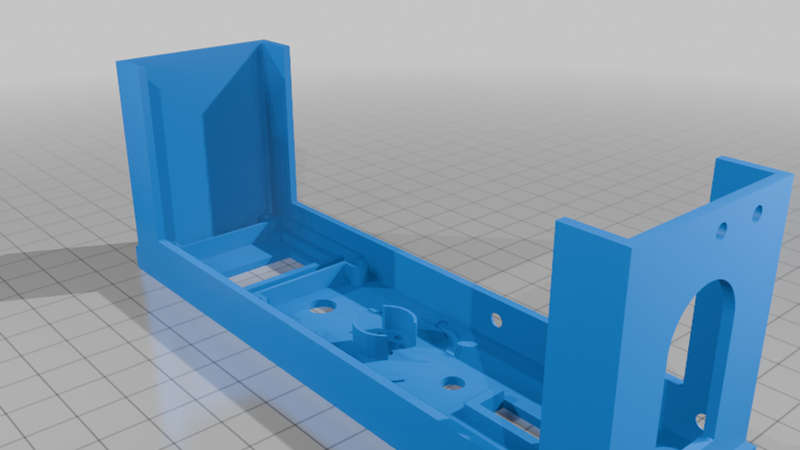

My Gotek had a smaller OLED screen than the original, and I also found it difficult to mount the rotary encoder with the original design, so I made these small modifications.
Props to @saustrup for the original!

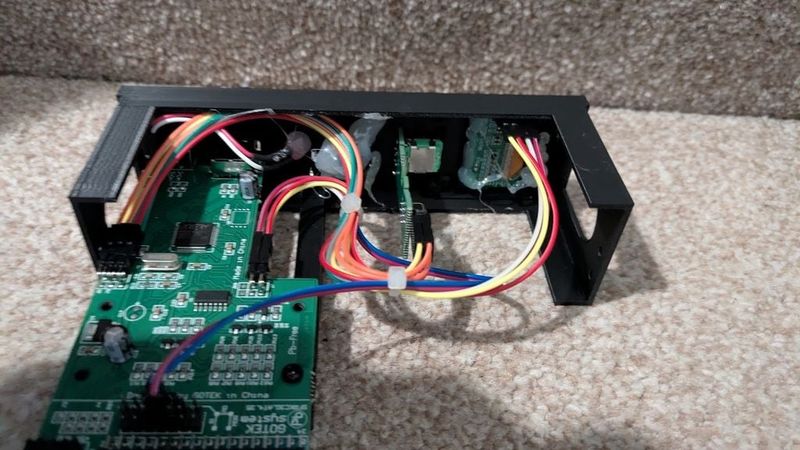

I don't have their talent so, as you can see, some of my parts are held in with hot glue rather than fancy brackets! :-)

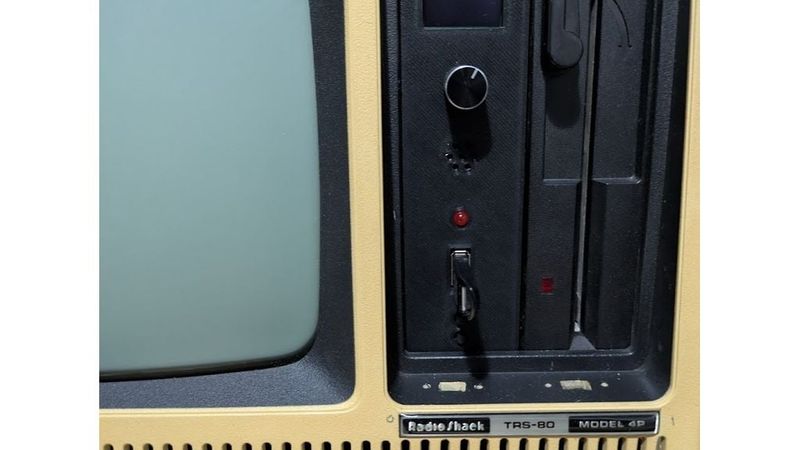

When I came to fit it in the TRS-80 Model 4P, I found that it was upside down compared with the drive mounting holes, so I had to punch some extra holes.
I probably won't update the model now, though, because mine's done!
