Framework 12 VESA Mount

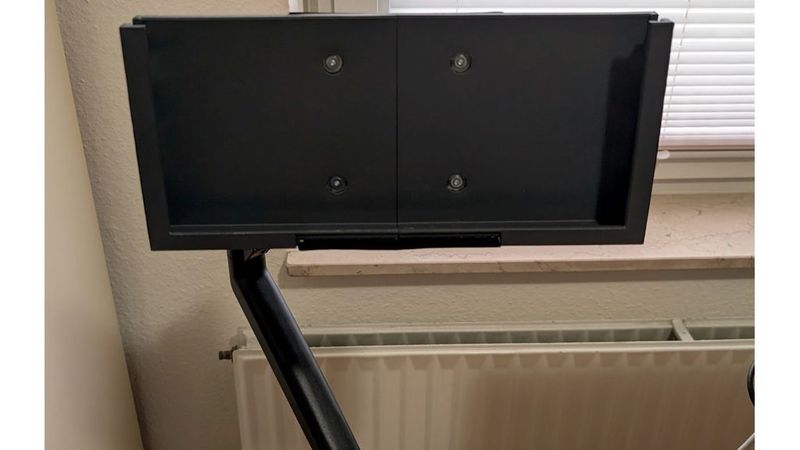

Mount your Framework 12 laptop to a VESA75 monitor arm.

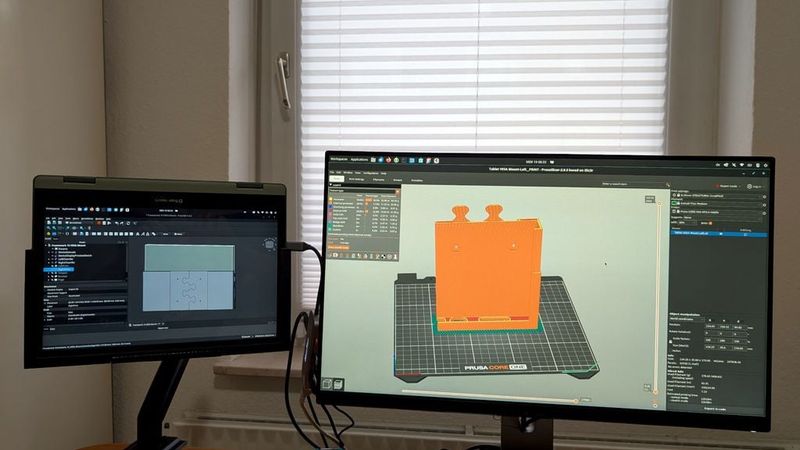

It is designed to hold the laptop in tablet mode so it can be used as an additional monitor.

Note that the orientation is reversed. This is necessary to keep the vents clear.

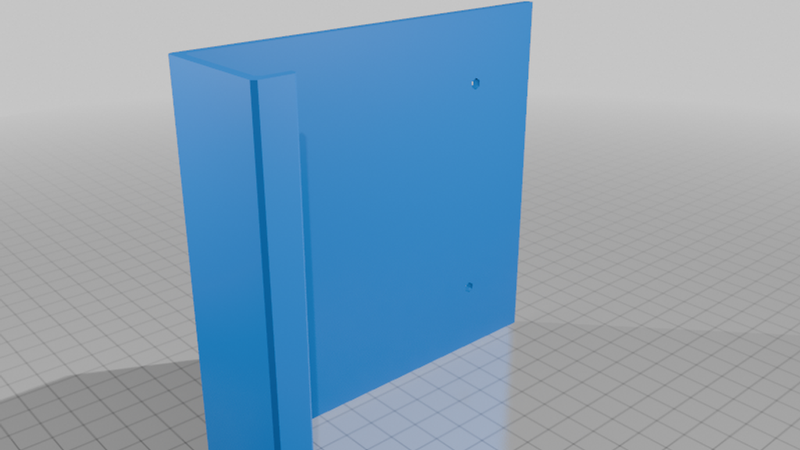

A sheet metal or 3D-printed bracket is used for added stability.

Please make sure to keep the vents of your laptop clear and unobstructed: Insert the device in the correct orientation.

If you like this design, please consider leaving a ♥️heart. Thanks!

Discalimer: You are solely responsible for the safekeeping of your devices. I cannot be held responsible, e.g., if your bracket fails or your device is otherwise damaged.

Printing

• Nozzle: 0.4 mm
• Filament material: TPU, Shore-hardness A98
• Layer height: 0.25 mm
• Supports: No
• Infill: 30 % Grid
• Perimeters: 3 or 4
• Brim: 8 mm
• Notes:

- Choose a STRUCTURAL (slower, more precise) print setting.
