DJI O4 Air Unit Micro Case

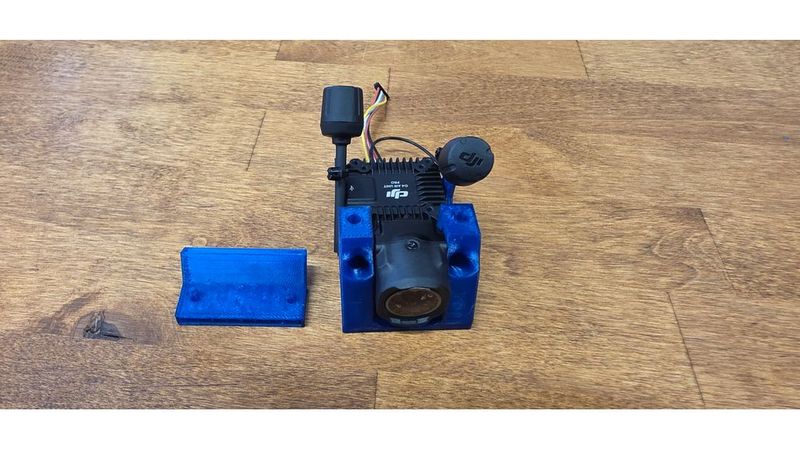

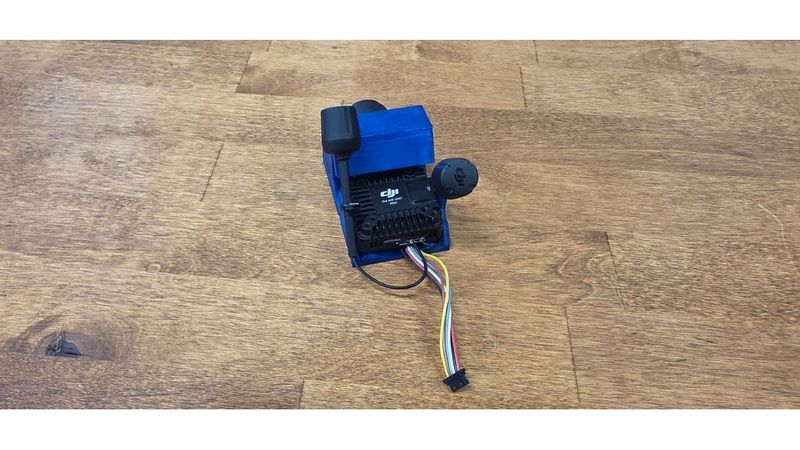

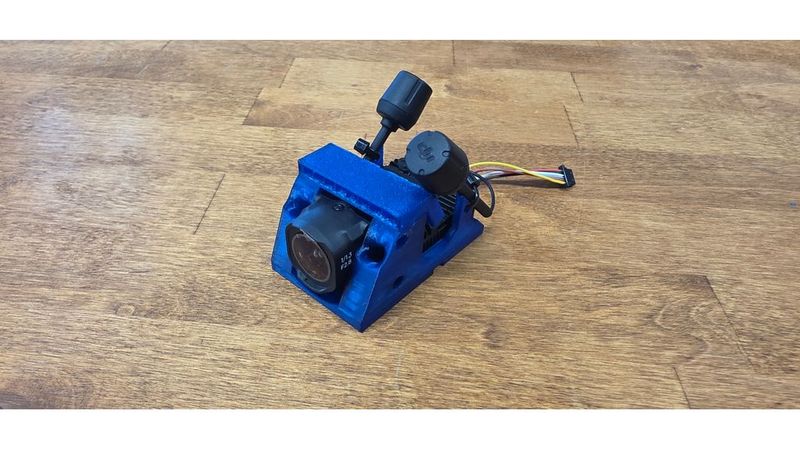

I needed a very minimalist enclosure for a DJI Air Unit. Since there wasn't anything like that available for the O4 model, I built one myself.

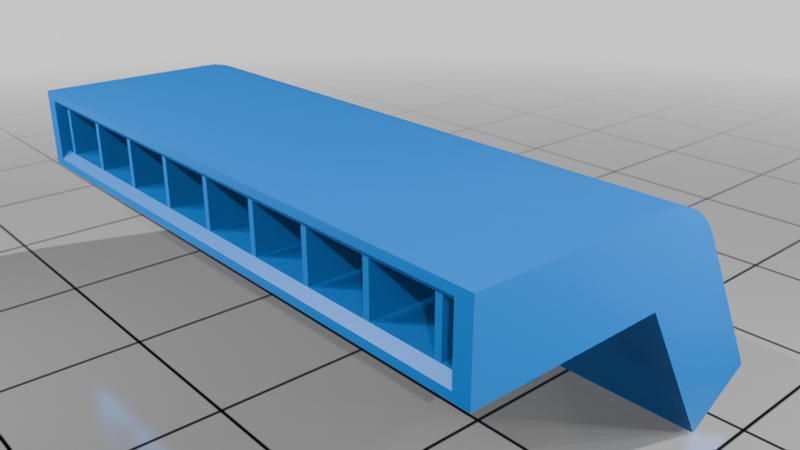

To keep it compact, it doesn’t have an active fan; instead, it features an air duct that directs air onto the top of the Air Unit during operation. I might add a fan later if this doesn’t work...

Everything can be printed without support structures; the air duct is removable, and no additional hardware is required!

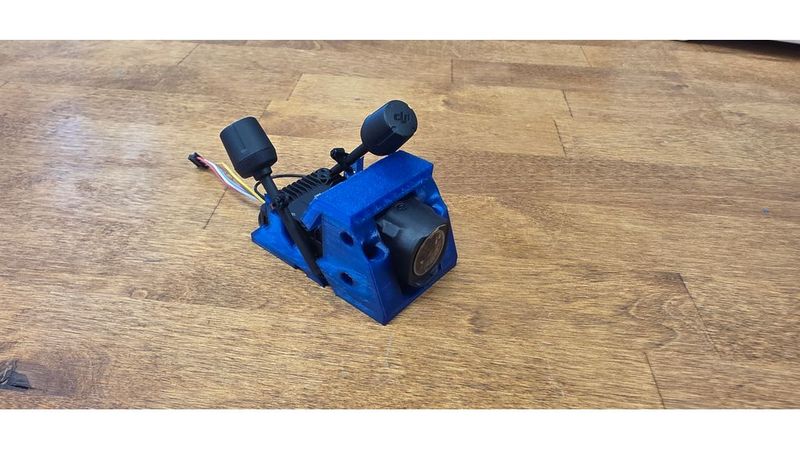

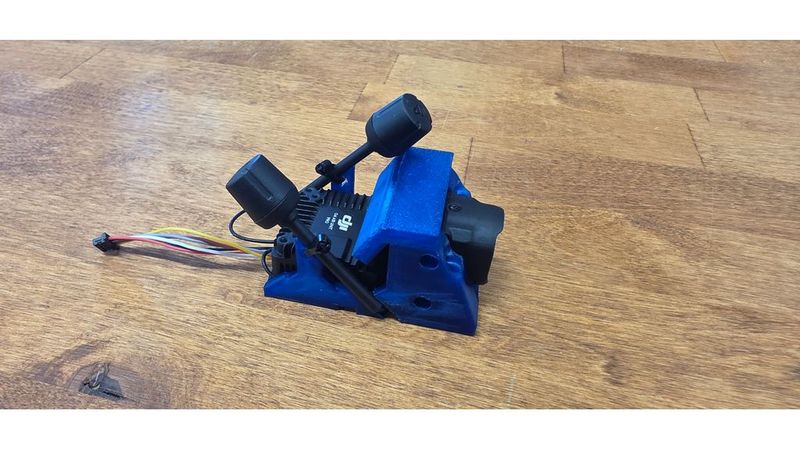

The O4 is held in place solely by friction and can also be secured with a cable tie. I also wanted to mount the antennas at the recommended 45-degree angle.

There are also holes on the bottom to attach the case to RC accessories. Once everything has been tested, I’ll definitely release a Version 2 :)
