Intel NUC VESA 4x100 and/or Wall Mount

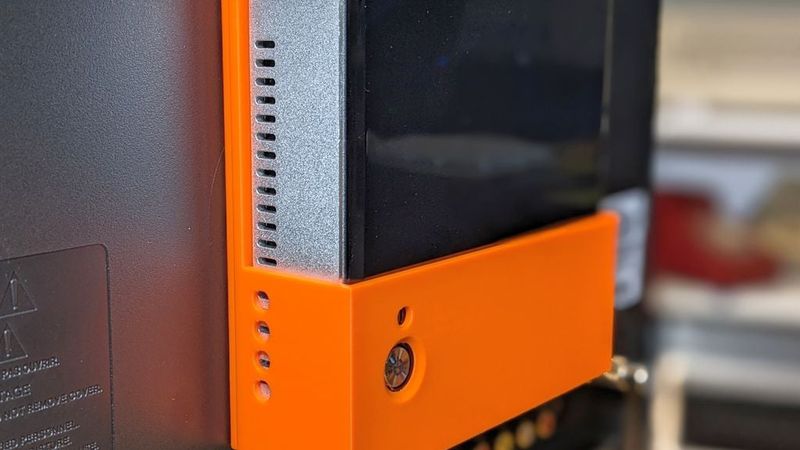

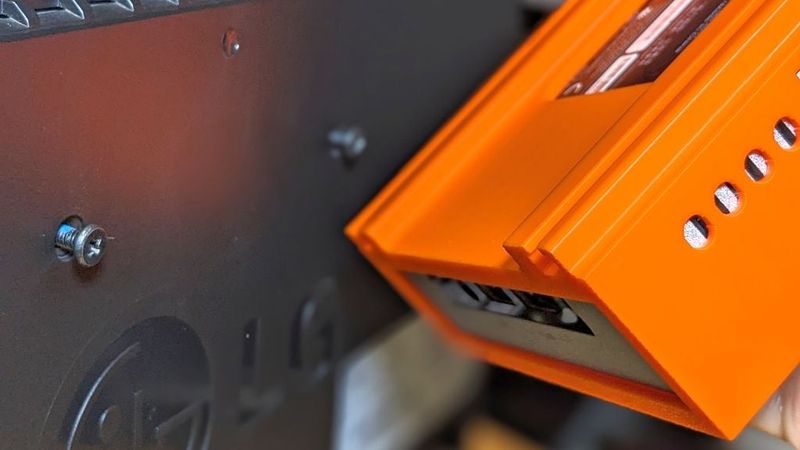

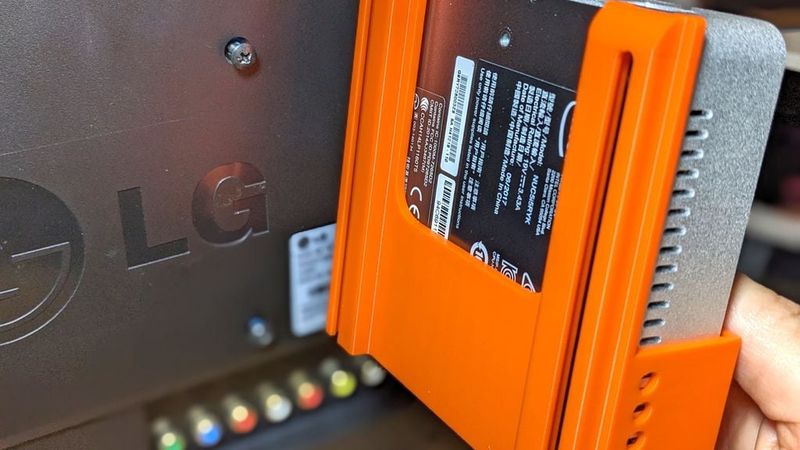

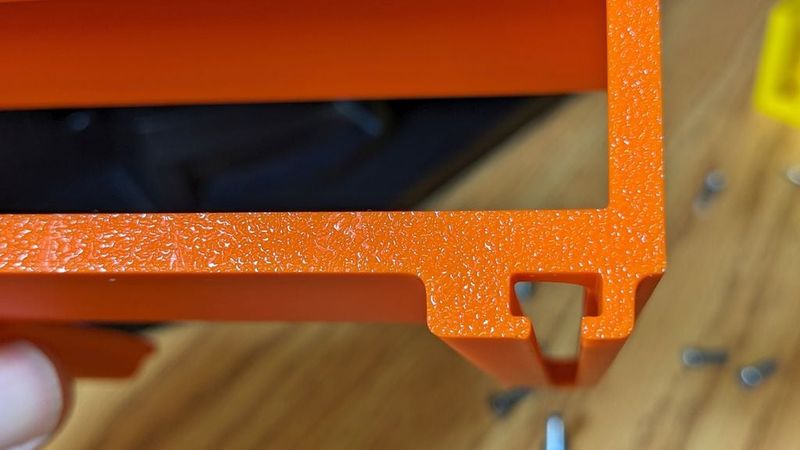

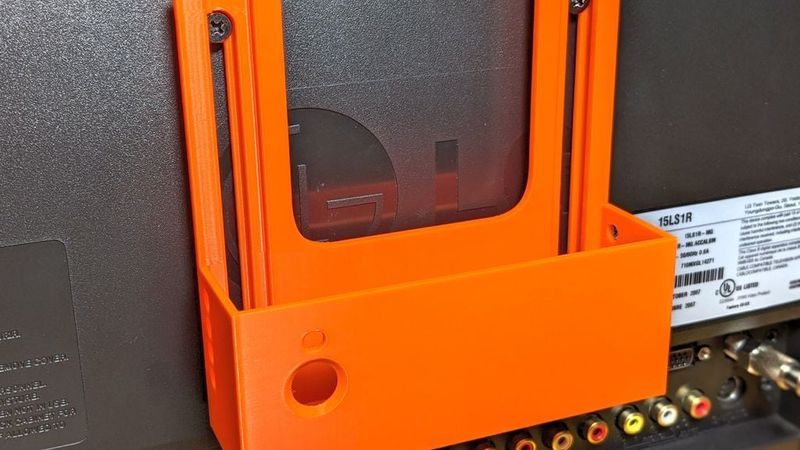

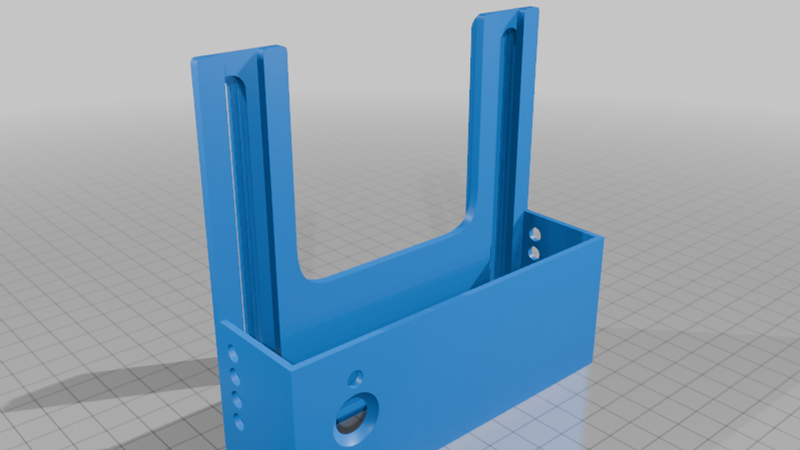

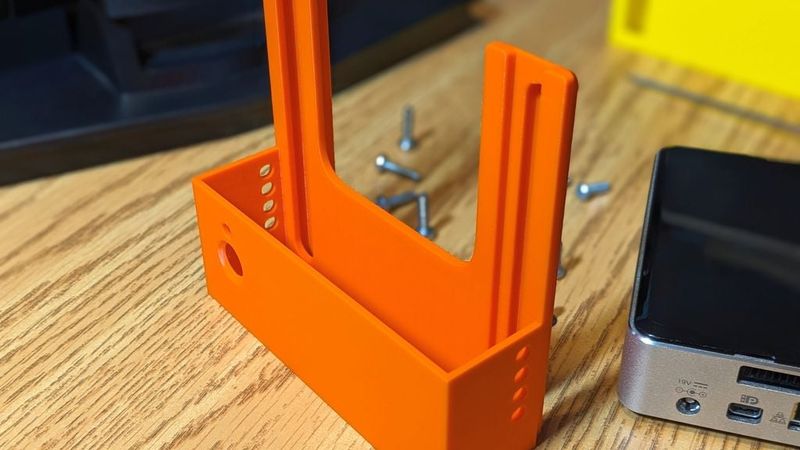

This 4x100 VESA mount, designed to fit an Intel NUC, can also be used as a wall mount (make sure your fastners are 100mm apart). My design uses a rail sliding system to fit the nominal profile of most M4 bolts (button, pan, or socket head.)

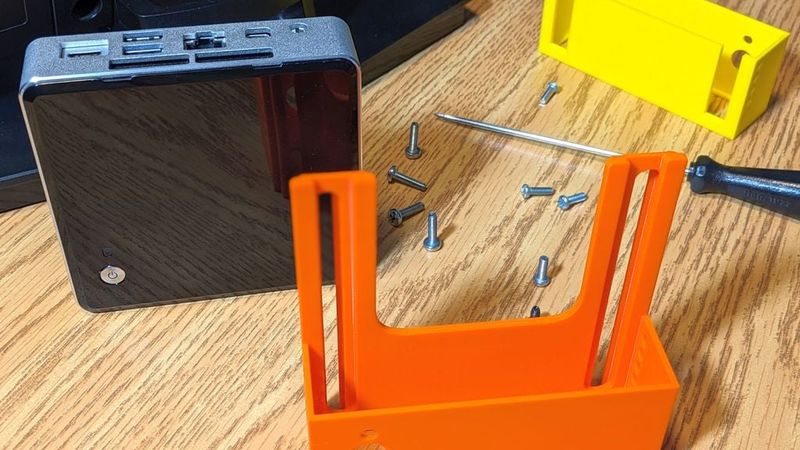

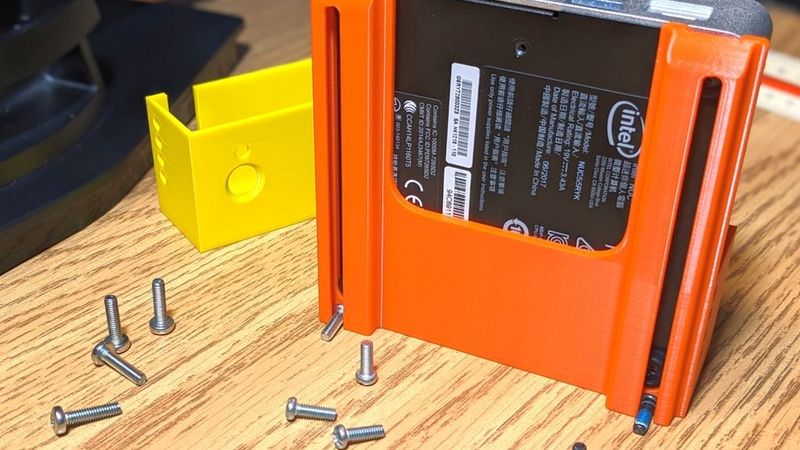

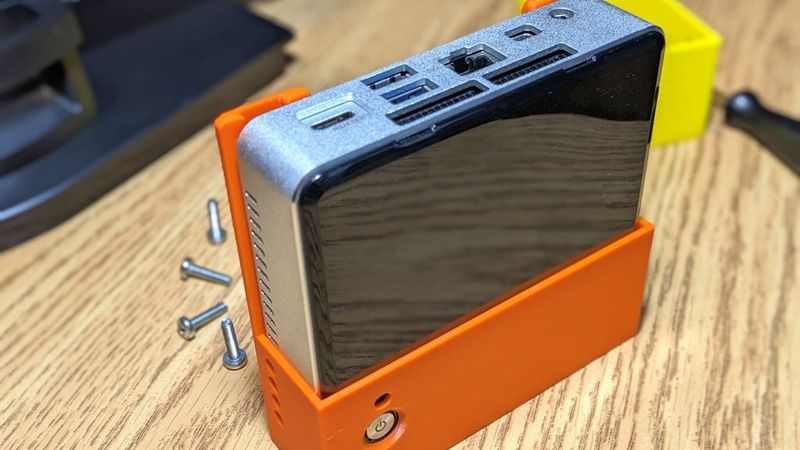

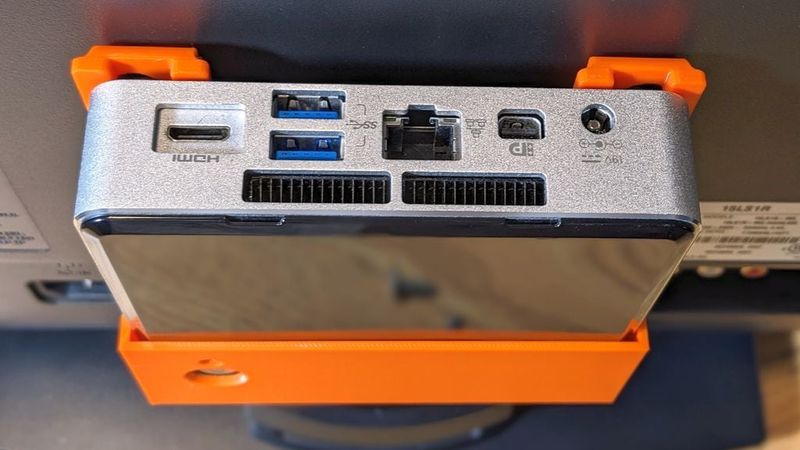

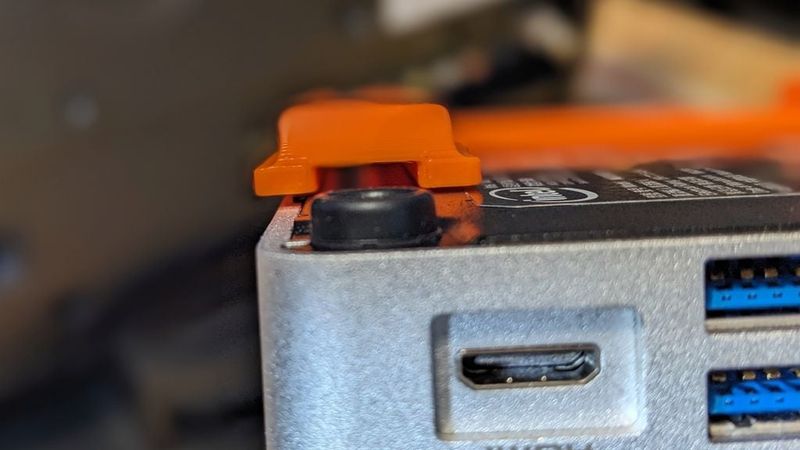

I have the 5i5RYK Intel NUC model, measuring 116x112x30mm (WxDxH) with feet that are 3mm tall. The stand fits snuggly around the NUC providing access to all front and rear ports, as well as cutouts for ventilation and the rubber feet.

If you print one, please post a make. I would love to see it!

My settings:

Printer: Bambu Lab X1C

Material: PLA

Build plate: Textured PEI

Nozzle size: 0.4mm

Layer Height: 0.2mm

Wall loops: 2

Infill: 15%

Brims: Not needed

Supports: Not needed
