Moman RSS Helmet Intercom Mount Base

This is a custom mounting base designed for the Moman RSS motorcycle helmet intercom system.

The mount provides a secure attachment while maintaining a compact profile on the helmet. It is intended as a replacement or modified mounting solution for riders who prefer a cleaner and more streamlined installation.

Included Versions

This package contains two versions of the mounting base:

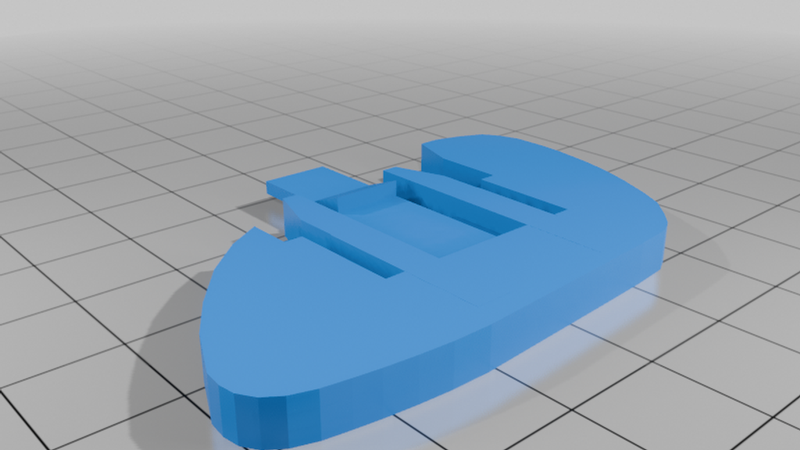

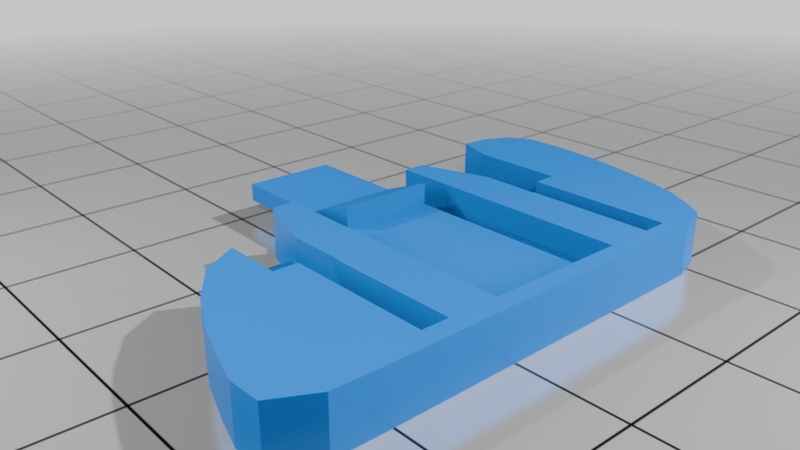

1. Standard Version – dimensions closely match the original mounting base.

2. Compact Version – a reduced-size variant designed to position the intercom closer to the helmet for a cleaner appearance and lower profile.

Choose the version that best fits your helmet and installation preferences.

Printing Settings

• Material: PETG
• Infill: 60%
• Layer Height: 0.20 mm
• Supports: Required (Tree Supports recommended)
• Wall Count: 4–5 walls
• Print Orientation: Flat on the build plate

Tested Configuration

• Printer: Ender 3 Pro
• Material: PETG
• Infill Density: 60%

Both versions were successfully printed on an Ender 3 Pro using PETG. The selected settings provide a good balance between strength, durability, and print quality.

Notes

Tree supports are recommended for the overhanging sections and provide the cleanest results with minimal post-processing.

Disclaimer

Use at your own risk. Always verify that the mount is securely attached before riding. The author is not responsible for any damage, loss, or injury resulting from the use of this model.
