Game Camera Tree Mount

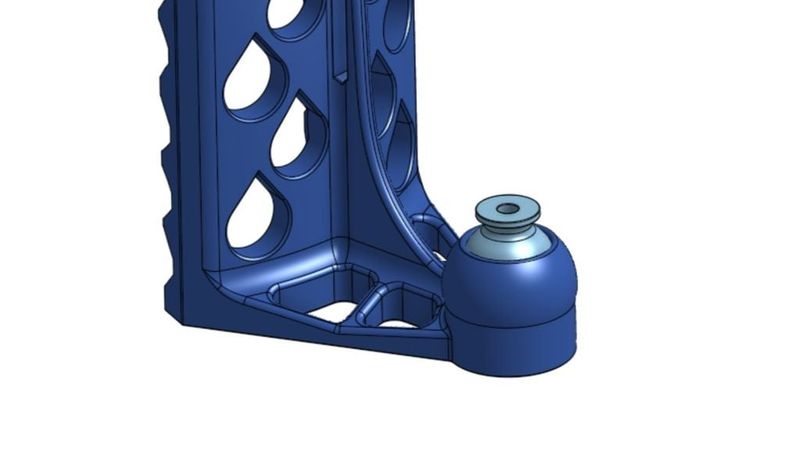

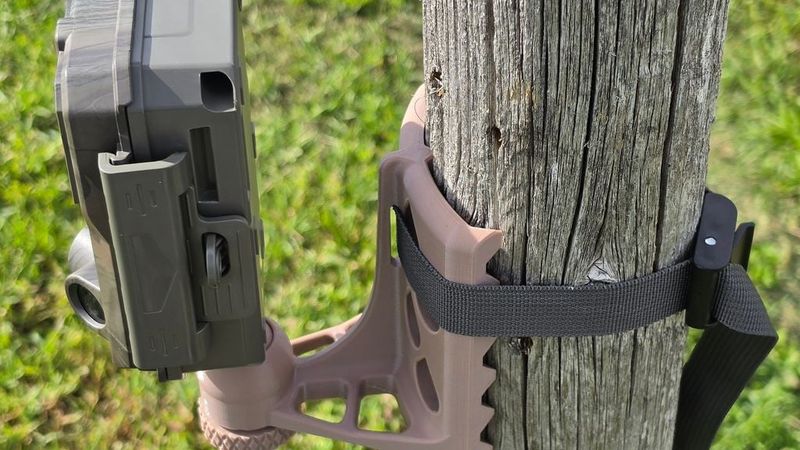

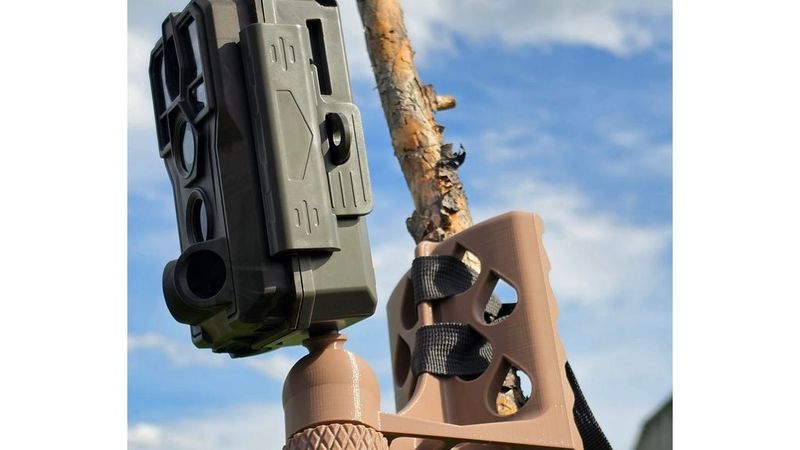

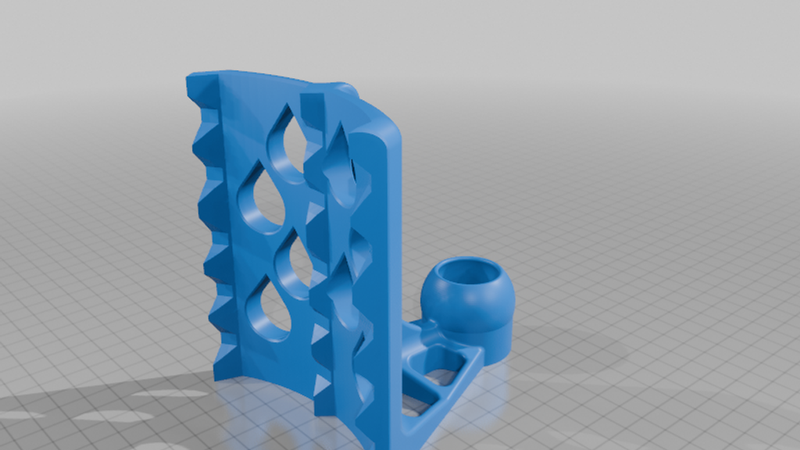

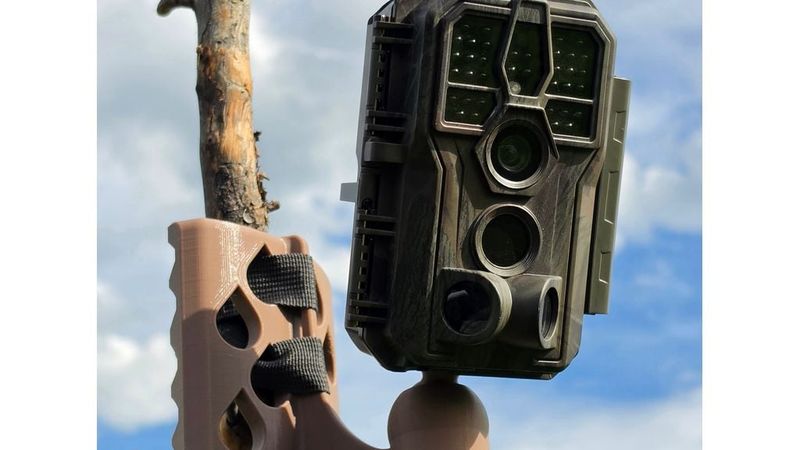

This is a Camera Mount that allows the camera to be adjusted quickly to a variety of tilt and rotation angles while allowing for attachment to large tree trunks and small sticks, posts, and metal T-posts. It consists of a Frame with a Socket, a Ball Mount, and a Ball Clamping Handwheel.

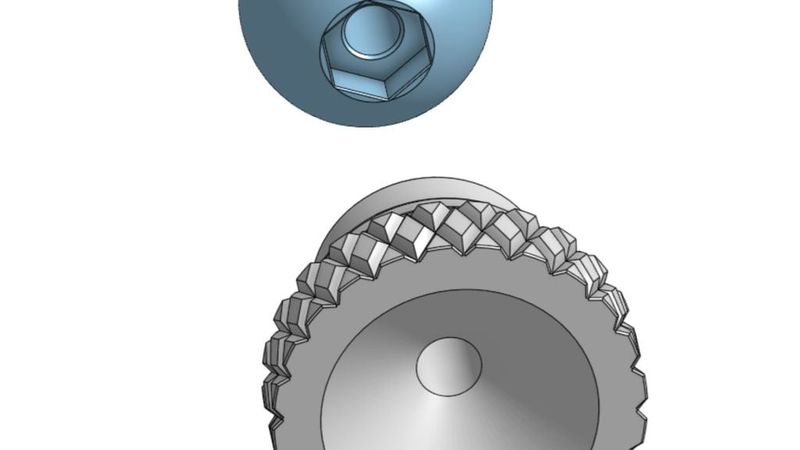

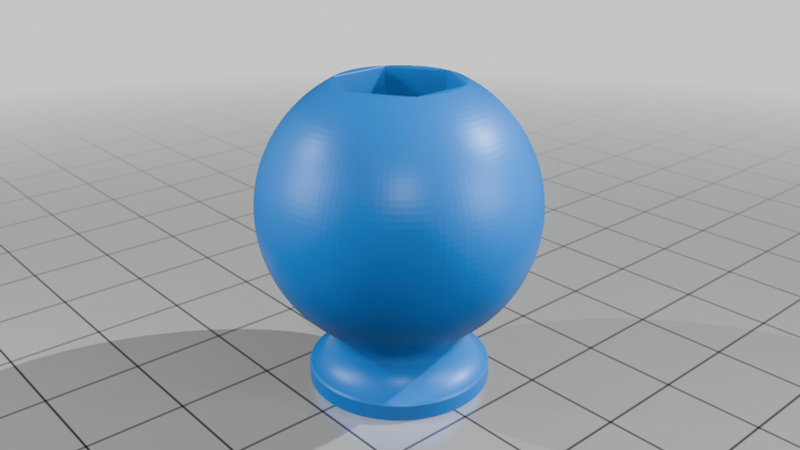

The ball requires a 1/4-20 x 1.25" hex-bolt to be inserted as a standard camera mounting stud.

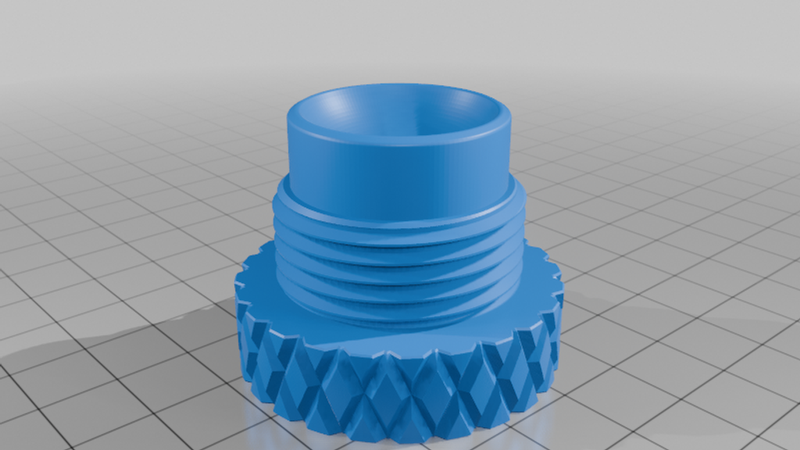

It is recommended to put a small amount of synthetic grease on the Ball Clamping Handwheel threads... Some 3D materials will "stick" while tightening otherwise.

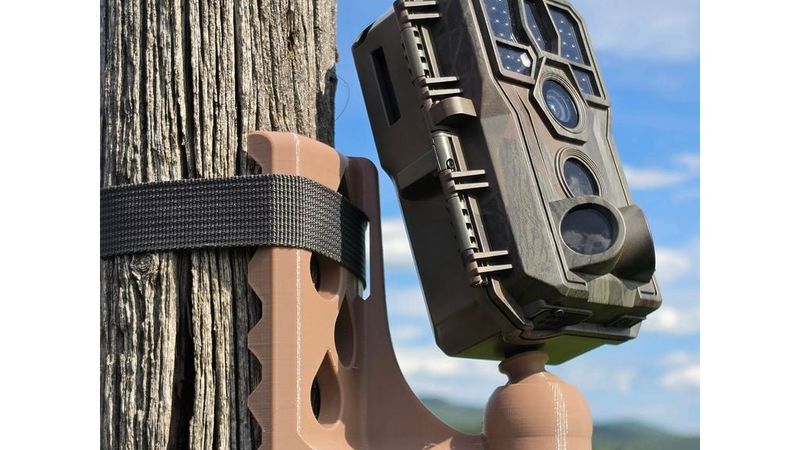

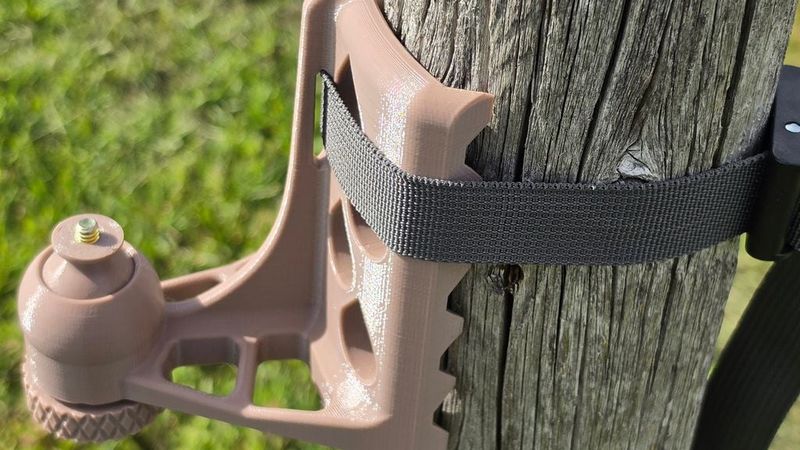

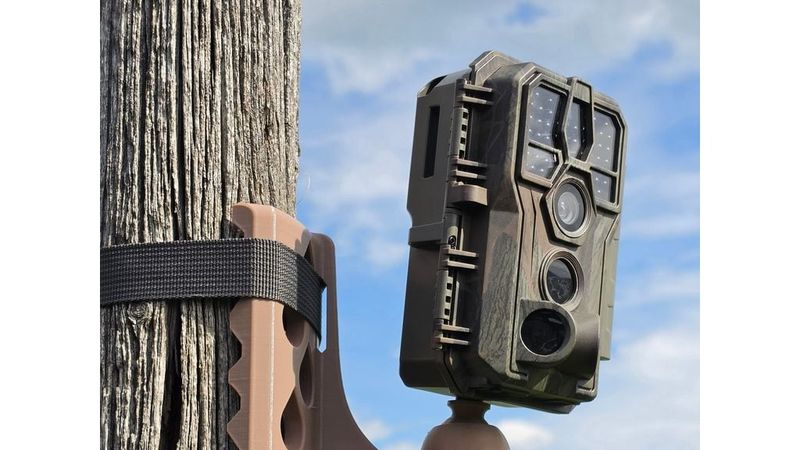

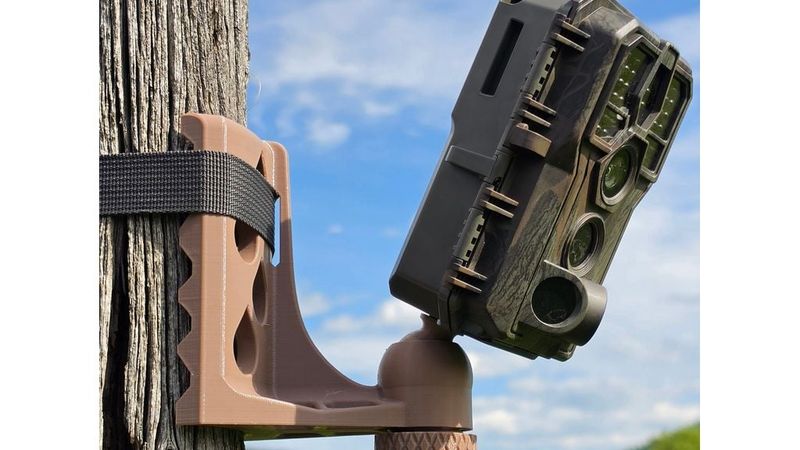

The photos shown are of the design printed in PETG, you may use any materials you wish. ALL 3 of these parts require NO SUPPORTS to print cleanly on most machines.

I Bruce Carpenter, being the sole inventor, designer, engineer, and creator of this device, do hereby declare this invention and ALL of the files within this listing to be henceforth public domain. This invention is free for any individual or entity to manufacture for personal use and/or for sale to anyone or everyone. By declaring this to be of public domain, I am specifically forbidding any individual or entity from obtaining a patent on this invention and then restricting the production of or sale of this invention by any other individual or entity. signed: Bruce J Carpenter 06/15/2026
