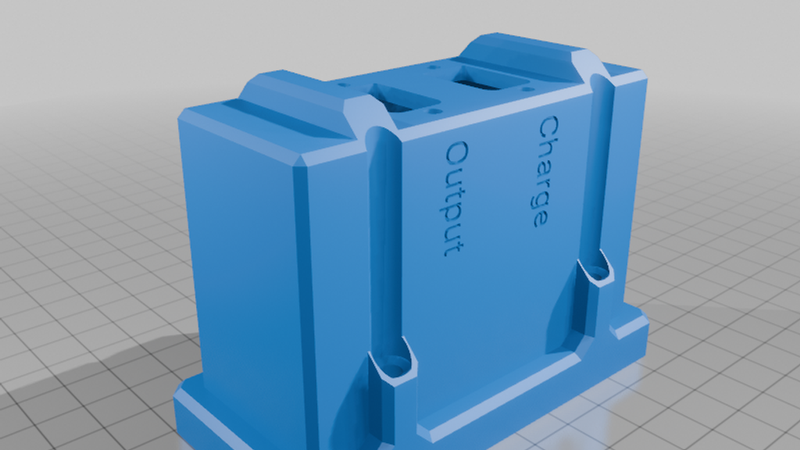

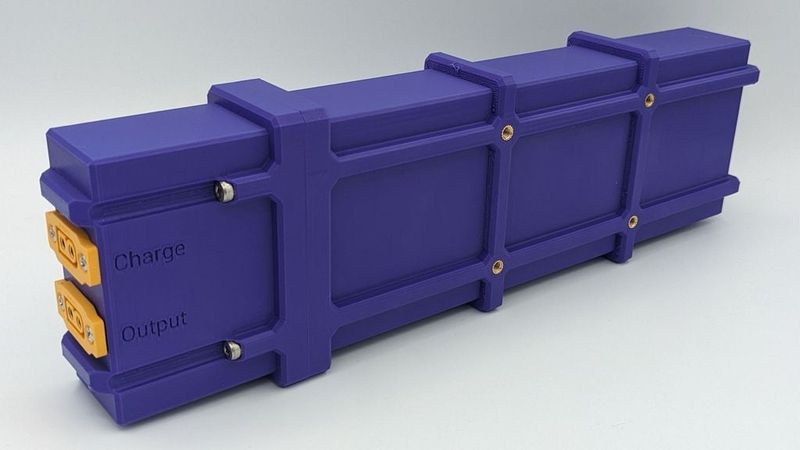

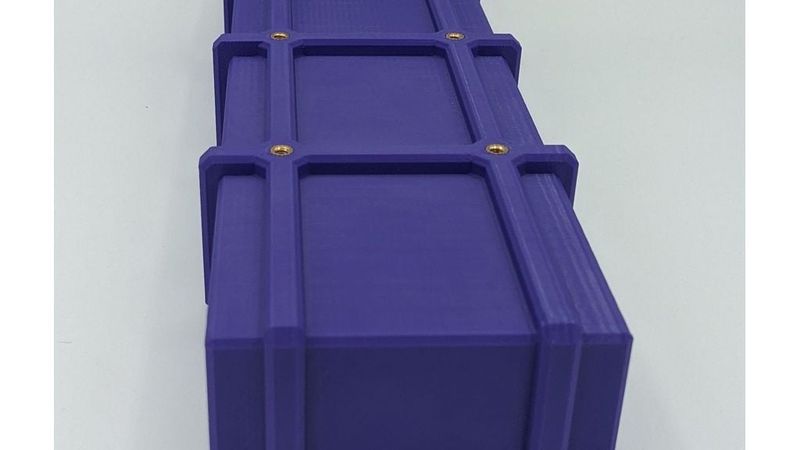

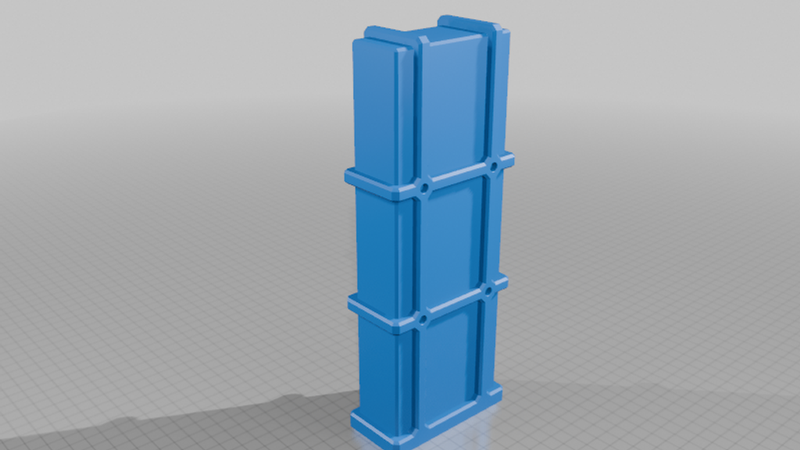

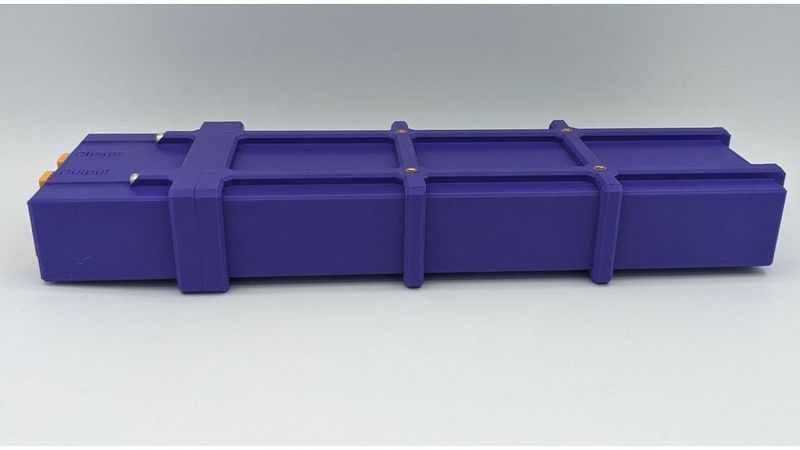

14 Cell 18650 Rugged Battery Box

SamDesplancke
SamDesplancke
5 Files
step, stl Formats

Description

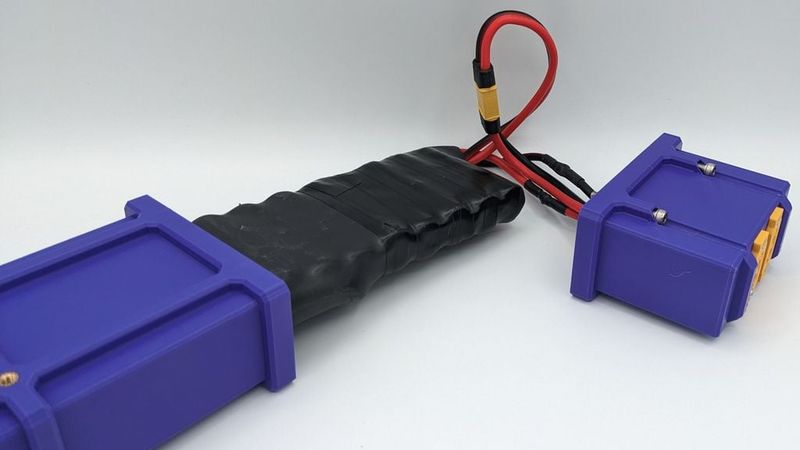

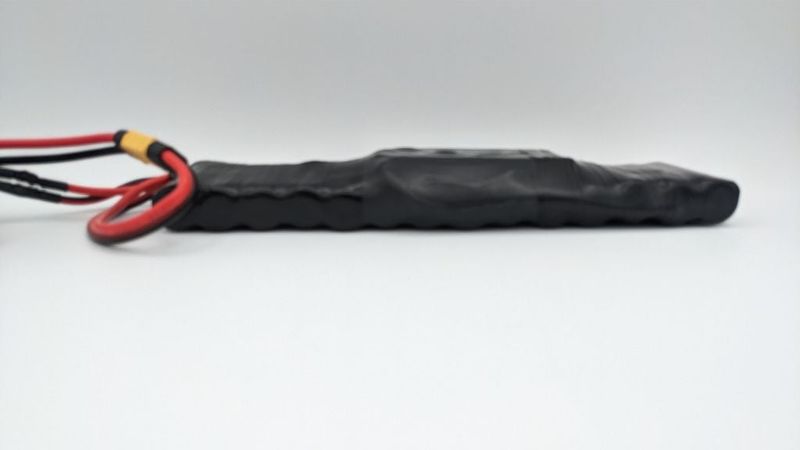

Battery box for 14 (or 15 if your connectors are small) 18650 cells with space for insulation and a BMS

required hardware

4x M4*8 threaded inserts for holding the 2 case sides together

4x M4*30 bolts for holding case halves together

8x M4*4 threaded inserts for the mounting points on the side faces

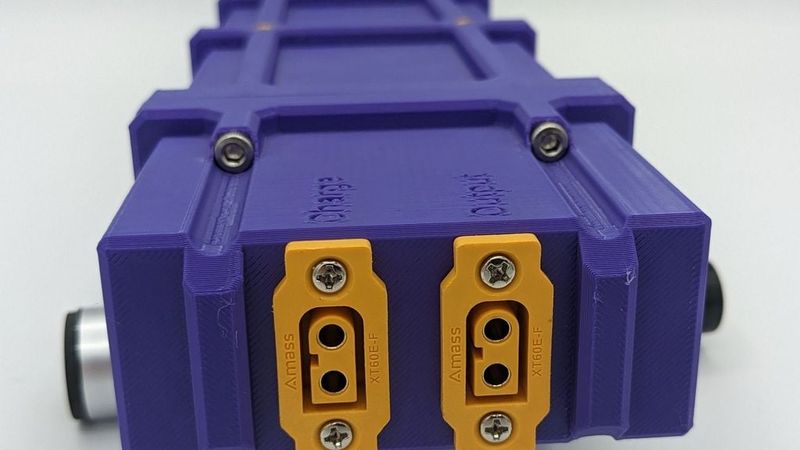

2x Amass XT60E-F panel mount XT60 connectors

Downloads

Bottom_case.step
378.5 KB
Bottom_case.stl
555.7 KB
Top_Case_blank.step
136.6 KB
Top_Case_With_XT-60s.step
602.7 KB
Top_Case_With_XT-60s.stl
986.0 KB
