ASUS RT-AC68U or TM-AC1900 Wall Bracket

This is a wall mount bracket for either the ASUS RT-AC68U or the T-Mobile rebranded TM-AC1900.

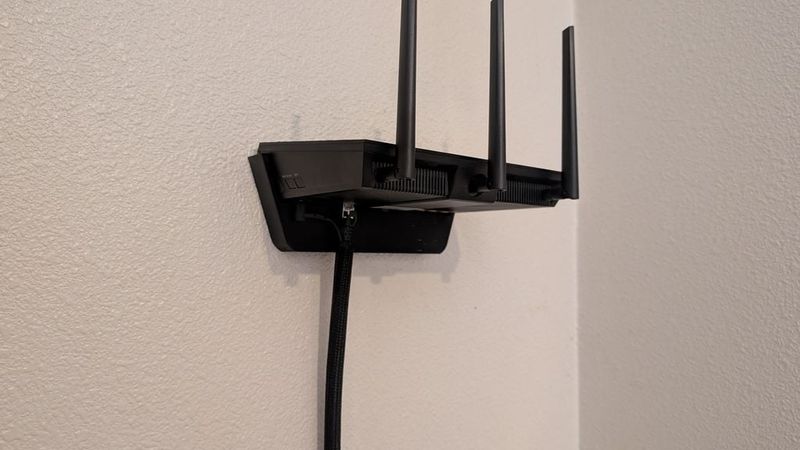

This bracket mounts the router at a 90 degree angle to the wall, so that ethernet cables can be routed out without a tight 90 degree turn on exit.

I printed at 0.20mm layer height and 25% infill, and it is VERY sturdy; If I hung a weight on it, I think the router would break before the mount failed. Simulated loads 10x over the router weight were nowhere close to failure.

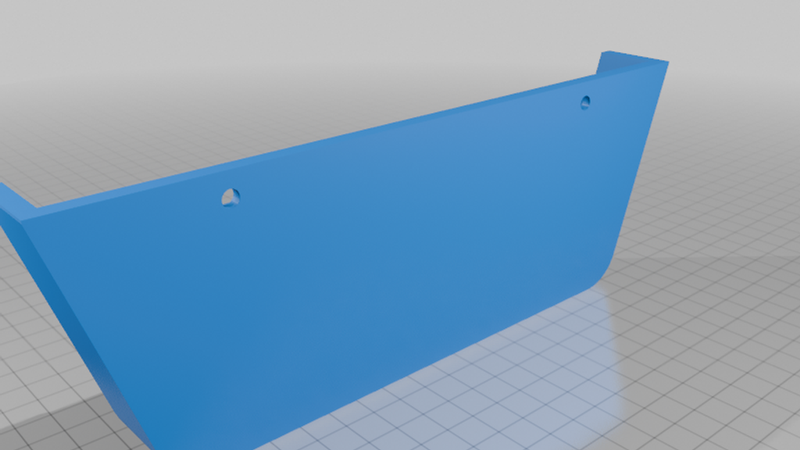

The mount holes are sized for ANSI-Inch #8 countersunk screws, though 4mm countersunk screws should work as well.

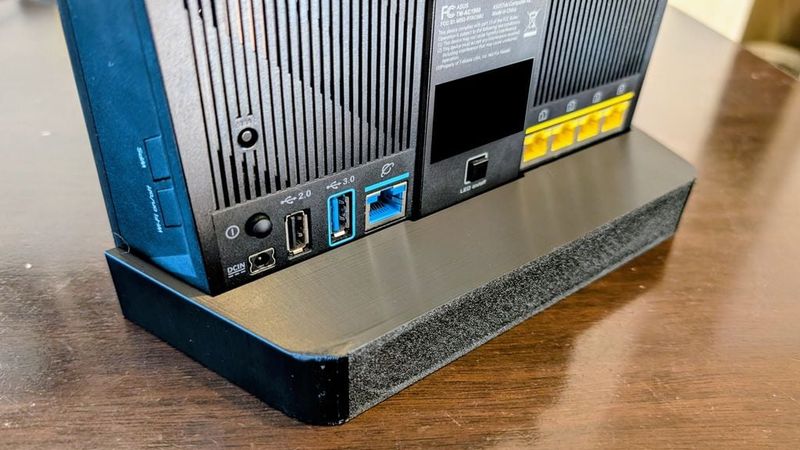

To install, mount the bracket to the wall, then slide/press the router into the bracket. It is meant to be a press fit, so it will be a bit tight to start; this is intended, and once started it will slide in a bit easier.
