Custom PCIe mount for Hyte Y60

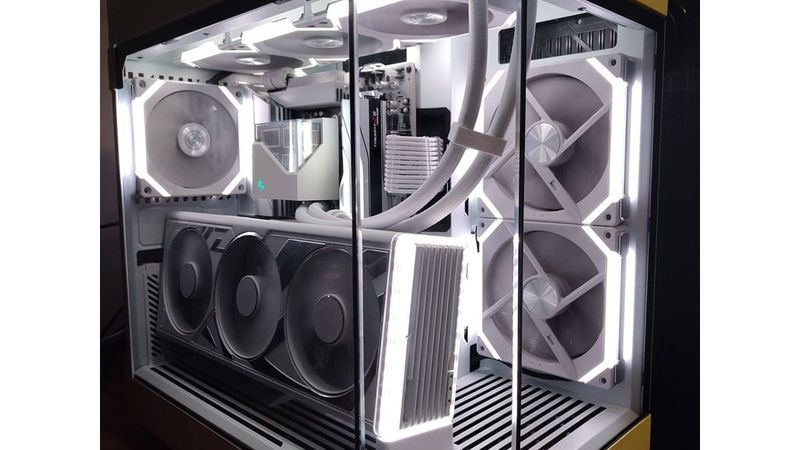

I created this custom PCIe riser mount for my Hyte Y60 after finding that my ASUS Strix RTX 4090 OC sat too close to the side glass when using the stock vertical mounting position.

This mount lets you move the GPU further back into the case and also angles the GPU by 11 degrees.

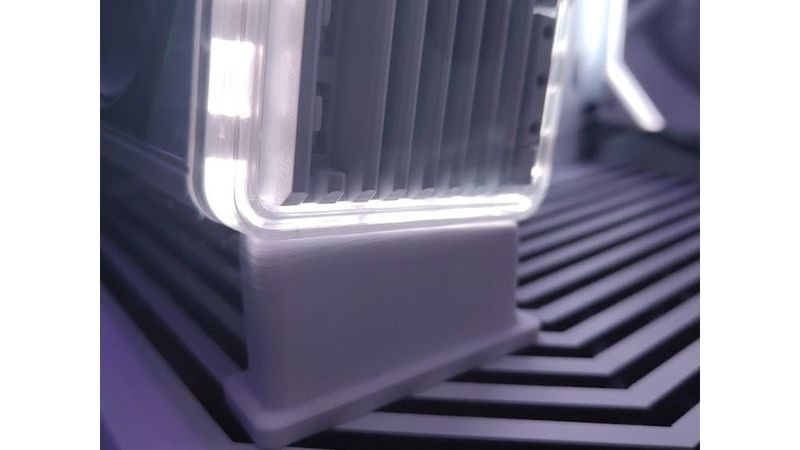

For my own installation, I removed the GPU I/O shield and used a custom GPU support bracket to support the far end of the card. I have included the support bracket model as part of this project, although it was specifically designed around the ROG Strix GeForce RTX 4090 OC and will more than likely not fit other GPUs.

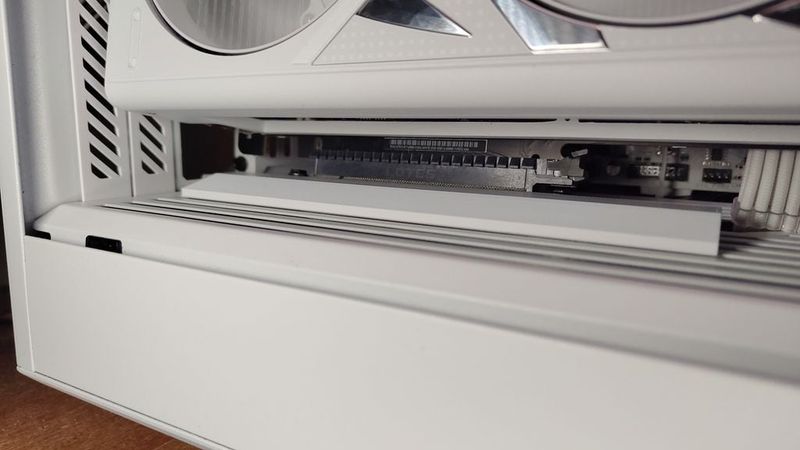

The PCIe mount itself is designed to work with the original PCIe riser cable included with the Hyte Y60. After removing the riser cable from the stock mounting location, it can be attached directly to the printed mount. The screw holes are designed for 6-32 6 mm PC mounting screws. I had to shorten the screws using tin snips and sandpaper to achieve a proper fit.

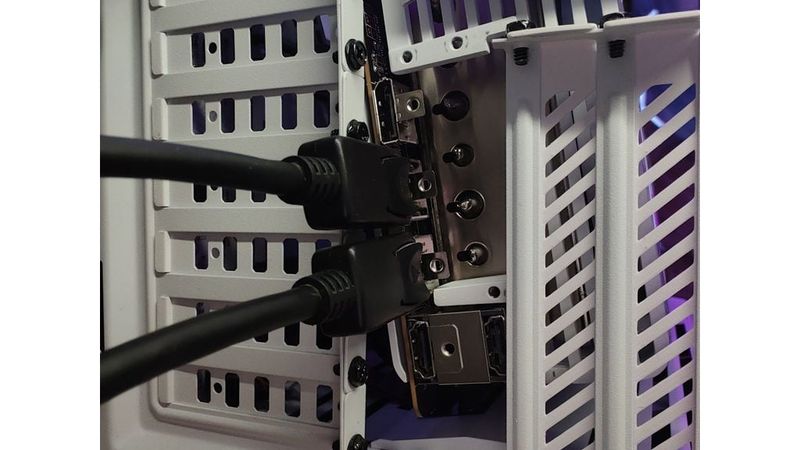

I also had to cut out one of the PCIe slot covers on the case to gain access to the GPU's DisplayPort and HDMI ports, as shown in the photos.

Included Files:

PCIe riser mount

GPU support bracket (designed for the ASUS Strix RTX 4090 OC)

Original Blender (.blend) project file used to create the models
