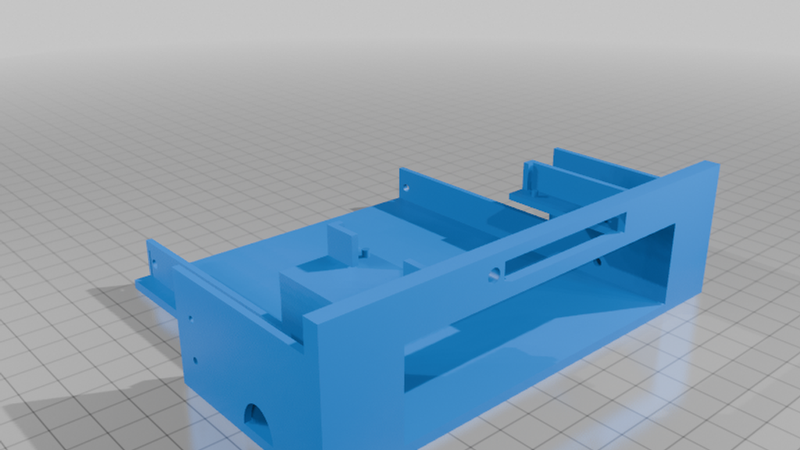

5.25 to 3.5 Mount for a 3.5 drive and CF card holder

NOTE - This design needs more access inside the case than a standard 5.25 drive bay has

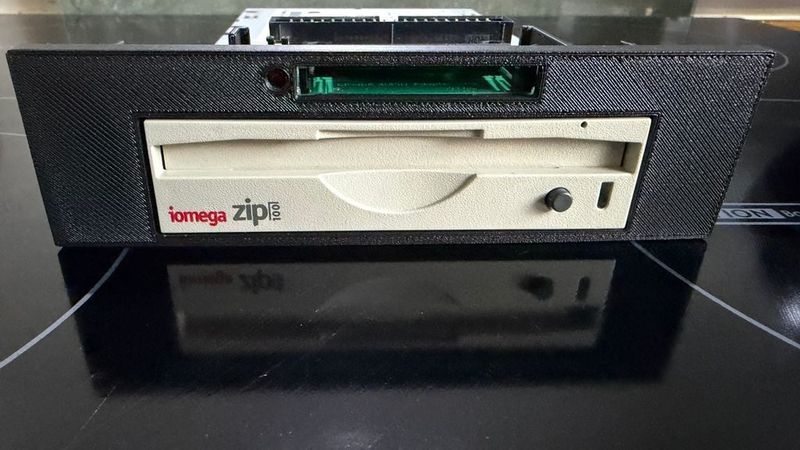

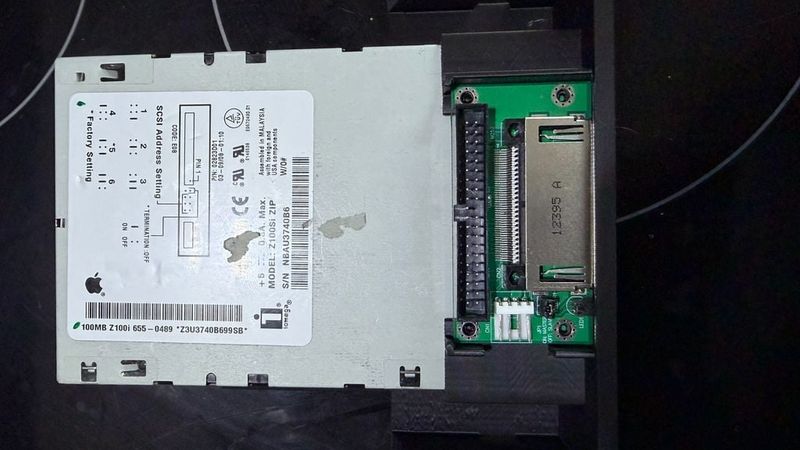

I designed this to help mount a budget CF card interface the type with the isa slot bracket (bracket removed) to a front mounted drive bay alond side a regular sized 3.5 floppy drive / or internal zip drive etc. i'll then hook it up internally to a XT-IDE adapter and make it front accessible without removing the case.

The reason this may not be the ideal solution is you need clearance additionally for the ide cable and berg connector for the power insiode of the bay - some cases maybe a little tight on headroom - do check ahead of printing.

In my case i'm fitting it inside an IBM 5160 chasis as a secondary stacked drive, so i have clearance inside the case - however i'm sure it could be easily modified further to fit needs.
