Ground Zero - Raspberry Pi Zero 2W Whisplay Case (V1)

Minimal pressure -fit case for Raspberry Pi Zero 2W + Whisplay HaT. No screws, tight fit, clean design.

Description

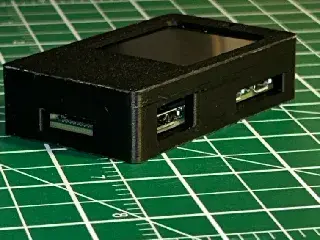

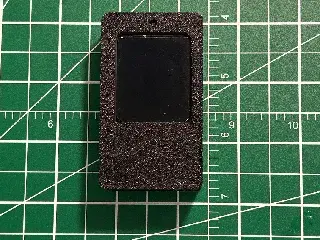

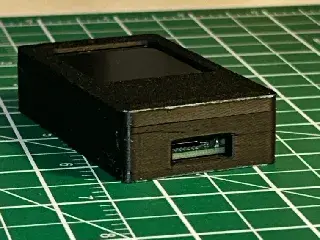

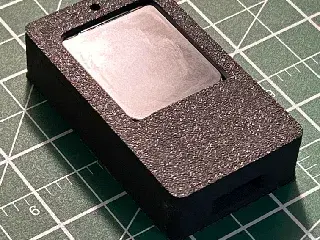

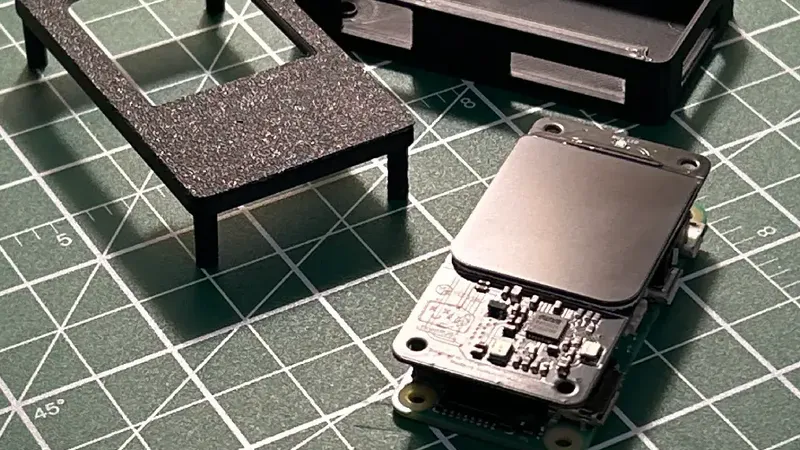

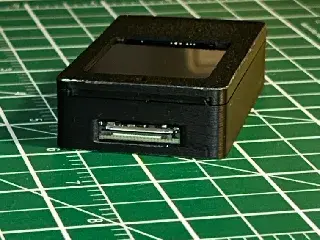

This is my Ground Zero series Raspberry Pi Zero 2W case designed specifically for use with a Whisplay HAT.

The goal with this design was to create a clean, minimal enclosure that relies on geometry and tolerances instead of screws or hardware. The case uses a pressure-fit system that holds the components securely while still allowing access when needed. Cut the base at 2mm and you end up with a two part base I made for a future versions for the use of magnets. Zero 2W holes marked so you can drill and mount if needed. I recommend that you print two bezels and stick one on your desk upside down for bezel removal.

This is a V1 release and part of a larger modular system I am developing.

FEATURES:

Pressure-fit assembly (no screws required)

Tight tolerance design for secure hold

Thick wall structure for durability

Clean, minimal form factor

Designed specifically for Zero 2W + Whisplay HAT

PARTS:

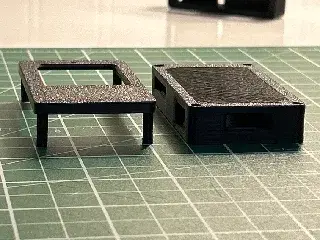

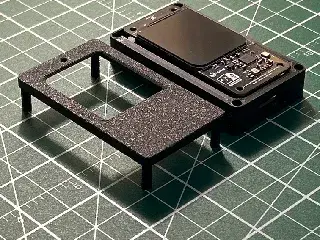

01-Top Bezel

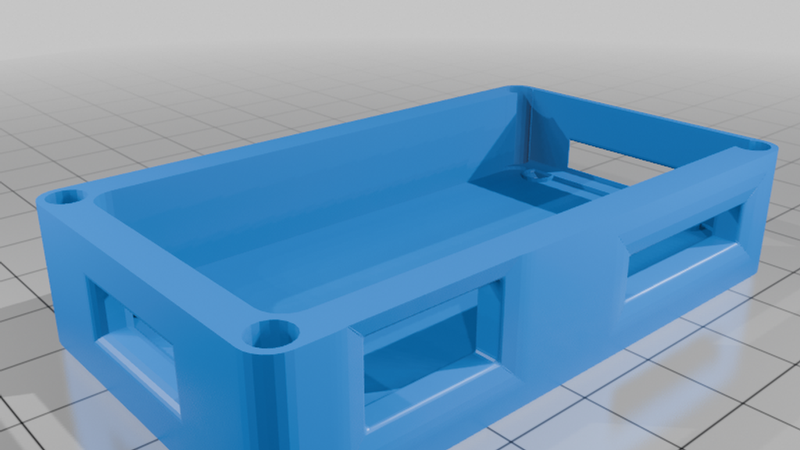

02-Base

PRINT NOTES:

Designed for PLA / PLA+

No supports required

Standard orientation (flat on bed)

Tight tolerances - print accuracy matters

NOTES:

This is a V1 release. Minor tolerance differences may occur depending on printer calibration and filament.

FUTURE:

This is part of an expanding system including mounts, docks, and accessory integrations.
