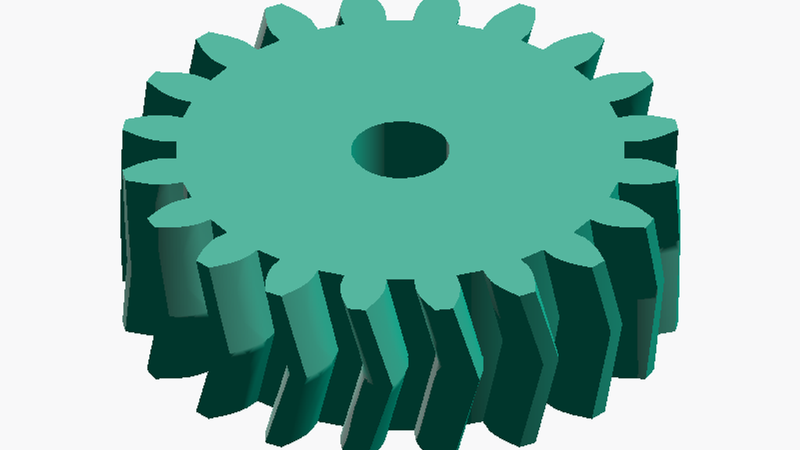

Parametric Double Helical Gear Generator (STEP, Customizable, CNC & 3D Printing)

This is a parametric double helical gear model generated using an automated CAD system.

Unlike fixed models, this gear is not a one-off design — it can be regenerated with different parameters.

Specifications of this model:

Module: [X]

Number of teeth: [X]

Helix angle: [X]° (5–45°)

Pressure angle: 20° (normal)

Gear type: Double helical / herringbone (continuous Sykes type, no center groove)

Standard: Based on involute gear geometry

Use cases:

High-load power transmission

Thrust-free parallel-shaft gear drives

CNC machinery

3D printing

Mechanical design prototyping

⚙️ Generate your own double helical gear (any parameters):

https://meta-matic.com/en/3d/double-helical-gear/

You can freely adjust:

Module

Number of teeth

Helix angle

Bore diameter

Face width

and instantly download a STEP file.

Why this matters:

Most models here are static.

This system allows you to generate exactly what you need.

Note:

A double helical (herringbone) gear joins two opposite-hand helical halves back-to-back, so the axial thrust of each side cancels out.

The module is the normal module; the transverse module is calculated internally as m / cos β.
