Starlink Mini mount brackets for Jeep LJ TJ

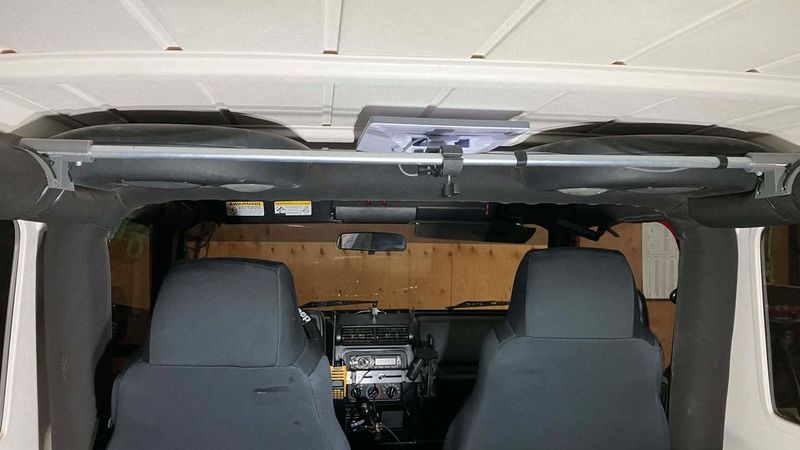

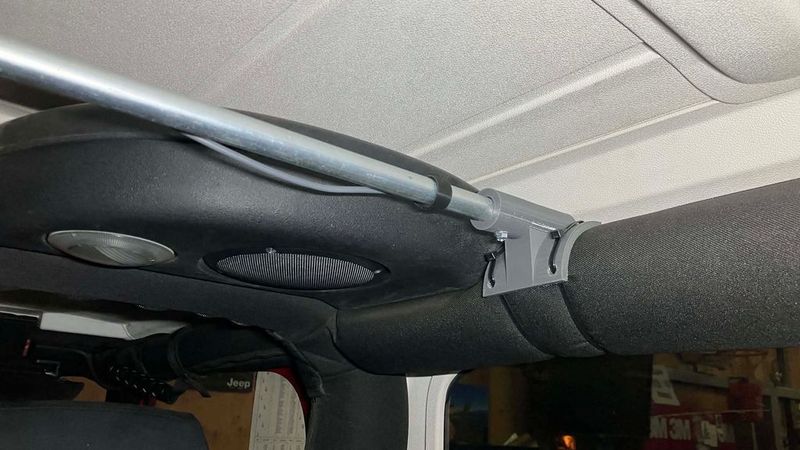

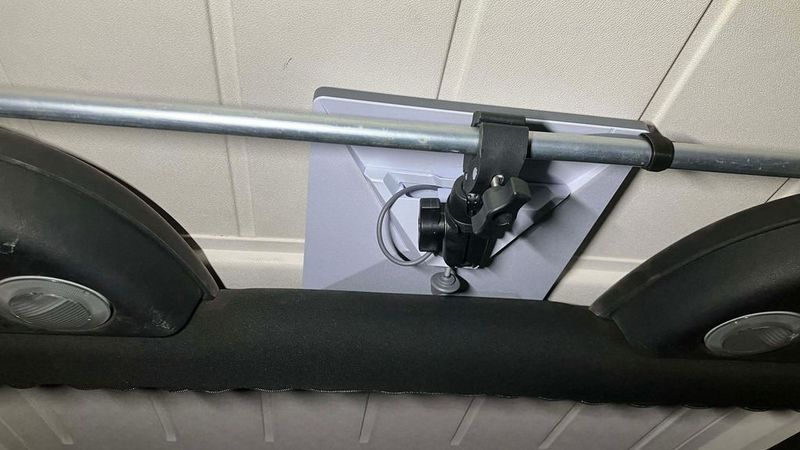

The starlink mini rests on the roll cage, or sound bar on one end, and is supported by the EMT on the other end. It works 100% perfectly through the fiberglass hard top. It holds well, even when at extreme angles. I have a USB C cable powering my star link mini. Also at this point in time, starlinks standby service (unlimited 1mbps for $10/mo) works great at speeds up to ~15mph, which is perfect for rock crawling.

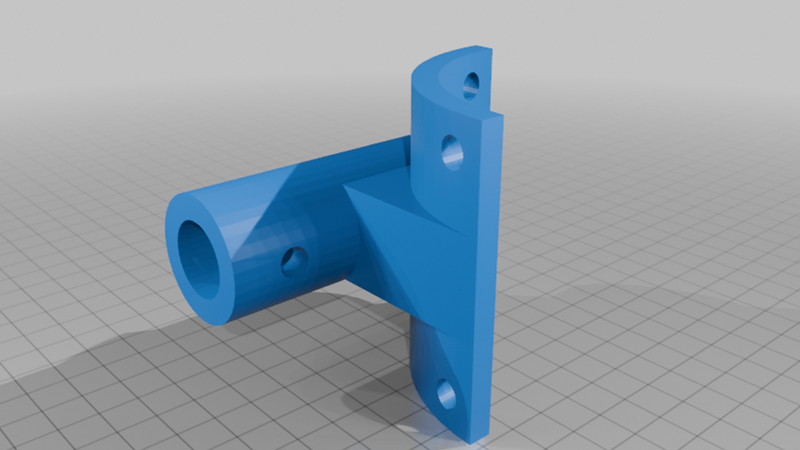

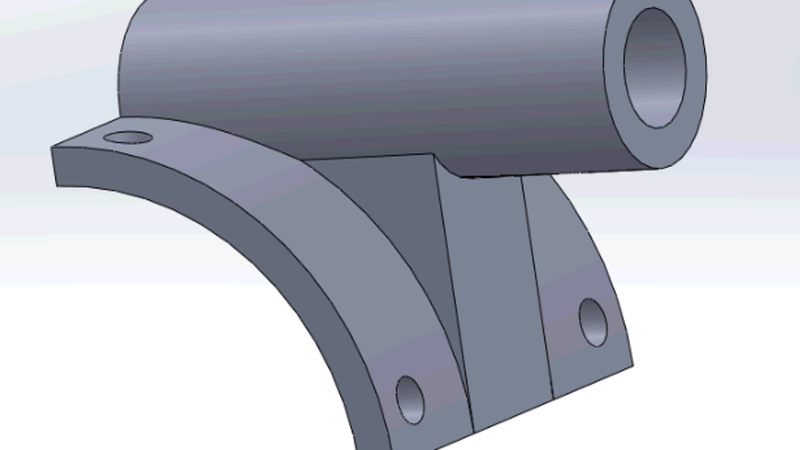

In addition to printing the brackets, you'll need:

* A piece of 1/2" EMT (which you can paint if you don't like the color of EMT)

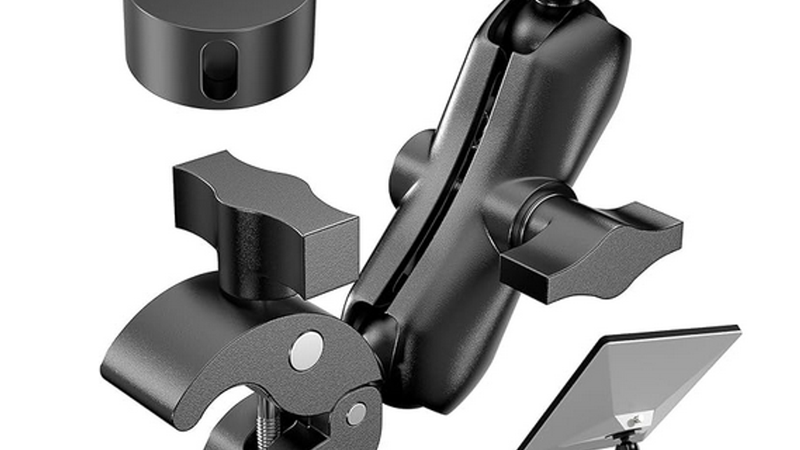

* An articulating Starlink Mini Mount with ball/socket style adjustment.

* 2x self 3/4" self tapping screws or sheet metal screws (I used #10, but 8 or 12 should be fine as well) - You should mark, and pre drill the holes in the EMT before final mounting, instead of trying to drill the EMT while it's mounted.

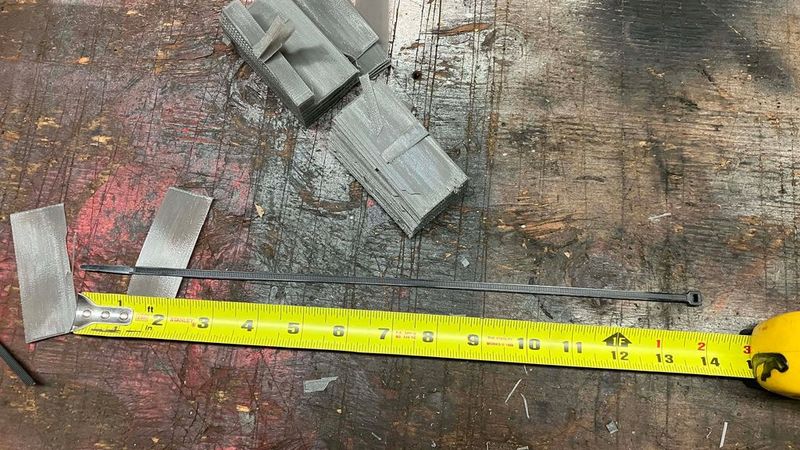

* 4x 14" long zip ties

3D Printing notes:

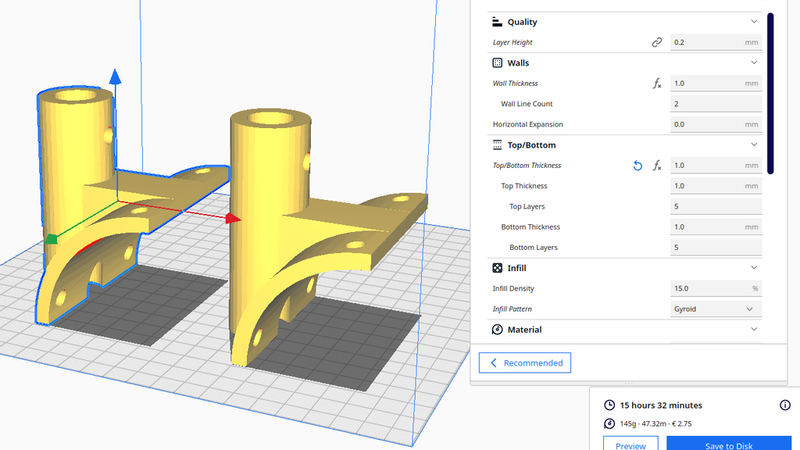

* I used default Cura supports. it came out great. I filed down the material left behind with a round file.

* I printed mine with PETG. ABS would be best of course, I wouldn't suggest PLA. two of them used ~160 gr of filament, including supports.
