MOLLE Phone Mount

About This Design

Note: Thingiverse wouldn't allow me to officially remix the original file, but I want to give a massive shoutout to the creator of the original work that made this possible.

Original Design: Flat MOLLE Mount for Phone by Urban_Gorilla_Communications

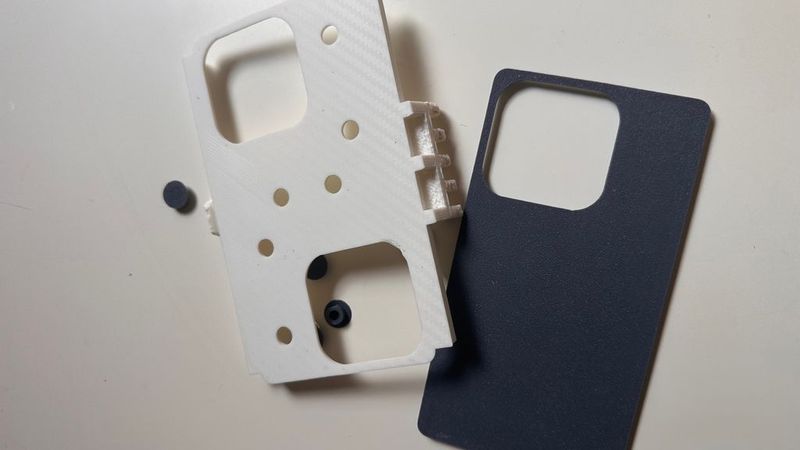

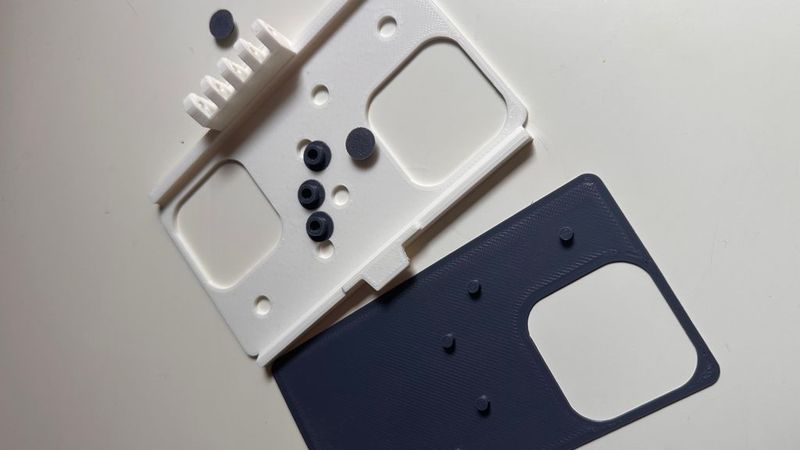

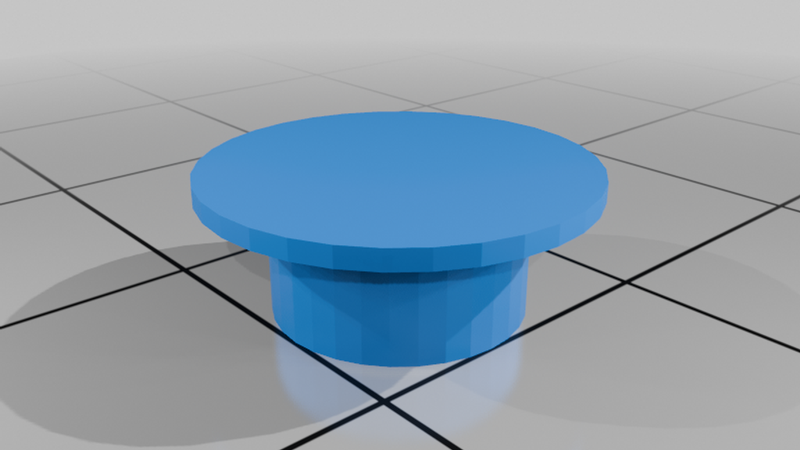

Print 1x of each part and 6x of the case_to_cover_connector. I recommend heating case_to_cover_connectors.stl on print bed and press fitting them in. You can also glue them.

Modifications

My main modifications to the original design were focused on strength and usability:

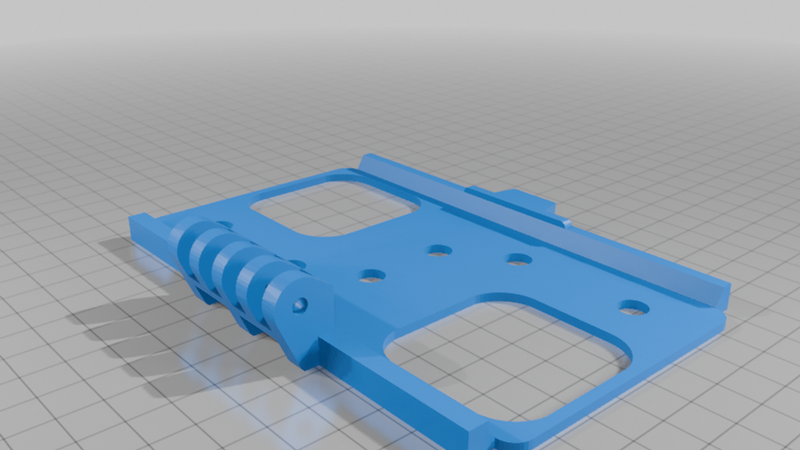

* Horizontal Printing: Modified the geometry to lay flat for increased layer strength.

* Camera Usability: Customized the layout so the phone's camera can still be actively used.

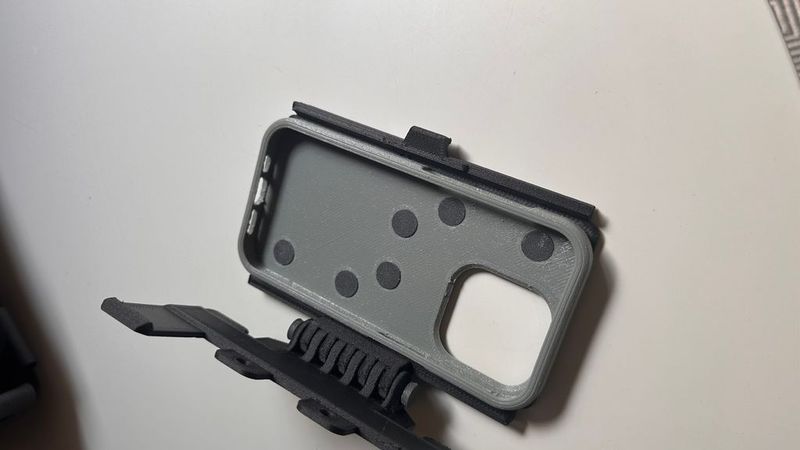

* Case Mounting: Adapted the mount to use a camera case instead of the original straps.

Print Settings & Materials

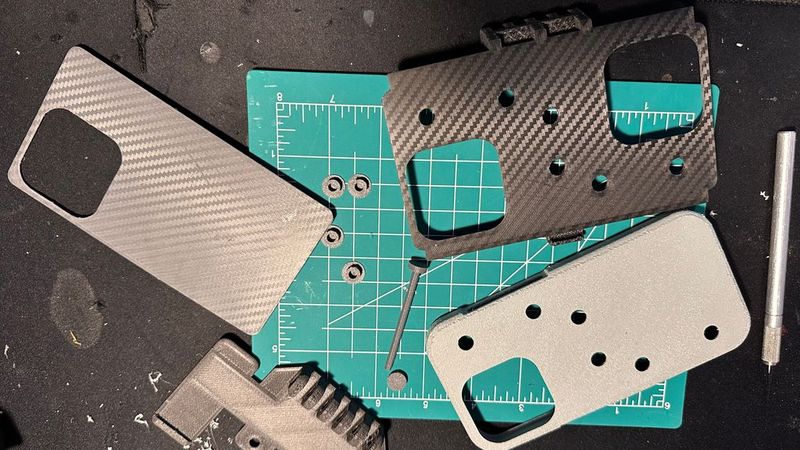

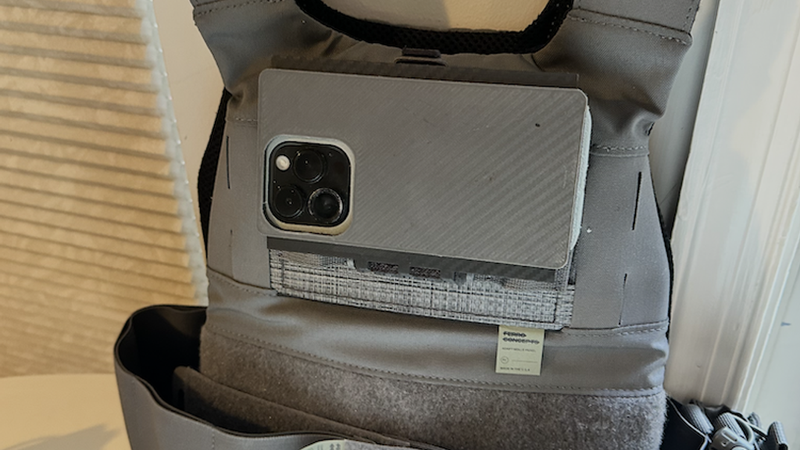

I printed this in a combination of PA6-CF and PA6-GF to match my plate carrier.

* Walls: 2

* Infill: 30%

* Layer Height: 0.16

Tip: Use your experience with your specific printer and material to tweak the settings. Mine came out extremely strong; the phone is actually difficult to remove.

Future Improvements

I have a few tweaks in mind for future iterations or feel free to implement improvements yourself by remixing:

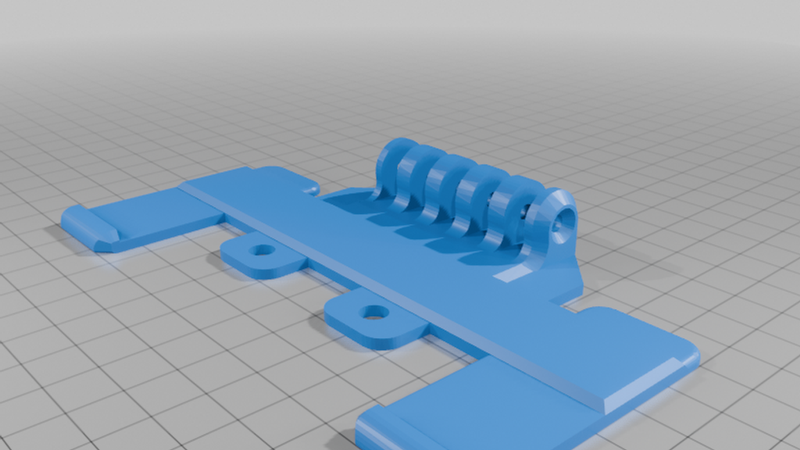

* Hinge Geometry: Modify the holder geometry to completely eliminate the need for supports near the hinge.

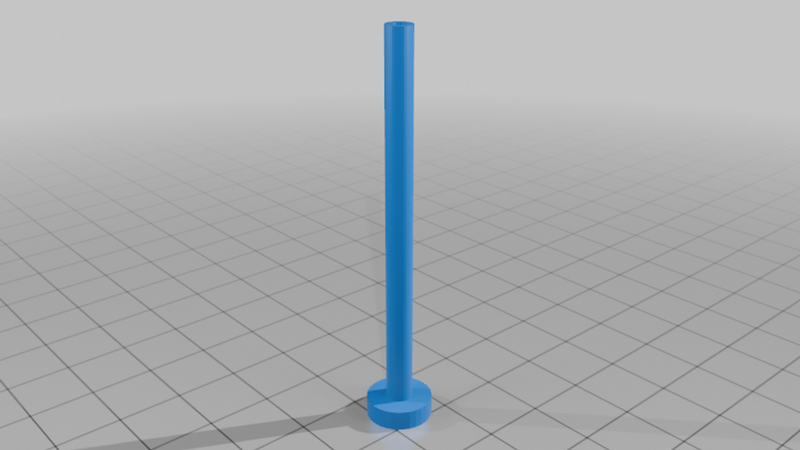

* Pin Redesign: The current pin is still awfully thin for my taste. Using a 4mm brass rod/pin would likely be preferable, as M4 screws of that length can be harder to source.

* Phone Removal: Add thumbholes (or a similar feature) to the TPU phone case to make it easier to pop the phone out.

Components & Credits

This project wouldn't be complete without the work of a few other creators:

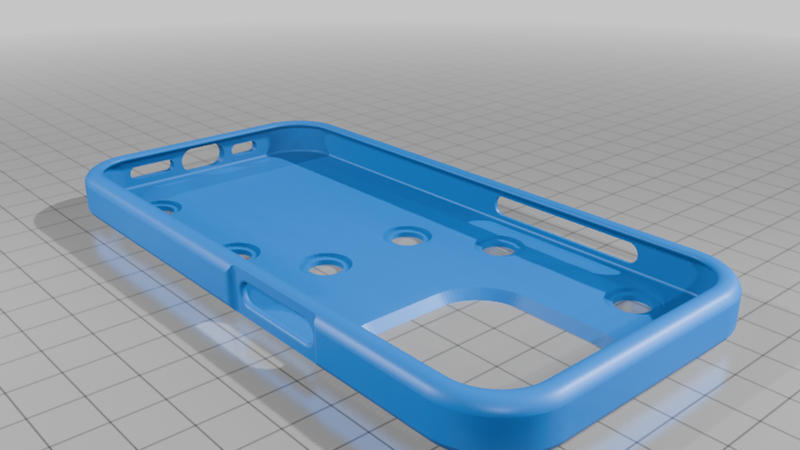

* TPU Phone Holder: Based on the iPhone 14 Pro Case by rapnit.

* Elastic Pull Tab: If you want to add a pull tab for the elastic, I highly recommend looking into(https://www.thingiverse.com/thing:5782754) by santalemuroff. This may require a little bit of geometry modification but I have used these tabs in other projects.

Honorable Mention:

Creator notrob0 had the exact same idea first! I kind of wish I had run across it before putting the work into mine. If you don't need the phone case adaptability that this version offers, check out their remix—it might work perfectly for you: Flat MOLLE Mount Remix by notrob0.

Changelog / Version History

* v1.0 (Current): Initial release.

Modified base for horizontal printing.*

Added camera passthrough.*

Integrated TPU case mounting system.*
