Rugged Enclosure for Meshcore / Meshtastic Node

Rugged Enclosure for Meshcore / Meshtastic Node (XIAO nRF52840 & Wio-SX1262)

This is a compact, rugged enclosure designed specifically for a DIY Meshcore or Meshtastic node.

Perfect for backpacking, off-grid communication, and trekking.

Hardware Compatibility: Tailored precisely to fit the Seeed Studio XIAO nRF52840 combined with the Wio-SX1262 LoRa module.

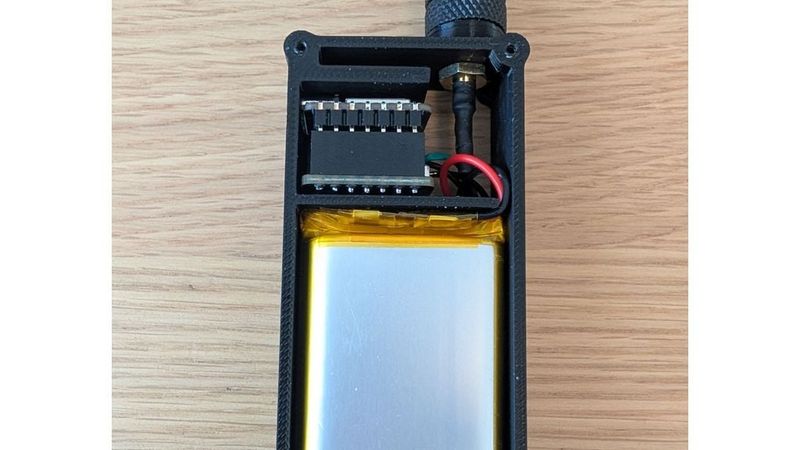

Power System: Dedicated space for a large 2000mAh LiPo batter

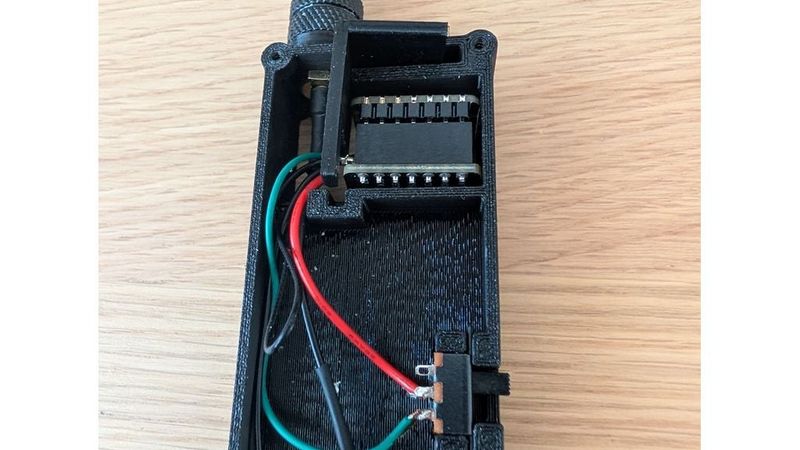

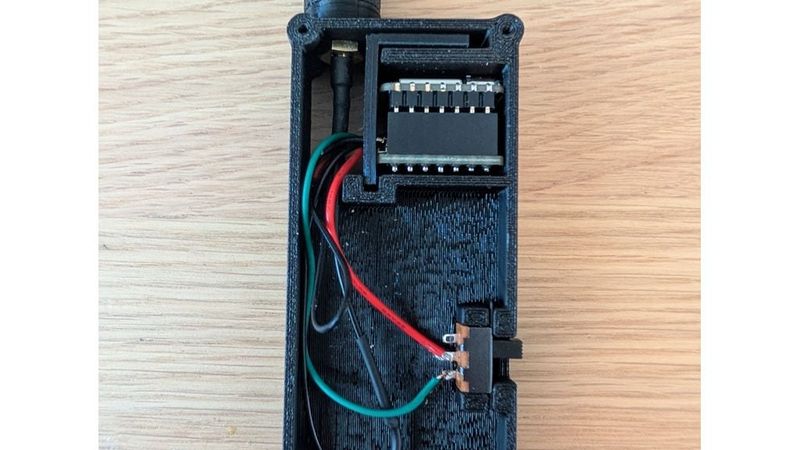

Hardware Power Switch:Includes a cutout for a physical slide switch on the side to fully cut power and prevent battery drain during storage.

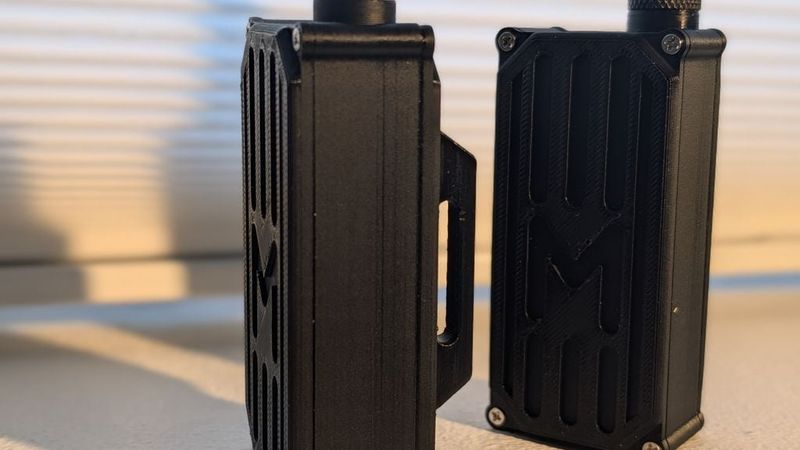

Interchangeable Backplates (Two Options Included):

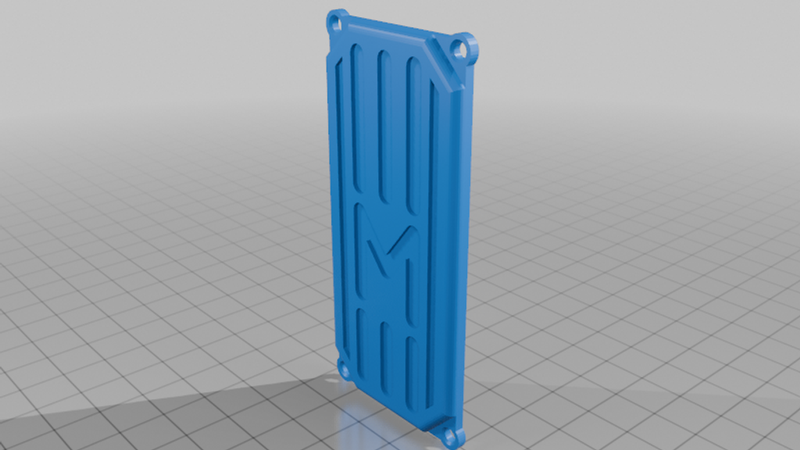

1. Flat Backplate: Clean, minimal back for pocket or desk use

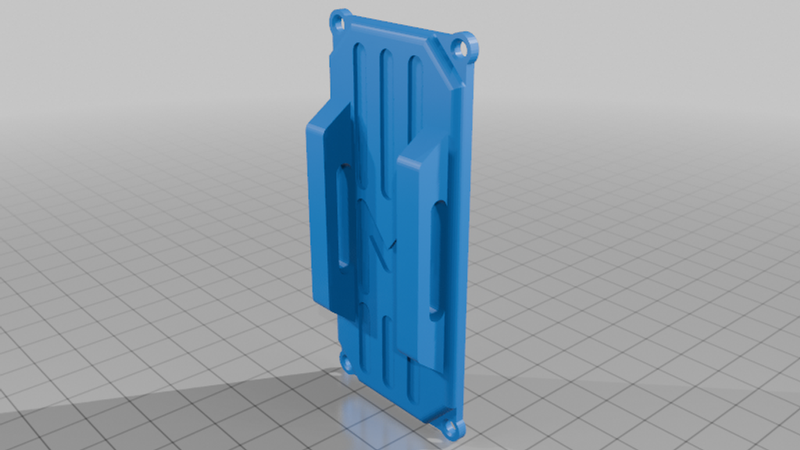

2. Strap-Mount Backplate: Integrated slot to thread backpack straps

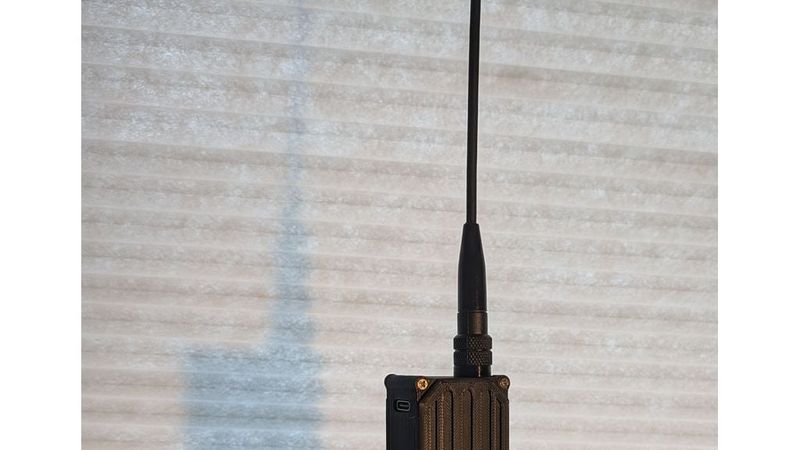

showen with flexible, whip antennas that bend out of the way when hitting branches or obstacles.

Technical Specifications & Bill of Materials (BOM)

Microcontroller:*Seeed Studio XIAO nRF52840

LoRa Module: Wio-SX1262

Battery: 2000mAh 3.7V LiPo battery

Antenna Connector: U.FL to SMA pigtail

Fasteners: 8 x Small corner screws (M2 / M2.5 depending on your print tolerances)

Switch: Standard mini slide switch

3D Printing Settings (Recommended)

Material: PETG or ASA

infill: 20% to 30% (Rectilinear or Gyroid for strength).

Perimeters/Walls: 3 vertical shells minimum.

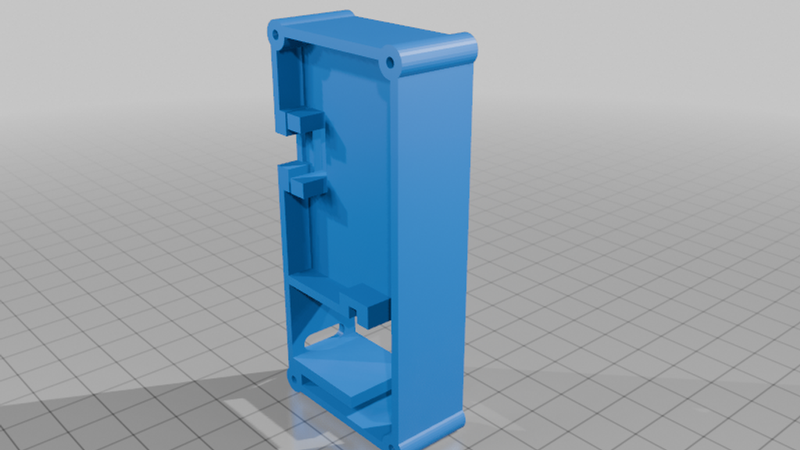

Supports: for the main body
