Refoss EM16 Antenna Bracket

matttheamateur
matttheamateur
3 Files
stl Format

Description

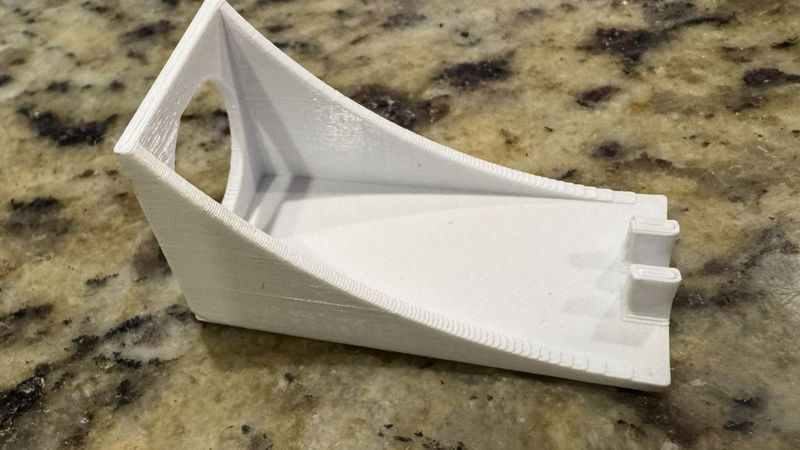

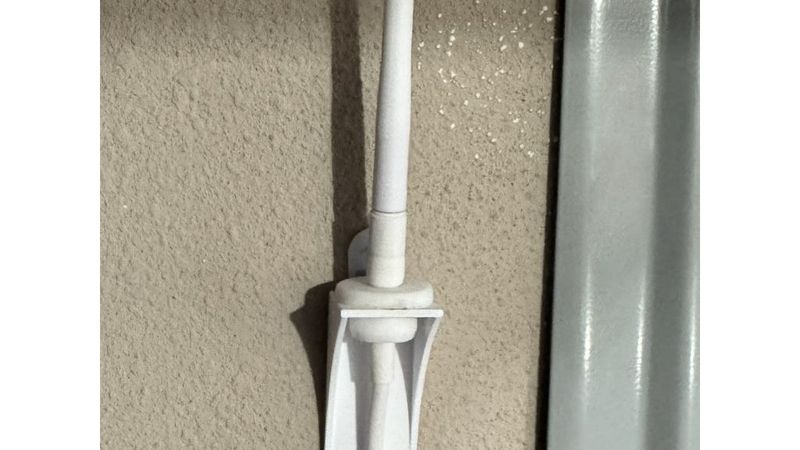

I have a Refoss EM16 energy monitor. My breaker panel is set inside the wall, so I can't stick the antenna into a knockout hole on the side of the panel. I designed this bracket so I can mount the antenna to the wall next to the panel.

The hole in the top is 3/4" (19mm) which is a nice snug fit for the rubber grommet on the antenna. I also added clips to the bottom to hold the wire close to the wall.

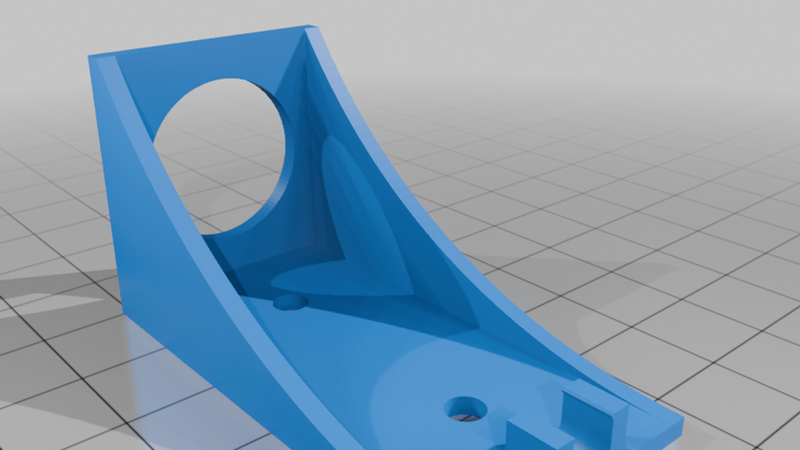

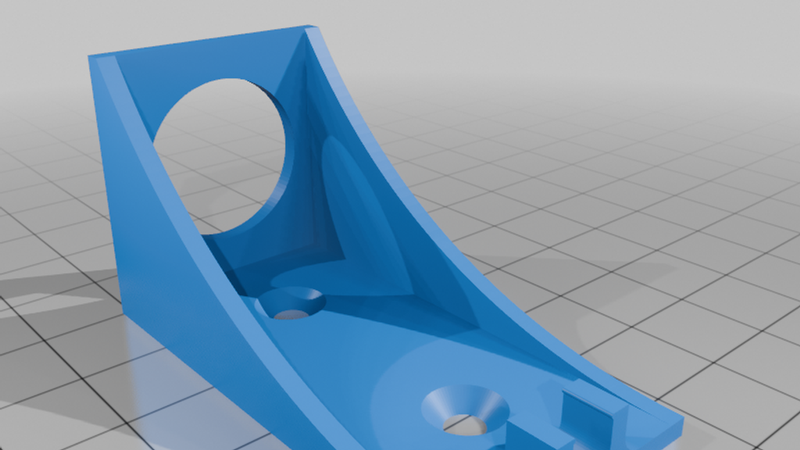

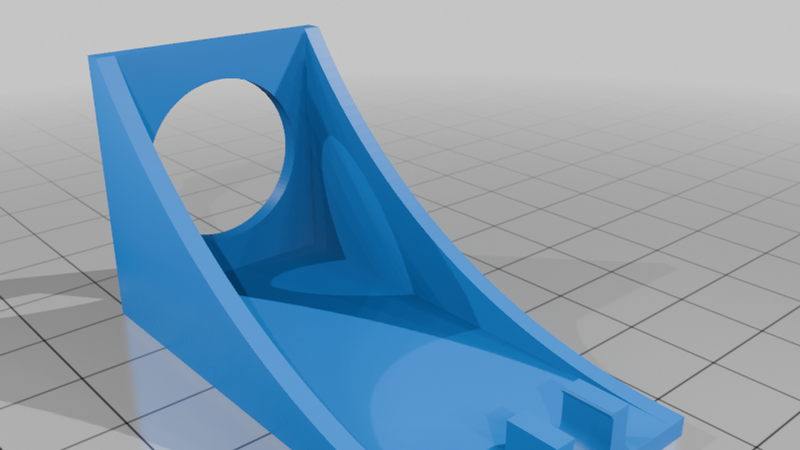

There are 3 versions. There is one for machine screws, one for countersunk screws, and one with no holes for double sided tape.

Downloads

EM16_Antenna_Bracket_Countersunk_Screws.stl
105.8 KB
EM16_Antenna_Bracket_Machine_Screws.stl
101.5 KB
EM16_Antenna_Bracket_No_Screws.stl
80.1 KB
