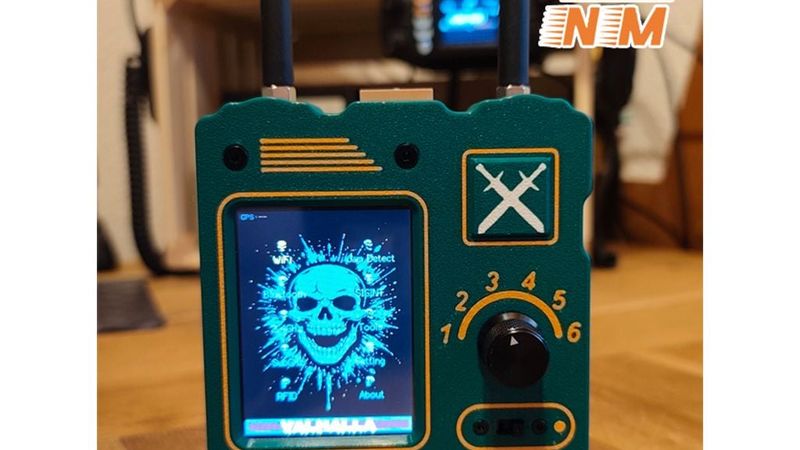

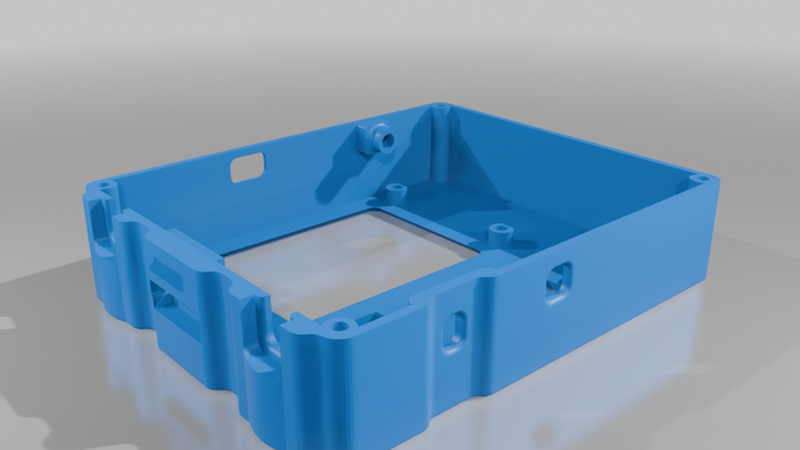

Case for the CYD with the NM-RF-Hat from NMTech portrait mode with turn switch

Case for the CYD with the great NM-RF-Hat from NMTech. I already made a case, https://www.thingiverse.com/thing:7305463 but this one has the display in portrait mode and a turn switch for modul selection.

I made a sort of a manual but please be forgiving, English is not my native language.... also, no support, don't blame me if something breaks or if you make an accident with that thing. Do it at your own risk..... the pdf is in the Files folder

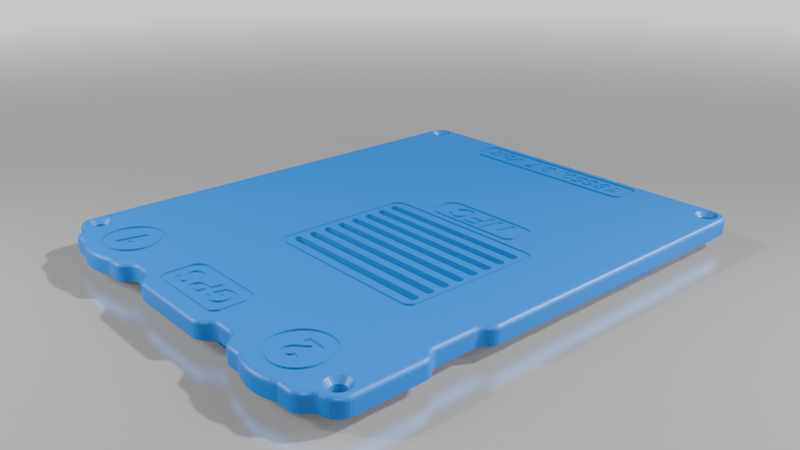

So you find two versions, one for a multi color printer and one instead of other colors some 0.4mm grooves.

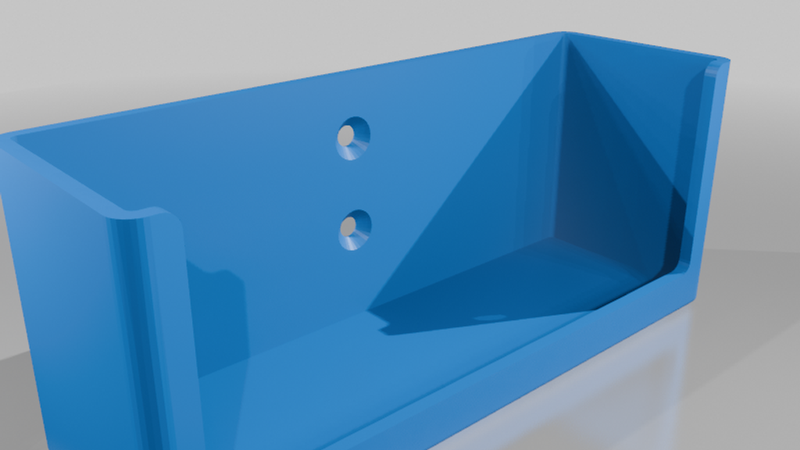

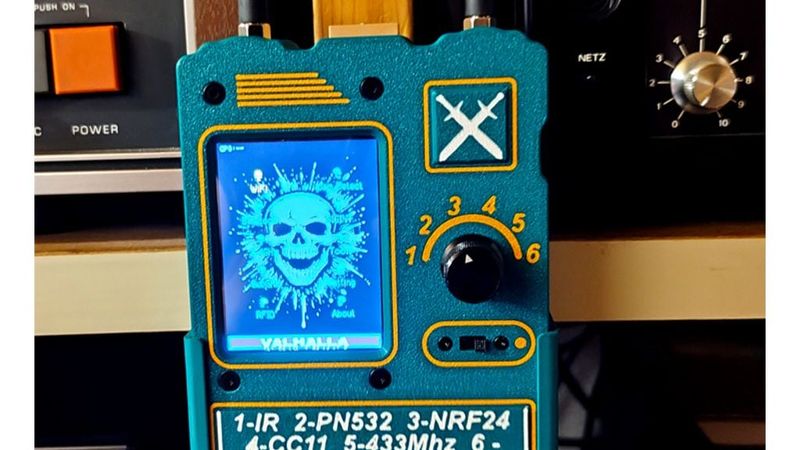

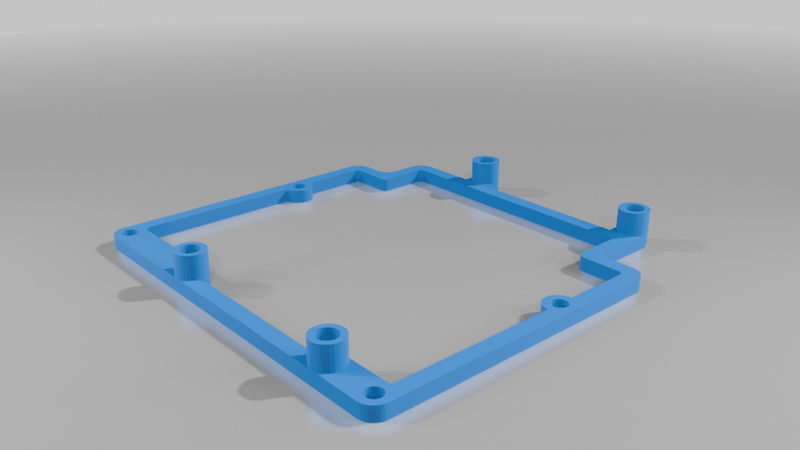

You can add the description by yourself, for the square with the swords you need a paper 19.5x19.5mm, for the bigger field with the description 86x13mm. Of course I added also a wall mount bracket.

What you need:

1x CYD 2432S028

1x NM-RF-Hat https://de.aliexpress.com/item/1005011692167789.html?gps-id=pcStoreLeaderboard&scm=1007.22922.271278.0&scm_id=1007.22922.271278.0&scm-url=1007.22922.271278.0&pvid=147242a1-d629-487b-af38-1ea0629f8312&_t=gps-id%3ApcStoreLeaderboard%2Cscm-url%3A1007.22922.271278.0%2Cpvid%3A147242a1-d629-487b-af38-1ea0629f8312%2Ctpp_buckets%3A668%232846%238112%231997&pdp_ext_f=%7B%22order%22%3A%2292%22%2C%22eval%22%3A%221%22%2C%22sceneId%22%3A%2212922%22%2C%22fromPage%22%3A%22recommend%22%7D&pdp_npi=6%40dis%21CHF%2143.55%2124.39%21%21%21365.97%21204.96%21%402103842a17805907484696958e1130%2112000056260230634%21rec%21CH%21704082835%21X%211%210%21n_tag%3A-29919%3Bd%3Ac5924c33%3Bm03_new_user%3A-29895&spm=a2g0o.store_pc_home.smartLeaderboard_2010883744496.1005011692167789&gatewayAdapt=glo2deu

1x Turnknob, https://de.aliexpress.com/item/1005007969022294.html?spm=a2g0o.order_list.order_list_main.109.1c905c5fEF6pmS&gatewayAdapt=glo2deu

1x Turn switch Version 1P6T https://de.aliexpress.com/item/1005011634727608.html?spm=a2g0o.order_list.order_list_main.103.1c905c5fEF6pmS&gatewayAdapt=glo2deu

4x brass inserts M2

4x brass inserts M3

4x M2x10 countersunk

4x M3x8 countersunk

4x 6mm standoff M3

1x On-Off Switch 4x7mm with 15mm hole distance.

Some doubleside adhesive tape

1x 18650 battery holder

1x 18650 battery

3x 4pin JST 1.25MM, 100mm cable (Important, change the pinning --> Instructions)

1x 5pin JST 1.25MM, 100mm cable (Important, change the pinning --> Instructions)

PLEASE NOTE: This is a thing to play around, No support, use at your own risk.
