Case for Pisound 1.2+ Raspberry 5

papanillu
10 Files
stl, step Formats

Description

This is a Remix from https://www.thingiverse.com/thing:6604445,

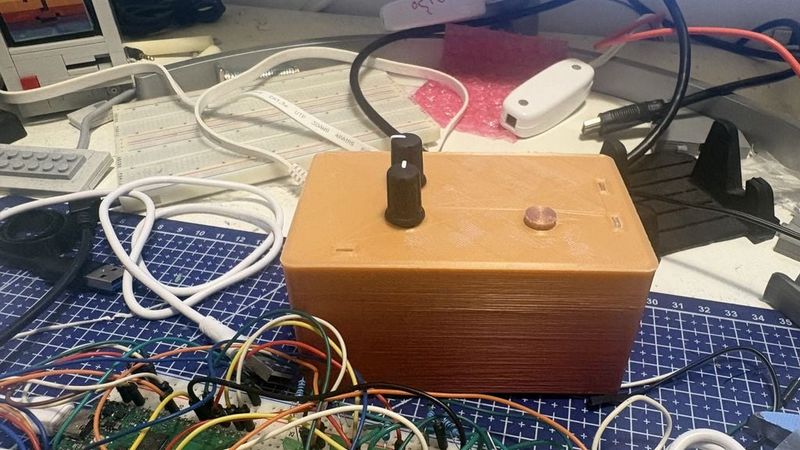

as I had a Raspberry Pi5 and a Pisound 1.2 I modified it just to adapt to my hardware,

Also add a 10 mm space between both boards and some vent holes, to keep it cooler.

Just add 4 x10mm spacers and a conector block to keep conexions.

Maybe I'll add somo kind of micro or nano fan and a light pipe for the power led.

Uploaded my modifications, (sorry first time with Fusion360) and the rest of original files.

Downloads

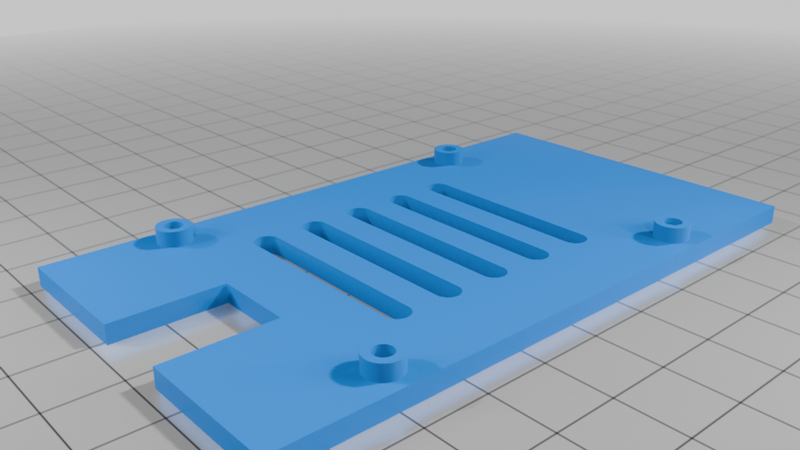

Base.stl
425.1 KB

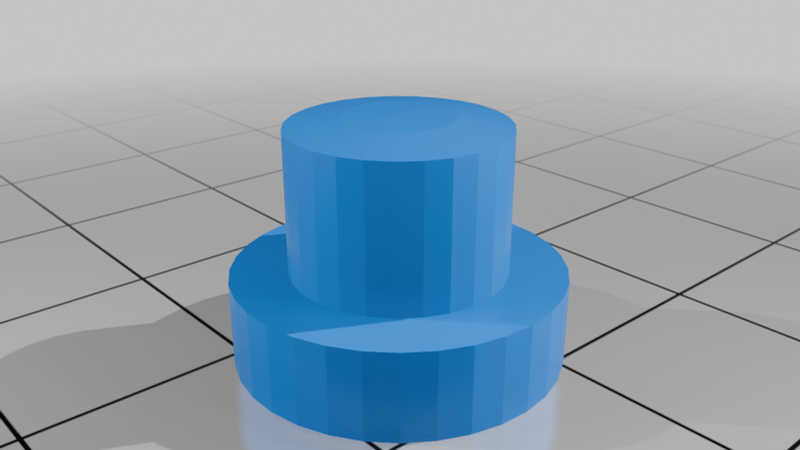

Button.stl
17.6 KB

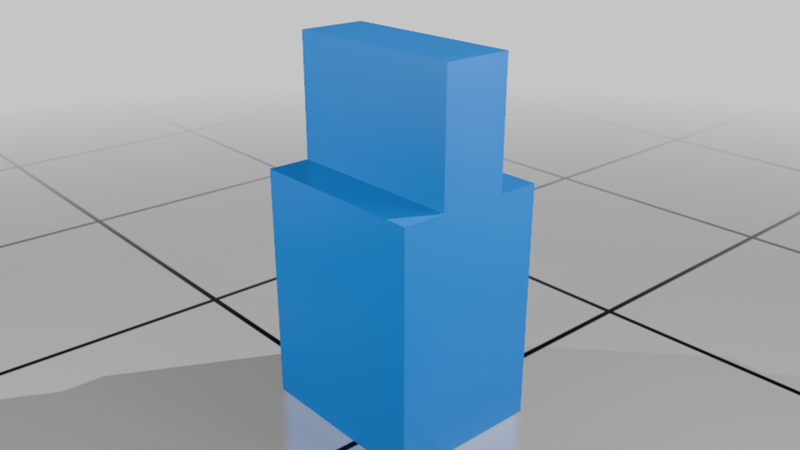

Led_Refractors.stl
1.4 KB
RaspiPisound_mod.step
229.2 KB

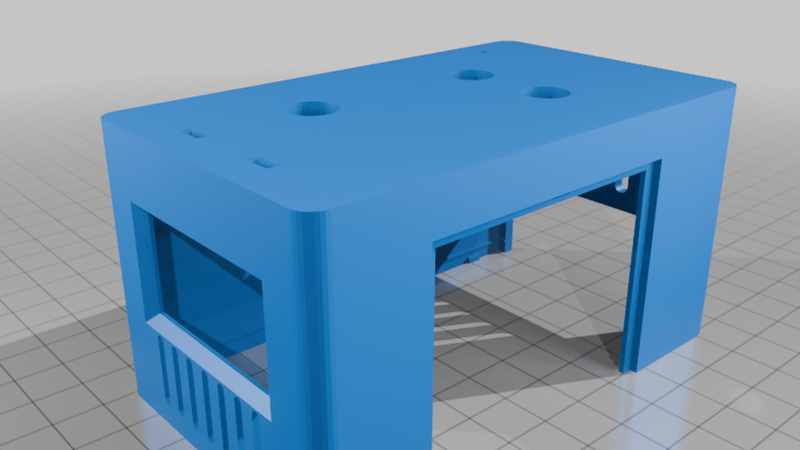

RaspiPisound_mod.stl
131.7 KB
Raspi-Pisound-Pulsante.step
11.1 KB

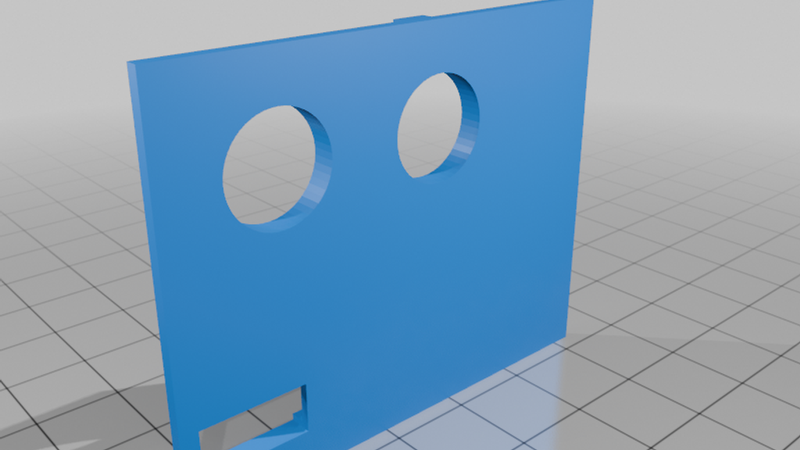

Raspi-Pisound-Sportello_connettori_mod.step
35.8 KB
Raspi-Pisound-Sportello_connettori_mod.stl
24.9 KB
Raspi-Pisound-Vetrini_Superiori.step
30.1 KB
Raspi-Pisound-Base_Raspi.step
178.8 KB
