Outdoor Google TV / streaming box enclosure for projector setup

A compact 3D-printable enclosure for a Google TV / streaming dongle used outdoors under a covered patio and connected to a projector.

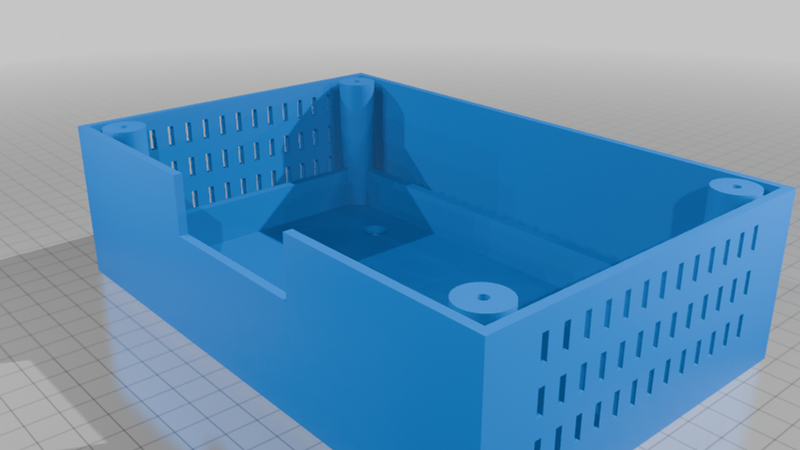

The enclosure is designed for PLA and a Creality Ender 5 S1, but it should print on any printer with at least a 200 x 130 mm usable bed area. The base includes insect-resistant ventilation on the short sides, a large cable pass-through for HDMI and USB-C, countersunk bottom mounting holes, and a screw-mounted lid.

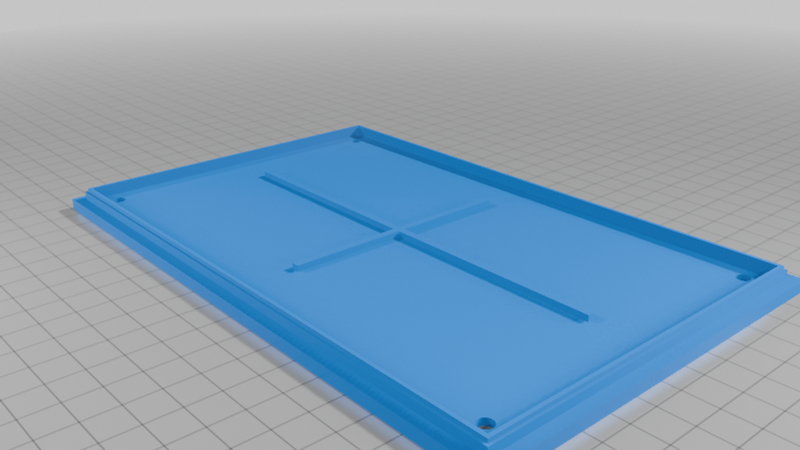

Two lid options are included:

• A clean plain lid.
• A separate lid with a recessed custom icon showing a streaming device projecting to a screen.

Dimensions

• Assembled outside size: 200 x 130 x 60 mm
• Base: 200 x 130 x 57 mm
• Lid: 200 x 130 x 8 mm
• Wall thickness: 3 mm
• Logo lid: same outside size, with a 4 mm top plate for a cleaner engraving

Design Features

• Ventilation only on the short end walls.
• Narrow 2.2 mm ventilation slits to help keep bees and wasps out.
• Open 58 x 20 mm cable notch for HDMI and USB-C connectors.

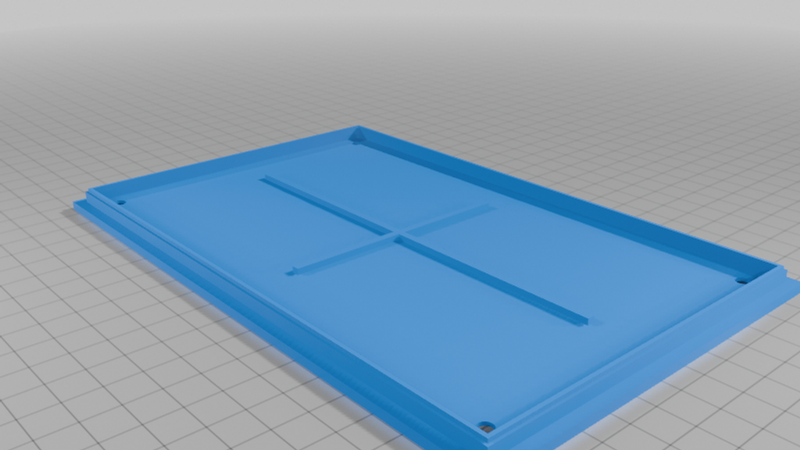

• Lid has an internal locating lip.
• Four countersunk lid screw holes.
• Four countersunk bottom mounting holes for fastening the enclosure to wood.

Hardware

• 4 short self-tapping screws for the lid, about 3.0-3.5 mm diameter.
• 4 wood screws for the bottom mounting holes.
• PLA or PETG filament.

PLA can work under a covered outdoor area, but PETG is recommended for better heat and weather resistance.

Disclaimer

This model is not affiliated with Google. The optional lid icon is an original custom pictogram, not a Google logo.
