RS03 - 1/10 M-Chassis RWD RC Car
Description

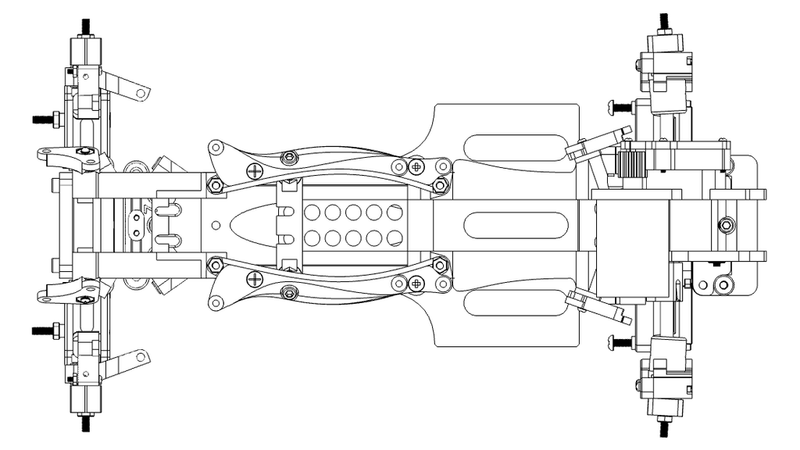

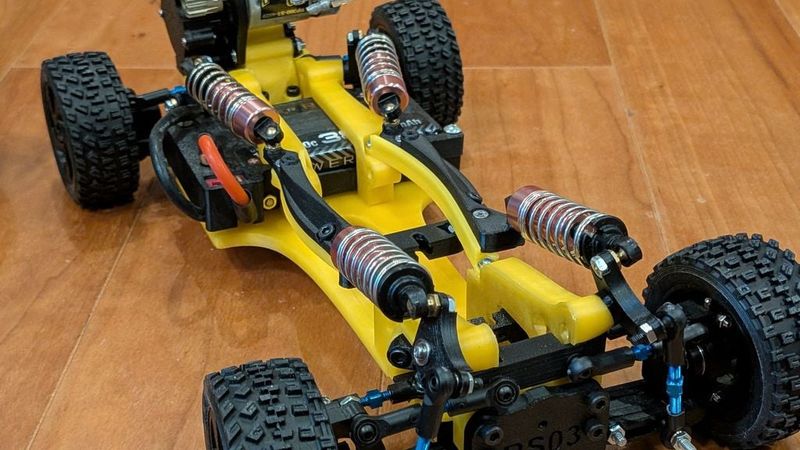

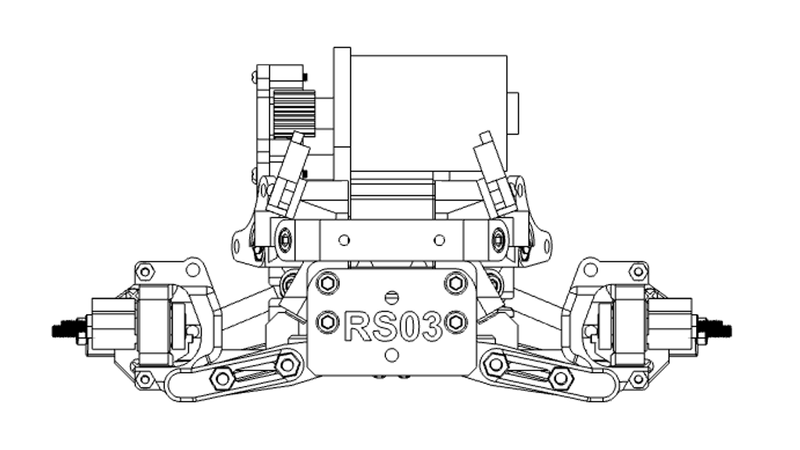

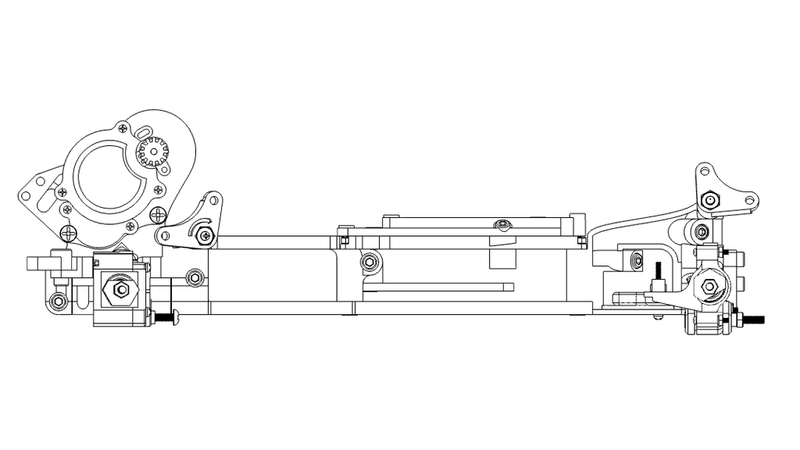

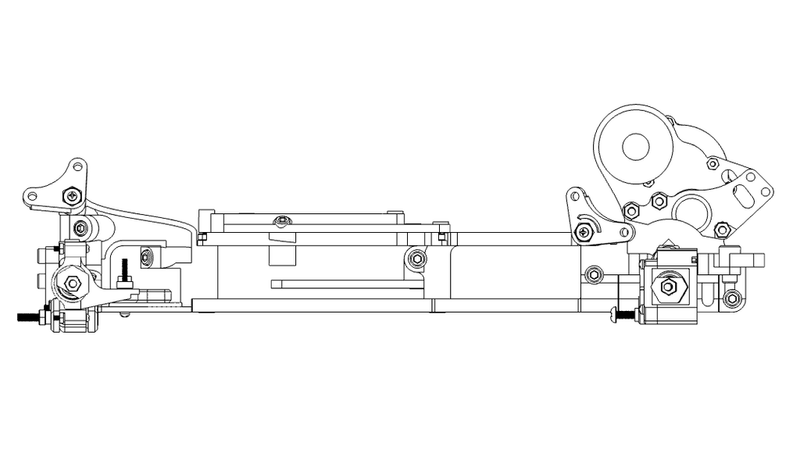

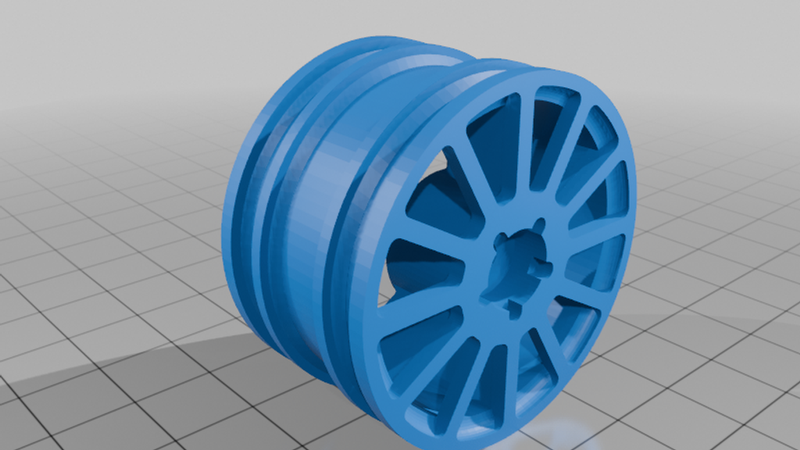

RS03 is a 1/10 scale M-chassis RWD RC car designed for 3D printing. It is designed personal enjoyment, and the entire assembly is highly
detailed and robust.
⚠️ IMPORTANT NOTICE
Please download and read `00_ASSEMBLE_MANUAL.pdf` first! It contains step-by-step assembly instructions with 3D CAD illustrations, as well as
the detailed parts list.
🖨️ Recommended Print Settings
* Filament:
* ABS is highly recommended for general parts.
* For gears and suspension/drivetrain parts, PETG-CF (Carbon Fiber PETG) is strongly recommended for worry-free durability.
* Infill: 80% (for maximum durability)
* Wall Line Count: 2 Walls (I printed all my parts with 2 walls and it works perfectly!
* Supports Required depending on the parts. Please set supports appropriately in your slicer.
RS03は、3Dプリンターで製作できる1/10スケール・MシャーシサイズのRWD（後輪駆動）RCカーです。趣味のプロジェクトとして設計し、各部のディテールと耐久性にこだわっています。
⚠️ IMPORTANT NOTICE / 重要なお知らせ
組み立てを始める前に、必ず `00_ASSEMBLE_MANUAL.pdf` をダウンロードしてお読みください！3D CADのイラストを用いたステップ・バイ・ステップの組み立て説明と詳細なパーツリストが記載されています。
🖨️ 推奨印刷設定
* フィラメント:
* 一般パーツには ABS を推奨します。
* ギアや足回り（サスペンション周辺）のパーツは、耐久性と剛性確保のため PETG-CF で印刷すると非常に安心です。
* インフィル: 80% (強度確保のため基本80%を推奨)
* ウォール数: 2 Walls (私はすべて2ウォールで印刷して動作確認しています)
* サポート: パーツによってはサポートが必要です。スライサーで適宜設定してください
🔩 BOM (Required Hardware)
To assemble the RS03, you will need the following hardware (screws, bearings, shafts, etc.):
Screws & Nuts
* M3 Countersunk Screw (30mm) x 11
* M3 Countersunk Screw (20mm) x 4
* M3 Countersunk Screw (12mm) x 2
* M3 Countersunk Screw (8mm) x 6
* M3 Hex Socket Screw (10mm) x 25
* M3 Hex Socket Screw (12mm) x 2
* M3 Roundhead Screw (30mm) x 2
* M2 Countersunk Screw (4mm) x 3
* M2 Roundhead Screw (20mm) x 4
* M2 Roundhead Screw (15mm) x 7
* M2 Roundhead Screw (12mm) x 7
* M2 Roundhead Screw (5mm) x 2
* M3 Nut x 39
* M2 Nut x 23
Bearings
* Bearing (ID:2mm, OD:5mm, W:2.5mm) x 8
* Bearing (ID:8mm, OD:12mm, W:3.5mm) x 10
* Bearing (ID:3mm, OD:7mm, W:3mm) x 8
Pipes & Shafts & Springs
* Pipe (ID:2mm, OD:3mm, L:10mm) x 2
* Pipe (ID:2mm, OD:3mm, L:12mm) x 2
* Pipe (ID:2mm, OD:3mm, L:6mm) x 2
* Shaft (Diameter: 2mm, Length: 8.5mm) x 3
* Shaft (Diameter: 2mm, Length: 13mm) x 1
* Shaft (Diameter: 2mm, Length: 28mm) x 1
* Shaft (Diameter: 2mm, Length: 16mm) x 1
* Spring (Wire Dia: 0.3mm, OD: 3mm, L: 5mm) x 2
🏎️ Recommended Off-the-shelf Parts
We recommend using the following RC hobby products for completion:
* Damper: TAMIYA OP.155 LOW FRICTION ALUMINUM DAMPER SET
* Tires : TAMIYA SP.683 M-CHASSIS 60D RADIAL TIRES or [TAMIYA SP.1427 60D
RALLY BLOCK TIRE](https://www.tamiya.com/japan/products/51427/index.html)
* Motor: TAMIYA OP.1393 TYPE 380 Sport Tuned Motor
* Pinion Gear : 0.8Module 12T
* Turnbuckles & Adjusters:

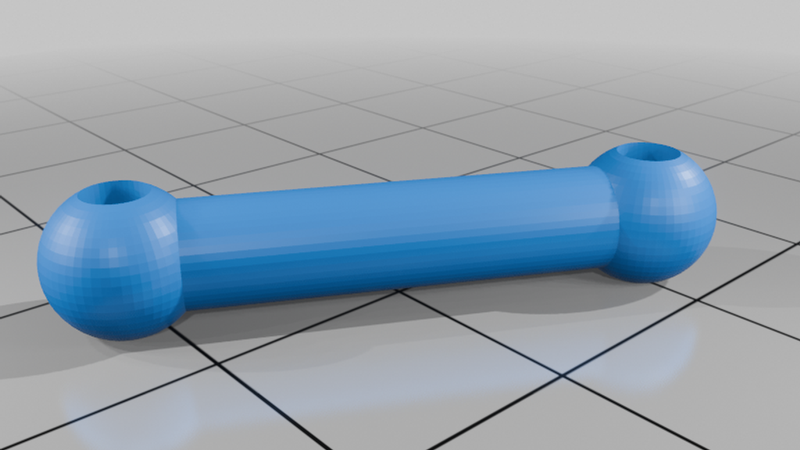

* TAMIYA OP.892 3x10mm ALUMINUM TURNBUCKLE SHAFT
* TAMIYA OP.1247 3x18mm ALUMINUM TURNBUCKLE SHAFT
* TAMIYA OP.1248 3x23mm ALUMINUM TURNBUCKLE SHAFT
* TAMIYA OP.979 5x8mm HARD HEX HEAD BALL HEAD CONNECTOR
* TAMIYA OP.1868 OPEN FACE 5mm REINFORCED ADJUSTERS
* TAMIYA OP.1869 OPEN FACE 5mm REINFORCED ADJUSTERS
🎨 License & Credit
This model and the manual are licensed under CC BY-NC-SA 4.0 (Attribution-NonCommercial-ShareAlike).
* You are free to share, remix, and modify this project for non-commercial purposes.
* Please attribute original design to gm2bv.
* Designed by: gm2bv
* Contact & Feedback (X/Twitter): @gm2bv
* If you build this, please tag or mention me on X! I'd love to see your builds!
