Cabinet Paper Towel Mount

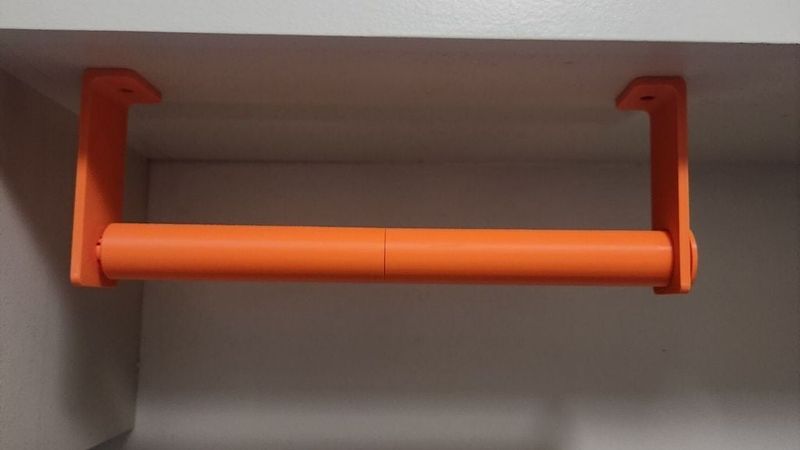

Just a quick mount I created for the over the sink under the cabinet mounting. The original one we had at our place the paper towel roll would constantly fall out, but this one is sturdy.

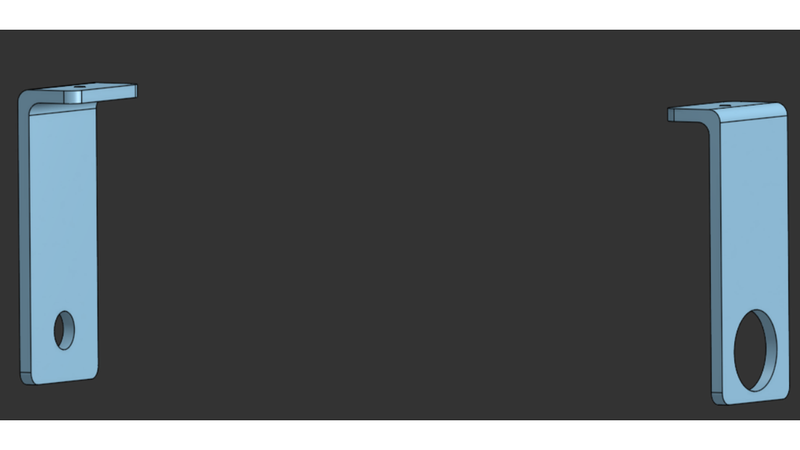

It has two mounting brackets with holes centers being exactly 29.4 cm apart and it fits most brands of paper towel rolls. I personally have the bounty big roll so I left as much space as possible so most people can mount in their kitchens.

As for the fasteners, I used 1/2 in #10-32 screws round head screws, only because they held up the previous mount. For my peeps in Europe its about 4mm screw in width and 12.7in length and the cap is about 8mm diameter.

If you can't mount using screws you are renting, try using the double sided gorilla tape, found in this amazon link or any hardware store near you, I used it plenty of times and if you let it set, it'll hold up pretty good:

https://www.amazon.ca/Indoor-Outdoor-Black-Mounting-Tape/dp/B0833DT387/ref=asc_df_B0833DT387?mcid=96b60b589c9e3187bacee19d26334ea7&tag=googleshopc0c-20&linkCode=df0&hvadid=706725384621&hvpos=&hvnetw=g&hvrand=3675836587320110449&hvpone=&hvptwo=&hvqmt=&hvdev=c&hvdvcmdl=&hvlocint=&hvlocphy=9001160&hvtargid=pla-1365056717231&hvocijid=3675836587320110449-B0833DT387-&hvexpln=0&gad_source=1&th=1

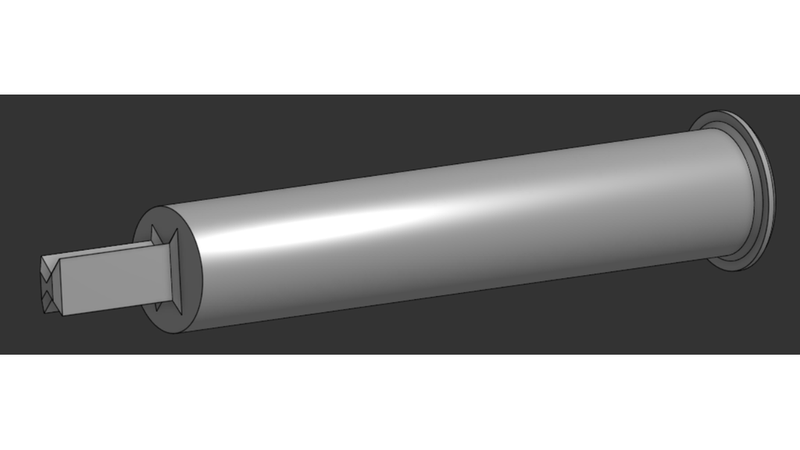

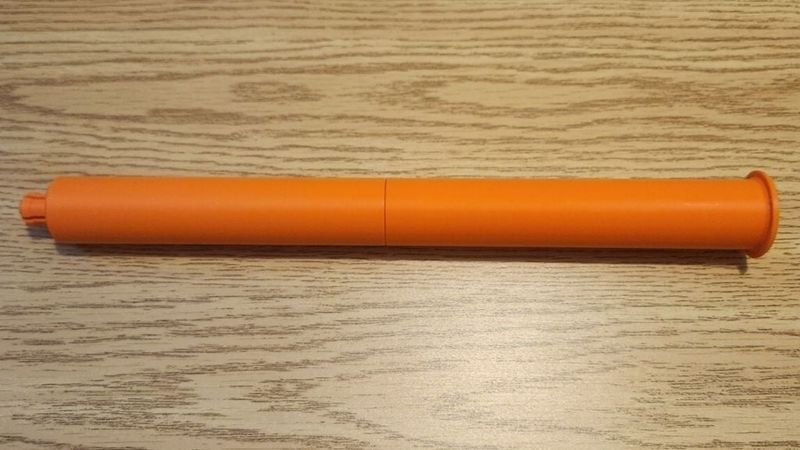

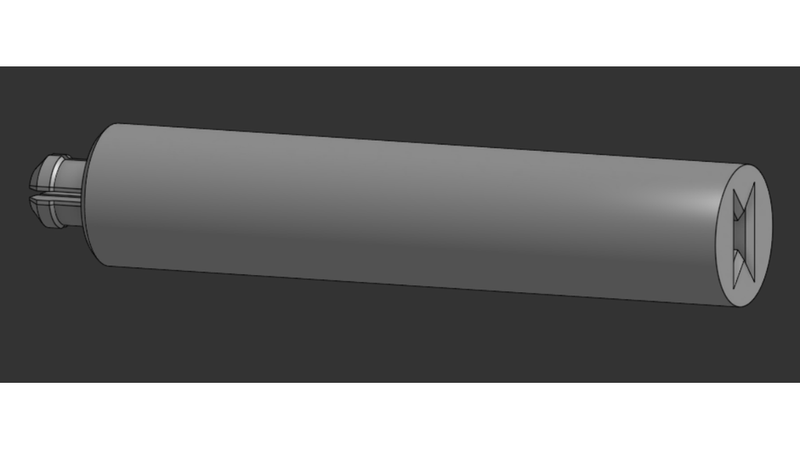

You don't need supports, just lay down the brackets on the sides and stand the pins up right. I printed with 0.25mm wall height and 3 perimeters and it's very sturdy. I also did 0.15mm offset all around the bowtie joint to join the 2 pin halves together, let me know if you need more or less as all printers have different tolerances.
