Parametric Wheel Generator (STEP, Customizable, CNC & 3D Printing)

This is a parametric wheel model generated using an automated CAD system.

Unlike fixed models, this wheel is not a one-off design — it can be regenerated with different parameters.

Specifications of this model:

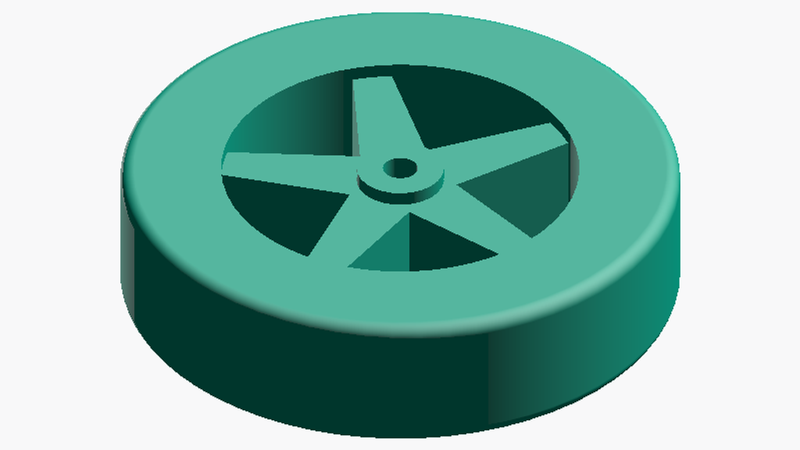

Wheel type: 5-spoke solid-tire wheel

Outer diameter: [X] mm

Width: [X] mm

Structure: Tire, rim, hub, and spokes

Use case: Robot / AGV applications

Use cases:

Robotics

AGV systems

Mechanical prototyping

3D printing

Custom wheel design

⚙️ Generate your own wheel (any parameters):

https://meta-matic.com/en/3d/wheel/

You can freely adjust:

Outer diameter

Tire thickness

Width

Bore diameter

Tire edge radius

Separate tire output

and instantly download a STEP file.

Why this matters:

Most models here are static.

This system allows you to generate exactly what you need.

Note:

The generated model is intended for reference and prototyping purposes.

Please verify dimensions and mechanical strength for actual applications.
