Meross MSG100 Garage Door Opener sensor mount





Description

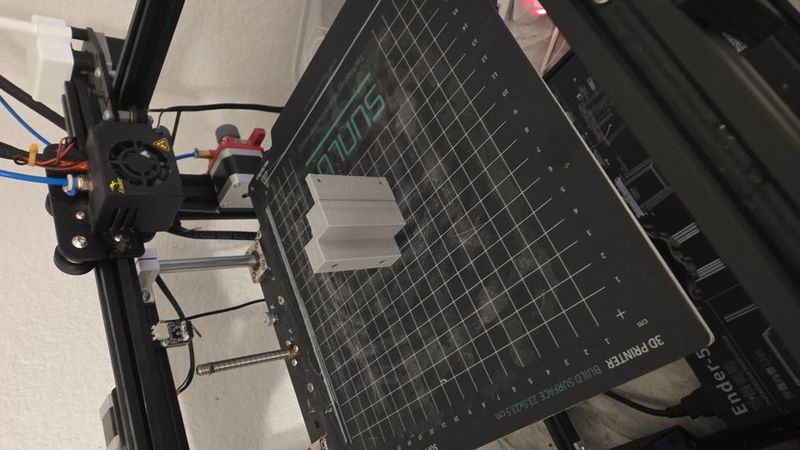

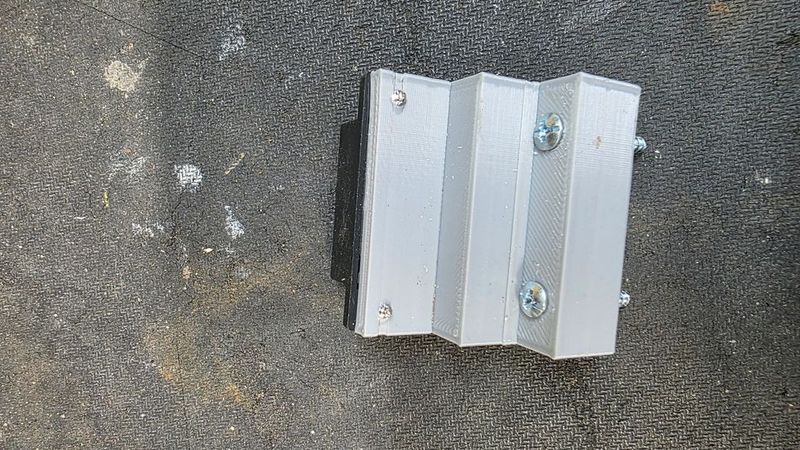

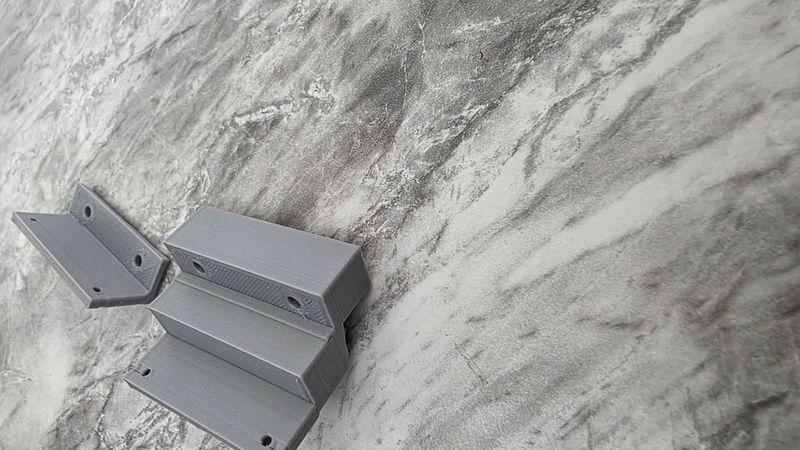

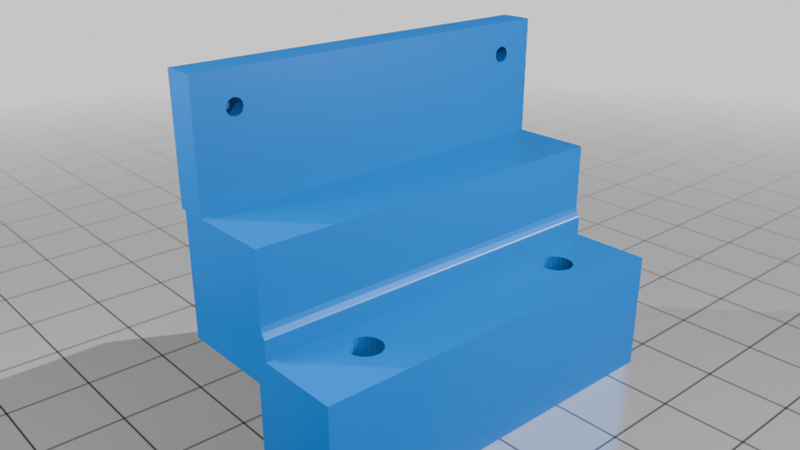

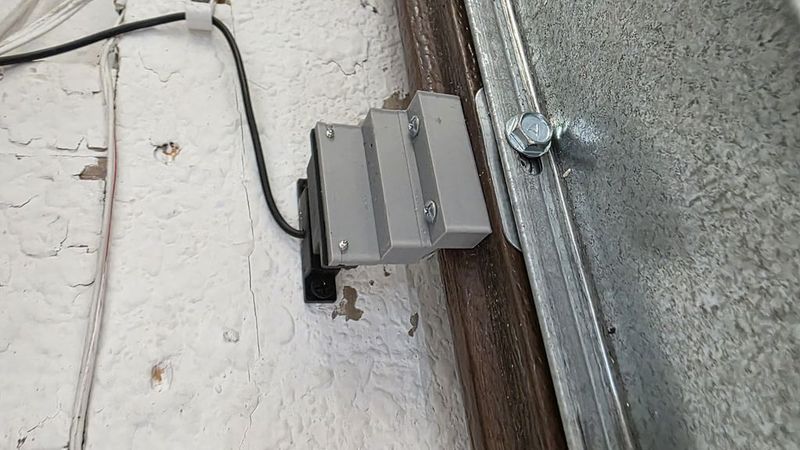

Sorry, Thingsverse keeps auto rotating my photos so the mounted photo is turned on its side. I got a new garage door and the sensor could not be mounted to the new door where it would work right. I did a search and found ChopperOriginals design. It did not work for me, as the mounting location on the door was too far away from the wall. So I modified the design to work with my door. I used the screws that came with the Meross opener to screw the magnet sensor to the mount and then two sheet metal screws I had laying around to screw the mount to the top of the garage door. This put the two sensors about 1/2" apart. You can be as much as one inch so this worked just fine. I printed with PLA at 100% infill with a .04 nozzle and I flipped it on its side so I did not need support to print.
