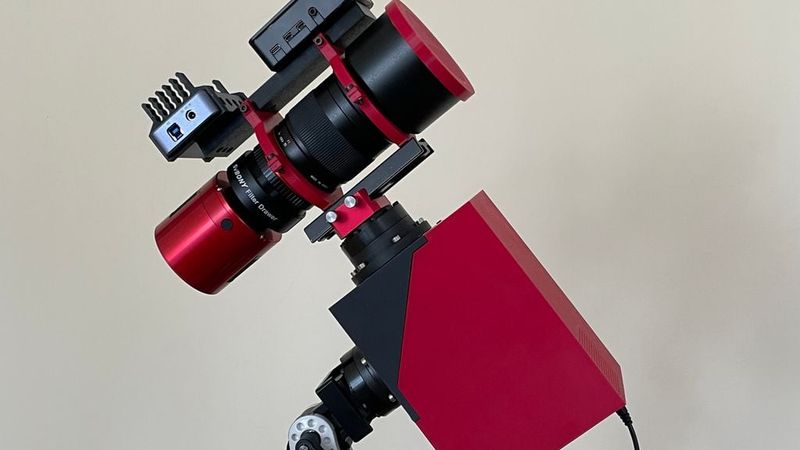

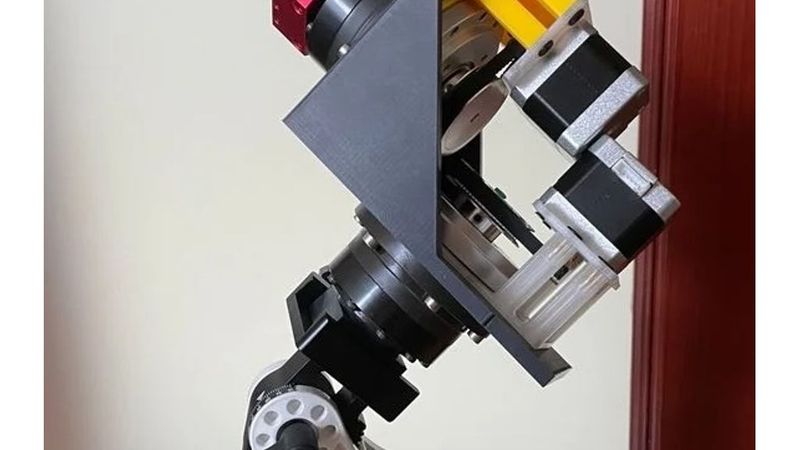

DIY Harmonic German Equatorial Mount (GEM) for OnStepX

A compact DIY harmonic German equatorial mount designed for lightweight astrophotography setups.

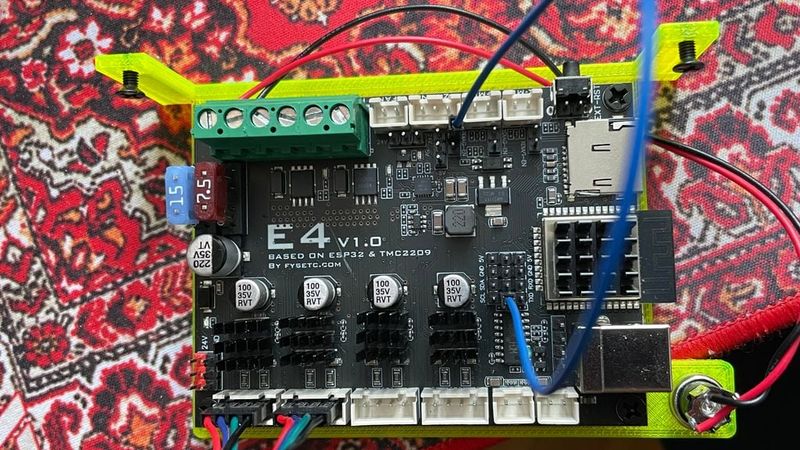

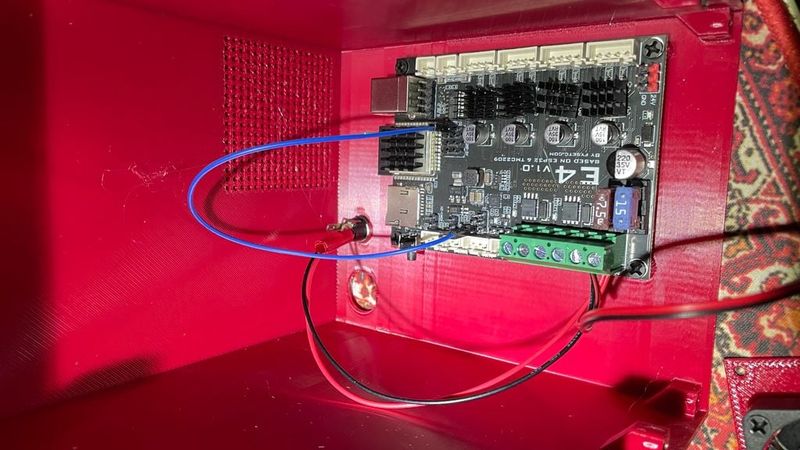

The mount is based on the Fysetc E4 v1.0 controller board running OnStepX firmware.

An archive with a modified version of OnStepX firmware is also attached. It includes several bug fixes and improvements and can be flashed directly to the controller and used as-is.

Designed for payloads up to approximately 3 kg. If you plan to use heavier equipment, do so at your own risk. The author assumes no responsibility for damage or failures caused by overloading.

Included Parts

Core

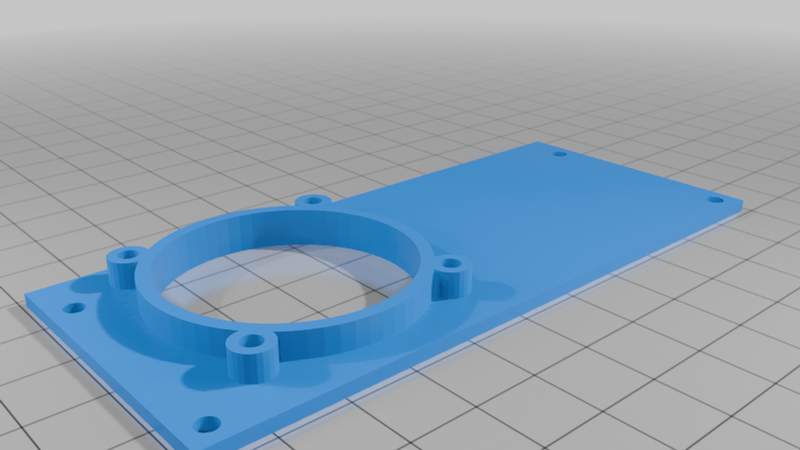

Case A

Case B

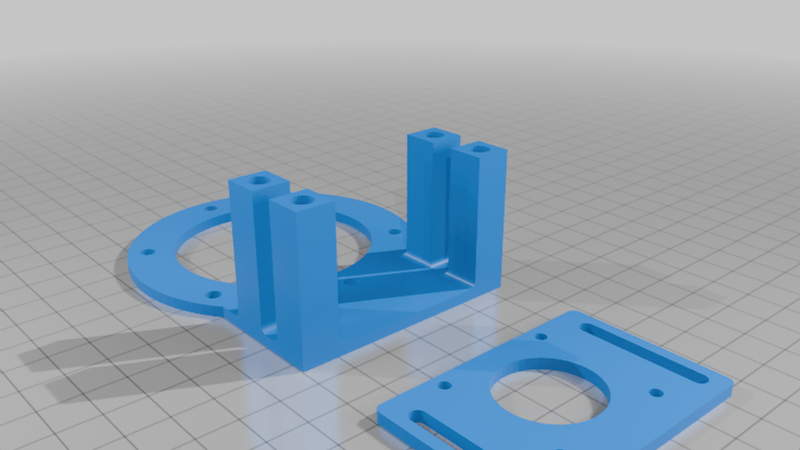

2 × NEMA motor mounts

Main Components

1 × FYSETC E4 v1.0 controller board https://www.aliexpress.com/item/1005001704413148.html

2 × NEMA 17 Stepper Motor stepper motors https://www.aliexpress.com/item/1005004586903773.html

2 × 1:100 harmonic drives for NEMA 17 https://www.aliexpress.com/item/1005008658589981.html

2 × GT2 60T pulleys, 6 mm belt width, 5 mm bore https://www.aliexpress.com/item/1005008672459615.html

2 × GT2 20T pulleys, 6 mm belt width, 5 mm bore https://www.aliexpress.com/item/1005008672459615.html

2 × GT2 belts, 158 mm, 6 mm width

2 × D-type shafts, 35 mm length, 5 mm diameter https://www.aliexpress.com/item/1005008459963157.html

Hardware Required

8 × M4x5x6 heat-set inserts

8 × M4x6 mm screws

8 × M3x6x5 heat-set inserts

4 × M3x10 mm screws

8 × M3x6 mm screws

4 × M3x12 mm screws

12 × M4x25 mm screws

12 × M5x20 mm screws

1 × DC power jack 5.5×2.1 mm (8 mm mounting diameter)

1 × 40×40×10 mm cooling fan

1 × 16 mm latching push button (power switch)

Print Settings

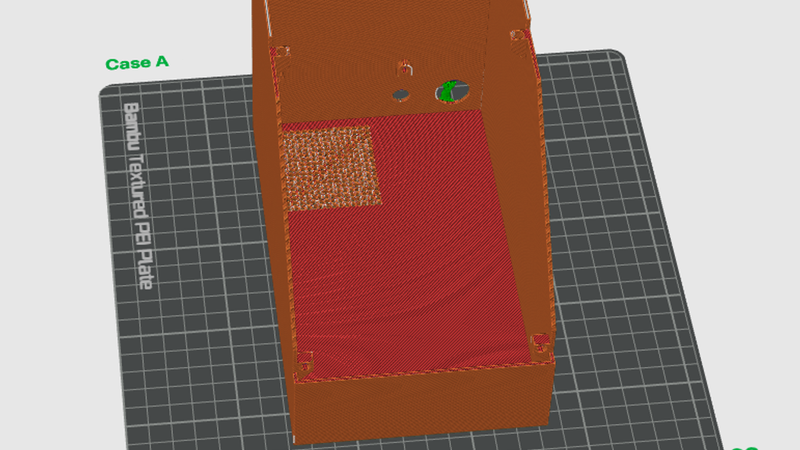

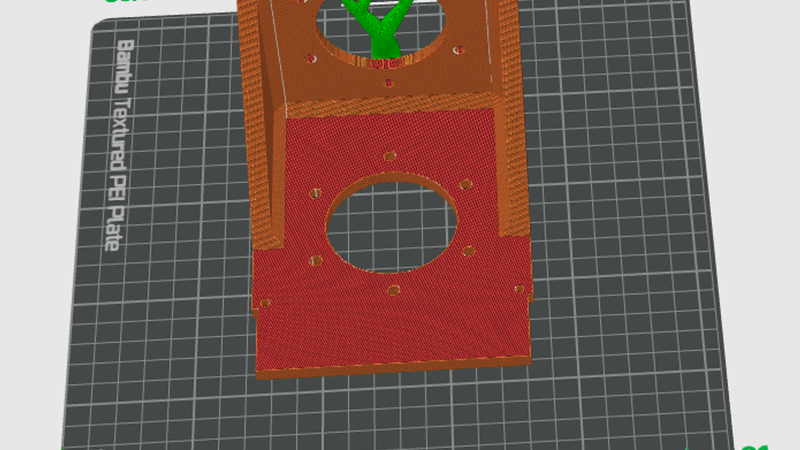

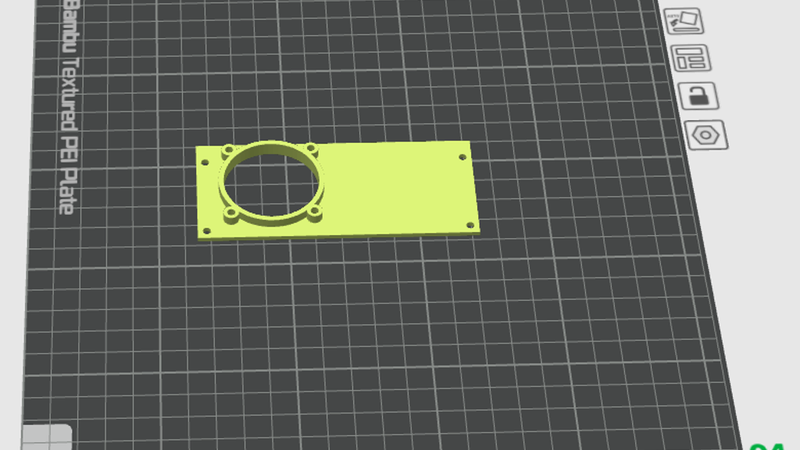

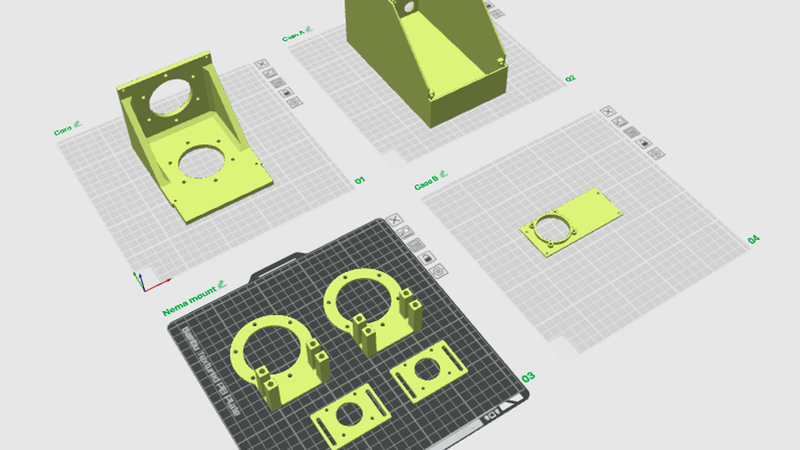

Recommended print orientation and support placement are shown in the provided images.

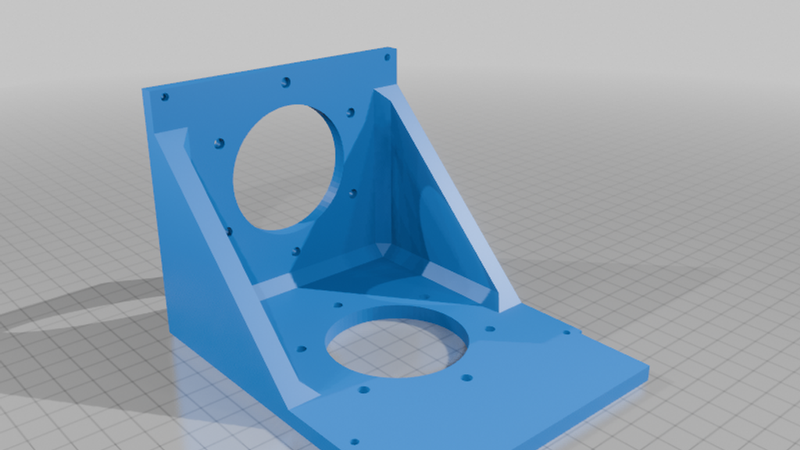

Core

8 walls

8 top/bottom layers

70% infill

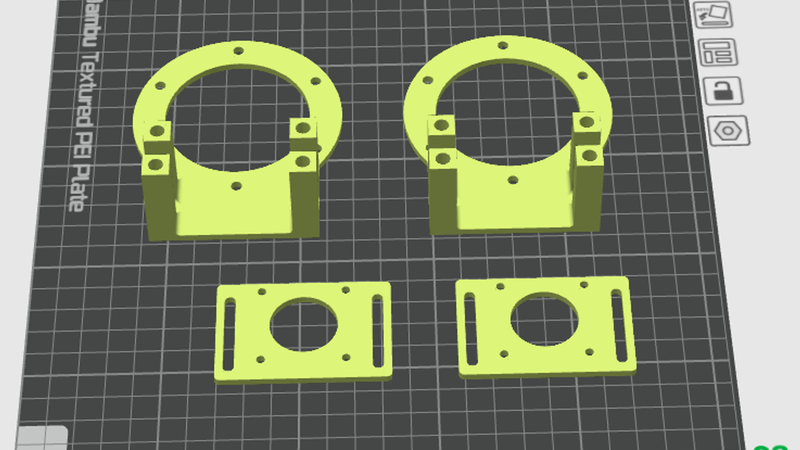

NEMA Mounts

3 walls

3 top/bottom layers

30% infill

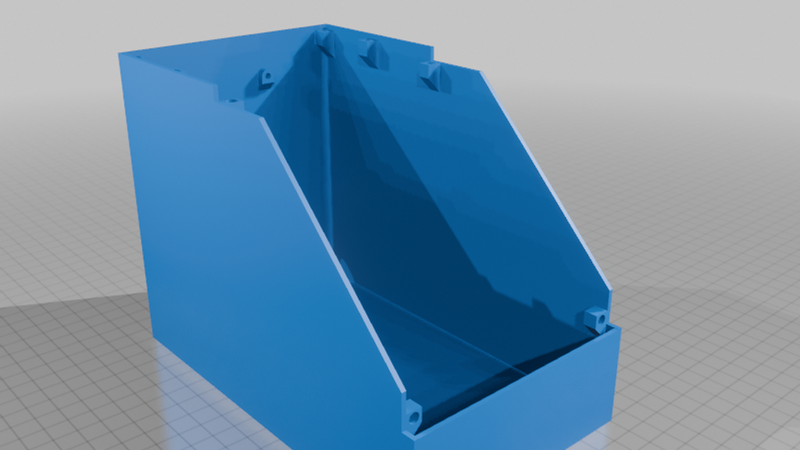

Case A / Case B

3 walls

3 top/bottom layers

15% infill

Material

Printed in PETG (333 Print) at 245°C.
