Key Hook Mount

Devilish3DPrints
Devilish3DPrints
3 Files
3mf, stl Formats

Description

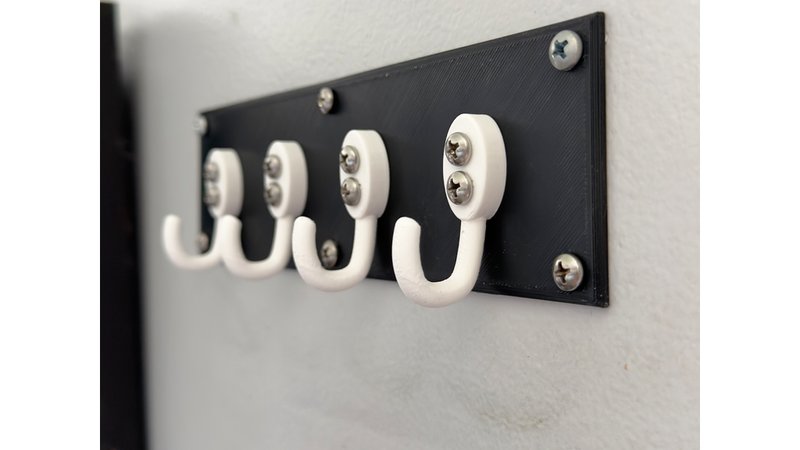

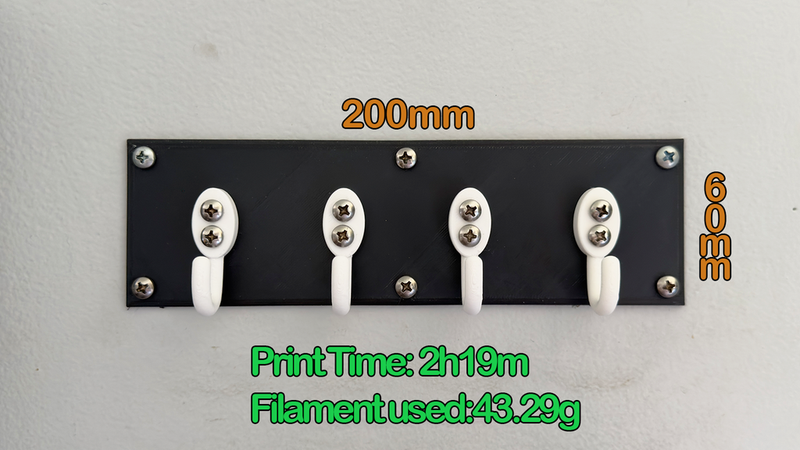

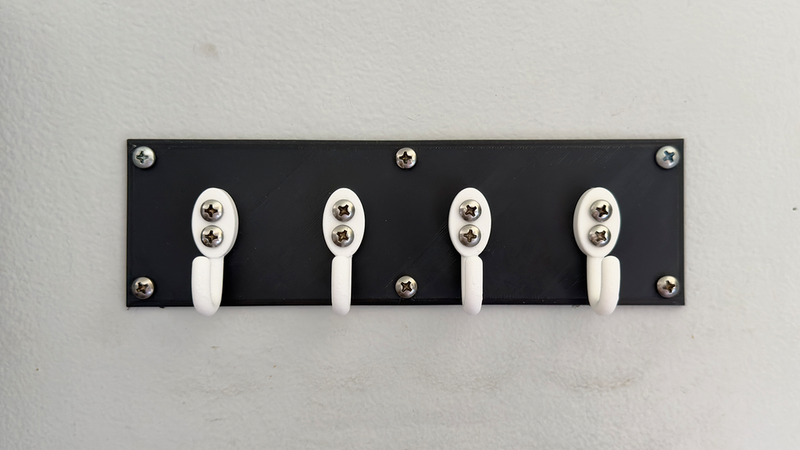

This is a mount for your keys!! It is a relatively quick print that holds 4 key hooks. Once you've removed the supports off of the hooks, I also recommend using some sand paper of varying grits to smooth it out. With that aside, I do hope you find this design to be very useful. Which, if you do like it, please consider giving this design a like and sharing it with others whom you think would like to print this.

(Screws needed: (14) #12-24 x 1-1/4 Phillip Pan Head Sheet Metal Screws)

Filaments used: Overture PLA(Black and White)

Main Settings:

1) No brim.

2) Supports needed for the hooks. I recommend using tree supports.

3) 15% Gyroid infill for the mount and 95% Gyroid infill for the hooks.

4) 2 perimeters(walls).

5) .2mm Layer Height.

Feel free to support me financially by following this link: https://buymeacoffee.com/devilish3dprints - your support truly is appreciated :)

Once there, you can also buy a license to sell the stuff that I make! (License is limited to the selling of the physical, 3d-printed model; i.e, digital files cannot be sold. For more info, view the licensing page.)

Downloads

Key_Hook_Mount.3mf
847.2 KB

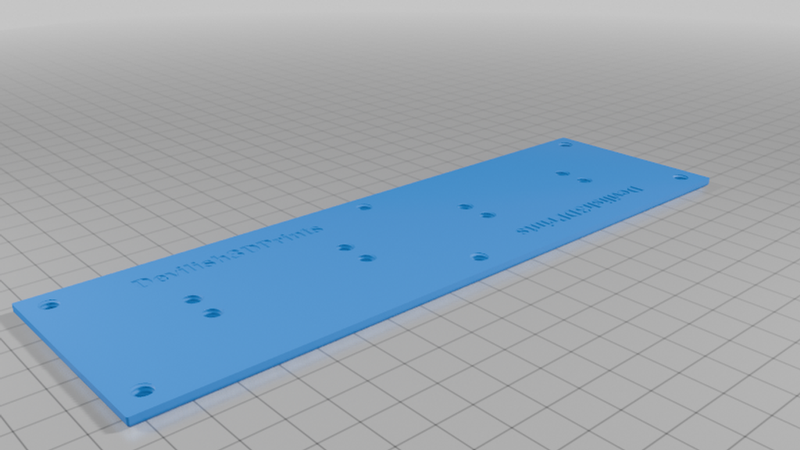

Board.stl
1.1 MB

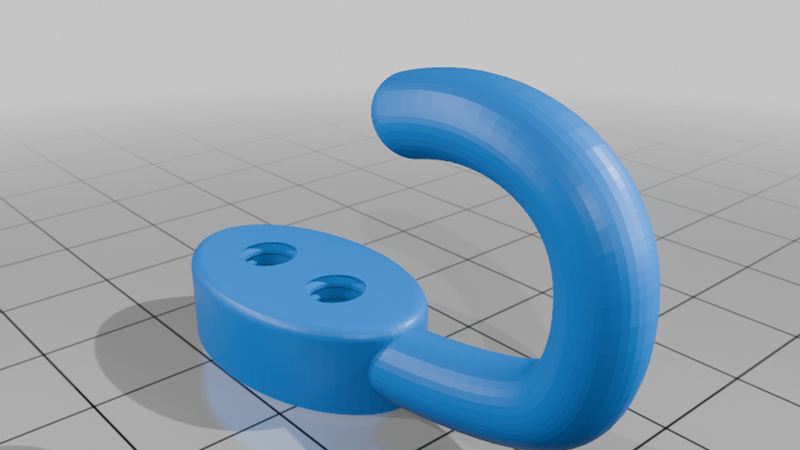

Key_Hook.stl
485.1 KB
