FEELWORLD 1/4 Inch Screw Lock Mount Point

FEELWORLD 1/4"-20 Screw Lock Mount Bracket (F450 / F570 / F550 / FW568 / S55 Compatible)

If you own a FEELWORLD monitor, you've probably run into this - the original mounting bracket is easy to lose, expensive to replace, or just not included when you need it.

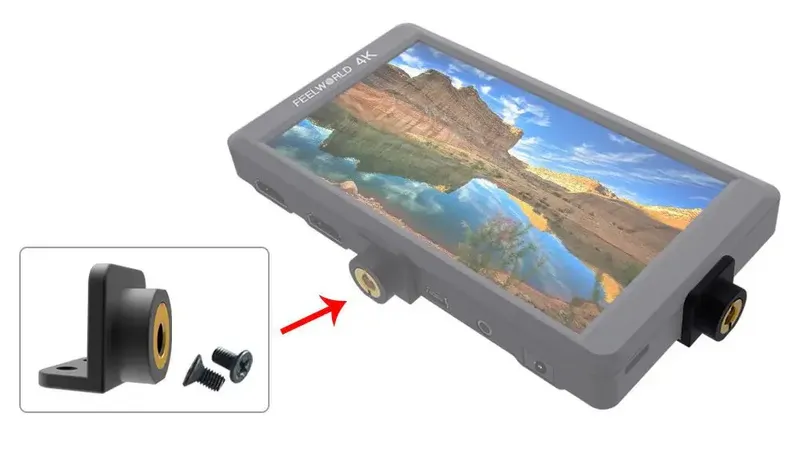

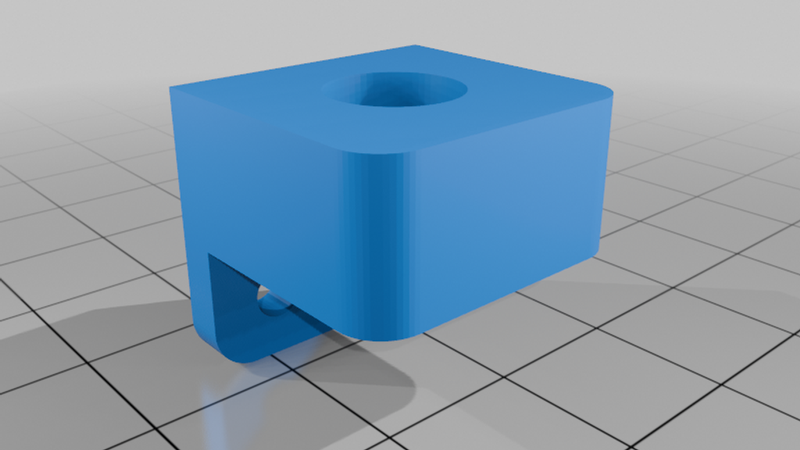

This is a simple, durable 3D-printable replacement for the official FEELWORLD 1/4" screw lock mounting point. It replicates the function of the original bracket, allowing you to securely mount your monitor to magic arms, camera rigs, or tripods using a standard 1/4"-20 thread.

The official replacement costs around $30 - this version gets you back up and running for a fraction of that, while also being easy to reprint, modify, or customize to your setup.

Features

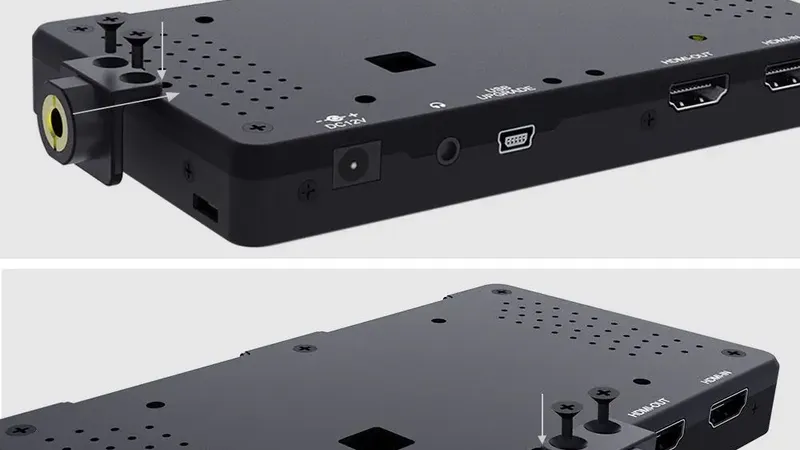

* Direct replacement for FEELWORLD mounting bracket

* Standard 1/4"-20 threaded insert compatibility

* Compact, low-profile design

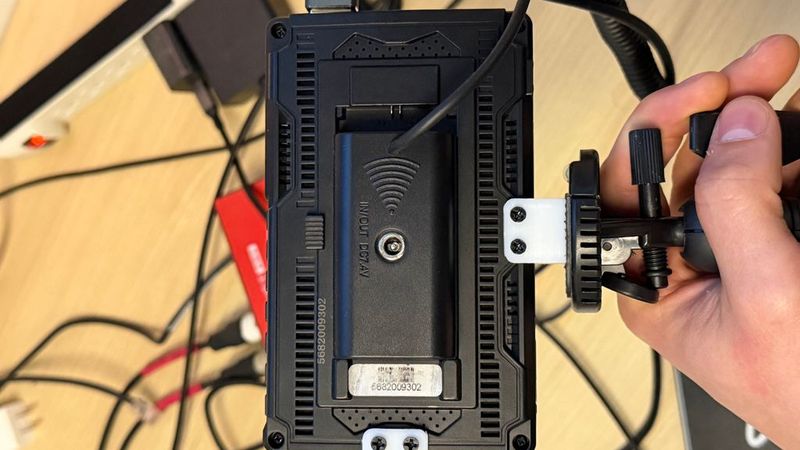

* Strong enough for magic arms and camera rigs

* Designed for real-world production use

Required Hardware

* (1x) 1/4"-20 heat-set threaded insert

* (2x) M3 screws (6-8mm length recommended, reuse originals if available)

Compatible Models

* FEELWORLD F450

* F550

* F570

* FW450

* F5

* FW567

* FW568

* S55

(May also work with other FEELWORLD monitors using the same mounting pattern)

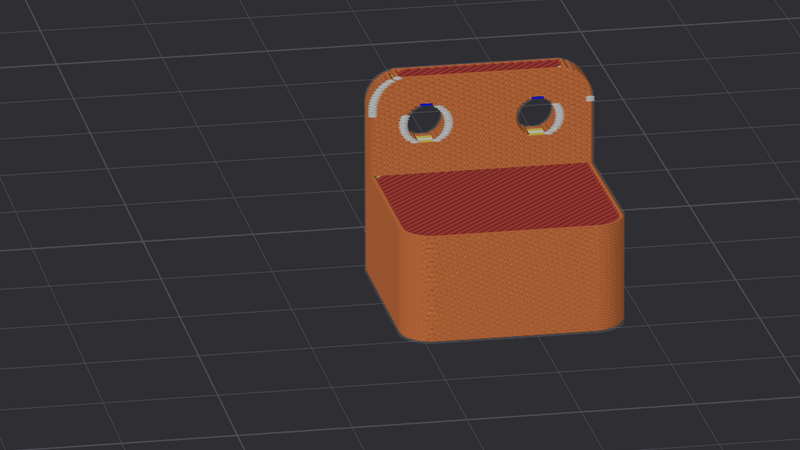

Print Recommendations

* Material: PETG, PETG-CF, or ASA for best strength

* Walls: 4-6

* Infill: 40-60% (or higher for maximum rigidity)

* Orientation: Print flat for best layer strength

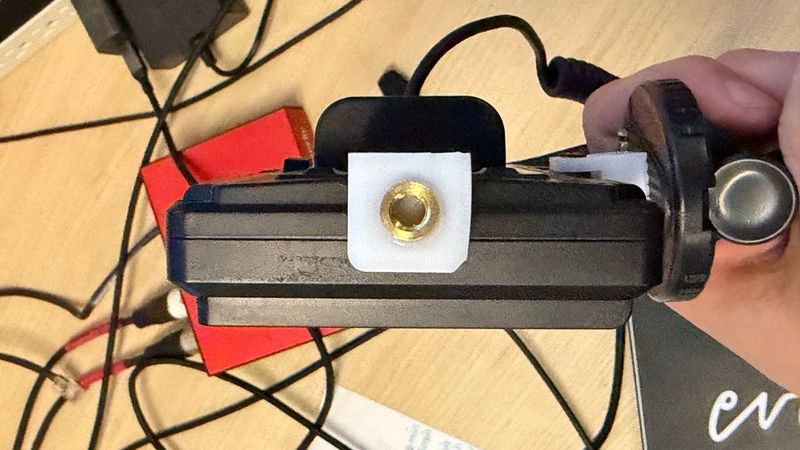

* Install insert with a soldering iron for a secure fit

Files Included

* STL - ready to print

* STEP - universal compatibility

* 3MF - pre-configured print profile

* F3D - fully parametric Fusion 360 source

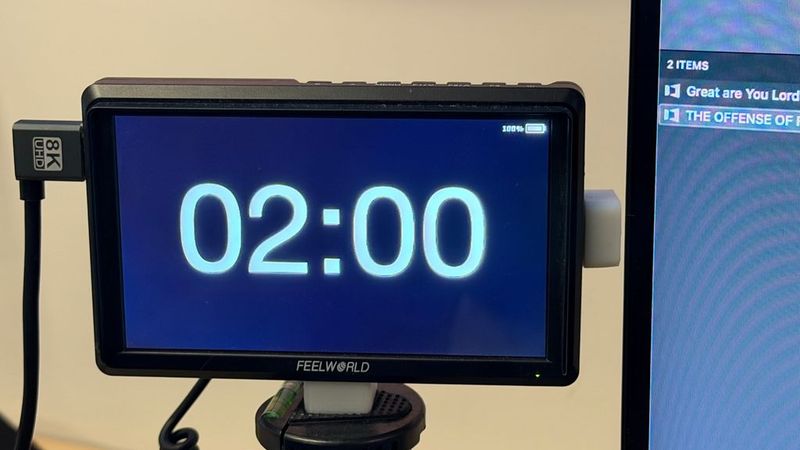

Designed for real-world use in live production environments.

Feel free to modify or adapt it to your setup.

This is a functional replacement and is not affiliated with or endorsed by FEELWORLD.

Designed by Jesse @ freejoy.club
