Raspberry Pi 5 Volumio Player with NVMe, PoE, DAC, and a Bare-Metal Style LCD

This is a small, purpose-built Raspberry Pi 5 Volumio appliance with M.2 storage, DAC output, PoE, and a minimal LCD status screen.

The hardware is only half the project. The other half is the display program, written in C.

Instead of running a desktop, browser, kiosk mode, or heavy plugin just to show basic music info, this build writes directly to the Linux framebuffer.

• No X11, Wayland, Chromium, or bloated UI stack sitting in the background.

The goal is simple: show useful Volumio information without wasting the Pi.

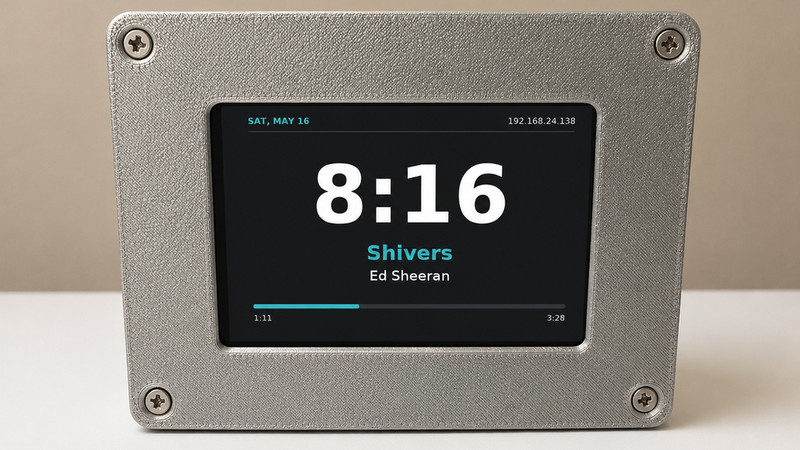

The screen displays:

• Time
• Song title
• Artist
• Playback state
• Network status
• Offline status
• Simple visual feedback

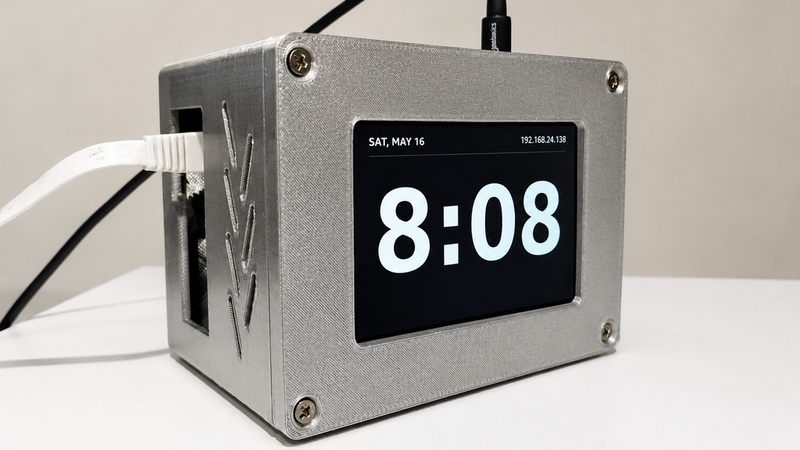

• Large clock mode when nothing is playing

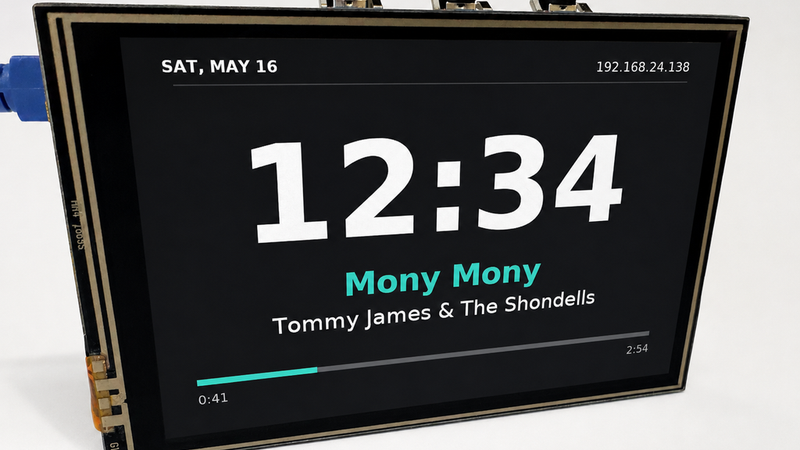

• Smaller clock with track info when music is active
• Blinking colon as a simple heartbeat indicator

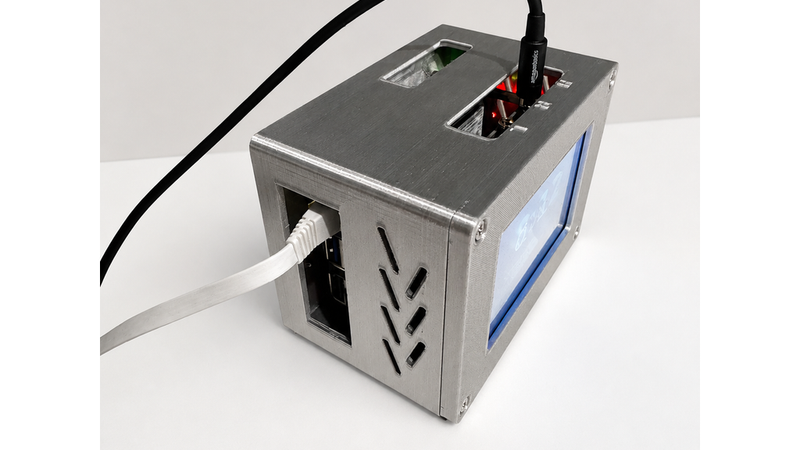

The enclosure was designed around the actual hardware stack:

• Raspberry Pi 5
• Waveshare PCIe to M.2 Adapter with PoE Function and active cooling
• NVMe storage
• InnoMaker HiFi DAC Pro
• Waveshare 3.5 inch RPi LCD

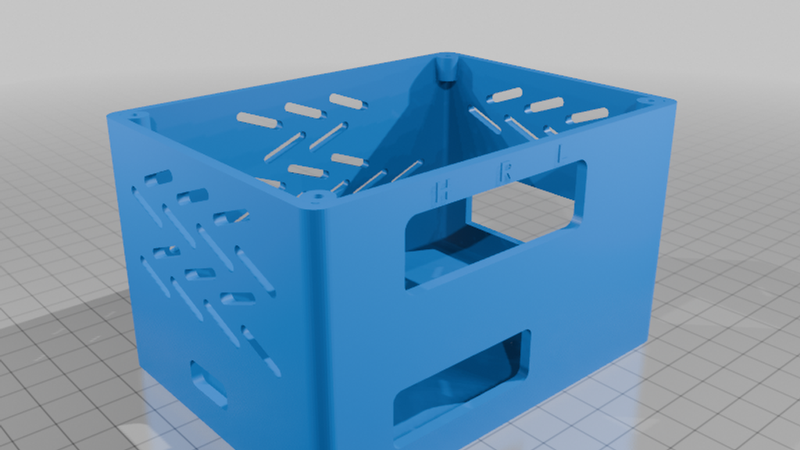

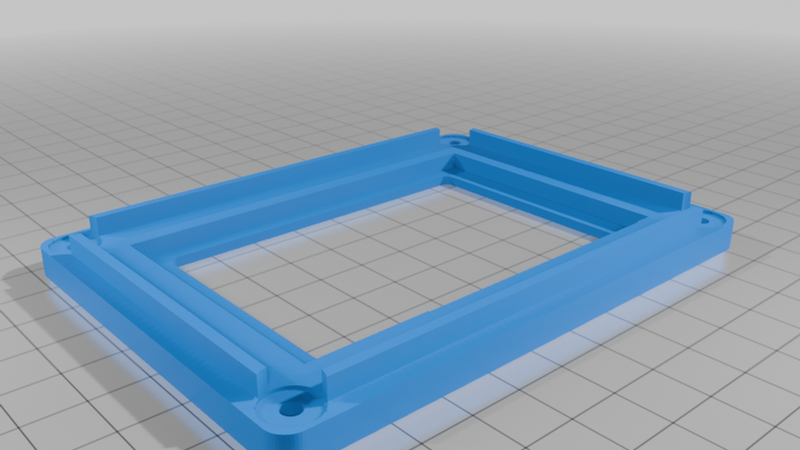

The OpenSCAD case includes cutouts for USB-C, HDMI, audio jacks, Ethernet, USB, and MicroSD. It also includes bottom intake vents, side fin vents, stronger M2.5 mounting points, lid screws, DAC jack labels, and solid sticky-foot pads for side orientation. A lot of Raspberry Pi Volumio builds are either bare boards, generic cases, or full touchscreen setups running more software than needed. This one is built more like a simple audio appliance.

It is not trying to be a commercial hi-fi unit. It is a clean Raspberry Pi 5 Volumio player with M.2 NVMe storage, DAC output, PoE support, and a minimal LCD display that does one job well.

As built:

• Raspberry Pi 5
• Waveshare PCIe to M.2 Adapter with PoE Function, active cooling
• 128GB NVMe M.2 storage
• InnoMaker HiFi DAC Pro
• Waveshare 3.5 inch RPi LCD

Source files, OpenSCAD design files, the C display program, compiled binary, install notes, and BOM are included.

https://github.com/mkinderwater/pi5-volumio-framebuffer-appliance
