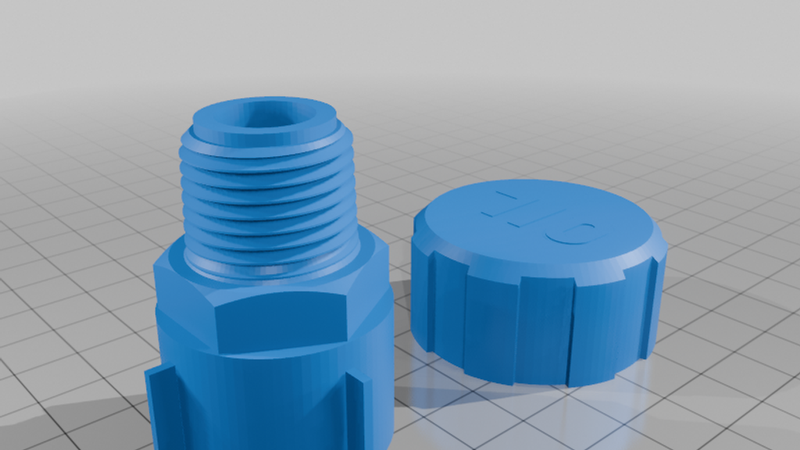

Modular High-Performance Gearbox Breather (PA6-CF)

This is a high-durability, modular gearbox breather designed to replace standard disposable units. Originally engineered for industrial environments where thermal stability and chemical resistance are non-negotiable, this design focuses on long-term serviceability.

Key Features

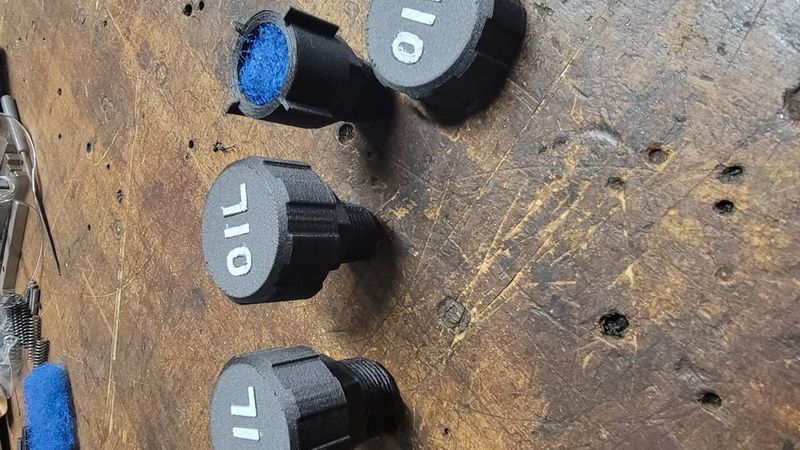

Modular Design: The multi-part assembly allows for easy internal access. Unlike sealed units, you can quickly swap out filter media (desiccant, foam, or mesh) without replacing the entire housing.

Material Optimized: Designed specifically for PA6-CF (Carbon Fiber Reinforced Nylon), ensuring the part can handle high operating temperatures and exposure to gear oils/solvents without deforming.

Included are two standard sizes.

High Strength: The geometry is optimized for additive manufacturing, leveraging the stiffness of carbon fiber filaments to provide a rugged, impact-resistant shell.

Print Settings & Recommendations

Filament: Recommended PA6-CF or PA12-CF for maximum heat resistance. PETG or ASA can be used for lighter-duty applications.

Walls/Perimeters: 3–4 walls for a structural seal.

Infill: 25% or higher (Gyroid recommended for strength).

Supports: Minimal. (Mention if you designed it to be print-in-place or if specific parts need support).

Post-Processing: Ensure threads are clear of any stray fibers to maintain a tight seal.
