SwitchBot RGB Lamp Horizontal Wall Mount (Compact)

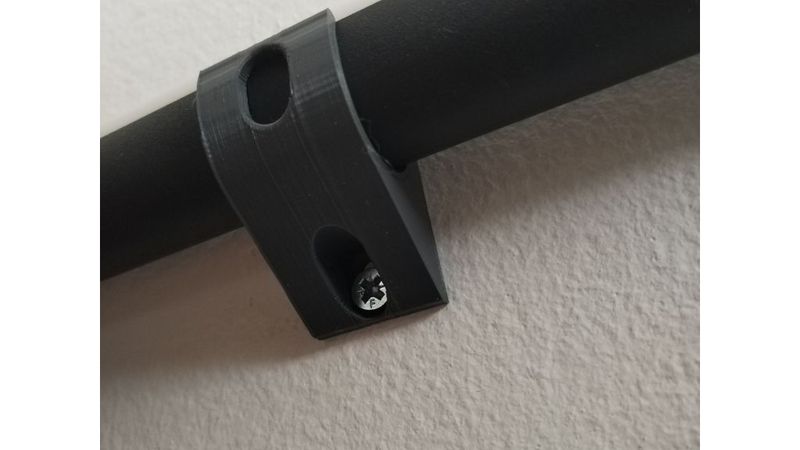

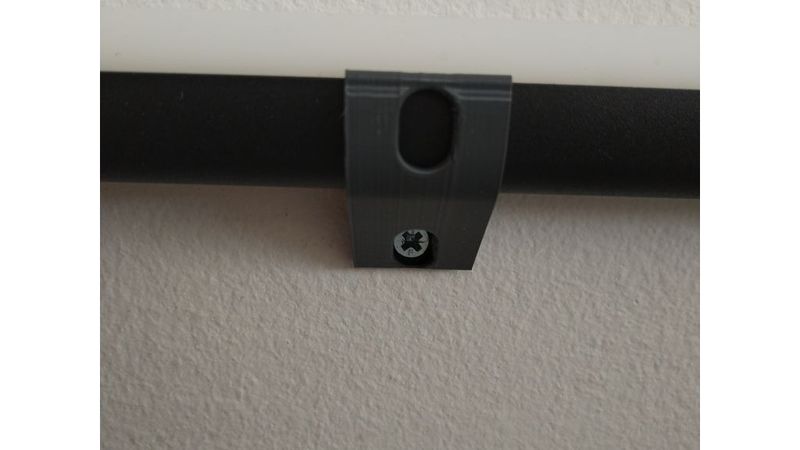

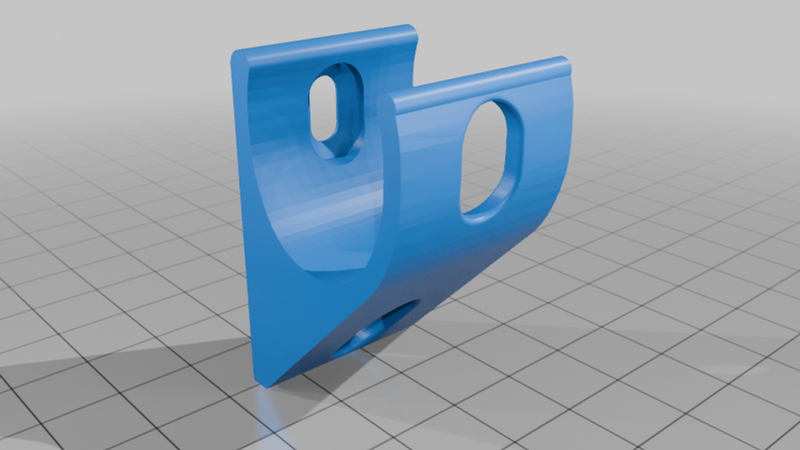

This is a compact, redesigned wall mount for the SwitchBot RGB Lamp.

It allows for a clean, horizontal orientation on the wall while maintaining a minimal footprint.

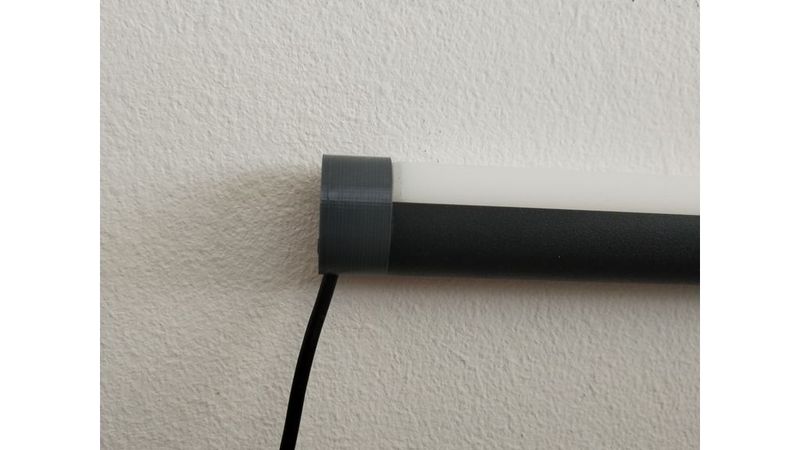

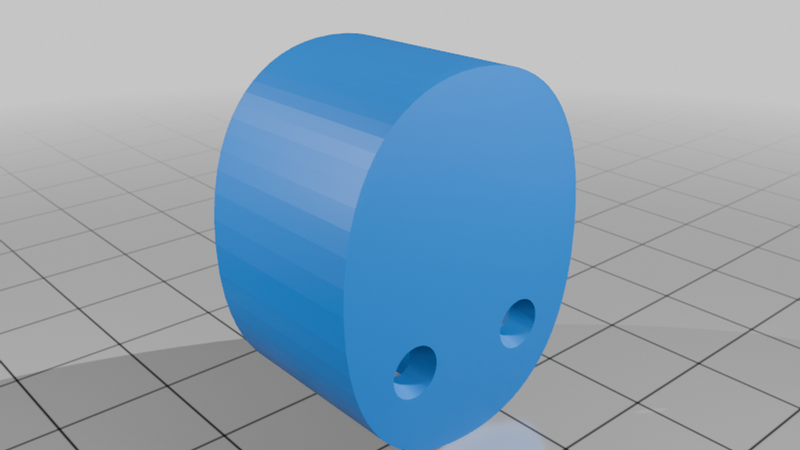

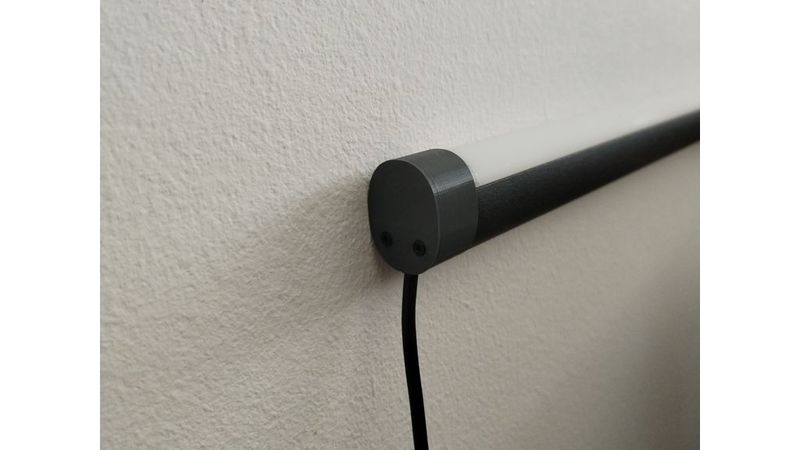

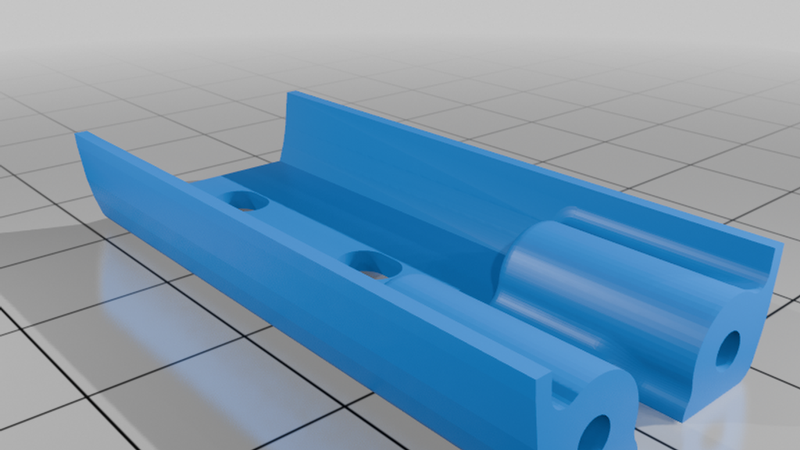

I have also included a redesigned end cap specifically modified to change the cable output orientation.

This allows for much neater cable management, preventing the cord from sticking out awkwardly or being pinched against the wall.

Onshape link: https://cad.onshape.com/documents/8fa5340f73a333eccb5b4529/w/4dcfe6b2ff9a0d62574fdecc/e/435a6f055e9d2aeb6f71b8d0?renderMode=0&uiState=6a03943b79d4a4832e748244

Print Settings

Material: PLA

Layer Height: 0.2 mm

Infill: 20% Rectilinear

Supports: None

Post-Processing

Bridges: Snip any minor sagging filaments from the bridge areas with flush cutters.

Elephant’s Foot: If you have a tight fit with the lamp or the end cap, lightly sand the bottom edges or use a deburring tool to remove the first-layer flare.
