Wall-mounted tool system
Description

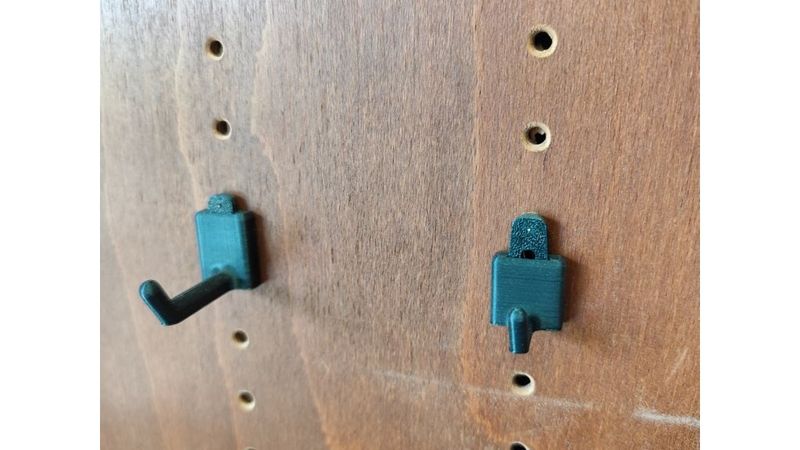

This modular wall-mounted tool holder system is designed for 5 mm thick plywood.
The mounting holes have a 5 mm diameter and are spaced 25 mm apart, making the system easy to align and expand.
Reinforcement Tip

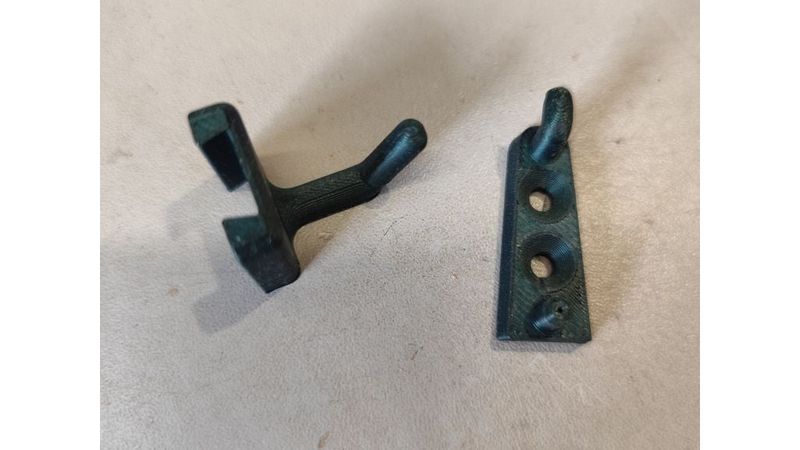

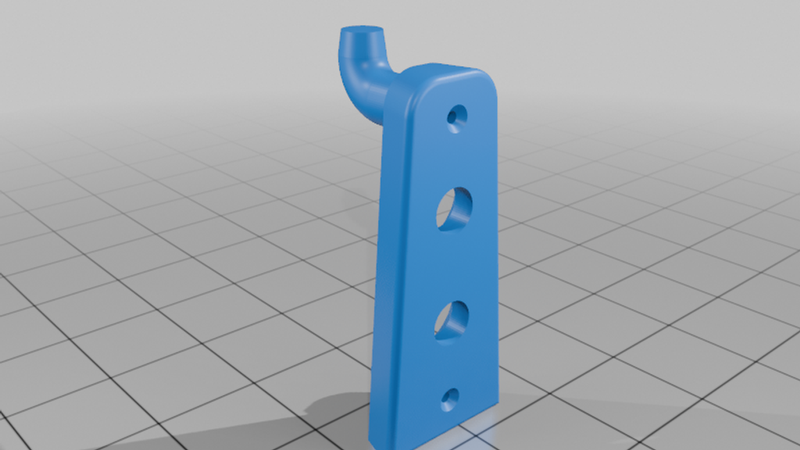

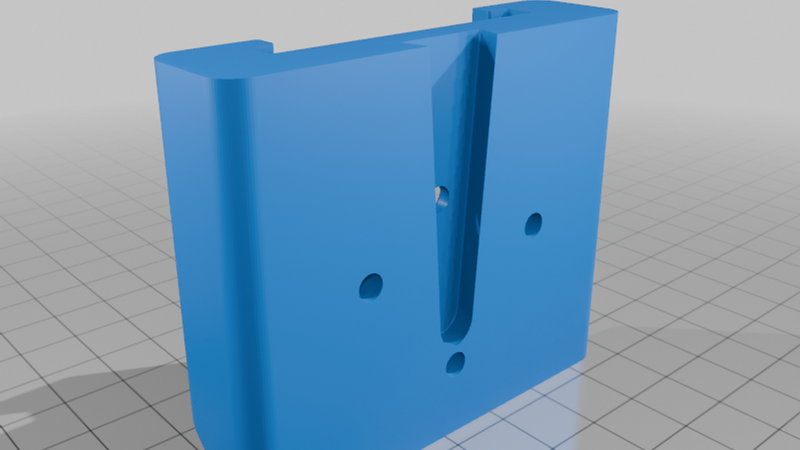

The bent locking pin on the base should be reinforced with a 0.6 mm steel pin, otherwise it may break easily.
I used a staple from a staple gun, which I inserted into the small hole by slowly “drilling” it in using a screwdriver.
This simple reinforcement greatly improves durability and long-term reliability.
A simple and expandable wall-mounted modular tool holder system designed for 5 mm plywood.

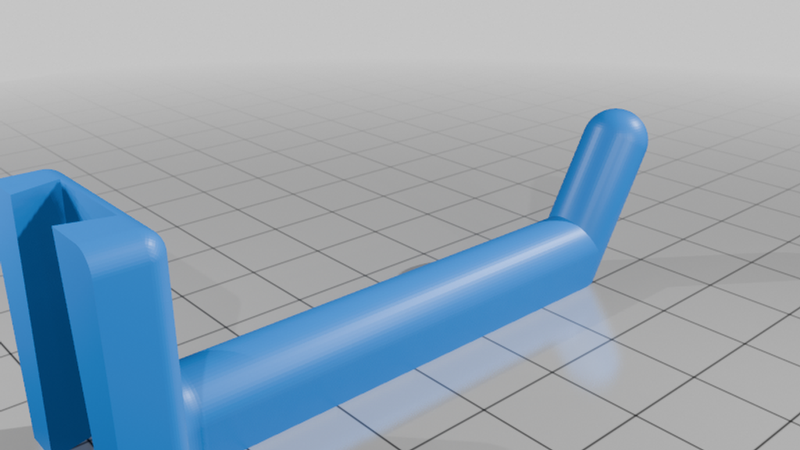

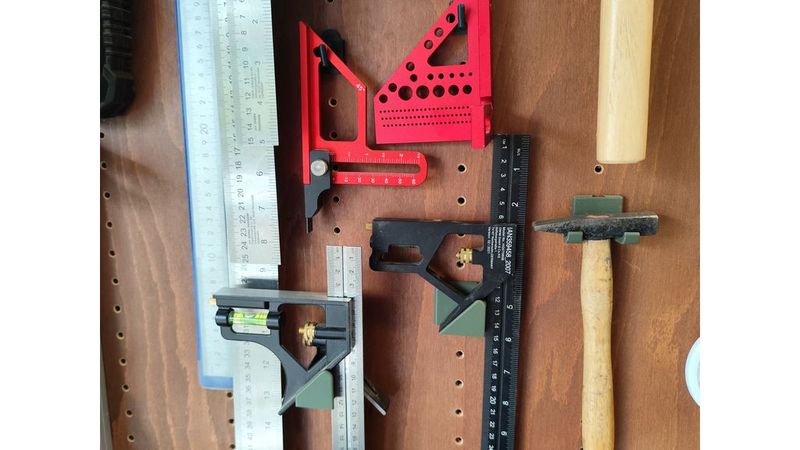

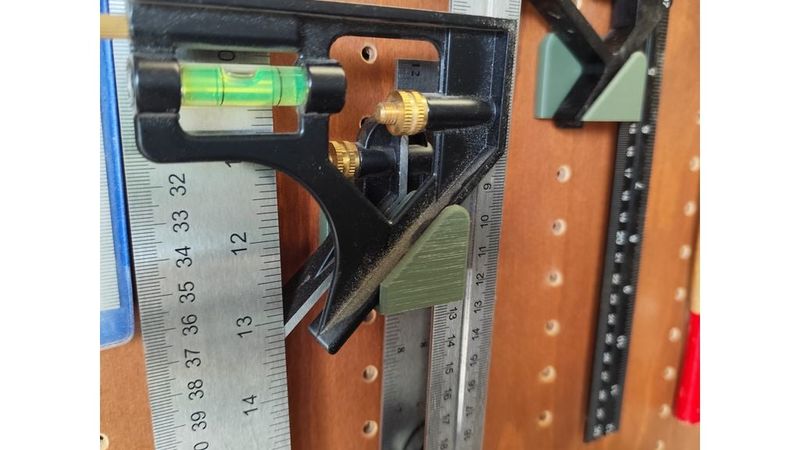

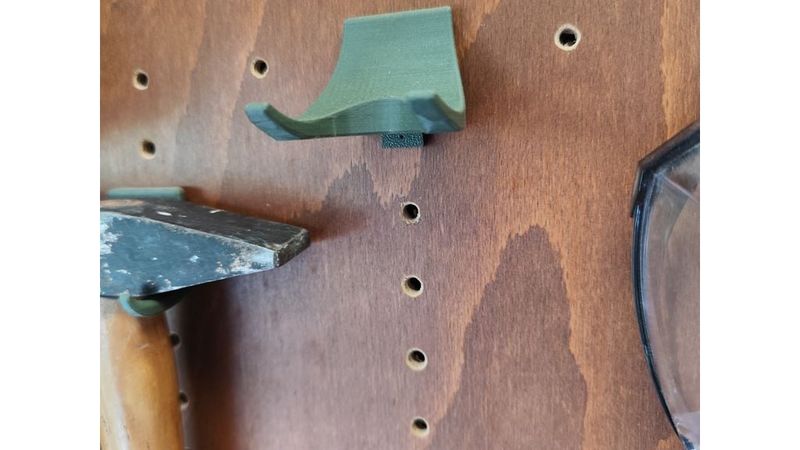

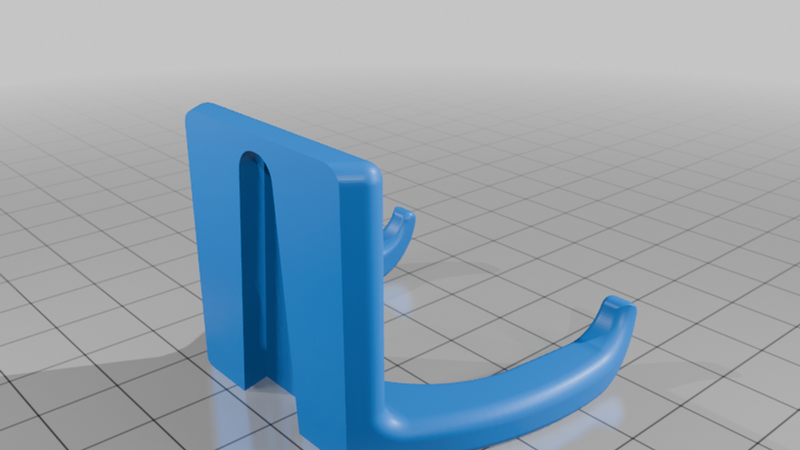

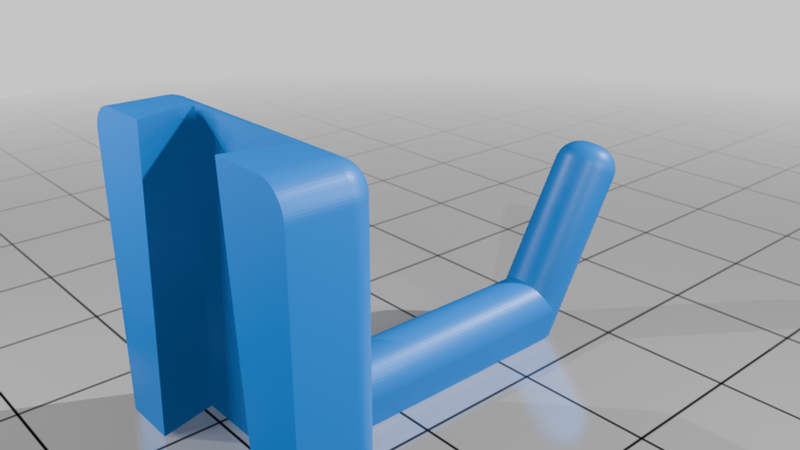

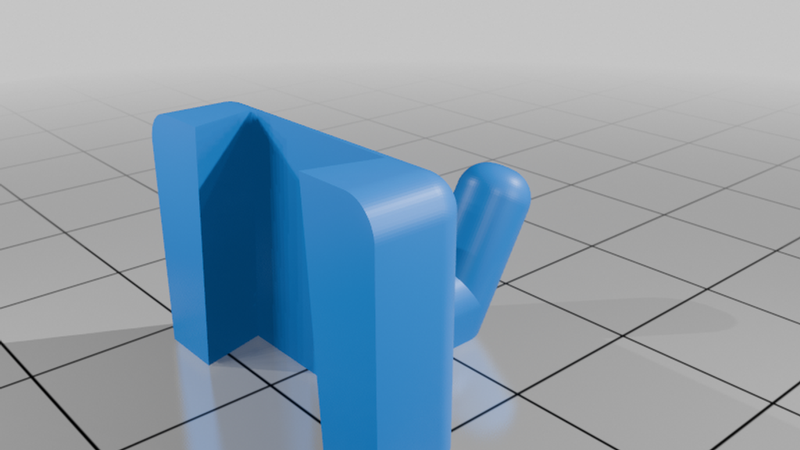

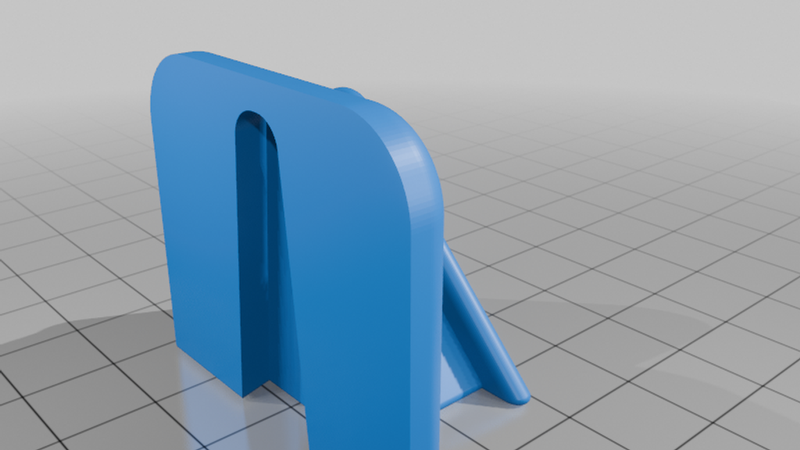

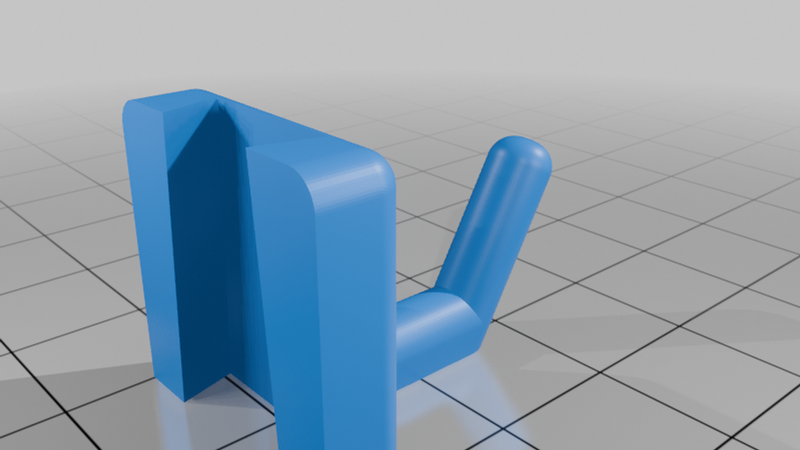

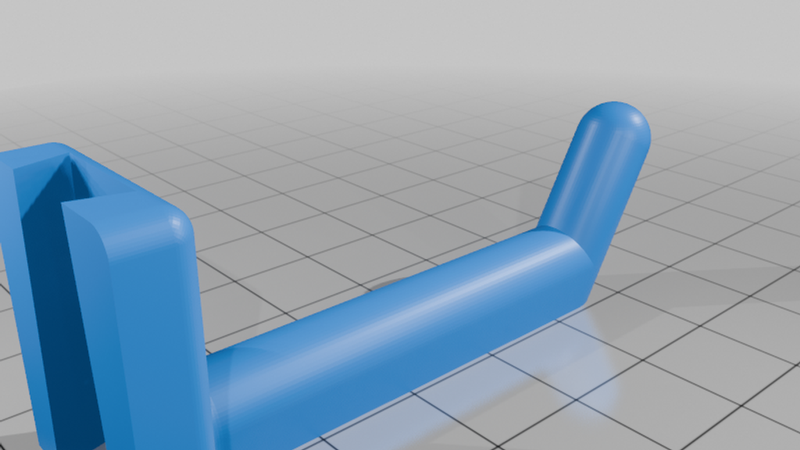

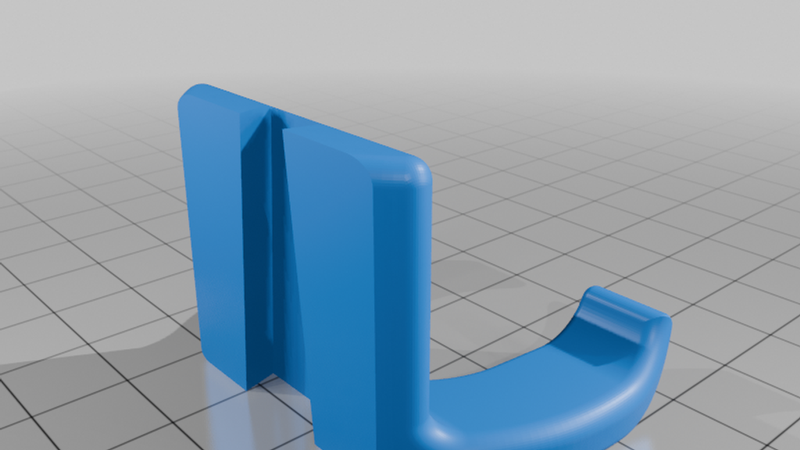

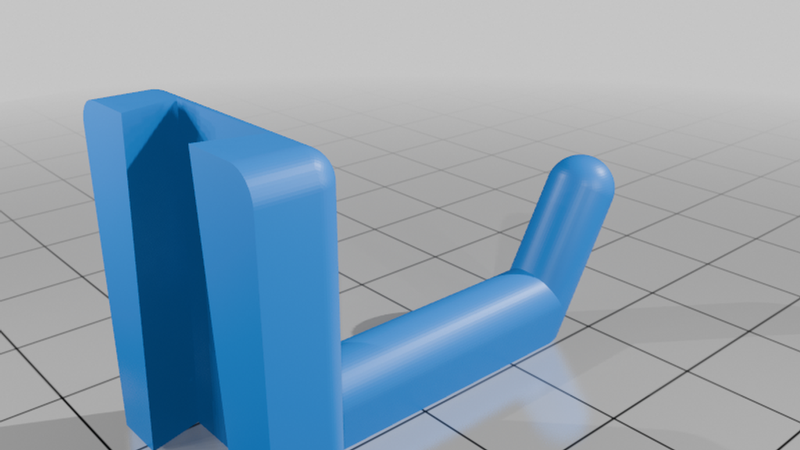

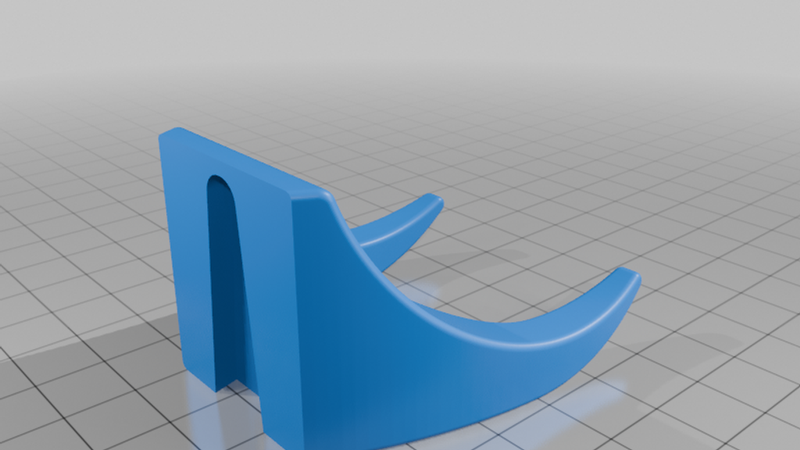

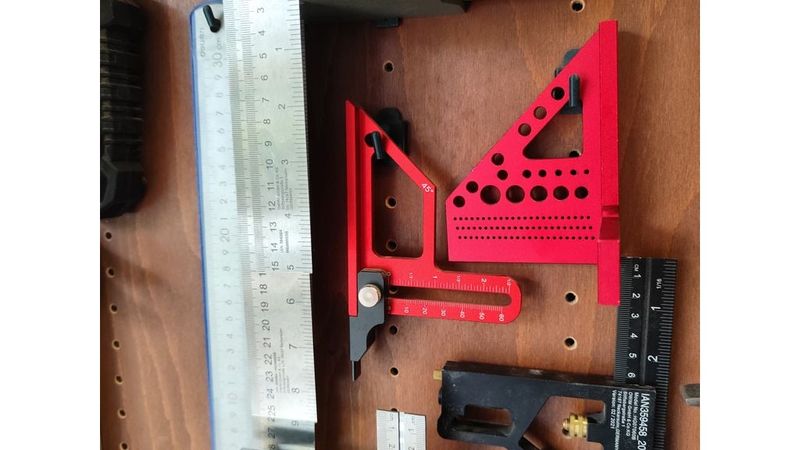

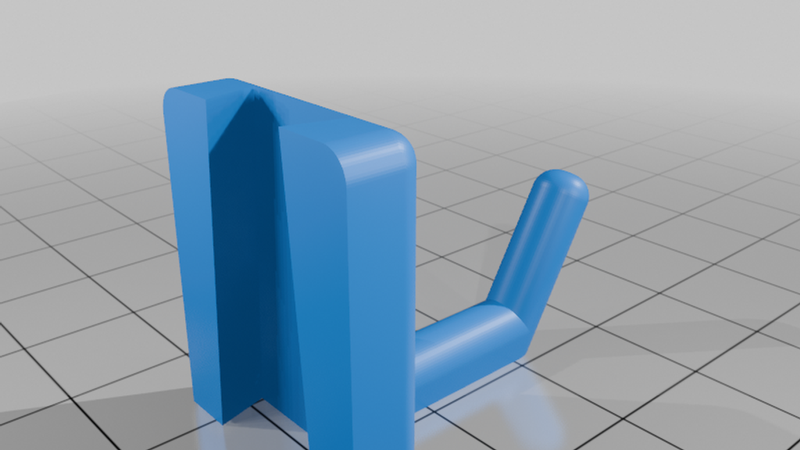

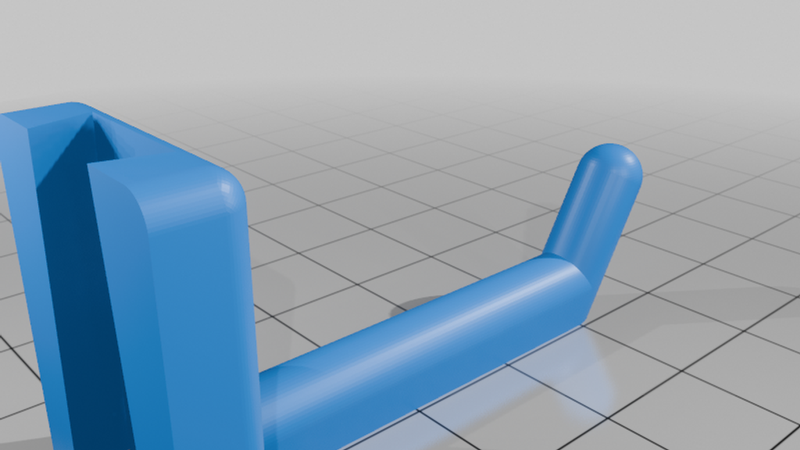

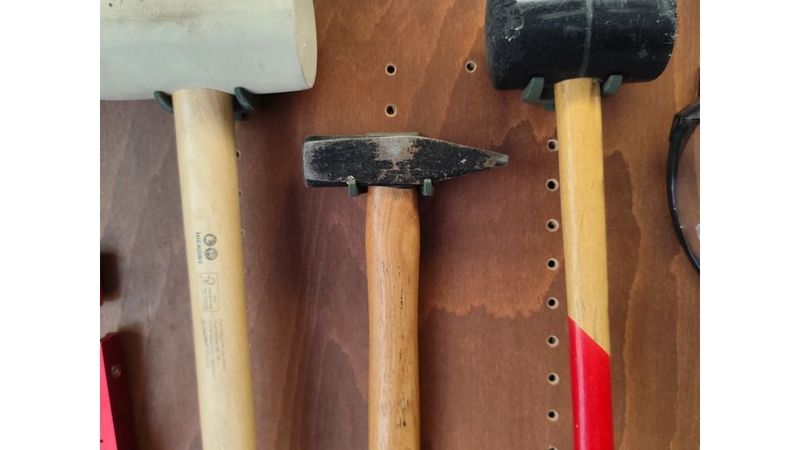

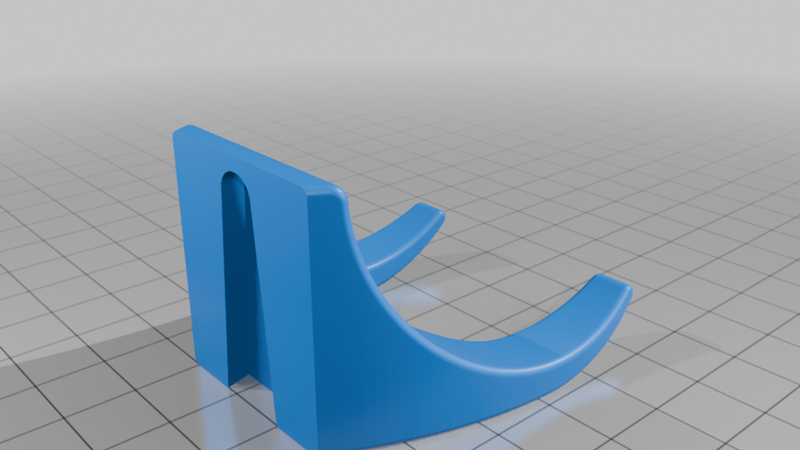

The system allows different tool holder modules (hooks, hammer holders, measuring tool holders, etc.) to be mounted on a shared base, making workshop organization easy and flexible.
The modular design makes it easy to add, rearrange, or replace individual holders as needed.
The Parkside battery holder is based on the work
“Brian_Izsof: Parkside battery wall mount – REMIXED”.
Original design:
