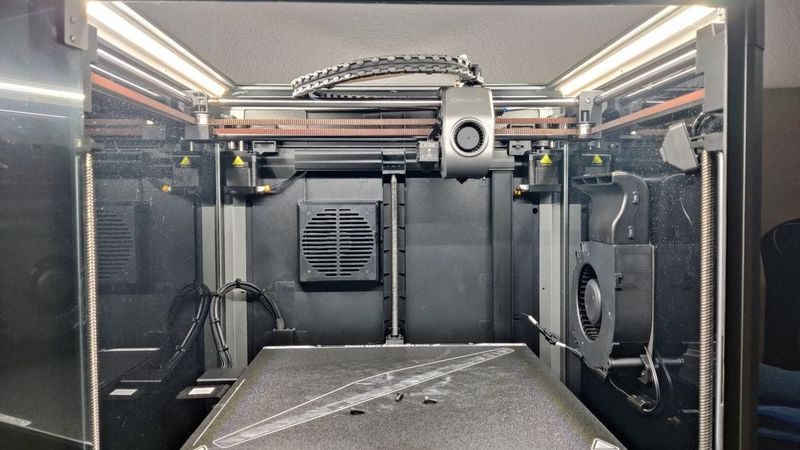

Low Profile Creality K1 Max LED 10mm Light Strip Mount/Holder

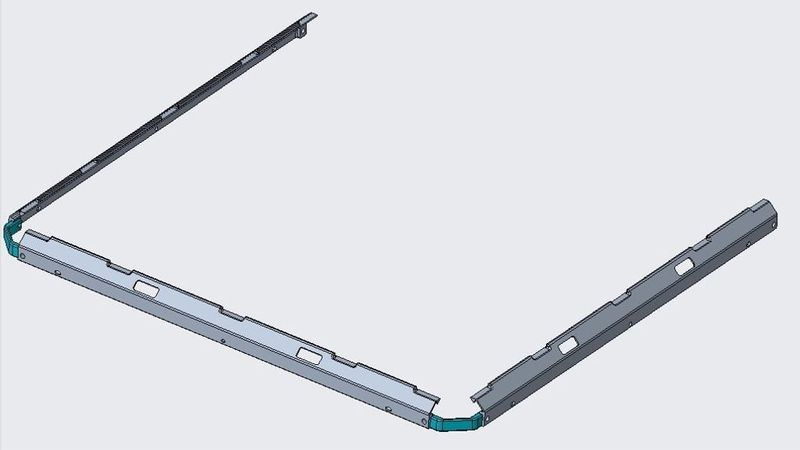

Three piece LED light strip holder for Creality K1 Max. I purchased the "FYSETC Upgrade 24V COB Led Light Kit" and their recommended mounts are terrible and incomplete, so I designed new ones.

• Fits 10mm wide LED strips. Slide right in, no adhesive needed.

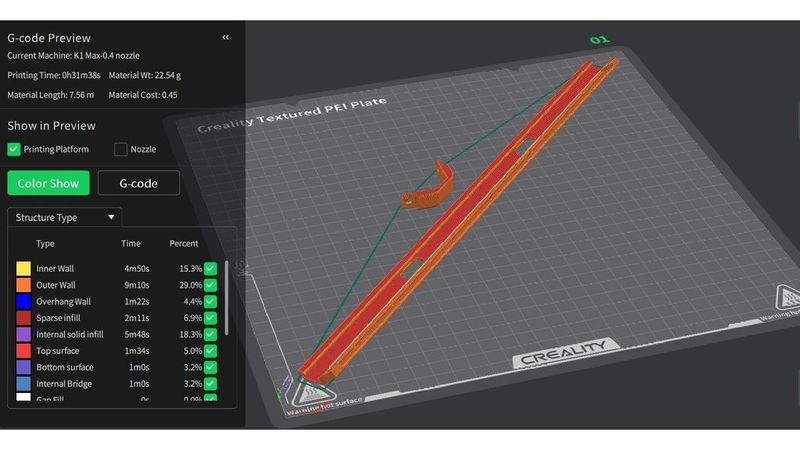

• Single piece mount for each side helps with structure while fitting on print bed diagonally.

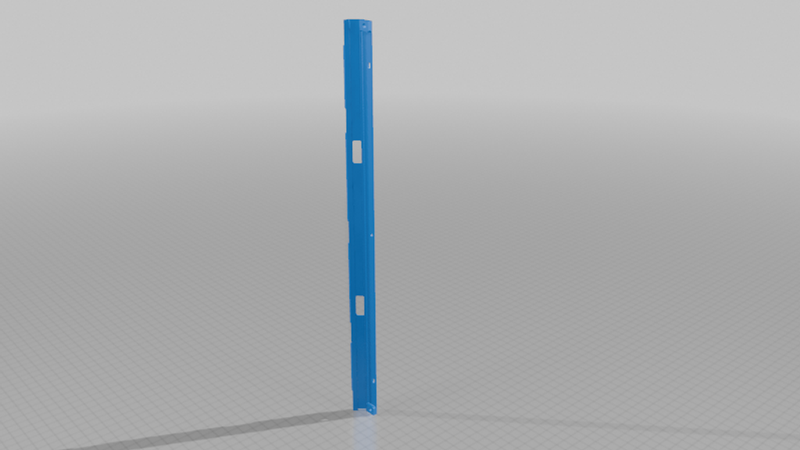

• Common mount design for left, right, and front. Print (3) mounts and (2) corners.
• Does not require any supports to print!
• Clearance cutout for OEM light. This fits right over it, no need to remove it.

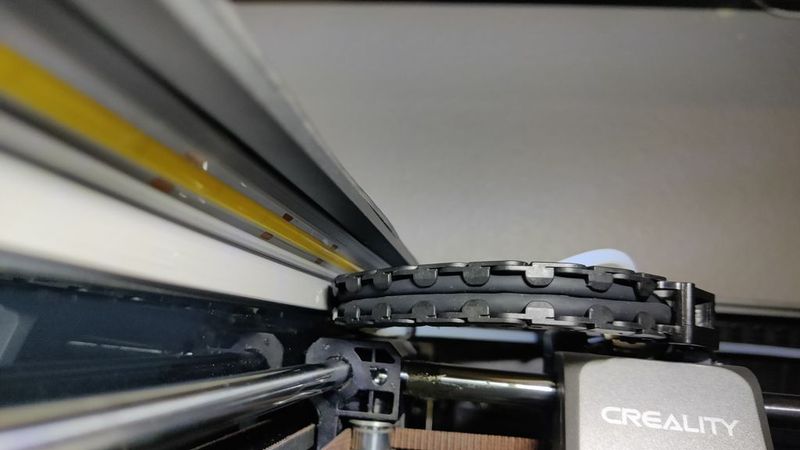

• Low profile keeps mounts and lights clear of extruder wiring raceway on left side.

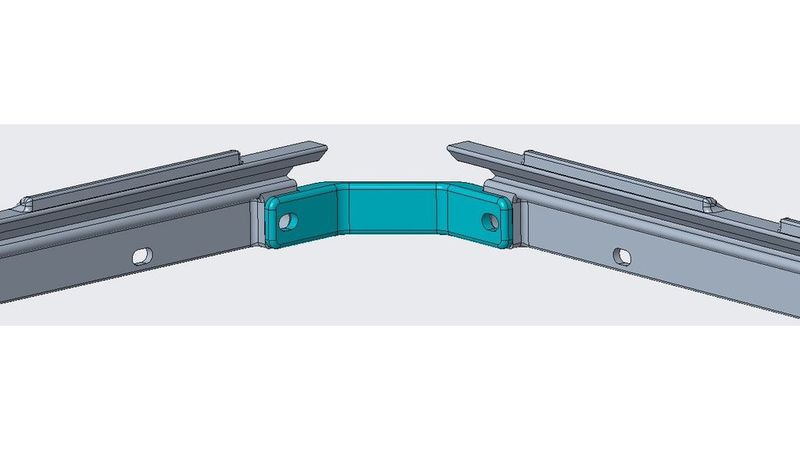

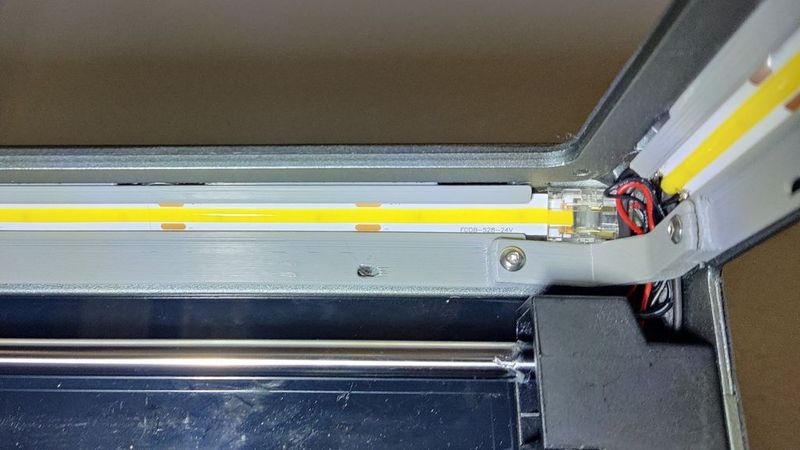

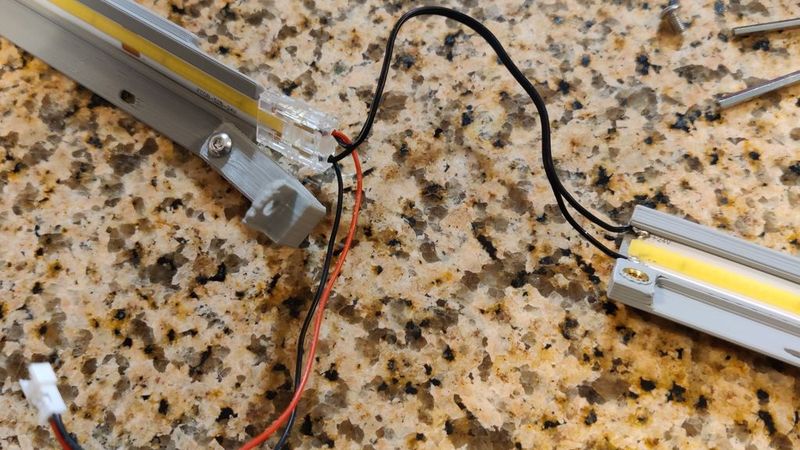

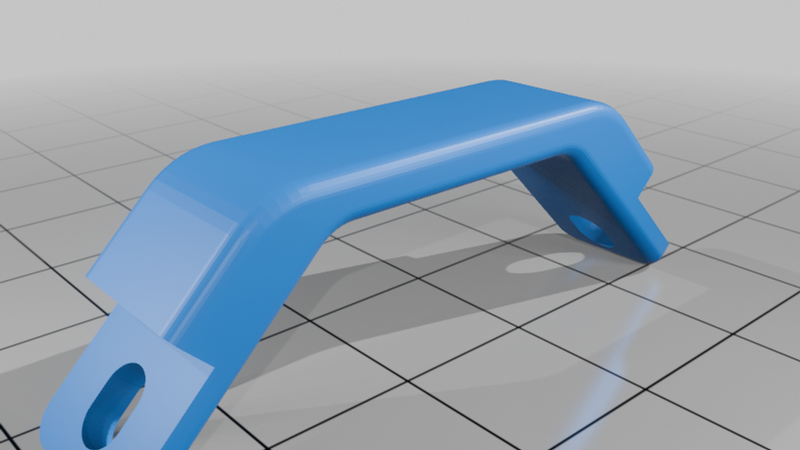

• Corner brackets use heat set inserts and screws from light kit.
• Wedges in place and uses top edge screws that attach printer side panels. You must supply (6) new M3 screws that are 2mm longer than stock so they stick thru far enough to engage mounts.
