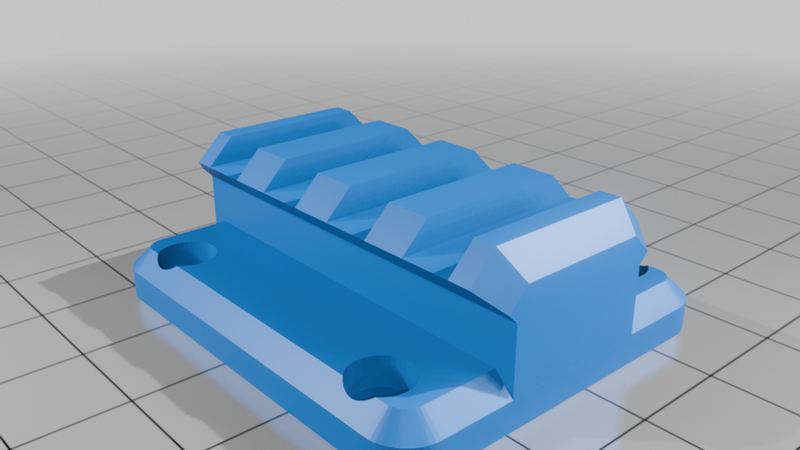

30 x 30 FPV Picatinny Mount - Semi-universal

I originally designed this for the Source One V6 frame, but realized it also fit on a Source One V5 frame, as well as a bunch of frames that use the 30 x 30 M3 screws through the bottom. Hence, the "semi" universal mount name.

2mm offset from whatever stack screws you're currently using.

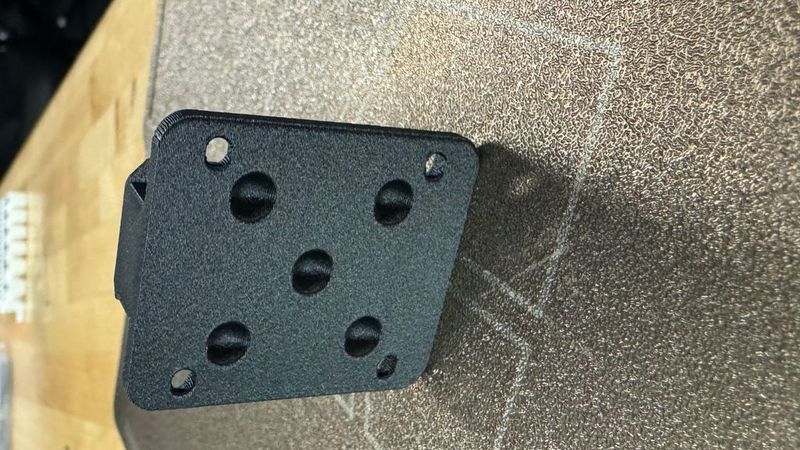

Includes divots at the center and at the 20 x 20 screwhole locations to mount flush to the bottom of the frame.

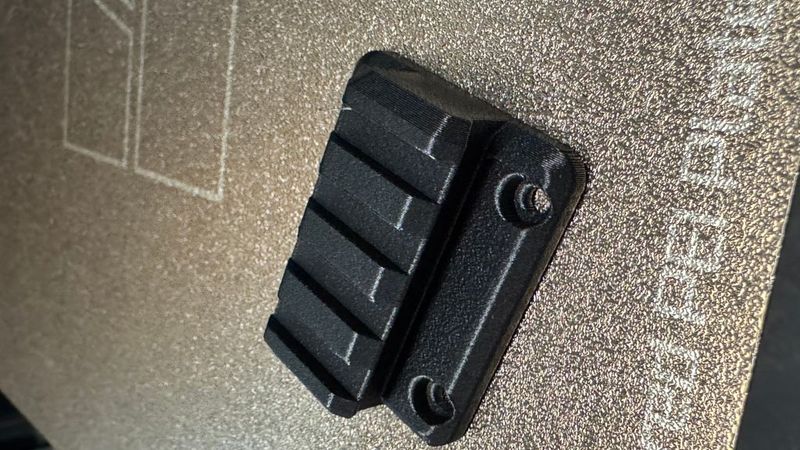

Chamfered ends to slide the female Picatinny easier onto the mount.

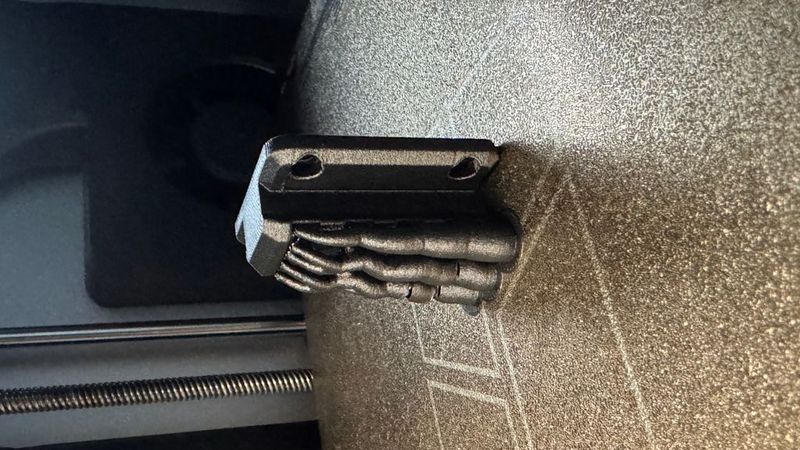

Designed to be printed vertically with auto tree supports to increase strength under payload weight.
