Revised keyhole mount for Makita dual 18v charger

raylo32
4 Files
stl Format

Description

First, this thing is a remix of the original mount posted here: https://www.thingiverse.com/thing:4854695. I can't get the TV remix function to work so I will just enter that link here.

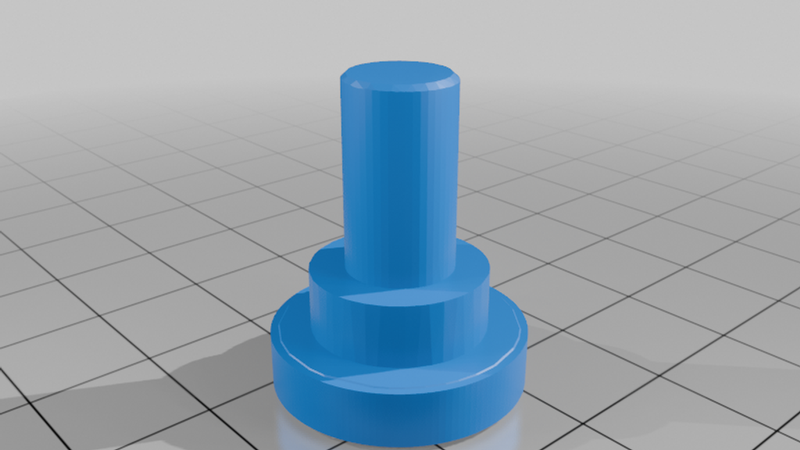

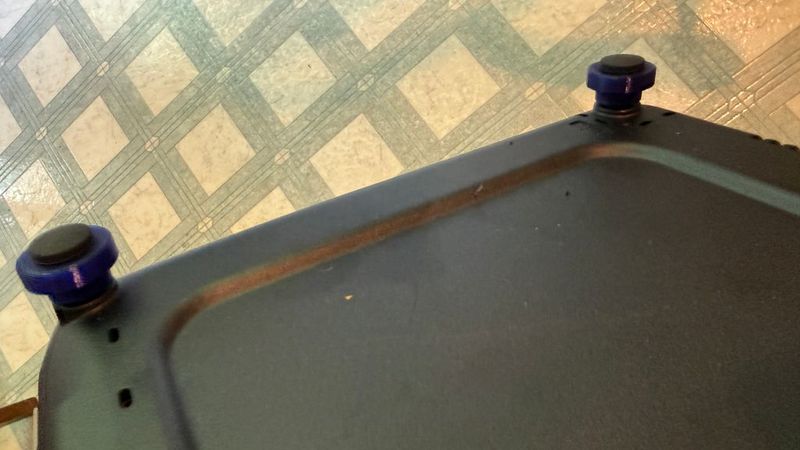

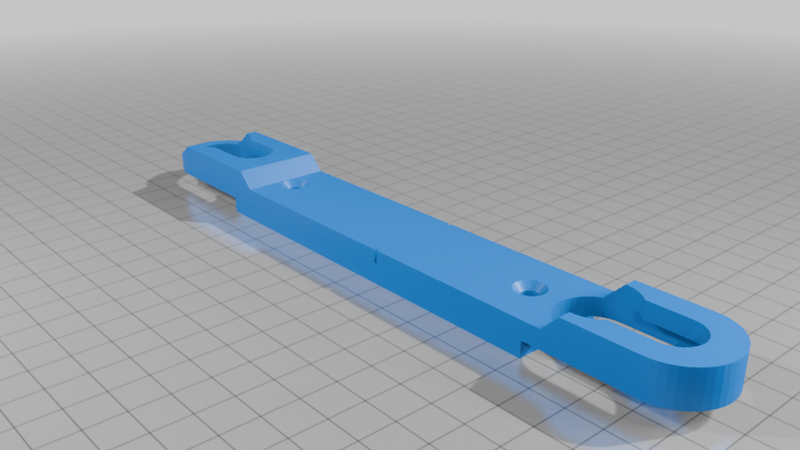

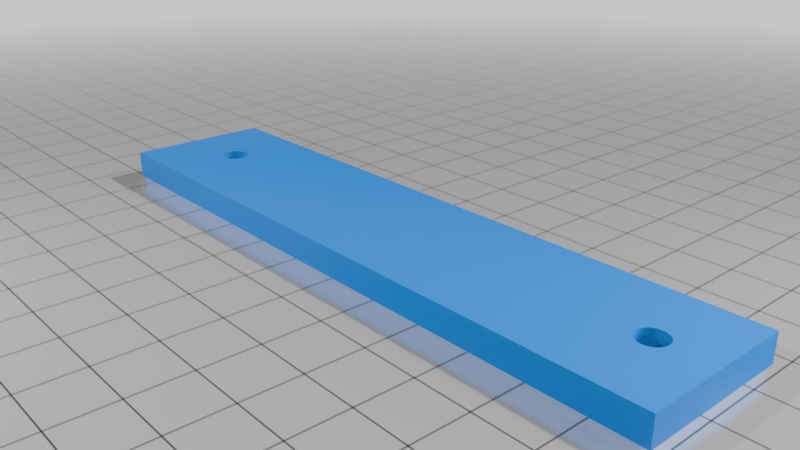

This thing is a revised version that lets you place the OEM Makita rubber feet into the pegs that install on the charger. Basically, the design includes new pegs that have holes in which to insert the rubber feet and brackets that create a little standoff distance to allow the rubber feet to not hit the wall when sliding the charger on or off the mount. So, you know where the feet are stored and you have rubber feet if and when you pull the charger off the mount and place it on a worktable. You need to trim a couple of mm off the rubber feet stems to get the feet to sit flush. I didn't want to make the holes in the pegs any deeper. If you already have the original mount installed, you don't need to print the new brackets. Just print two of the standoffs and 4 of the pegs.

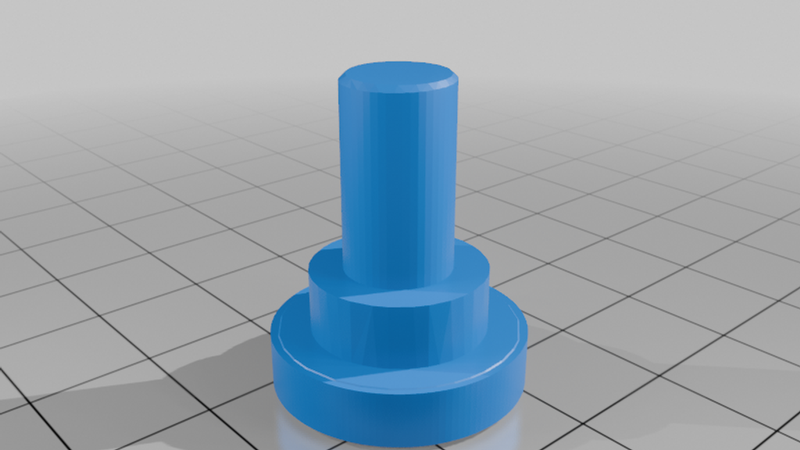

Another way to go with this would be to print the solid peg in a firm TPU. For now I am using the pegs printed in PETG with the OEM rubber feet but if those don't prove to be durable enough, I'll try the solid one with 98 TPU. The solid pins would work with the new standoff brackets or the original thing flat brackets.

Downloads

Makita_ChrgMount_Revised.stl
89.4 KB
Makita_ChrgMount_Standoff.stl
20.0 KB
MakitaChargerHolderPeg_RubberPlugHole.stl
164.2 KB
MakitaChargerHolder_Solid.stl
94.2 KB
